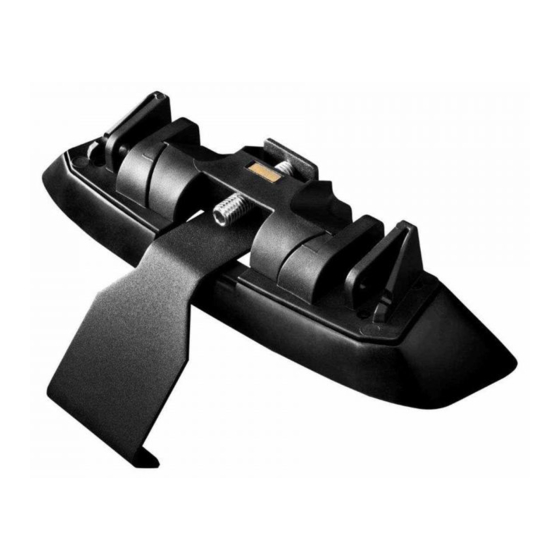

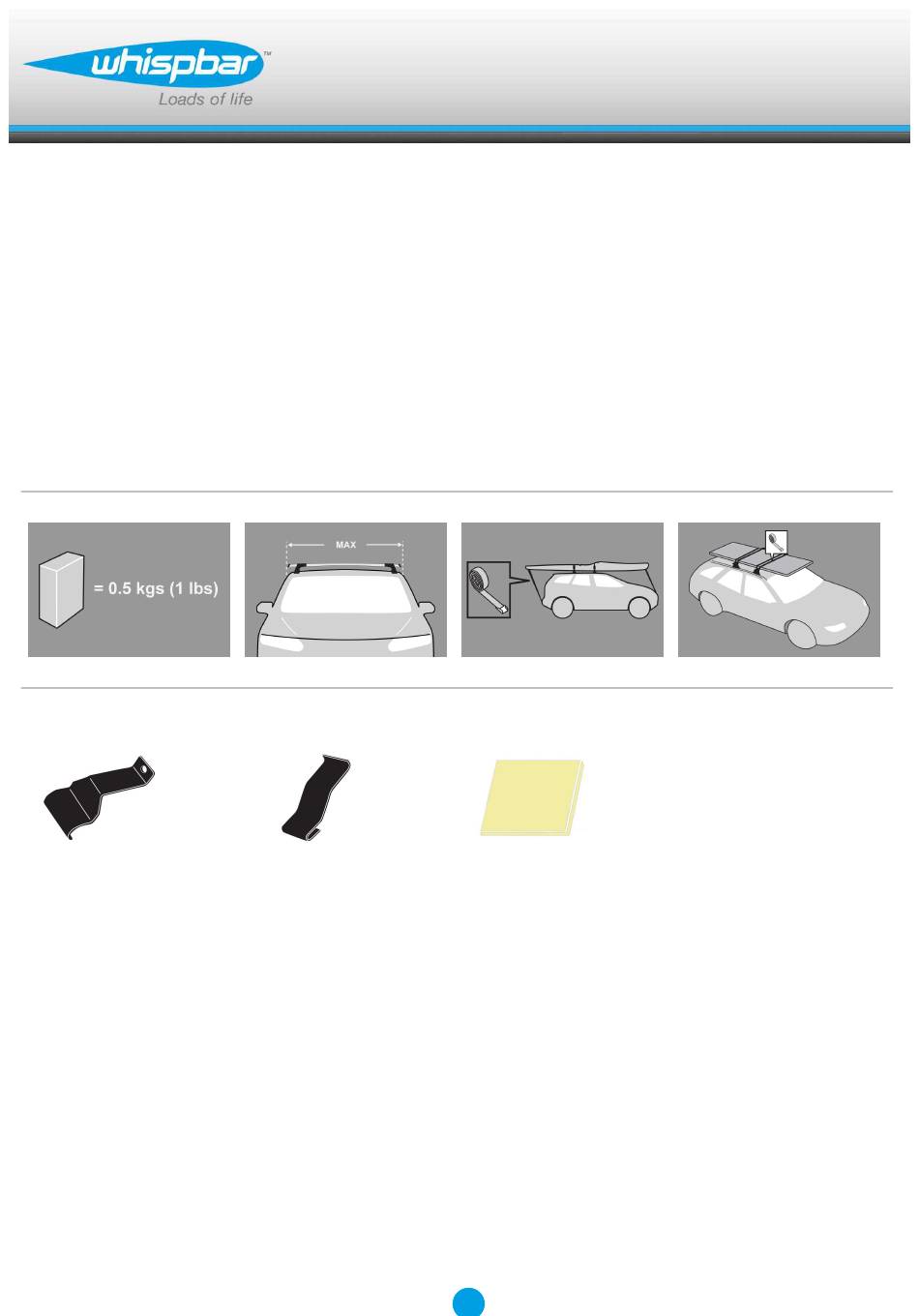

- Page 1 K308W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K308W MAX kgs (lbs) Chevrolet Colorado Crew Cab, 4dr Truck 04-12 75 kgs (165 lbs) 75 kgs (165 lbs) Holden Colorado Double Cab, 4dr Ute 08-Jun 12 75 kgs (165 lbs) 75 kgs (165 lbs) Colorado Double Cab, 4dr Ute Jul 08-12...
-
Page 3: First Time Installation
Fitting Kit K308W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K308W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K308W Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 6 Fitting Kit K308W Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 7 Fitting Kit K308W Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps over rubber door frame mouldings and body clips supplied with kit Please check the rear of this manual for information relating specifically to your vehicle.
- Page 8 Fitting Kit K308W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Clamp locates onto the body clip as shown.
- Page 9 Fitting Kit K308W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K308W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K308W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K308W Colorado, 4dr Truck 04-12 (US) -340mm 380mm 885mm 870mm -13 -3/8ths" 14 15/16ths" 34 13/16ths" 34 1/4ths" Colorado, 4dr Ute 08-Jun 12 (AU) -340mm 380mm 885mm 870mm -13 -3/8ths" 14 15/16ths" 34 13/16ths" 34 1/4ths" Colorado, 4dr Ute Jul 08-12 (NZ)
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
