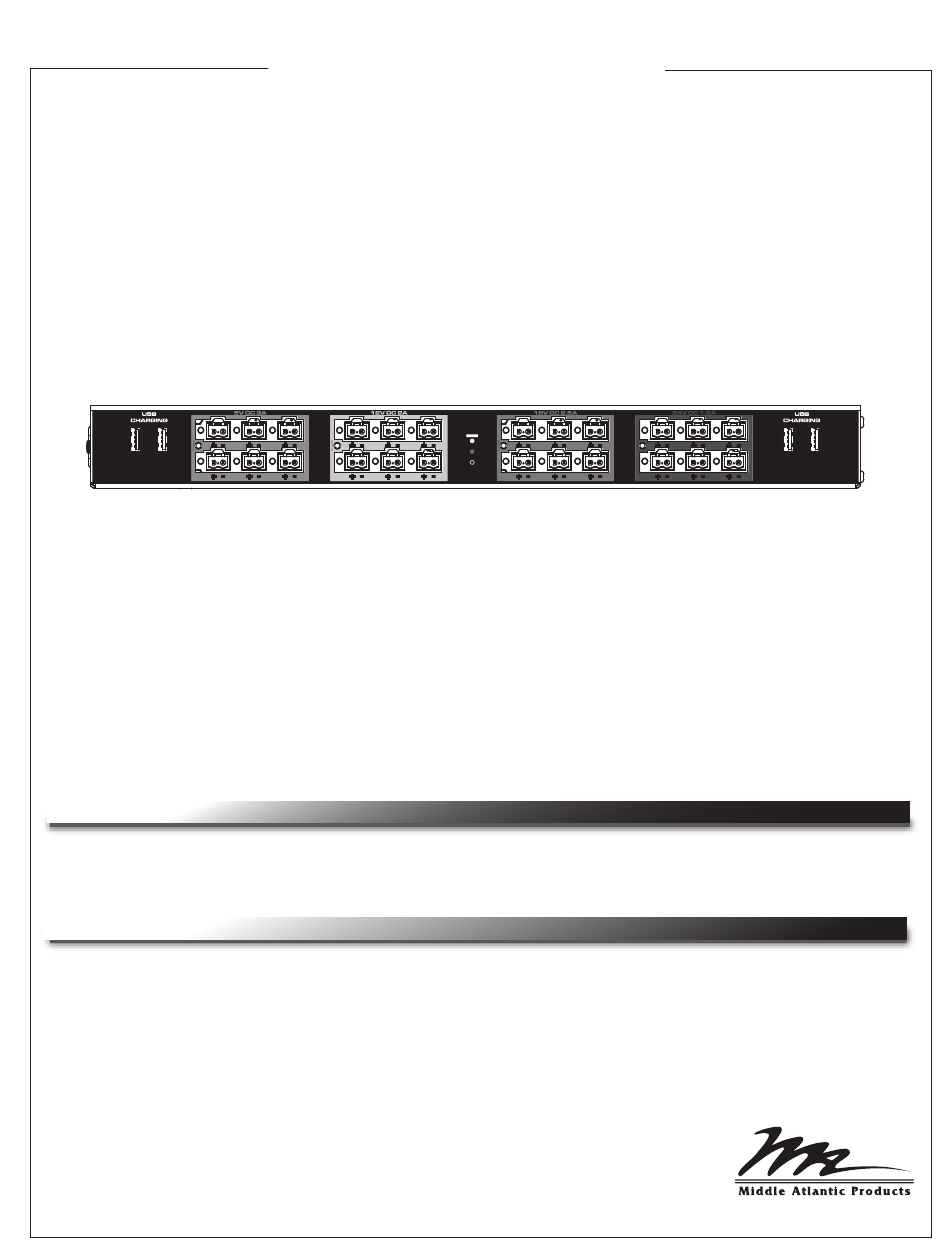

Instruction Sheet
PD-DC-125R

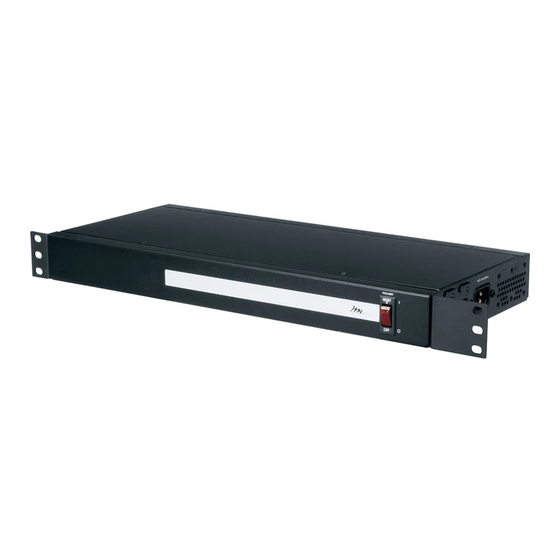

DC POWER DISTRIBUTION, 125W
PD-DC-125R
STATUS
ACTIVE
OVERLOAD
TOTAL 5V 2.5A
(ALL USB)
SHUTDOWN
THANK YOU
Thank you for purchasing the PD-DC-125R.
PRODUCT FEATURES
• Multi voltage support (5,12,18,24V)
• Surge and overload protection
• Adjustable mounting ears for flexible installation options
• Four 5V USB Charging Ports
I-00760
Rev E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-DC-125R and is the answer not in the manual?

Questions and answers

Related Manuals for Middle Atlantic Products PD-DC-125R

Summary of Contents for Middle Atlantic Products PD-DC-125R

  • Page 1 OVERLOAD TOTAL 5V 2.5A (ALL USB) SHUTDOWN THANK YOU Thank you for purchasing the PD-DC-125R. PRODUCT FEATURES • Multi voltage support (5,12,18,24V) • Surge and overload protection • Adjustable mounting ears for flexible installation options • Four 5V USB Charging Ports...

  • Page 2: Regulatory Compliance

    IMPORTANT SAFETY INSTRUCTIONS / INSTRUCTIONS IMPORTAANTES SUR LA SÉCURITÉ DANGER HAZARDOUS VOLTAGE/DANGER HAUTE TENSION WARNING! Failure to read, understand and follow the following information can result in serious personal injury, The lightning flash with the arrowhead symbol, within an equilateral damage to the equipment or voiding of the warranty.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Safety Instructions - Rack Mount A. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
  • Page 4 INSTRUCTIONS IMPORTAANTES SUR LA SÉCURITÉ Consignes de sécurité - montage en rack A. Température de fonctionnement élevée - Si installé dans un rack fermé ou à unités multiples , la température ambiante de fonctionnement de l'environnement du rack peut être supérieure à ambiante de la pièce . Par conséquent , il faudrait envisager d'installer l'équipement dans un environnement compatible avec la température ambiante maximale ( Tma ) spécifiée par le constructeur .
  • Page 5 HARDWARE/ITEMS SUPPLIED HARDWARE KIT INCLUDES ITEM DESCRIPTION Orange 5V DC Connector Yellow 12V DC Connector Blue 18V DC Connector Red 24V DC Connector Standard Mount Ears Deep Rack Mount Ears Rack Ear Screws Page 5...
  • Page 6 CONNECTIONS, CONTROLS AND INDICATORS FRONT VIEW POWER  REAR VIEW PD-DC-125R STATUS ACTIVE OVERLOAD TOTAL 5V 2.5A (ALL USB) SHUTDOWN SIDE VIEW 120V 5A 60Hz DESCRIPTION A. 15A CIRCUIT BREAKER POWER SWITCH B. USB POWER BANK 2.5A TOTAL (FOUR OUTPUTS) C 5V DC 3A BANK (SIX OUTPUTS): Individually protected by automatically resettable PTC Fuses.

  • Page 7: Rack Ear Installation

    MAKING TERMINAL BLOCK CONNECTIONS CAUTION: Use a multimeter to confirm wire polarity before making connnections or damage to equipment may occur. ATTENTION: Utiliser un multimètre pour confirmer la polarité des fils avant d'effectuer la connexion ou des dommages à l'équipement peut se produire.

  • Page 8: Horizontal Mounting

    RACK EAR MOUNTING ORIENTATION HORIZONTAL MOUNTING VERTICAL MOUNTING All ears can be mounted All ears can be mounted facing up or down, front or facing front or rear of unit. rear of unit. (Standard (Standard depth mount ears depth mount ears pictured.) pictured.) HORIZONTAL OFFSET MOUNTING Deep rack mount ears...

  • Page 9: Specifications

    SPECIFICATIONS SPECIFICATION DETAILS LINE VOLTAGE 120VAC/60Hz (MIN. 108VAC, MAX. 127VAC) CURRENT RATING 5A AC MAXIMUM POWER RATING 600W (DC OUTPUTS FULLY LOADED) AC INPUT IEC C-14 POWER CORD LENGTH 6 Feet SURGE PROTECTION MOV, MODE L-N, CLAMPING VOLTAGE 595V TOTAL DC OUTPUT CURRENT 11.2A DC TOTAL DC OUTPUT POWER 125.3W...
  • Page 10 WARRANTY Middle Atlantic Products (the "Company") warrants the product to be free from defects in material or workmanship under normal use and conditions for a period of (3) years from the date of shipment by the company. The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty...
