TOP VIEW
Thank you for purchasing the PowerCool Series component cooler and power distribution.
Please read these instructions thoroughly before installing/operating this product.
PRODUCT FEATURES
Integrated rackmount power distribution and cooling solution, in one convenient 1RU package:
- Blower exhausts 50CFM while providing high static pressure to maintain airflow.
- Multi-stage surge protection with surge status notification.
- Thermal sensing with proportional blower speed.
Operation Instructions
PowerCool™ Series
PDCOOL-1015RA
PDCOOL-1020RK
PDCOOL-1115R
PDCOOL-1120R ALSO AVAILABLE
BOTTOM VIEW
I-00572
Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDCOOL-1020RK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Middle Atlantic Products PDCOOL-1020RK

Summary of Contents for Middle Atlantic Products PDCOOL-1020RK

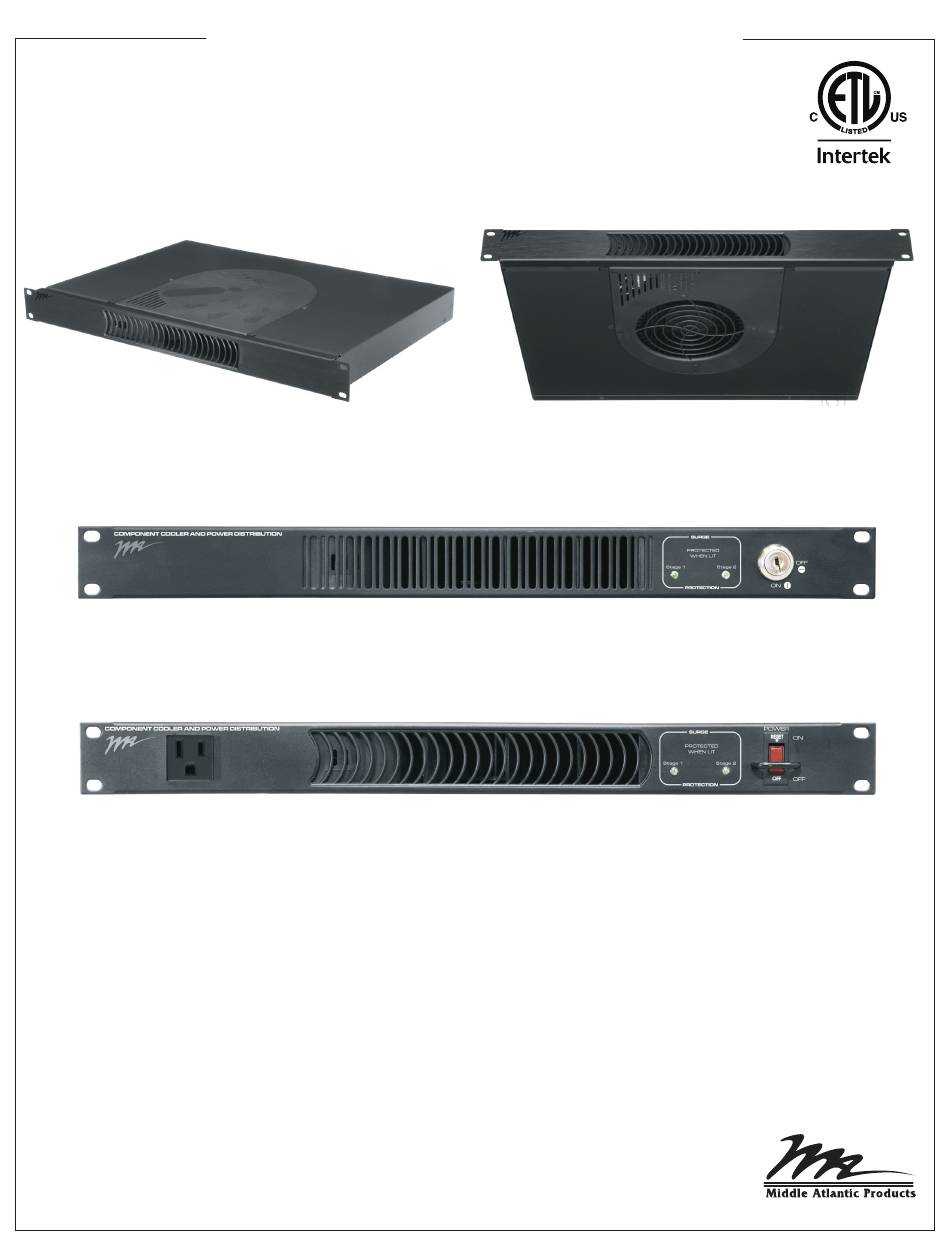

  • Page 1 Operation Instructions PowerCool™ Series TOP VIEW BOTTOM VIEW PDCOOL-1015RA PDCOOL-1020RK PDCOOL-1115R PDCOOL-1120R ALSO AVAILABLE Thank you for purchasing the PowerCool Series component cooler and power distribution. Please read these instructions thoroughly before installing/operating this product. PRODUCT FEATURES Integrated rackmount power distribution and cooling solution, in one convenient 1RU package: - Blower exhausts 50CFM while providing high static pressure to maintain airflow.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNINGS............................2 APPLICATIONS...........................3 FEATURES PDCOOL-1120R..........................4 PDCOOL-1115R..........................5 PDCOOL-1020RK..........................6 PDCOOL-1015RA..........................7 WARRANTY............................8 WARNINGS READ AND SAVE THESE INSTRUCTIONS! CONSERVER CES INSTRUCTIONS! CAUTION/ATTENTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 3: Applications

    INSTALLATION NOTES: The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. The socket-outlet shall be installed near the equipment and shall be easily accessible. APPLICATIONS - Extracts heat from a specific component within a rack; or the entire rack. - Powers multiple devices within the rack enclosure.
  • Page 4 PDCOOL-1120R CONNECTIONS, CONTROLS AND INDICATORS COMPONENT COOLER AND POWER DISTRIBUTION POWER SURGE 120 VOLT 16 AMP 60 Hz PROTECTION FRONT VIEW 50CFM BLOWER: This blower will turn on at 87° F (30.5° C) and run proportionately (speed increases with temperature) from 87° F (30.5° C) to 95° F (35° C). At 95° F and above, the blower will run at full speed.

  • Page 5: Pdcool-1115R

    PDCOOL-1115R CONNECTIONS, CONTROLS AND INDICATORS COMPONENT COOLER AND POWER DISTRIBUTION POWER SURGE 120 VOLT 12 AMP 60 Hz PROTECTION FRONT VIEW 50CFM BLOWER: This blower will turn on at 87° F (30.5° C) and run proportionately (speed increases with temperature) from 87° F (30.5° C) to 95° F (35° C). At 95° F and above, the blower will run at full speed.

  • Page 6: Pdcool-1020Rk

    PDCOOL-1020RK CONNECTIONS, CONTROLS AND INDICATORS COMPONENT COOLER AND POWER DISTRIBUTION SURGE PROTECTION FRONT VIEW 50CFM BLOWER: This blower will turn on at 87° F (30.5° C) and run proportionately (speed increases with temperature) from 87° F (30.5° C) to 95° F (35° C). At 95° F and above, the blower will run at full speed.

  • Page 7: Pdcool-1015Ra

    PDCOOL-1015RA CONNECTIONS, CONTROLS AND INDICATORS FRONT VIEW 50CFM BLOWER: This blower will turn on at 87° F (30.5° C) and run proportionately (speed increases with temperature) from 87° F (30.5° C) to 95° F (35° C). At 95° F and above, the blower will run at full speed.

  • Page 8: Warranty

    WARRANTY Middle Atlantic Products, Inc. (the "Company") warrants the PowerCool Series to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from the date of shipment by the company.
