Coolmax CW-650T User Manual

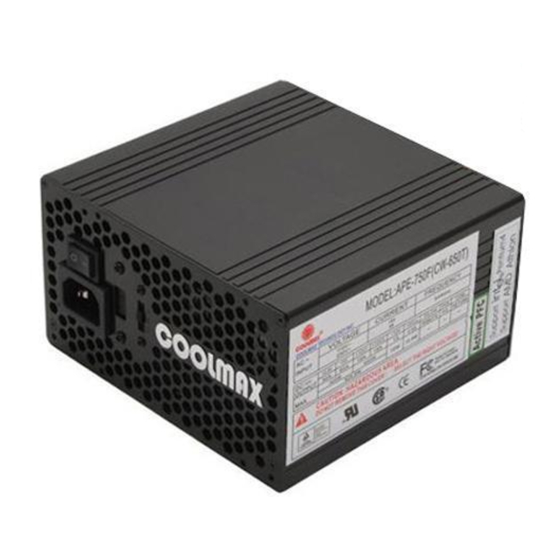

Coolmax cw-650t power supply: user guide

..............................................................

Table of Content

...................................................

........................................... ...............

..........................................................

...................................................

....................................................

Table of Contents

Need help?

Do you have a question about the CW-650T and is the answer not in the manual?

Page 1 Function Description ..How to Setup Specifications Precaution Simple Maintainance Mechanical Diagram Table of Content...
Page 2 1. Function Description This power supply is designed for personal computer. There are six DC outputs: +5V, +12V1, +12V2, -12V, +3.3V,+5V , and it provides power to all computer systems and peripherals with maximum protection. Here are some of the key features:...
Page 3 +12V1 and +12V2 total output shall not exceed 440 watts +3.3V, +5V, +12V1 and +12V2 total output shall not exceed 625.5 watts 3.3 Protection The power supply itself is designed with short circuit, over voltage and over load protection functions described as below: 3.3.1 Short Circuit Protection A short circuit on any DC output will cause the power to latch.
Page 4 10 A/s starting from full load. 3.4 Physical Environment Operation Conditions The power supply shall be capable of continuous operation and meet all electrical specification without need for adjustment when subjected to the following environ-mental conditions:...
Page 6 If power supply cannot work properly, before send for repair, please check the following items: 5.1 Does power cord indeed plug into electrical outlet? 5.2 Does Input Voltage set in power supply correspond to the main source in your environment? 5.3 Please check the output connectors plugging in proper direction and connecting firmly.
