Summary of Contents for Coolmax CA-300

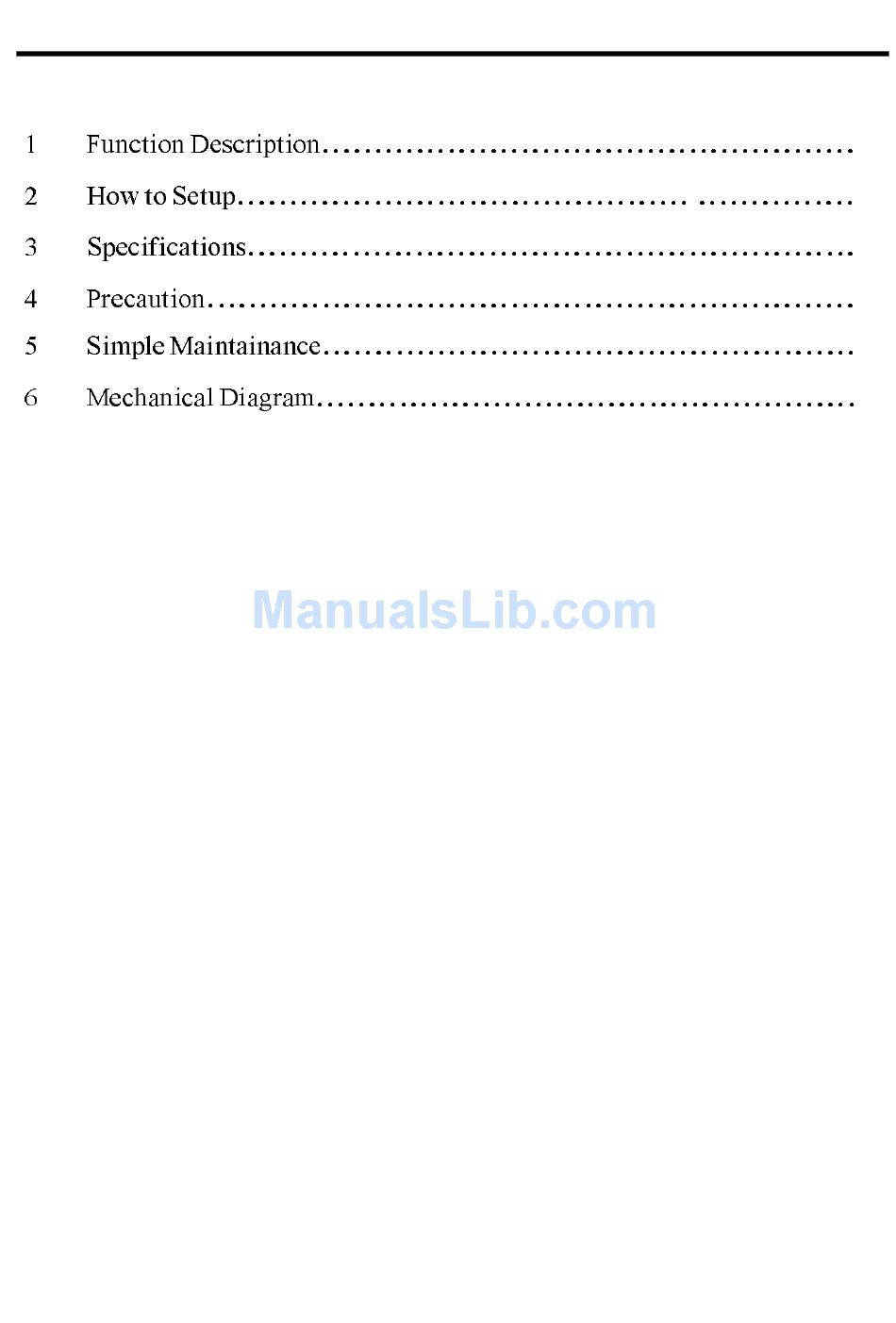

- Page 1 Table of Content...

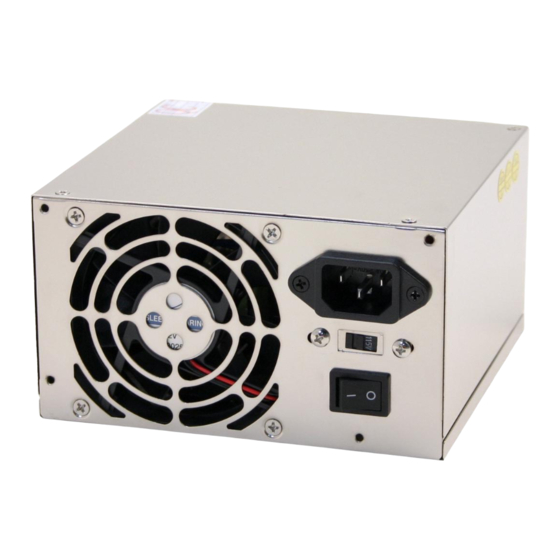

- Page 2 1. Function Description This power supply is designed for personal computer. There are six DC outputs: +5V, -5V, +12V, -12V, +3.3V systems and peripherals with maximum protection. Here are some of the key features: S-ATA ready All kinds of protection circuits (OVP/OPP/SCP) Fully supports all Intel &...
- Page 3 -12V +3.3V & +5V max. 230W; +3.3V, +5V & +12V max. 370.5W. 3.3 Protection The power supply itself is designed with short circuit, over voltage and over load protection functions described as below: 3.3.1 Short Circuit Protection A short circuit on any DC output will cause the power to latch. The power supply will withstand a continuous short circuit to the output without damage or overseers to the unit.
- Page 4 Operation Storage No degradation of the power supply shall occur during shipping or storage at the specified condition. 3.5 Regulatory Compliance Our power supply has been certified to comply with multi-national Safety and EMI.
- Page 5 5.2 Does Input Voltage set in power supply correspond to the main source in your environment? 5.3 Please check the output connectors plugging in proper direction and connecting firmly. 5.4 Please turn off the power and turn it on for several times, and the interval must be at least 5 seconds.
