Summary of Contents for Coolmax CP-500T

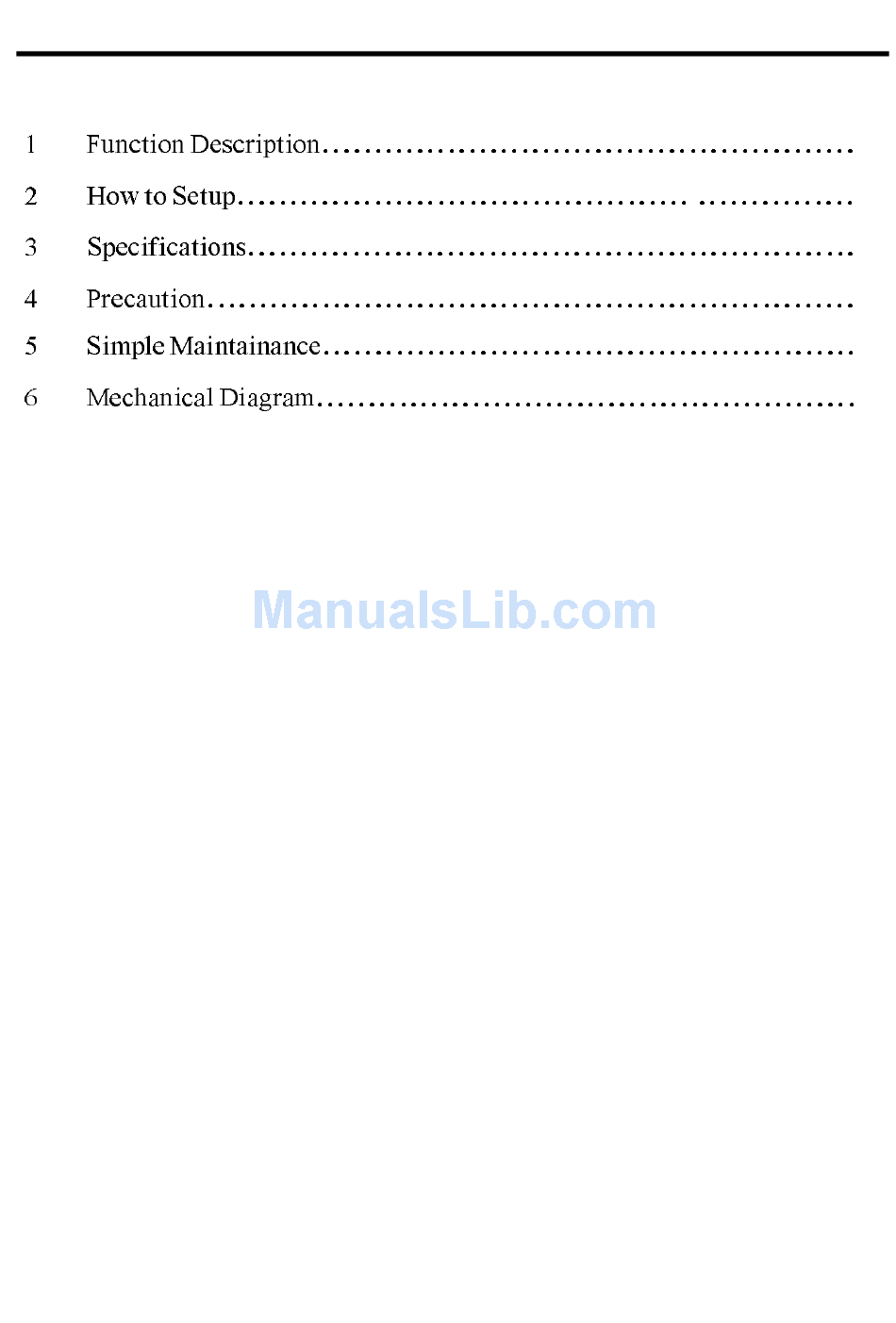

- Page 1 Table of Content...
- Page 2 1. Function Description This power supply is designed for personal computer. There are six DC outputs: +5V, +12V1, +12V2, -12V, +3.3V computer systems and peripherals with maximum protection. Here are some of the key features: Active Power Factor Correction All kinds of protection circuits (OVP/OCP/OPP/SCP)
- Page 3 Model AP-450X(A/PFC) CP-400T AP-500X(A/PFC) CP-450T AP-600X(A/PFC) CP-500T AP-650X(A/PFC) CP-650T 3.4 Protection The power supply itself is designed with short circuit, over voltage, no load and over power protection functions described as below: +3.3V +12V1 +12V2 -12V 2.5A 2.5A 2.5A 2.5A...
- Page 4 Operation Storage No degradation of the power supply shall occur during shipping or storage at the specified condition. 3.6 3-Band Thermal Management System (High): use by maximum system utilization, cooling down effectively.
- Page 5 If power supply cannot work properly, before send for repair, check the following items: 5.1 Does power cord indeed plug into power outlet? 5.2 Does input voltage set in power supply correspond to the main source in your environment? 5.3 Please check the output connectors plugging in proper direction and connecting firmly.
-
Page 6: Mechanical Diagram
6. Mechanical Diagram Power Connector/cable adaptors Drawing Pin1 Pin13 1007 16# ORANGE 1007 18# BLUE 1007 18# BLAC K 1007 20# GREE N 1007 18# B LACK 1007 18# B LACK 1007 18# B LACK 1007 18# RE D 1007 18# RE D 1007 18# YELL OW 1007 18# PUR PL E 1007 20# GRAY...
