515RTAENI-N34
Protocol Gateway
Product User Guide
Firmware Version 4.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 515ENI-N34 and is the answer not in the manual?

Questions and answers

Related Manuals for RTA 515ENI-N34

Summary of Contents for RTA 515ENI-N34

  • Page 1 All manuals and user guides at all-guides.com 515RTAENI-N34 Protocol Gateway Product User Guide Firmware Version 4.02...
  • Page 2 All manuals and user guides at all-guides.com Trademarks CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA. MicroLogix, RSLogix 500, SLC, and PanelView are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered trademarks of Microsoft Corporation.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Contents Revision History ............................5 Overview ............................... 7 Hardware – N34 ............................8 Mounting............................... 9 Installing ..............................9 Removing .............................. 9 Powering the Gateway ..........................10 Pinouts & Wiring ............................11 Pinouts ..............................11 Wiring Accessing the Main Page..........................
  • Page 4 All manuals and user guides at all-guides.com Other References Reference Links ........................... 26 NET ENI Event Log Values ........................27 Security Configuration Home Tab (Diagnostics) ..........................30 Msg Log Tab ............................30 DF1 Status DF1 Counters ............................31 Serial Diagnostic Tab ........................... 32 Ethernet Status Ethernet Status: Counters ........................

  • Page 5: Revision History

    All manuals and user guides at all-guides.com Revision History Version Date Notes 3.29 01/01/2017 Product Launch Bug Fixes 1. Fixes for setting Network Config using RSLinx 2. Fixes for setting Serial and Ethernet config using old AB 3.30 3/14/2017 1761-NET-ENI/W Serial PC Config Utility 3.
  • Page 6 All manuals and user guides at all-guides.com 7. Enabled force of at least 1 Admin when security is enabled. 8. Minor webpage layout fixes. Real Time Automation, Inc. 1-800-249-1612...

  • Page 7: Overview

    All manuals and user guides at all-guides.com Overview The 515RTAENI is a replacement for the Allen-Bradley 1761-NET-ENI and 1761-NET-ENIW modules. The 515RTAENI gateway: • Provides the same Ethernet connectivity for all DF1 serial controllers, PanelView Standard Terminals, and other DF1 full-duplex devices •...

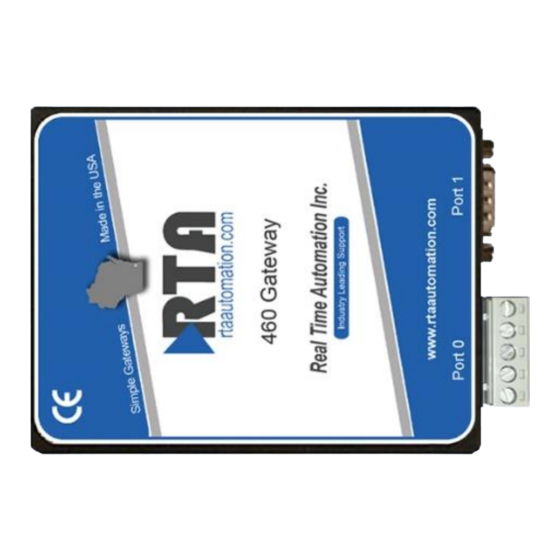

  • Page 8: Hardware - N34

    All manuals and user guides at all-guides.com Hardware – N34 Physical Specifications 8 V @ 230 mA to 28 V @ 80 mA POWER Power can be received over serial cable TEMPERATURE Industrial Temperature Range -40C to +85C CERTIFICATIONS UL, C/UL, CE, FCC, CLASS 1 DIV 2 MOUNTING Din Rail, Panel SIZE...

  • Page 9: Mounting

    All manuals and user guides at all-guides.com Mounting Installing Follow these steps to install your interface converter. 1. Mount your DIN Rail. 2. Hook the top mounting flange over the DIN Rail. 3. While pressing the 515RTAENI against the rail, press down to engage the spring loaded upper clip and rotate the unit parallel to the DIN Rail.

  • Page 10: Powering The Gateway

    All manuals and user guides at all-guides.com Powering the Gateway The following steps will allow you to properly and safely power the gateway. Warning improper wiring will cause unit failure Use the Barrel Connector the Screw Terminals power connection, both 1) Connect a 24VDC power source to the gateway.

  • Page 11: Pinouts & Wiring

    All manuals and user guides at all-guides.com Pinouts & Wiring Pinouts The gateway has two connectors for communication: T-Strip (Port 0) and DB9 port (Port 1). Either port can be used for RS-232 communications using the pinouts in the diagram below. NOTE: Only one physical port can be used at a time.

  • Page 12: Accessing The Main Page

    All manuals and user guides at all-guides.com Accessing the Main Page The following steps will help you access the browser based configuration of the gateway. By default, DHCP is enabled. If the gateway fails to obtain an IP address over DHCP it will Auto IP with 169.254.X.Y. Note: Default setting is set to DHCP.

  • Page 13: Error: Main Page Does Not Launch

    All manuals and user guides at all-guides.com Error: Main Page Does Not Launch If the Main page does not launch, please verify the following: 1) Check that the PC is set for a valid IP Address a. Open a MS-DOS Command Prompt b.

  • Page 14: Web Configuration Tabs

    All manuals and user guides at all-guides.com Web Configuration Tabs The 515RTAENI gateway has a built-in webserver that can be accessed by entering the IP Address of the gateway into a web browser’s address bar. All configurable fields inside the gateway are grouped into 5 different tabs. Below is a list of tabs and what information can be found on each one: 1) Home –...

  • Page 15: Committing Changes To The Gateway

    All manuals and user guides at all-guides.com Committing Changes to the Gateway • To make changes to the gateway, find the tab identifying which information to change. Next to the section to modify, there is an Edit button. • Once the Edit button has been clicked, the icon will change into a Save button and any editable fields under that section will change into text boxes or dropdown lists.

  • Page 16: Network Tab

    All manuals and user guides at all-guides.com Network Tab Ethernet Settings By default, the gateway is configured for DHCP. There are 2 different options for the gateway to get an IP Address: 1. DHCP Only – Attempts to receive an IP Address every time that the gateway is powered up. If DHCP fails, then an AutoIP Address is used to make the webpages accessible and DHCP will continue to attempt to get an address.

  • Page 17: Changing From Dhcp To Static Ip

    All manuals and user guides at all-guides.com Changing from DHCP to Static IP 1) Click the Edit button next to Ethernet Settings on the Network Tab in the gateway. 2) Change the dropdown of the IP Settings field to be Static IP. 3) Change the field IP Address, Subnet Mask, and Gateway.

  • Page 18: Serial Settings

    All manuals and user guides at all-guides.com Serial Settings By default, the gateway is configured for the following settings: • Baud Rate: 19200 • DF1 Error Detection: CRC • Serial Mode (fixed): DF1 Full-duplex, RS232, 8 data bits, parity none, 1 stop bit These settings should match what is configured in the DF1 Serial Device, including the DLE parameters of DLE NAK Retries, DLE ENQ Retries, and DLE Embedded Response.

  • Page 19: Email Settings

    All manuals and user guides at all-guides.com Email Settings This optional section can be filled out if alarms and messages need to be e-mailed out on the network. To configure, the following fields can be modified: Field Description This is the TCP/IP address or name (maximum of 64 characters) of SMTP Email server Server.

  • Page 20: Email Alarms And Messages

    All manuals and user guides at all-guides.com Email Alarms and Messages This optional section can be filled out if alarms and messages need to be e-mailed out on the network. Under the “To:” section, up to 50 email addresses (up to 64 characters) can be configured and stored. The “Config”...

  • Page 21: Email Message Example

    All manuals and user guides at all-guides.com Email Message Example The email message data is a string that contains valid ASCII text as shown in the example below: The controller would send a 485CIF Write message with the write data being the email text to send, to the destination Node (50 to 99) that corresponds to the destination email address.

  • Page 22: Data View Tab

    All manuals and user guides at all-guides.com Data View Tab The Data View Tab shows the data that has been sent to the 515RTAENI from the attached serial controller. Using this page, data can also be written back to the serial controller. This page is designed to act as a “scratch-pad”...

  • Page 23: Mapping Tab

    All manuals and user guides at all-guides.com Mapping Tab The Mapping webpage is used to associate DF1 Nodes with IP addresses: it creates a routing table. All messages received from a remote controller are decoded and the messages are transmitted to the local controller.
  • Page 24 All manuals and user guides at all-guides.com IP Routing Table example Configure Node # Function Configure route 0 address. Execute Node # Function # Send message to IP address @ DF1 Node 100 Real Time Automation, Inc. 1-800-249-1612...

  • Page 25: Utility Tab

    1. Click the Save Configuration to PC button. 2. A prompt will then ask the type of file to save as, any type will suffice, though the default is *.rta. 3. Save the file to the PC. Real Time Automation, Inc.

  • Page 26: Restart Gateway

    All manuals and user guides at all-guides.com Restart Gateway There are 3 options to restart the gateway: ● Simple Reset—performs a software reboot. ● Reset out of box defaults—brings the device back to its original manufacturing defaults, including setting the gateway to DHCP mode. ●...

  • Page 27: Net Eni Event Log Values

    All manuals and user guides at all-guides.com NET ENI Event Log Values The NET ENI Event Log Values page is a scratch pad where the PLC can write log values. Up to 50 data strings can be displayed here by writing to Node 204 at element 0, with the newest event log displayed at the top.

  • Page 28: Security Configuration

    All manuals and user guides at all-guides.com Security Configuration Access to the webpages inside the 515RTAENI gateway can be controlled by creating different access privileges. The first time the edit button is clicked, only one can be configured. This is the primary account and will always have Full Access rights.
  • Page 29 All manuals and user guides at all-guides.com Real Time Automation, Inc. 1-800-249-1612...

  • Page 30: Home Tab (Diagnostics)

    All manuals and user guides at all-guides.com Home Tab (Diagnostics) The Home Tab displays diagnostic counters that show the current gateway status. These diagnostics are useful for troubleshooting communication problems. There is also a logging table that can be used to further troubleshoot the Ethernet, Serial, and general gateway problems.

  • Page 31: Df1 Status

    All manuals and user guides at all-guides.com DF1 Status DF1 Counters The counters under DF1 Status can help determine the state of the serial communication: Field Description Displays the total number of DF1 messages transmitted to the Total Num Messages Transmitted attached serial controller.

  • Page 32: Serial Diagnostic Tab

    All manuals and user guides at all-guides.com Serial Diagnostic Tab The numbers under the DF1 Status can be further broken down by DF1 Node by using the Serial Diagnostics table at the bottom of this page. Here, the user can filter a specific DF1 Node, if desired, as well as use the following filters: Display All, Display Timeouts, Display Bad BCC/CRC, or Display Queue Full.

  • Page 33: Ethernet Status

    All manuals and user guides at all-guides.com Ethernet Status Ethernet Status: Counters The counters under Ethernet Status can help determine the state of the Ethernet communication: Field Description Displays the total number of Ethernet messages transmitted Total Num Messages Transmitted by the gateway.

  • Page 34: Ethernet Diagnostics Tab

    All manuals and user guides at all-guides.com Ethernet Diagnostics Tab The numbers under the Ethernet Status can be further broken down by connection by using the Ethernet Diagnostics table at the bottom of this page. Here, the user can filter a specific IP Address, if desired.

  • Page 35: Led Behavior

    All manuals and user guides at all-guides.com LED Behavior LED 1: Serial Port Status Serial Communications are active and is Solid Green communicating to the gateway within the Inactivity Timeout configured Blink Green No active communications (Idle) Blink Red No active communications (Timeout) Solid Red Fatal Error LED 2: Ethernet Status...

  • Page 36: Df1 Node Descriptions Reference Table

    All manuals and user guides at all-guides.com DF1 Node Descriptions Reference Table This table shows what each DF1 Node is used for. Node Options/Description Used to forward messages from the serial device to an IP address. A message sent to Node n is sent to the IP address at Node n+100. Therefore, a message sent to 0-49 Node 0 is sent to the IP address stored in Node 100.
  • Page 37 All manuals and user guides at all-guides.com Nodes 150-199 give the email addresses used for message sent to Nodes 50-99. 150-199 There is 1 address per message, so each Node is in a 1-1 relationship with the other.  Email Alarms and Messages, p20. Define URL links.
  • Page 38 All manuals and user guides at all-guides.com webpage can display the 50 most recent event messages, and when the event list displays 50 event strings (i.e. event list full) a new event string written to the list will overwrite the oldest event displayed. The most recent events are displayed at the top of the NET ENI Event Log Values webpage, and older events are pushed down the page when new events are added.

  • Page 39: Easily Replace An Existing Neteni Device

    All manuals and user guides at all-guides.com Use of Existing 1761-NET-ENI/W Tools Easily replace an existing NETENI device The 515RTAENI supports the old Allen-Bradley ENI / ENIW Utility configuration tool. If you are doing a device replacement, just use the ENI /ENIW Utility tool to get the configuration file from the old ENI and then do a “Save To”...

  • Page 40: Using Rslinx And Rslogix

    All manuals and user guides at all-guides.com Using RSLinx and RSLogix EtherNet/IP Driver With RSLinx, when using the EtherNet/IP (ETHIP) driver, set the IP address, gateway, and subnet in the 515RTAENI for connecting a serial-only PLC using a network connection. Follow the steps below to configure the 515RTAENI for use with RSLinx and RSLogix.
  • Page 41 All manuals and user guides at all-guides.com NOTE: If you get a 0x10 error it indicates that the serial baud rate or the serial wiring are not correct. 4. Then in RSLogix under the “Controller Properties” click the “Controller Communications” tab and set the Driver to be the EtherNet/IP driver, and click the “Who Active”...
  • Page 42 All manuals and user guides at all-guides.com 7. With RSLogix you can now download programs, upload programs, and go online with the PLC using 515RTAENI. NOTE: The 515RTAENI Ethernet Status LED will only turn solid green when there are communications taking place. Anytime there are no communications for over 5 seconds, the LEDs will start flashing red.

  • Page 43: Ethernet Driver

    All manuals and user guides at all-guides.com Ethernet Driver To configure the RSLinx/RSLogix to use the Ethernet driver, first ensure that you have configured the 515RTAENI to match the serial settings on your serial PLC and that you have configured the Ethernet Network settings to something suitable to your network.

  • Page 44: Troubleshooting Rslinx And Rslogix Comms

    All manuals and user guides at all-guides.com Troubleshooting RSLinx and RSLogix Comms When attempting to configure the 515RTAENI in In RSLinx, when using EtherNet/IP, the EDS file for RSLinx I see “unrecognized device” and a yellow the 515RTAENI must be installed for RSLinx to recognize the device type.

  • Page 45: Application Specific Tips

    All manuals and user guides at all-guides.com Application Specific Tips PanelView Plus Comms The following instructions are for communications setup in RSView. The 515RTAENI EDS file must be installed. Use the Rockwell EDS Hardware Installation Tool to install the EDS file supplied on the product CD.
  • Page 46 All manuals and user guides at all-guides.com Right click the Ethernet Driver and select Add Device. From the Device Selection tool, select the NetENI- connected PCCC devices, select the appropriate processor family folder, and then choose your PLC from the list in the processor folder and press OK. The example screens below show the selection of a MicroLogix 1200 controller.
  • Page 47 All manuals and user guides at all-guides.com Enter in the IP address assigned to the 515RTAENI gateway, and press Apply. The RSView software should now be able to communicate over Ethernet to the serial input of the controller using the 515RTAENI gateway. If this procedure doesn’t work the first time, delete the original target and rebuild the Comms as described above.

  • Page 48: Kepware Communications

    All manuals and user guides at all-guides.com Kepware Communications In the Kepware server there is a NET-ENI driver for NET-ENI to MicroLogix communications, but this will not work with the 515RTAENI gateway. In Kepware you need to do the following to gather data from a SLC 5/03, SLC 5/04, or MicroLogix using the 515RTAENI.
