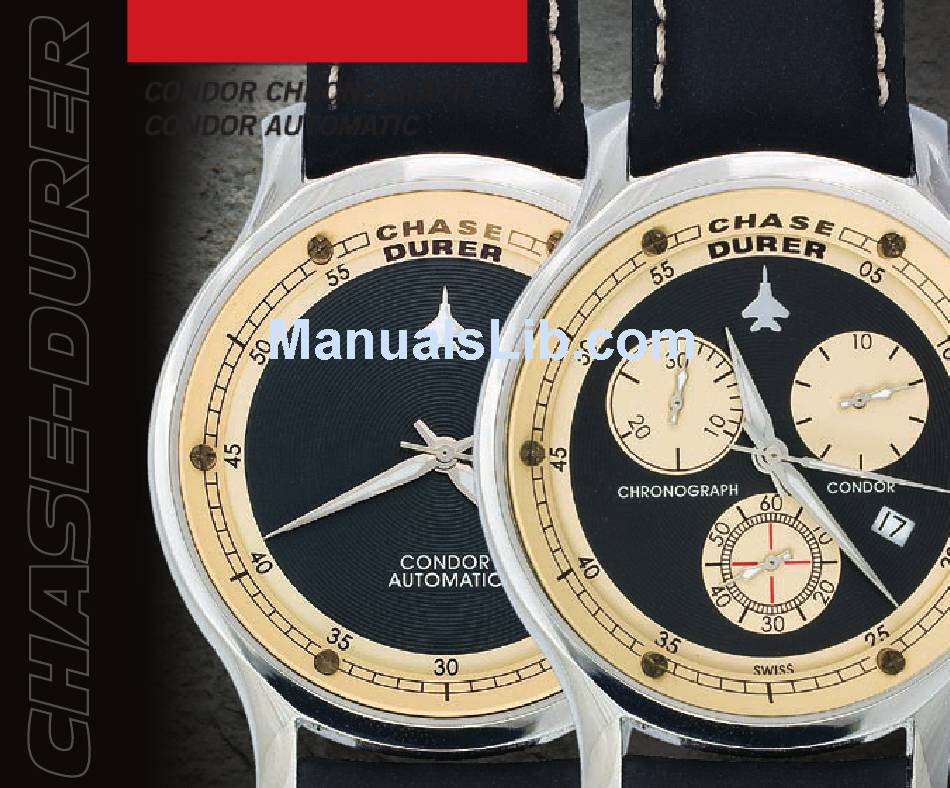

Page 1: Operation Manual
OPERATION MANUAL CONDOR CHRONOGRAPH CONDOR AUTOMATIC... -
Page 2: Specifications
SpecificationS CONDOR CHRONOGRAPH Technical Specifications • Swiss made ETA G10.711 quartz chronograph movement • Date display window • Solid 316L steel case • Domed mineral crystal with anti-reflective coating • Super-LumiNova system on hands • Water resistant to 330ft/100m • Diameter 40mm, thickness 16mm, wt 3.8oz. •... - Page 3 a: DiSpLaY 30 minutes timer CHRONOGRAPH Hour hand Second hand Minute hand Pushbutton: START/STOP CONDOR CONDOR AUTOMATIC Date indication 1/10 secs timer Setting crown Pushbutton: Split-Time Reset to zero...
- Page 4 a-1: MoDe cHRonoMetRaGe / fUnction cHRonoGRapH CHRONOGRAPH CONDOR CONDOR AUTOMATIC ADD FUNCTION: Order in which pushbutton should be pressed. START STOP START STOP Read Read START WARNING: STOP Before setting the time, the hands should be returned Setting crown to their original position. in position 1 If necessary reset to zero with pushbutton B.
- Page 5 a-2: tiMinG MoDe / SpLit-tiMe oR inteRMeDiate tiMe fUnctionS START Setting crown in position 1 CHRONOGRAPH CONDOR CONDOR AUTOMATIC SPLIT 1 Read TIME 1 -11 minutes -26 seconds CHRONOGRAPH CONDOR -5/10 secs. CONDOR AUTOMATIC RESTART (catching up) CHRONOGRAPH CONDOR CONDOR AUTOMATIC CHRONOGRAPH CONDOR...
- Page 6 B: Date coRRection Setting crown in position 2 CHRONOGRAPH CONDOR CONDOR AUTOMATIC Setting date by turning crown counter-clockwise c: tiMe coRRection Setting crown in position 3 STOP-SECOND CHRONOGRAPH CONDOR STOP CONDOR AUTOMATIC HOURS/MINUTES Date changes each time hour hand passes midnight...
- Page 7 D: ReSettinG cHRonoGRapH HanDS CHRONOGRAPH CONDOR CONDOR AUTOMATIC PUSHBUTTONS: Press longer than 1 second to turn quickly. NOTE: Do not keep setting crown in position 2 for more than 20 minutes (time could be lost). When setting crown is pulled out to position 3, movement will stop immediately (STOP SECOND).
- Page 8 CONDOR AUTOMATIC...
- Page 9 SpecificationS CONDOR AUTOMATIC Technical Specifications • Miyota 8215 automatic movement • Date display window • Exhibition back • Solid 316L steel case • Domed mineral crystal with anti-reflective coating • Super-LumiNova system on hands • Water resistant to 330ft/100m • Diameter 40mm, thickness 16mm, wt 3.8oz •...
- Page 10 Hour hand Setting Crown Positions > Winding position. >> Setting the time. >>> Stops second hand, setting minute and hour hands position. Second hand CONDOR AUTOMATIC Date window Minute hand WATCH HANDS Setting Crown...
- Page 11 Date position may be located at different position depends on models. Winding the mainspring Postion Automatic winding watch can also be hand wound by turning the crown in Position1. Wind 15-20 times and it will start to move naturally after shaking slightly.
- Page 12 ETA G10.711 (CONDOR CHRONOGRAPH) MIYOTA 8215 (CONDOR AUTOMATIC) CHASE-DURER 9601 Wilshire Blvd. #1118 Beverly Hills, CA 90210 USA Tel: 800.544.4365 / 310.550.7280 Fax: 310.550.0830 E-mail: Customer-Service@Chase-Durer.com www.chase-durer.com © Copyright 2007 CHASE-DURER LTD all rights reserved.
