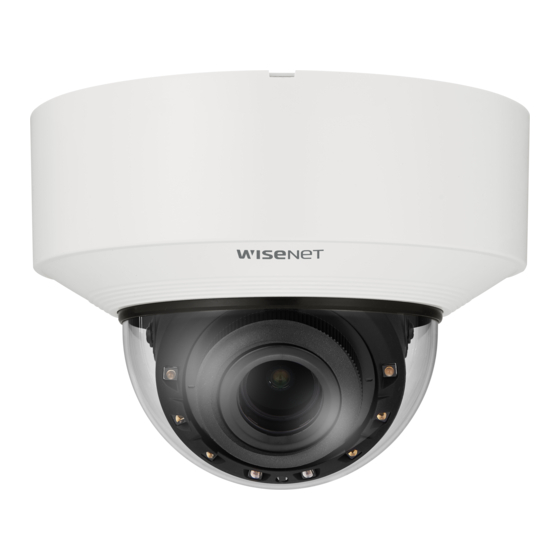

Wisenet XNV-C8083R User Manual
  1. Manuals
  2. Brands
  3. Wisenet Manuals
  4. Security Camera
  5. XNV-C8083R
  6. User manual

Wisenet XNV-C8083R User Manual

Hide thumbs Also See for XNV-C8083R:
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CAMERA
User Manual
XNV-C9083R/C8083R/C7083R/C6083R
XND-C9083RV/C8083RV/C7083RV/C6083RV
XNO-C9083R/C8083R/C7083R/C6083R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNV-C8083R and is the answer not in the manual?

Questions and answers

Related Manuals for Wisenet XNV-C8083R

Summary of Contents for Wisenet XNV-C8083R

  • Page 1 NETWORK CAMERA User Manual XNV-C9083R/C8083R/C7083R/C6083R XND-C9083RV/C8083RV/C7083RV/C6083RV XNO-C9083R/C8083R/C7083R/C6083R...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. and rated from 12 Vdc, 1.1A / PoE, 0.27A. (XND-C9083RV/XND-C8083RV/XNV-C9083R/XNV-C8083R/XNO- DO NOT REMOVE COVER (OR BACK). C9083R/XNO-C8083R) NO USER SERVICEABLE PARTS INSIDE.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW NETWORK CONNECTION AND Important Safety Instructions Connecting the Camera Directly to Local Recommended PC Specifications Area Networking SETUP Recommended Micro SD/SDHC/SDXC Connecting the Camera Directly to a DHCP Memory Card Specifications Based DSL/Cable Modem NAS recommended specs Using Device Manager Optional Accessories for Installation Automatically searching camera Configuring IP address...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
  • Page 7 Outdoor Vandal Dome Camera Indoor Dome Camera Outdoor Bullet Camera XNV-C9083R/C8083R/C7083R/C6083R XND-C9083RV/C8083RV/C7083RV/C6083RV XNO-C9083R/C8083R/C7083R/C6083R English _7...

  • Page 8: Optional Accessories For Installation

    overview OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. Model name Hanging Mount Pole Mount SBP-300LMW (Parapet Mount) SBP-156LMW (Parapet Mount) XNV-C9083R/C8083R/C7083R/ SBP-167HMW C6083R SBP-300CMW (Ceiling Mount) SBP-156CMW (Ceiling Mount) SBP-300WMW (Wall Mount) SBP-300WMW1 (Wall Mount) SBP-300NBW (Installation Box) SBP-300NBW (Wall Mount Base) XND-C9083RV/C8083RV/ SBP-167HMW...

  • Page 9: Outdoor Vandal Dome Camera

    WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate Camera-body Dome-cover <XNV-C9083R/XNV-C8083R/XNV-C7083R/XNV-C6083R> Pipe-cover IR LED Audio/Alarm cable port Illumination Sensor Reset button Micro USB port The shape of the camera lens may differ depending on the model names.

  • Page 10: Installation

    outdoor vandal dome camera INSTALLATION 2. Use the provided Torx L wrench to turn the mount plate screws counterclockwise to release the camera body. Note that it is not necessary to loosen the screws completely. This camera is waterproof and in compliance with the IP66 / IP67 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 11 Inserting a Micro SD card Removing a Micro SD card Slide the Micro SD card into the Micro SD card slot on the camera module in the direction of the arrow. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.

  • Page 12: Installation

    outdoor vandal dome camera Installation (mount plate) When connecting the cable through the side, remove the wiring hole cover first before doing so. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 1-2.
  • Page 13 [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
  • Page 14 outdoor vandal dome camera Installation (camera body) [Installing the network cable] (IP66) 2-1. Pull off the extruded part of the 1-hole cable bushing provided. Use a cable bushing compliant with the network cable to be connected. 2-2. Use the cap installer to pass through the RJ45 cable. Camera main: use a cable with the diameter of Ø5 to 6.5 Components: use a cable with the diameter of Ø5 to 8.5 Cap Installer...
  • Page 15 [Installing audio/alarm cables] 5. Connect the network/power/audio/alarm cables to the terminal on the camera body. 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera body. 6. Adjust the lens to the desired direction with reference to “Adjusting the monitoring direction for the camera”...
  • Page 16 outdoor vandal dome camera Assembling the dome cover Be careful not to alter the monitoring direction of your camera. [Directly installing on wall/ceiling] 7. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 Outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be...

  • Page 17: At A Glance

    indoor dome camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate Camera-body Dome-cover Camera-case <XND-C9083RV/XND-C8083RV/XND-C7083RV/XND-C6083RV> Pipe-cover IR LED Audio/Alarm cable port Illumination Sensor Reset button Micro USB port The shape of the camera lens may differ depending on the model names. Use installation screws of at least M4, L30 for the installation of this product.
  • Page 18 indoor dome camera INSTALLATION 2. Use the provided Torx L wrench to turn the screws on the dome cover counterclockwise to release the dome cover. Note that it is not necessary to loosen the screws completely. This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 19 4. Take off the lens cover protecting the camera lens. (XND-C7083RV/XND-C6083RV) Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. Before removing the Micro SD card, in <Setup ( )>-<Event>-<Storage>, set the device to <Off>...
  • Page 20 indoor dome camera Installation (mount plate) When connecting the cable through the side, remove the wiring hole cover first before doing so. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 1-2.
  • Page 21 [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
  • Page 22 indoor dome camera Installation (camera body) [Installing the network cable] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. Use a cable bushing compliant with the network cable to be connected. 2-2. Use the cap installer to pass through the RJ45 cable. Camera main: use a cable with the diameter of Ø5 to 6.5 Components: use a cable with the diameter of Ø5 to 8.5 Cap Installer...
  • Page 23 [Installing audio/alarm cables] 5. Connect the network/power/audio/alarm cables to the terminal on the camera body. 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera body. 6. Adjust the lens to the desired direction with reference to “Adjusting the monitoring direction for the camera”...
  • Page 24 indoor dome camera Assembling the dome cover Be careful not to alter the monitoring direction of your camera. [Directly installing on wall/ceiling] 7. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 8.
  • Page 25 outdoor bullet camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount plate Sunshield fixing screw Bottom cover Tooth washer Sunshield Wiring hole cover Camera body <XNO-C9083R/XNO-C8083R/XNO-C7083R/XNO-C6083R> Audio/Alarm cable Network port Reset button port The shape of the camera lens may differ depending on the model names.
  • Page 26 outdoor bullet camera INSTALLATION Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. This camera is waterproof and in compliance with the IP67 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 27 Installation (Mount plate) [Installing using pipe] 2-1. When installing it using a pipe, you can do so after removing the wiring hole cover on the bottom of the [Directly installing on wall/ceiling] product. Use a Phillips screwdriver to remove the fixing screws from the bottom cover and detach the wiring hole 1-1.
  • Page 28 outdoor bullet camera Installation (Bottom cover) [Installing the network cable] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. Use a cable bushing compliant with the network cable to be connected. 2-2. Use the cap installer to pass through the RJ45 cable. Camera main: use a cable with the diameter of Ø5 to 6.5 Components: use a cable with the diameter of Ø5 to 8.5 Cap Installer...
  • Page 29 [Installing audio/alarm cables] Installing the camera body 3-1. Mount the cable bushing of the provided audio/alarm cables to the Bottom cover. 1. Hang the safety cable up on a hook that looks like an arrow in the Bottom cover. e.g. 4.
  • Page 30 outdoor bullet camera 2. Connect the network/power/audio/alarm cables to the terminal on the camera body. 3. Join the camera body with the Bottom cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 Place the network cable in a circular form as shown in the figure below.
  • Page 31 4. Adjust the camera direction using the Torx. wrench. Outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be When you adjust the camera position using a bracket, please loosen the bracket screw, adjust the camera, and tighten it. If purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

  • Page 32: Installation & Connection

    installation & connection ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Adjust the direction of IR LEDs not to hinder their view by an instrument. Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting the angle of the camera is called TILT.

  • Page 33: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE WiFi dongle WiFi dongle PoE Device Power Ethernet Ethernet <XNV-C9083R/C8083R/C7083R/C6083R, XND-C9083RV/C8083RV/C7083RV/C6083RV> Power <XNO-C9083R/C8083R/C7083R/C6083R> The Micro USB port of the product is provided for easier installation, and is not recommended for monitoring purposes. English _33...
  • Page 34 If you want to connect an external device, you must turn off the external device before proceeding. 1. Install the Wisenet Installation application. Connect the set and the adapter power line first, and then connect the power cable to the outlet on the wall.
  • Page 35 Connecting to Audio Input/Output ~ Audio Codec - Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate: 16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling Frequency: 16kHz) Speaker - Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz) ~ Full duplex Audio...
  • Page 36 installation & connection Connecting to the I/O port box To connect the external sensor Connect the Alarm I/O cable to the corresponding port of the port box. Connect one of the 2 signal lines to the [ALARM #1] port (if you want this to be the input port) and the remaining one to the [GND] port.

  • Page 37: Connecting The Camera Directly To Local Area Networking

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 38: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 39: Manually Registering Camera

    AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically ~ Example of the Dynamic IP environment configure the IP. XNO-C9083R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2.

  • Page 40: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.

  • Page 41: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _41...

  • Page 42: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.

  • Page 43: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.

  • Page 44: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses ~ You must enable the <Audio In> check box in <Basic> - <Video Profile>. ~ This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured.
  • Page 45 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
