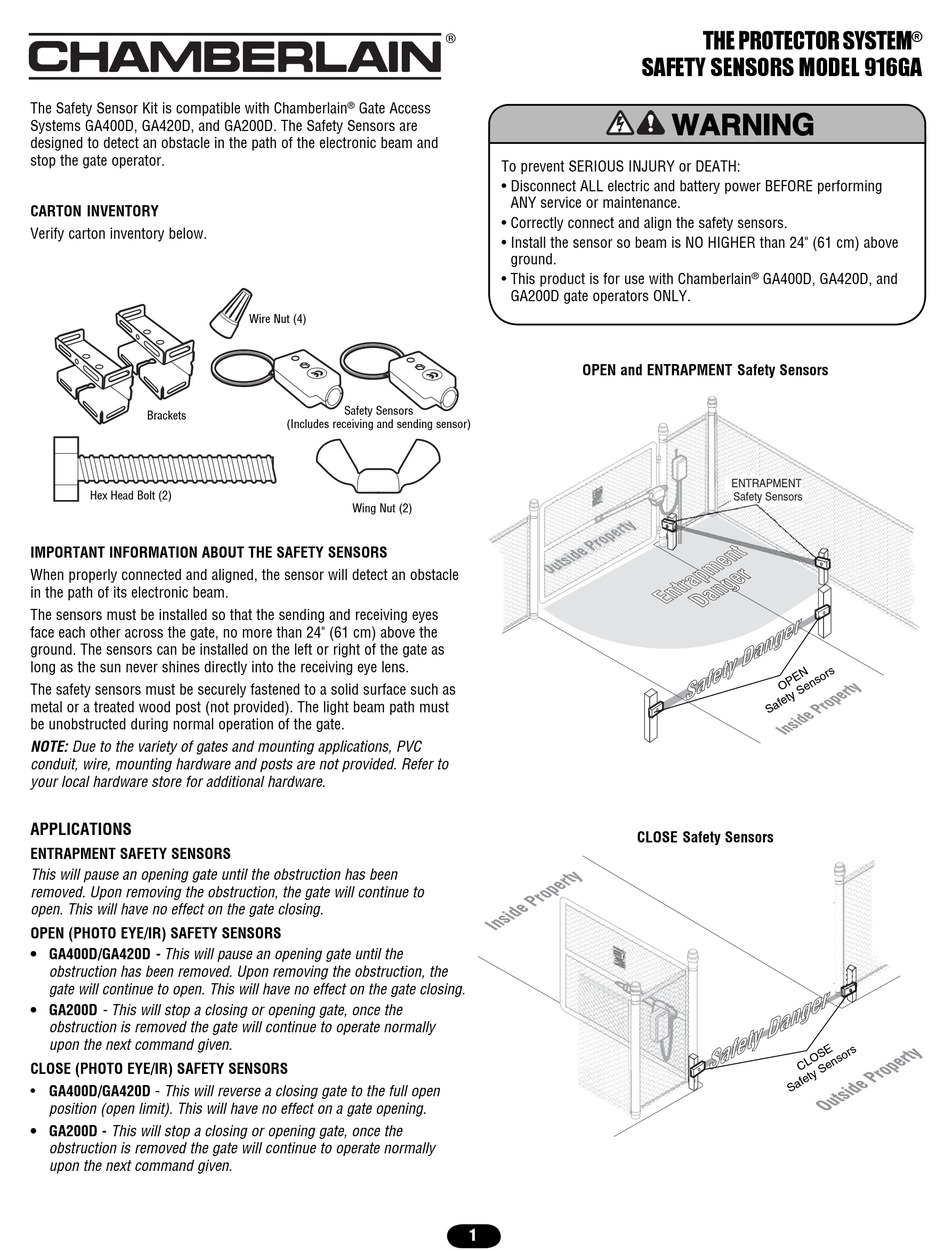

Chamberlain THE PROTECTOR SYSTEM 916GA User Manual

WARNING
The Safety Sensor Kit is compatible with Chamberlain
CAUTION
Systems GA400D, GA420D, and GA200D. The Safety Sensors are
designed to detect an obstacle in the path of the electronic beam and
stop the gate operator.
CARTON INVENTORY
Verify carton inventory below.
AVERTISSEMENT
Brackets
ATTENTION
Hex Head Bolt (2)
IMPORTANT INFORMATION ABOUT THE SAFETY SENSORS
When properly connected and aligned, the sensor will detect an obstacle
in the path of its electronic beam.
The sensors must be installed so that the sending and receiving eyes
face each other across the gate, no more than 24" (61 cm) above the
ground. The sensors can be installed on the left or right of the gate as
long as the sun never shines directly into the receiving eye lens.
The safety sensors must be securely fastened to a solid surface such as
metal or a treated wood post (not provided). The light beam path must
be unobstructed during normal operation of the gate.
NOTE: Due to the variety of gates and mounting applications, PVC
conduit, wire, mounting hardware and posts are not provided. Refer to
your local hardware store for additional hardware.
ADVERTENCIA
APPLICATIONS
ENTRAPMENT SAFETY SENSORS
This will pause an opening gate until the obstruction has been
PRECAUCIÓN
removed. Upon removing the obstruction, the gate will continue to
open. This will have no effect on the gate closing.
OPEN (PHOTO EYE/IR) SAFETY SENSORS
• GA400D/GA420D - This will pause an opening gate until the
obstruction has been removed. Upon removing the obstruction, the
gate will continue to open. This will have no effect on the gate closing.
• GA200D - This will stop a closing or opening gate, once the
obstruction is removed the gate will continue to operate normally
upon the next command given.
CLOSE (PHOTO EYE/IR) SAFETY SENSORS
• GA400D/GA420D - This will reverse a closing gate to the full open
position (open limit). This will have no effect on a gate opening.
• GA200D - This will stop a closing or opening gate, once the
obstruction is removed the gate will continue to operate normally
upon the next command given.
® Gate Access
Wire Nut (4)
Safety Sensors
(Includes receiving and sending sensor)
Wing Nut (2)
®
To prevent SERIOUS INJURY or DEATH:
• Disconnect ALL electric and battery power BEFORE performing
ANY service or maintenance.
• Correctly connect and align the safety sensors.
• Install the sensor so beam is NO HIGHER than 24" (61 cm) above
ground.
• This product is for use with Chamberlain
GA200D gate operators ONLY.
OPEN and ENTRAPMENT Safety Sensors
AVERTISSEMENT
AVERTISSEMENT
ADVERTENCIA
1
THE PROTECTOR SYSTEM
WARNING
SAFETY SENSORS MODEL 916GA
WARNING WARNING
® GA400D, GA420D, and
ENTRAPMENT
Safety Sensors
CLOSE Safety Sensors
ADVERTENCIA
®
