Summary of Contents for VXI V175

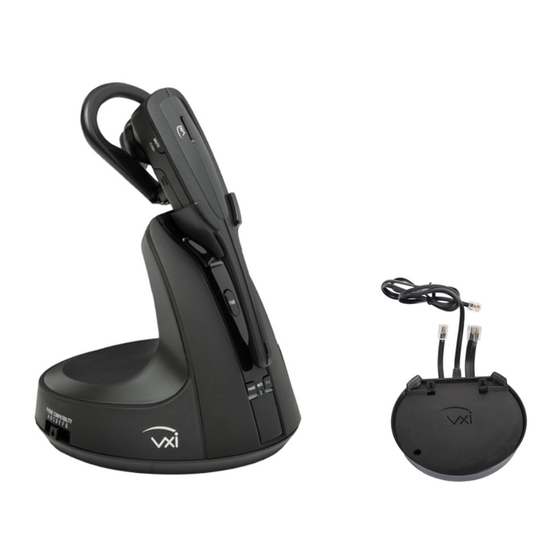

- Page 1 VXi V175 User Guide...
-
Page 2: Table Of Contents
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 • V175 Headset Features •... -
Page 3: Welcome
WELCOME Congratulations on purchasing your new VXi office wireless product . This guide contains instructions for setting up and using your VXi V175 Wireless Headset System . V175 Headset Features • Advanced noise-canceling microphone • Choice of wearing styles: headband, ear hook or neckband •... -
Page 4: Safety Information
• This product contains a replaceable lithium-ion rechargeable battery . Use only the supplied rechargeable battery . When replacing, use the VXi replacement battery . • Dispose of batteries in a safe manner . Do not burn or puncture which could release caustic material and cause injury . -
Page 5: What's In The Box
WHAT’S IN THE BOX? 1. Base 2. Headset 3. Power Supply 4. Phone and Analog Connection Cables 5. Headset Battery and Battery Door 6. Wearing Accessories – Headband – Neckband – Ear Hook Ear Hook Neckband Headband VXi V175 User Guide PAGE 5... -
Page 6: Base Overview
A. EHS/Lifter Port B. Power Port C. Analog Telephone Port D. Base Jack Port E. Handset Port Left Side A. Phone Compatibility Switch Right Side A. Headset Microphone Level Adjustment Buttons B. Mode Button VXi V175 User Guide PAGE 6... -
Page 7: Headset Overview
. See www.vxicorp.com/VEHS for VEHS variants and supported phones . L50 Lifter – Automatically depresses/releases the handset hook switch of your desk phone . Enables remote call answer/end with your headset . VXi V175 User Guide PAGE 7... -
Page 8: How To Wear
HOW TO WEAR Changing Wearing Styles The V175 office wireless headset comes with a choice of wearing styles: Ear Hook A. Choose the ear bud that fits your ear most comfortably . B. Place the ear bud over the post on the ear hook . - Page 9 . Insert the ring post into the bottom hole of the other neckband arm until it clicks into place . VXi V175 User Guide PAGE 9...
-
Page 10: Connect To Your Phone
D. Replace the battery cover and place the headset in the charging cradle . The LED on the headset will be red when charging and will change to blue when the headset is fully charged . VXi V175 User Guide PAGE 10... -
Page 11: Connect And Configure Phone
CONNECT TO YOUR PHONE (continued) Connect and Configure Phone There are four options for setting up the V175 with your phone . Select the best option for your situation: • Office Phone (standard) • Office Phone with EHS (sold separately) •... - Page 12 . If there is no dial tone, or the call is unclear, slide the compatibility switch from A-G, one setting at a time until the dial tone/call is clear . VXi V175 User Guide PAGE 12...
-
Page 13: Position Base
• Press the call control button on the headset again to end the call . Position Base To reduce the possibility of noise and interference problems, position the base at least 6 inches away from your desk phone and at least 12 inches away from your computer . VXi V175 User Guide PAGE 13... -
Page 14: Making Calls With An Office Phone
(to end the first call) and again (to answer the second call) . Note: Unless you have an EHS or the L50 Lifter attached, the call on the desk phone will also need to be ended using your desk phone’s call-management features. VXi V175 User Guide PAGE 14... -
Page 15: Making Calls With An Analog (Home) Phone
• To switch a call from the headset to the handset without hanging up the call, first lift the telephone handset (or activate cordless handset) . Then, press the headset call control button or place the headset in the base-charging cradle . VXi V175 User Guide PAGE 15... -
Page 16: Registering/Pairing Headsets To The Base
REGISTERING / PAIRING HEADSETS TO THE BASE The V175 supports up to two wireless headsets on one base station . The original V175 headset is registered and paired to the base at the factory . However, if you wish to add a second headset, you must register/pair it with the V175 base before use . -
Page 17: Energy-Saving Charging Mode
• Unplug the base power adapter from the power outlet, and then plug it back in . The headset base will power up as normal . • Register the headset back to the headset base . See the “Adding and Registering a Headset” section of the user guide for instructions . VXi V175 User Guide PAGE 17... -
Page 18: Functions & Indicators Tables
Headset Low battery Flashes every “Low battery” 20 seconds Headset Incoming call Flashes (analog mode) quickly Headset Answer second Mute button 1 short tone incoming call (long press) (analog mode only) VXi V175 User Guide PAGE 18... - Page 19 VXi Corporation | 271 Locust Street | Dover, NH 03820 USA Toll-Free (USA): 800-742-8588 | Phone: +1 603-742-2888 vxicorp.com © 2016 VXi Corporation . All rights reserved . APN 203999A 01/17...
