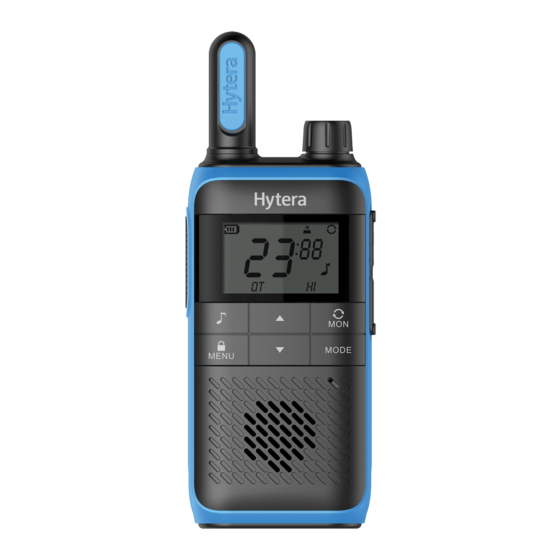

Hytera TF-515 Manual
  1. Manuals
  2. Brands
  3. Hytera Manuals
  4. Portable Radio
  5. TF-515
  6. Manual

Hytera TF-515 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Preface
Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of
the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect
operation, please carefully read the Safety Information Booklet before use.
This manual is applicable to the following product:
TF-51X Portable Radio (X may represent 2 or 5).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hytera TF-515

Summary of Contents for Hytera TF-515

  • Page 1 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
  • Page 2 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 3  exposure decreases with distance from the antenna. The antenna should be kept away from the face and eyes. When worn on the body, always place the radio in a Hytera-approved holder, holster, case, or body harness or by ...
  • Page 4 Use of non-approved antennas, batteries, and accessories causes the radio to exceed the FCC RF exposure  guidelines. Contact your local dealer for the optional accessories of the product.  IC Statement The device has been tested and complies with SAR limits, users can obtain Canadian information on RF exposure and compliance.

  • Page 5: Table Of Contents

    Contents 1. Packing List................................1 2. Product Controls..............................2 3. Before Use................................3 3.1 Inserting Batteries............................3 3.2 Charging the Ni-MH Battery.......................... 3 3.3 Attaching the Belt Clip............................3 4. Basic Operations..............................4 4.1 Turning the Radio On/Off..........................4 4.2 Adjusting the Volume............................. 4 4.3 Selecting a Channel............................4 4.4 Selecting a CTCSS/CDCSS Code.......................4 5.

  • Page 6: Packing List

    1. Packing List Please unpack carefully and check if all items listed below are received. If any item is missing or damaged, please contact your local dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Charger Battery Power Adapter Belt Clip Documentation Kit Lanyard...

  • Page 7: Product Controls

    2. Product Controls TF-512 TF-515...

  • Page 8: Before Use

    3. Before Use 3.1 Inserting Batteries You can use the Ni-MH battery provided by us or three AA alkaline batteries prepared by yourself. To insert batteries, do as follows: 1. Slide the battery latch to the unlock position and then remove the battery cover. 2.

  • Page 9: Basic Operations

    4. Basic Operations 4.1 Turning the Radio On/Off To turn the radio on or off, rotate the On-Off knob clockwise or counter-clockwise until you hear a click. 4.2 Adjusting the Volume To increase or decrease the volume, rotate the Volume Control knob clockwise or counter-clockwise after turning on the radio.

  • Page 10: Lcd Icons

    5. LCD Icons Icon Description Icon Description Battery Room Monitor Radio Mode Battery Save Weather Mode (TF-512 only) Talk End Tone Weather Alert (TF-512 only) Call Tone Silent Mode Transmit Keypad Tone Receive Keypad Lock High Power (TF-512 only) Scan Low Power (TF-512 only)

  • Page 11: Call Services

    6. Call Services 6.1 Initiating a Call You can initiate calls to other radios on the same channel and CTCSS/CDCSS code as yours. To initiate a call, do as follows: 1. Select a channel and a CTCSS/CDCSS code. 2. Hold the radio vertically 2.5 to 5 cm from your mouth. 3.

  • Page 12: Supplementary Features

    7. Supplementary Features 7.1 Keypad Lock The Keypad Lock feature allows you to lock the keypad to avoid accidental operations when the radio is not in use. In the keypad lock mode, you can initiate calls and turn the radio on or off. To lock or unlock the keypad, press and hold the Keypad Lock key until appears or disappears on the screen.

  • Page 13: Call Tone

    Do the following until the radio displays For TF-512, press the Menu key for four consecutive times.  For TF-515, press the Menu key for three consecutive times.  b. Press the Up or Down key to select a call tone.

  • Page 14: Voice Operated Transmit (Vox)

    For TF-512, press the Menu key for five consecutive times.  For TF-515, press the Menu key for four consecutive times.  2. Press the Up or Down key to select L1, L2, or L3 to turn on the feature, or select OFF to turn off the feature.

  • Page 15: Keypad Tone

    1. Do the following until the radio displays For TF-512, press the Menu key for eight consecutive times.  For TF-515, press the Menu key for seven consecutive times.  2. Press the Up or Down key to select ON or OFF.

  • Page 16: Weather Mode (Tf-512 Only)

    For TF-512, press the Menu key for ten consecutive times.  For TF-515, press the Menu key for nine consecutive times.  2. Press the Up or Down key to select L1, L2, or L3 to turn on the feature, or select OFF to turn off the feature.

  • Page 17: Battery Save

    In the weather mode, the radio cannot receive or send calls. It is recommended not to enter the weather mode when you must respond to emergencies. 7.12.1 Entering/Exiting the Weather Mode To enter the weather mode, press the Weather Mode key. The radio displays To exit the weather mode, press the Weather Mode key again.

  • Page 18: Low Battery Alert

    7.14 Low Battery Alert flashes on the screen and an alert tone rings when you press the PTT key, When the radio is low on power, indicating that the radio enters the low battery alert mode. In this mode, you are not allowed to send a call tone or initiate a call.

  • Page 19: Troubleshooting

    8. Troubleshooting Phenomena Analysis Solution The battery may be installed Remove and reattach the battery. improperly. The radio cannot be The battery power may run out. Recharge or replace the battery. turned on. The battery may suffer from poor contact caused by dirtied or Clean the battery contacts or replace the battery.
  • Page 20 Phenomena Analysis Solution underground areas. It could be the result of external Stay away from equipment that may cause disturbance (such interference. electromagnetic interference). You cannot use the The keypad may fail to function Restart the radio. keys. temporarily. The LCD does not The LCD may fail to work display any Restart the radio.

  • Page 21: Optional Accessories

    9. Optional Accessories Contact your local point of purchase for the optional accessories used with the product. Use the approved accessories only. We will not be liable for any loss or damage arising out of the use of any unauthorised accessories.

  • Page 22: Channels And Frequencies

    GMRS/FRS 462.6250 GMRS 467.5625 462.6500 GMRS 467.5875 462.6750 GMRS 467.6125 462.7000 GMRS 467.6375 462.7250 GMRS TF-515 Channel Chart Channel No. Frequency (MHz) Channel No. Frequency (MHz) 446.00625 446.05625 446.01875 446.06875 446.03125 446.08125 446.04375 446.09375 Weather Channel Chart Channel No. Frequency (MHz) Channel No.
  • Page 23 Channel No. Frequency (MHz) Channel No. Frequency (MHz) 162.400 162.525 162.475 161.650 162.425 161.775 162.450 163.275...
