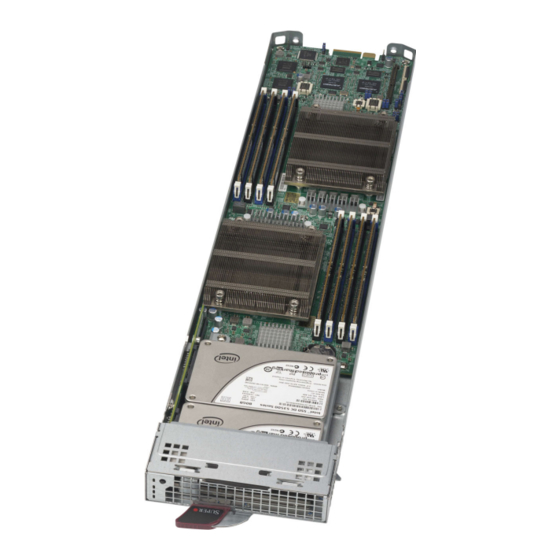

  • Page 1 MBI-6219G-T MicroBlade Module User’s Manual Revison 1.0c...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 MicroBlade module. Chapter 3: Setup and Installation Refer to this chapter for details on installing the MBI-6219G-T MicroBlade module into the MicroBlade chassis. Other sections cover the installation and placement of memory modules and the installation of hard disk drives into the blade module.
  • Page 4 MBI-6219G-T MicroBlade Module User’s Manual...

  • Page 5: Table Of Contents

    ..............1-2 Processors ....................1-2 Memory ....................1-2 Storage ....................1-3 RAID ....................... 1-3 Density ....................1-3 BMC Password ..................1-3 1-3 Contacting Supermicro ..............1-4 Chapter 2 Standardized Warning Statements ..........2-1 2-1 About Standardized Warning Statements ........2-1 Warning Definition...................
  • Page 6 MBI-6219G-T MicroBlade Module User’s Manual Installing a Blade Unit into the Enclosure ..........3-2 3-3 Onboard Battery Installation ............3-3 3-4 Processor and Heatsink Installation ..........3-4 Installing the Processor(s) ..............3-4 Installing a Heatsink................3-6 Removing a Heatsink................3-7 3-5 Memory Installation ................
  • Page 7 Table of Contents 5-8 Security ..................... 5-19 5-9 Boot ....................5-21 5-10 Save & Exit ..................5-22 Appendix A AMI UEFI BIOS POST Codes ............A-1 A-1 Checkpoint Ranges ................A-1 A-2 Standard Checkpoints ..............A-2 A-3 OEM-Reserved Checkpoint Ranges ..........A-9...
  • Page 8 MBI-6219G-T MicroBlade Module User’s Manual viii...

  • Page 9: Chapter 1 Introduction

    • Supermicro product manuals: http://www.supermicro.com/support/manuals/ • Product drivers and utilities: ftp://ftp.supermicro.com • If you have any questions, please contact our support team at: support@supermicro.com Note: A complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm.

  • Page 10: Blade Module Features

    Supports up to two SSD or one SATA3 HDD 2.5" drives per node (2 nodes) Processors The MBI-6219G-T MicroBlade module supports a single H4 (LGA 1151) Intel Xeon E3-1200 v5 series processors in a H4 (LGA 1151) socket embedded in the motherboard, one per node.

  • Page 11: Storage

    Chapter 1: Introduction Storage The MBI-6219G-T MicroBlade module can have either two SSD or one SATA3 HDD 2.5" SATA3 per node of internally mounted drives for storage or for installation of the blade’s operating system. See Chapter 3: " Setup and Installation" on page 3-1 for storage installation details.

  • Page 12: Contacting Supermicro

    MBI-6219G-T MicroBlade Module User’s Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 marketing@supermicro.com (General Information) Email: support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 13: Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 14 MBI-6219G-T MicroBlade Module User’s Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.

  • Page 15: Installation Instructions

    Chapter 2: Standardized Warning Statements 안전을 위한 주의사항 경고 ! 이 경고 기호는 위험이 있음을 알려 줍니다 . 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다 . 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험 요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준 작업절차를 준수해 주시기 바랍니다...

  • Page 16: Circuit Breaker

    MBI-6219G-T MicroBlade Module User’s Manual Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. ‫מתח‬ ‫את הוראות התקנה לפני חיבור המערכת למקור‬ ‫יש לקרוא‬ ‫ﻣﺼﺪر ﻟﻠﻄﺎﻗﺔ‬ ‫اﻟﻨﻈﺎم إﻟﻰ‬ ‫ﻗﺒﻞ ﺗﻮﺻﯿﻞ‬ ‫ﺘﺮﻛﯿﺐ‬ ‫اﻗﺮ إرﺷﺎدات اﻟ‬ 시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오 .

  • Page 17: Power Disconnection Warning

    Chapter 2: Standardized Warning Statements ‫קצר חשמלי. יש לוודא כי‬ ‫המותקנת במבנים למניעת‬ ‫ה‬ ‫הגנ‬ ‫מוצר זה מסתמך על‬ ‫הוא לא יותר מ‬ ‫החשמלי‬ ‫המכשיר המגן מפני הקצר‬ 250 V, 20 A ‫ﻓﻲ‬ ‫اﻟﺘﻲ ﺗﻢ ﺗﺜﺒﯿﺘﮭﺎ‬ ‫ﻣﻦ اﻟﺪواﺋﺮاﻟﻘﺼﯿﺮة‬ ‫اﻟﺤﻤﺎﯾﺔ‬ ‫ﻣﻌﺪات‬ ‫ﯾﻌﺘﻤﺪ...

  • Page 18: Equipment Installation

    MBI-6219G-T MicroBlade Module User’s Manual ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 19: Restricted Area

    Chapter 2: Standardized Warning Statements Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. ¡Advertencia! Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo. Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à...
  • Page 20 MBI-6219G-T MicroBlade Module User’s Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una...

  • Page 21: Battery Handling

    Chapter 2: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. 電池の取り扱い...

  • Page 22: Redundant Power Supplies

    MBI-6219G-T MicroBlade Module User’s Manual ‫ﻓﻌﻠﯿﻚ‬ ‫ﺑﻄﺮﯾﻘﺔ ﻏﯿﺮ ﺻﺤﯿﺤﺔ‬ ‫اﻟﺒﻄﺎرﯾﺔ‬ ‫اﻧﻔﺠﺎر ﻓﻲ ﺣﺎﻟﺔ اﺳﺘﺒﺪال‬ ‫ﻣﻦ‬ ‫ھﻨﺎك ﺧﻄﺮ‬ ‫اﺳﺘﺒﺪال اﻟﺒﻄﺎرﯾﺔ‬ ‫ﺑﮫ اﻟﺸﺮﻛﺔ اﻟﻤﺼﻨﻌﺔ‬ ‫أوﺻﺖ‬ ‫ﻛﻤﺎ‬ ‫أو ﻣﺎ ﯾﻌﺎدﻟﮭﺎ‬ ‫ﺑﻨﻔﺲ اﻟﻨﻮع‬ ‫ﻓﻘﻂ‬ ‫ﺘﻌﻠﯿﻤﺎت اﻟﺸﺮﻛﺔ اﻟﺼﺎﻧﻌﺔ‬ ‫اﻟﻤﺴﺘﻌﻤﻠﺔ وﻓﻘﺎ ﻟ‬ ‫ﺗﺨﻠﺺ ﻣﻦ اﻟﺒﻄﺎرﯾﺎت‬ 경고 ! 배터리가...

  • Page 23: Backplane Voltage

    Chapter 2: Standardized Warning Statements ‫אם קיים יותר מספק אח ד ד‬ !‫אזהרה‬ ‫כל החיבורים על מנת לרוקן‬ ‫יש להסיר את‬ .‫ליחדה יש יותר מחיבור אחד של ספק‬ .‫דה‬ ‫י‬ ‫את היח‬ ‫اﻣﺪاد اﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪات‬ ‫ﻋﺪة اﺗﺼﺎﻻت‬ ‫ﺠﮭﺎز‬ ‫اﻟ‬ ‫ﯾﻜﻮن ﻟﮭﺬا‬ ‫ﻗﺪ‬...

  • Page 24: Comply With Local And National Electrical Codes

    MBI-6219G-T MicroBlade Module User’s Manual ‫מתח בפנל האחור י י‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اﻟﻠﻮﺣﺔ‬ ‫أواﻟﻄﺎﻗﺔ اﻟﻤﻮﺟﻮدة ﻋﻠﻰ‬ ‫اﻟﺘﯿﺎر اﻟﻜﮭﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ھﻨﺎك‬ ‫ھﺬا اﻟﺠﮭﺎز‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬرا ﻋﻨﺪ‬ ‫ﯾﻌﻤﻞ‬...
  • Page 25 Chapter 2: Standardized Warning Statements ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫اﻟﻤﺘﻌﻠﻘﺔ‬ ‫اﻟﻤﺤﻠﯿﺔ واﻟﻮطﻨﯿﺔ‬ ‫ﻘﻮاﻧﯿﻦ‬ ‫ﯾﺠﺐ أن ﯾﻤﺘﺜﻞ ﻟﻠ‬ ‫اﻟﻜﮭﺮﺑﺎﺋﯿﺔ‬ ‫ﺗﺮﻛﯿﺐ اﻟﻤﻌﺪات‬ ‫ﺑﺎﻟﻜﮭﺮﺑﺎء‬ 2-13...

  • Page 26: Product Disposal

    MBI-6219G-T MicroBlade Module User’s Manual 경고 ! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다 . Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften. Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

  • Page 27: Hot Swap Fan Warning

    Chapter 2: Standardized Warning Statements 경고 ! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다 . Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen. Hot Swap Fan Warning Warning! The fans might still be turning when you remove the fan assembly from the chassis.

  • Page 28: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードと AC アダプター...
  • Page 29 Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Supermicro nur bezeichnet gezeigt haben.
  • Page 30 MBI-6219G-T MicroBlade Module User’s Manual ‫اﻟﻜﺎﺑﻼت اﻟﻜﮭﺮﺑﺎﺋﯿﺔ‬ ‫ﻛﺎﺑﻼت اﻟﺘﻮﺻﯿﻞ،و‬ ‫اﻟﺠﮭﺎز ﯾﺠﺐ اﺳﺘﺨﺪام‬ ‫ﻋﻨﺪ ﺗﺮﻛﯿﺐ‬ ‫اﻟﺘﯿﺎر اﻟﻤﺘﺮدد‬ ‫وﻣﺤﻮﻻت‬ ‫أو ﺣﺮﯾﻖ‬ ‫ﺣﺪوث ﻋﻄﻞ‬ ‫ﻓﻲ‬ ‫ﯾﺘﺴﺒﺐ‬ ‫أﺧﺮى‬ ‫وﻣﺤﻮﻻت‬ ‫ﻛﺎﺑﻼت‬ ‫اﺳﺘﺨﺪام أي‬ ‫أن‬ . ‫اﻟﺘﻲ‬ ‫ﻣﻊ اﻟﻤﻨﺘﺞ‬ ‫ﺗﻢ ﺗﻮﻓﯿﺮھﺎ ﻟﻚ‬ UL ‫ أو‬CSA ‫اﻟﻜﺎﺑﻼت‬...
  • Page 31 Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen. 2-19...
  • Page 32 MBI-6219G-T MicroBlade Module User’s Manual 2-20...

  • Page 33: Setup And Installation

    This chapter covers the setup and installation of the MicroBlade module and its components. Installing MicroBlade Modules Up to twenty-eight MBI-6219G-T MicroBlade module may be installed into a single MBE-628E-xxx and MBE-314E-xxx MicroBlade module enclosure. MicroBlade modules with Windows and Linux operating systems may be mixed together in the same blade enclosure.

  • Page 34: Removing A Microblade Module Unit From The Enclosure

    MBI-6219G-T MicroBlade Module User’s Manual Removing a MicroBlade Module Unit from the Enclosure Although the MicroBlade module system may continue to run, individual MicroBlade modules should always be powered down before removing them from the enclosure. Removing a MicroBlade Module Unit from the Enclosure 1.

  • Page 35: Onboard Battery Installation

    Chapter 3: Setup and Installation Figure 3-1. Inserting a MicroBlade Module into the Enclosure Onboard Battery Installation A battery is included on the motherboard to supply certain volatile memory components with power when power has been removed from the MicroBlade module. If this battery dies, it must be replaced with an equivalent CR2032 Lithium 3V battery.

  • Page 36: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. Installing the Processor(s) Begin by removing power from the system.
  • Page 37 Chapter 3: Setup and Installation 2. Gently lift the load lever to open the load plate. Remove the plastic cover plate. Top Edge Bottom Edge 3. Use your thumb and your index finger to hold the edges of the processor. Align the CPU key (the semi-circle cutouts) with the socket keys.

  • Page 38: Installing A Heatsink

    MBI-6219G-T MicroBlade Module User’s Manual Installing a Heatsink An active type heatsink is used on the motherboard. Note: You should apply thermal grease to the heatsink if it has not already been pre-applied. 1. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the heatsink retention mechanism.

  • Page 39: Removing A Heatsink

    Chapter 3: Setup and Installation Removing a Heatsink We do not recommend removing the heatsink. If necessary, please follow the instructions below to prevent damage to the CPU or the CPU socket. 1. Unscrew and remove the heatsink screws from the motherboard in the sequence as show in the figure above.

  • Page 40: Memory Installation

    Populating Memory Slots The motherboard of a MBI-6219G-T blade module has eight (8) memory slots (four per node). For optimized memory bandwidth it is strongly recommended that ALL memory slots in this MicroBlade module be populated by DIMMs. DIMM layout is shown below in Figure 3-3.

  • Page 41: Dimm Installation

    Chapter 3: Setup and Installation DIMM Installation Caution: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing DIMM Memory Modules 1. Power down the blade module (see "Powering Down a MicroBlade Module Unit" on page 3-1).

  • Page 42: Hard Disk Drive Installation

    An operating system (OS) must be installed on each MicroBlade module. Blades with Microsoft Windows OS and blades with Linux OS can both occupy and operate within the same blade enclosure. Refer to the SuperMicro web site for a complete list of supported operating systems.

  • Page 43: Microblade Module Features

    Chapter 4 MicroBlade Module Features Figure 4-1. MBI-6219G-T Blade Unit Front View This chapter describes the MBI-6219G-T MicroBlade module unit. Installation and maintenance should be performed by experienced technicians only. Figure 4-1 for a front view of the blade unit and Table 4-1 for its features.

  • Page 44: Control Panel

    MBI-6219G-T MicroBlade Module User’s Manual Control Panel Each MicroBlade module has a similar control panel (Figure ) with power on/off button, reset button and LEDs on the front left side of the module. The numbers mentioned in Figure are described in Table 4-2.

  • Page 45: Power Button

    Chapter 4: MicroBlade Module Features Power Button Each MicroBlade module has its own power button so that individual blade units within the enclosure may be turned on or off independently of the others. Press the power button (#1) to turn on the blade server. The power LED (#3) will turn green. To turn off, press and hold the power button for >4 seconds and the power LED will turn orange.

  • Page 46: Motherboard

    MBI-6219G-T MicroBlade Module User’s Manual Motherboard The motherboard of the MBI-6219G-T MicroBlade module unit is a proprietary design, which is based on the Intel Intel Xeon E3-1200 v5 processor. See Figure 4-4 for a block diagram of this chipset, Figure 4-3...
  • Page 47 Chapter 4: MicroBlade Module Features Table 4-4. B2SS2-F-P motherboard Layout Item Description Intel Xeon E3-1200 v5 processors embedded in a H4 (LGA 1151) socket DIMM slots for DIMM memory modules CMOS Clear Battery PCI-E socket for HDD Backplane SATA Ports Figure 4-4.

  • Page 48: Jumpers

    MBI-6219G-T MicroBlade Module User’s Manual Jumpers Any jumpers present on the motherboard are used by the manufacturer only; there are no jumpers used to configure the operation of the motherboard by the user. CMOS Clear JBT1 is used to clear CMOS and will also clear any passwords. JBT1 consists of two contact pads located near the BIOS chip.

  • Page 49: Blade Unit Components

    Chapter 4: MicroBlade Module Features Blade Unit Components Figure 4-5. Exploded View of a MBI-6219G-T MicroBlade Module Table 4-5. Main Components of a MBI-6219G-T Blade Module Item Description Blade Unit/Module 2.5" Hard Drives (2) DIMM slots (8) CPU/Heatsinks (2~4) Hard Drive Backplane...

  • Page 50: Memory Support

    MBI-6219G-T MicroBlade Module User’s Manual Memory Support The MBI-6219G-T MicroBlade module supports up to 64 GB of ECC VLP UDIMM, 32 GB size, DDR4 2133 MHz speed DIMM memory in four sockets. See Section 3-5: Memory Installation on page 3-8 for further details on motherboardMotherboard memory installation.

  • Page 51: Chapter 5 Bios

    BIOS Introduction This chapter describes the BIOS for the MBI-6219G-T MicroBlade module. This MicroBlade module uses a 128 Mb SPI Flash EEPROM with AMI® BIOS™ that is stored in a flash chip. This BIOS can be easily upgraded using a floppy disk-based program.

  • Page 52: Bios Updates

    MBI-6219G-T MicroBlade Module User’s Manual BIOS Updates It may be necessary to update the BIOS used in the blade modules on occasion. However, it is recommended that you not update BIOS if you are not experiencing problems with a blade module.

  • Page 53: Running Setup

    Chapter 5: BIOS Running Setup Note: Default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choosing the appropriate text from the M BIOS S screen. All displayed text is described in this ETUP section, although the screen display is often all you need to understand how to set the options.

  • Page 54: Main Bios Setup

    MBI-6219G-T MicroBlade Module User’s Manual Main BIOS Setup Figure 5-2. BIOS Setup Screen All Main Setup options are described in this section. Use the U arrow keys to move among the different settings in each menu. Use the L arrow keys to IGHT change the options for each setting.

  • Page 55: Advanced Setup

    Chapter 5: BIOS Advanced Setup Figure 5-3. Advanced Setup Screen Choose Advanced from the BIOS Setup Utility main menu with the arrow keys to display the A menu. The items with a triangle beside them are DVANCED ETUP sub-menus that can be accessed by highlighting the item and pressing <E >.
  • Page 56 MBI-6219G-T MicroBlade Module User’s Manual Table 5-2. Advanced Setup Menu Options (Continued) Sub-menu Description Table 5-6 for a description of BIOS setup menu options in this SATA Configuration sub-menu. Table 5-7 for a description of BIOS setup menu options in this Server ME Configuration...
  • Page 57 Chapter 5: BIOS Table 5-3. Boot Feature Submenu (Continued) Menu Option Description Use this feature to set the power state after a power outage. Select Stay-Off for the system power to remain off after a power loss. Select Restore on AC Power Loss Power-On for the system power to be turned on after a power loss.
  • Page 58 MBI-6219G-T MicroBlade Module User’s Manual Table 5-4. CPU Configuration Submenu (Continued) Menu Option Description This feature enables/disables Direct Cache Access (DCA), which is a Direct Cache Access (DCA) system level protocol in a multiprocessor system to improve I/O network performance. Options include either Disable, Enable or Auto.
  • Page 59 Chapter 5: BIOS Table 5-4. CPU Configuration Submenu (Continued) Menu Option Description This feature allows you to enable/disable the CPU C3 (ACPI C2) report to CPU C3 Report the OS. Options include either Enable or Disable. It is recommended that this feature be disabled.
  • Page 60 MBI-6219G-T MicroBlade Module User’s Manual Table 5-4. CPU Configuration Submenu (Continued) Menu Option Description This feature allows you to custom tune the BW_LIMIT_TF when DRAM Override RAPL is enabled. Use the +/- controls on your keyboard’s number pad to BW_LIMIT_TF set the numerical value for this setting.
  • Page 61 Chapter 5: BIOS Table 5-5. Chipset Configuration Sub-menu (Continued) Menu Option Description This setting controls DRAM power consumption by limiting memory DRAM RAPL bandwidth. Options include Disable, DRAM RAPL Mode 0 and DRAM Baseline RAPL Mode 1. This setting enables or disables thermal sensors on the DIMM to derive Set Throttling Mode DRAM temperature estimation for throttling.
  • Page 62 MBI-6219G-T MicroBlade Module User’s Manual Table 5-6. SATA Configuration Sub-menu Menu Option Description This feature allows you to enable or disable the SATA controller. The SATA Controller options are Enabled and Disabled. Use this setting to configure the SATA as either IDE, RAID or AHCI Configure SATA As options.
  • Page 63 Chapter 5: BIOS Table 5-8. PCIe/PCI/PnP Configuration Sub-menu (Continued) Menu Option Description This setting enables or disables PCI Express device Relaxed Ordering. Relaxed Ordering The options for this setting are Enabled and Disabled. If enabled, this setting allows the device to use the 8-bit Tag field as a Extended Tag requestor.
  • Page 64 MBI-6219G-T MicroBlade Module User’s Manual Table 5-10. Serial Port Console Redirection Sub-menu Menu Option Description Select Enabled to enable console redirection support for the COM1 serial COM1 Console Redirection port. The options are Enabled and Disabled. Select Enabled to enable console redirection support for SOL. The options SOL Console Redirection are Enabled and Disabled.
  • Page 65 Chapter 5: BIOS Table 5-10. Serial Port Console Redirection Sub-menu (Continued) Menu Option Description This feature selects the settings for Function Keys and KeyPad used Putty KeyPad for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400. Use this feature to enable or disable legacy console redirection after BIOS POST.

  • Page 66: Event Logs Setup

    MBI-6219G-T MicroBlade Module User’s Manual Table 5-11. ACPI Settings Sub-menu Menu Option Description This feature Enables the Windows Hardware Error Architecture (WHEA) WHEA Support support for the Windows 2008 (or a later vision) operating system. The options are Enabled and Disabled.
  • Page 67 Chapter 5: BIOS Table 5-13. Event Logs Menu Menu Option Description Change SMBIOS Event Use this submenu to change the SMBIOS Event Log configuration. Log Settings Change this item to enable or disable all features of the SMBIOS Event SMBIOS Event Log Logging during system boot.

  • Page 68: Ipmi Setup

    MBI-6219G-T MicroBlade Module User’s Manual IPMI Setup Table 5-14. IPMI BIOS Setup Screen Table 5-15. IPMI Menu Menu Option Description BMC Firmware Revision This indicates the BMC firmware revision used in your system. IPMI Status This indicates the status of the IPMI firmware installed in your system.

  • Page 69: Security

    Chapter 5: BIOS Table 5-15. IPMI Menu (Continued) Menu Option Description This feature allows the user to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field.
  • Page 70 MBI-6219G-T MicroBlade Module User’s Manual Choose Security from the BIOS Setup main menu with the arrow keys to bring up the menu. Security setting options are displayed by highlighting the setting ECURITY ETUP using the arrow keys and pressing <E >.

  • Page 71: Boot

    Chapter 5: BIOS Boot Table 5-18. Boot BIOS Setup Screen Choose Boot from the 128 Mb SPI Flash EEPROM with AMI® BIOS BIOS Setup Utility main menu with the arrow keys to bring up the B menu. Security setting ETUP options are displayed by highlighting the setting using the arrow keys and pressing <E >.

  • Page 72: 5-10 Save & Exit

    MBI-6219G-T MicroBlade Module User’s Manual Table 5-19. Boot Setup Menu Options (Continued) Menu Option Description Network Device BBS This submenu allows you to set the order of the legacy devices in this Priorities group for setting the boot order. UEFI Application Boot...
  • Page 73 Chapter 5: BIOS Table 5-21. Exit Menu Options Menu Option Description Highlight this item and hit <E > to exit the BIOS Setup utility without saving NTER Discard Changes and any changes you may have made. Any changes you have made to the BIOS Exit Setup will not take effect upon system bootup.
  • Page 74 MBI-6219G-T MicroBlade Module User’s Manual...

  • Page 75: Appendix Aami Uefi Bios Post Codes

    Appendix A AMI UEFI BIOS POST Codes A status code is a data value used to indicate progress during the boot phase. A subset of these status codes, known commonly as checkpoints, indicate common phases of the BIOS boot process. Checkpoints are typically output to I/O port 80h, but Aptio 4.x core can be configured to send status codes to a variety of sources.

  • Page 76: Standard Checkpoints

    MBI-6219G-T MicroBlade Module User’s Manual Standard Checkpoints Table A-2. SEC Phase Codes Description Status Code 0x00 Not Used Progress Codes 0x01 Power on. Reset type detection (soft/hard). 0x02 AP initialization before microcode loading 0x03 North Bridge initialization before microcode loading...
  • Page 77 Appendix A: AMI UEFI BIOS POST Codes Table A-3. PEI Phase Status Codes Description 0x19 Pre-memory South Bridge initialization is started 0x1A Pre-memory South Bridge initialization (South Bridge module specific) 0x1B Pre-memory South Bridge initialization (South Bridge module specific) 0x1C Pre-memory South Bridge initialization (South Bridge module specific) 0x1D –...
  • Page 78 MBI-6219G-T MicroBlade Module User’s Manual Table A-3. PEI Phase Status Codes Description 0x53 Memory initialization error. No usable memory detected 0x54 Unspecified memory initialization error. 0x55 Memory not installed 0x56 Invalid CPU type or Speed 0x57 CPU mismatch 0x58 CPU self test failed or possible CPU cache error...
  • Page 79 Appendix A: AMI UEFI BIOS POST Codes Table A-3. PEI Phase Status Codes Description 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes Table A-4. PEI Beep Codes # of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found...
  • Page 80 MBI-6219G-T MicroBlade Module User’s Manual Table A-5. DXE Phase Status Codes Description 0x70 South Bridge DXE initialization is started 0x71 South Bridge DXE SMM initialization is started 0x72 South Bridge devices initialization 0x73 South Bridge DXE Initialization (South Bridge module specific)
  • Page 81 Appendix A: AMI UEFI BIOS POST Codes Table A-5. DXE Phase Status Codes Description 0xA5 SCSI Reset 0xA6 SCSI Detect 0xA7 SCSI Enable 0xA8 Setup Verifying Password 0xA9 Start of Setup 0xAA Reserved for ASL (see ASL Status Codes section below) 0xAB Setup Input Wait 0xAC...
  • Page 82 MBI-6219G-T MicroBlade Module User’s Manual Table A-5. DXE Phase Status Codes Description 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Table A-6. DXE Beep Codes # of Beeps Description...

  • Page 83: Oem-Reserved Checkpoint Ranges

    Appendix A: AMI UEFI BIOS POST Codes OEM-Reserved Checkpoint Ranges Table A-8. OEM-Reserved Checkpoint Ranges Status Codes Description 0x05 OEM SEC initialization before microcode loading 0x0A OEM SEC initialization after microcode loading 0x1D – 0x2A OEM pre-memory initialization codes 0x3F – 0x4E OEM PEI post memory initialization codes 0x80 –...
  • Page 84 MBI-6219G-T MicroBlade Module User’s Manual...
  • Page 85 Disclaimer The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
