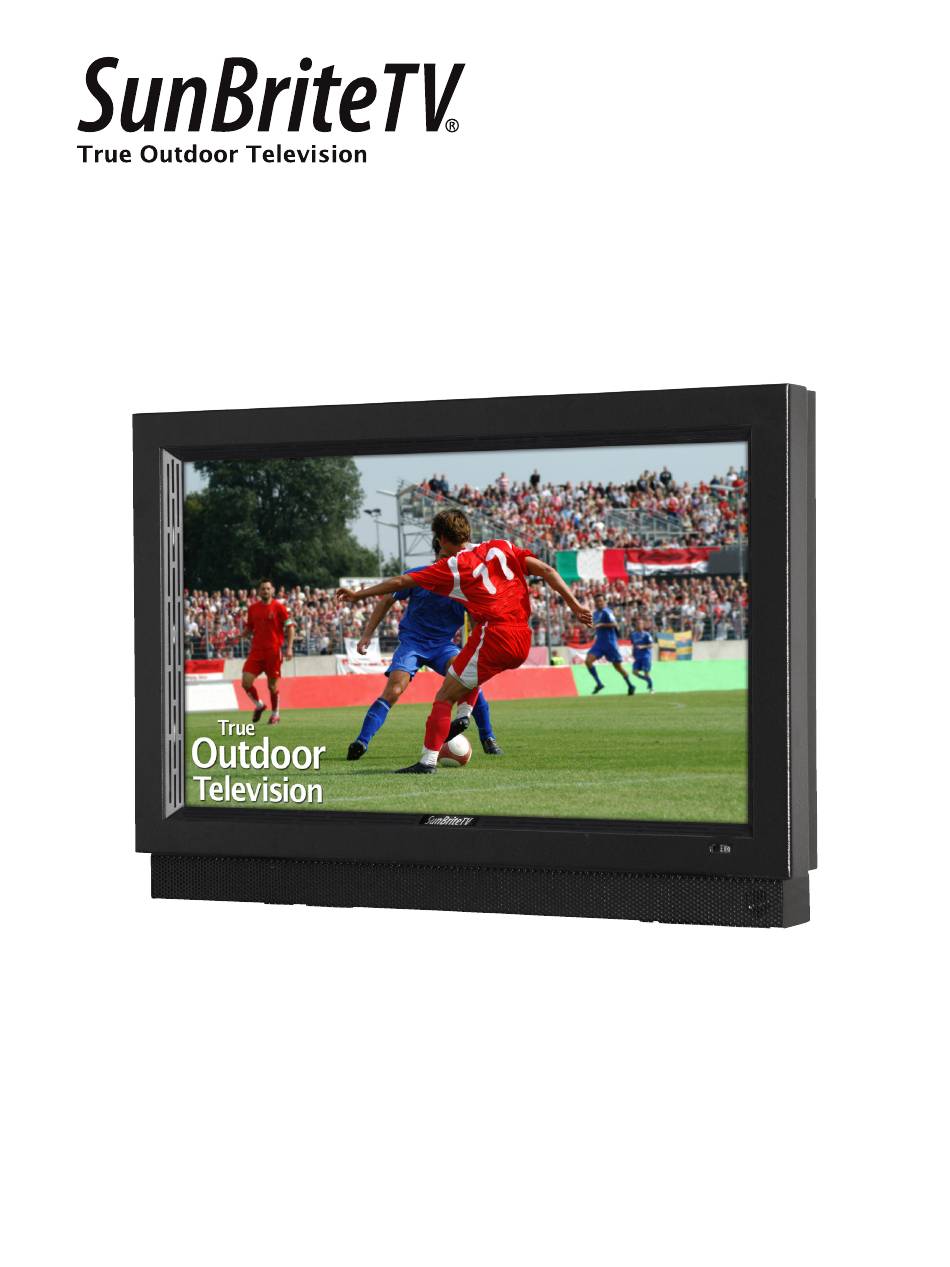

- Page 1 Operator’s Manual Model SB-3214HD Revision SB-3214HD 11.11.2014 PN: M32-005-01...
-
Page 2: Important Safety Instructions
Dear SunBriteTV Customer: Congratulations on the ownership of Model SB-3214HD all-weather outdoor LCD TV, and welcome to the family of satisfied SunBrite customers. You are in great company with thousands of homeowners and esteemed commercial facilities such as Yankee Stadium, Fenway Park, Disney World, and Sea World who have trusted us to deliver superior performance, lasting durability and the enjoyment of superb television viewing in the great outdoors. - Page 3 Power Source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”...
- Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Features Information and Instructions Internal Thermostatically-Controlled Heater Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy Appendix A - RS232 Control Cable Pinout Appendix B - RS232 Control Codes SunBriteTV Model SB-3214HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model SB-3214HD Remote Control with Batteries Operator’s Manual... -
Page 7: Tv Installation
It is important, however, to make sure the TV is placed in an area that provides a comfortable environment for your viewing audience. SunBriteTV Model SB-3214HD Operator’s Manual Page 7... - Page 8 This page is intentionally left blank. Page 8...
-
Page 9: Rear Panel Internal Connect Source
Indentation. 3. Close the cover. 4. Press firmly on the cover, and screw the Thumb Screws tightly (Figure 3). Rubber Sealing Gasket Thumb Screws Indentations Figure 2 Figure 1 Figure 3 SunBriteTV Model SB-3214HD Operator’s Manual Page 9... -
Page 10: Rear Panel Connections And Diagrams
13. ANALOG AUDIO OUT (Variable) - Used to connect headphones, stereo receivers and amplified speakers via a 3.5mm headphone jack. 14. 12 VOLT - This connector is to be used with SunBriteTV Radio FM only 15. RS232 - The RS232 connection allows the TV to be controlled from a remote system using RS232 commands. - Page 11 TV Installation – Rear Panel Connections Cable Descriptions: Connection Descriptions: Blue Green Yellow Green White Orange SunBriteTV Model SB-3214HD Operator’s Manual Page 11...
- Page 12 TV Installation – Rear Panel Connections/Connection Diagrams Switching Sources for Ports: Model SB-3214HD offers several options when connecting your devices to the TV. The chart below will help you understand which source you switch to for each of the ports.
- Page 13 TV. If HDMI 1 is occupied, use HDMI 2 as your connection port. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model SB-3214HD Operator’s Manual Page 13...
- Page 14 TV Installation – Rear Panel Connection Diagrams CONNECTING TO A DVD PLAYER (Continued) Connecting with S-Video (fair) Connecting with Composite (Fair) Make sure the power of the TV and your DVD player is Make sure the power of the TV and your DVD player is turned off.
- Page 15 TV. This SunBriteTV model supports SONY’s universal remote code. If SunBriteTV is not listed in the manufacturer list, look up SONY’s codes in your universal remote’s hand book. This TV will turn off automatically if there’s no signal present for more than 15 minutes.
- Page 16 This SunBriteTV model supports SONY’s universal remote box is configured to output correctly to the TV. code. If SunBriteTV is not listed in the manufacturer list, look up SONY’s codes in your universal remote’s hand book. This SunBriteTV model supports SONY’s universal remote code.
- Page 17 The TV will turn off automatically if there’s no signal present for more than 15 minutes. If HDMI 1 is already occupied, use HDMI 2 as your connection port, and switch source to HDMI 2. Continued on next page SunBriteTV Model SB-3214HD Operator’s Manual Page 17...
-
Page 18: Ir Emitter Installation
* Neither the emitter or control block are supplied by the cable box. SunBriteTV. See instructions that come with your IR Emitter and control block to determine how to make the connections. Page 18... -
Page 19: Side Panel And Front Panel Controls
In OSD menu, both keys are used to navigate within the menu. Adjusts volume. Vol+ /Vol- In OSD menu, both keys are used to navigate within menu. Vol+ is used to select the highlighted options. Front Panel IR Sensor SunBriteTV Model SB-3214HD Operator’s Manual Page 19... -
Page 20: Remote Control Guide
The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Care Center. SunBriteTV will repair or replace the remote control at SunBriteTV’s option. -
Page 21: On-Screen Display Controls
Digital Output and Audio Closed Caption Scanning Channels, Brightness, Color, Language, etc. Menu Settings Editing Channels, Sharpness. Language, Checking Signal Advanced Video controls: and Transparency Strength, etc. Color Temper, Zoom Mode, Noise Reduction and Adaptive Contrast SunBriteTV Model SB-3214HD Operator’s Manual Page 21... -
Page 22: Picture Menu
On-Screen Display Menu - Picture Menu Picture Menu From the PICTURE menu you can adjust PICTURE MODE, CONTRAST, BRIGHTNESS, COLOR, TINT SHARPNESS, ADVANCED VIDEO. Picture Mode 1. Press qp buttons to move the cursor to the item to be selected. 2. -
Page 23: Sound Menu
The language code must be programmed for this option to be available. If there is no selection it has not been programmed for this model. Note: Digital Out and Audio Language are available only in DTV. SunBriteTV Model SB-3214HD Operator’s Manual Page 23... -
Page 24: Setting Menu
Adjusting On-Screen Displays – Setting Menu Setting Menu Parental Controls 1. Press qp buttons to move the cursor to the item to be selected. Press qp buttons to Parental Controls, then use 2. Press u buttons to make the desired adjustments. u button to change Parental Control settings. - Page 25 ON or OFF. When System Lock is ON, Unrated programming cannot be accessed Press the u button to enter the submenu list to set the US rating functions. (US Menu is on the next page.) SunBriteTV Model SB-3214HD Operator’s Manual Page 25...
- Page 26 Adjusting On-Screen Displays – Setting Menu Parental Control - US Menu From the US Menu, press qp buttons to the TV function. Press u button to enter the submenu shown below. TV Menu TV-Y: For all children TV-Y7: For children above 7 TV-G: For anyone TV-PG: Children can watch with guardian TV-14: Need parent guide...
- Page 27 When Daylight Saving Time is ON, the clocks are set one hour ahead of local standard time. Clock The time is decoded from the digital signal and displayed (such as DTV,HDMI) This item is available only in English. SunBriteTV Model SB-3214HD Operator’s Manual Page 27...
- Page 28 Adjusting On-Screen Displays – Setting Menu Closed Caption From the Setup Menu, press qp buttons to Closed Caption, then press u button to enter the Closed Caption submenu shown below. To turn on the CC Mode. Closed Caption Submenu CC Mode Press qp buttons and then use t u buttons to turn the CC Mode ON or OFF Basic Selection...
- Page 29 Press the u button to enter the submenu list below Auto Scan Cable system Press the t u button to select the cable system. Start to Scan Press the u button to start auto scan. SunBriteTV Model SB-3214HD Operator’s Manual Page 29...
-
Page 30: Channel Menu
Adjusting On-Screen Displays – Channel Menu Favorite Favorite From the Channel Menu, press the qp buttons to select Favorite. Press the u button to enter the submenu shown at left. Press qp keys to select channels, and press OK to add current channel to Favorite Channel Table. -
Page 31: Trouble Shooting
If you have cable, call the cable provider and ask to have your signal strength checked. TV’s Universal This television follows SONY’s universal remote code. If SunBriteTV is not listed in Remote Code the manufacturer list, look up SONY’s codes in your universal remote’s hand book. -
Page 32: Care Of Sunbritetv
Also available is SunBriteTV’s special outdoor formula Cleaning Kit. OUTDOOR DUST COVER When the TV is not in use, we recommend that you keep it covered with a SunBriteTV fitted Outdoor Dust Cover. This will keep the TV clean, protect the finish and ensure years of maximum enjoyment. -
Page 33: Specifications
TV Weight 41.0 lbs. 45.0 lbs. with speaker module Residential Warranty Two-year, in-factory, parts and labor Commercial Warranty Two-year, in-factory, parts and labor Mount Pattern 100mm x 100mm 11.11.2014 Specifications are subject to change SunBriteTV Model SB-3214HD Operator’s Manual Page 33... -
Page 34: Features Information And Instructions
Your SunBriteTV will be replaced under warranty if it meets one of the following criteria: —A total of 7 defective pixels, including both bright dots and dark dots are present. (Model SB-3214HD LCD TV screen has over a million pixels.) —2 or more pairs of adjacent bright dots are present. -
Page 35: Appendix B - Rs232 Control Codes
[PICT] Sound [ESC]s 1B 73 [SND] Menu [ESC]m 1B 6D [MENU] Up Arrow [ESC]^ 1B 5E Down Arrow [ESC]v 1B 76 Left Arrow [ESC]> 1B 3E [<] Right Arrow [ESC]< 1B 3C [>] SunBriteTV Model SB-3214HD Operator’s Manual Page 35... - Page 36 www.sunbritetv.com...
