SF014 Solar Terra Cotta Cascade Instructions

By All Solar Central

www.allsolarcentral.com

Thank you from the entire ASC family for purchasing

an ASC solar product! Please read this entire booklet

before assembly.

Package contents:

1 x Cascade Frame

1 x Frame Base

1 x Iron Adaptor Tube

1 x Screw

1 x Top Jar

3 x Small Bowls

1 x Big Bowl

1 x Water Pipe and Rubber Bung

1 x Water Pump with 16 ft. Cable

1 x Solar Panel with Bracket

2 x Extension Tube

1 x Ground Spike

Notes: If there is any damage to the product or missing

parts, please contact us at 1-626-582-8898 or

www.allsolarcentral.com/contactus

Assembly Steps:

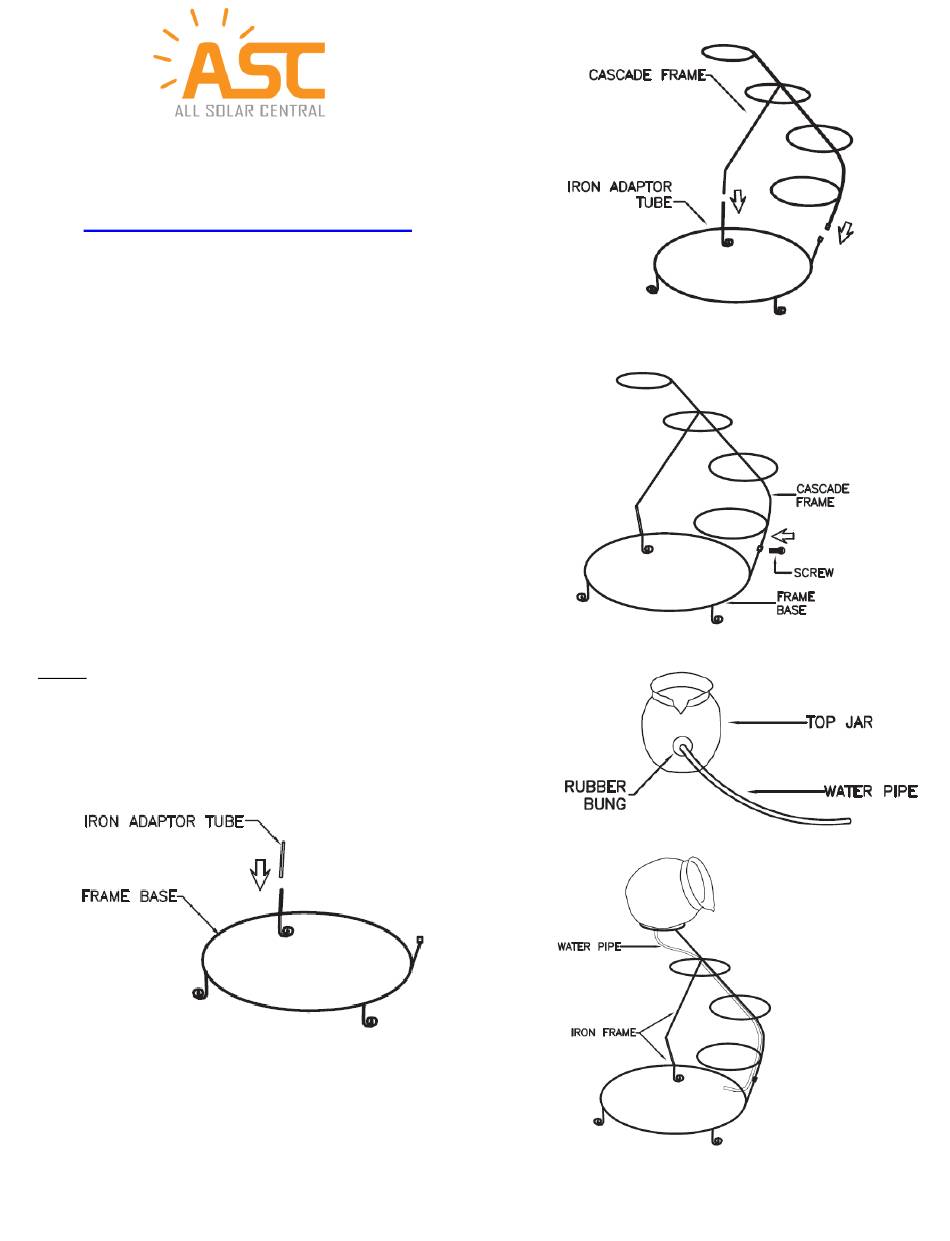

1. Attach Iron Adaptor Tube to the Frame Base

2. Attach Cascade Frame to the Iron Adaptor Tube

3. Secure the Cascade Frame to the Frame Base

with a provided screw.

4. Attach Water Pipe to Top Jar with a provided

Black Rubber Bung

5. Attach the pipe to the Iron Frame.

Need help?

Do you have a question about the Terra Cotta Cascade SF014 and is the answer not in the manual?

Page 1 SF014 Solar Terra Cotta Cascade Instructions By All Solar Central www.allsolarcentral.com Thank you from the entire ASC family for purchasing an ASC solar product! Please read this entire booklet before assembly. 3. Secure the Cascade Frame to the Frame Base Package contents: with a provided screw.
Page 2 6. Place the Big Bowl and 3 Small Bowls onto the 9. Connect the bracket, tubes and spike together. Iron Frame as shown below: Then attach the solar panel to the bracket. Slide the holding bracket into the inside lip of the top half of the solar panel frame.
Page 3 11. Connect the Pump to the back side of the Solar Panel. IMPORTANT!! Slightly twist the connectors 14. TROUBLE SHOOTING when connecting to make sure the rubber seals Check to see if the solar panel, pump and • are fully in the grooves. led light are connected properly Check to see if the solar panel is correctly •...
