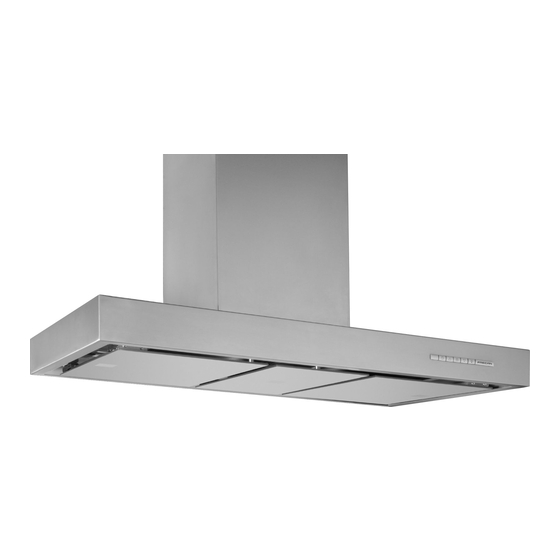

- Page 1 RANGEHOOD & INSTALLATION GUIDE WM-EX90S www.schweigen.com.au Revision V3 01/10/21...
- Page 2 Index Welcome Your State Regulatory Authority Important Safety Information Before Installation Product Use Ducted or Recirculating? Electrical Cord Description Rangehood 4. Operation Electronic Control Panel Speed Control Cleaning & Maintenance Cleaning the Interior Cleaning the Exterior Filters Replacing the Lights Installation Drop Down Side Doors Rangehood Size vs Cooktop Size...
- Page 3 Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. We trust that you will enjoy your new Schweigen rangehood. Your State Regulatory Authority Different Australian states have varying legislative requirements for the installation of rangehood ducting.
- Page 4 2. Important Safety Information WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
-
Page 5: Before Installation
2. Important Safety Information Before Installation 1. We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. 2. Please see our website www.schweigen.com.au for recommended installers. 3. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty. -
Page 6: Product Use
2. Important Safety Information Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire. -
Page 7: Range Hood
3. Description Rangehood 1. Flue Wall Mounting Bracket 2. Extension Flue Piece 3. Main Flue 4. Single Outlet 200mm 5. PCB (Computer) Board 6. For use with Isodrive motor system ® 7. Male Plug (Main Power 240V) 8. Reducer (For Isodrive 650 motor only) ®... -
Page 8: Electronic Control Panel
4. Operation Schweigen silent rangehoods are recognised for their silent operation. Although this holds true for all of our rangehoods with external motors, one must note that the rangehoods are silent when they are used for regular cooking on the lower fan setting. Therefore, you will only hear the movement of air. -
Page 9: Cleaning The Interior
5. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly. - Page 10 5. Cleaning & Maintenance Filters For this appliance to function effectively, regular maintenance is a must. • The function of the filter is to absorb the grease particles given off during cooking. • Clogged filters and heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
-
Page 11: Replacing The Lights
5. Cleaning & Maintenance Replacing the Lights Danger Always switch off and disconnect power before replacing the lights. Failure to do so may cause serious injury. Please be aware that the light bulb may retain heat for a short period of time after being switched off. - Page 12 6. Installation Drop Down Side Doors This rangehood has drop down glass side doors allowing more control and optimised ventilation. They can deflect air that may interfere with rangehood extraction. Rangehood Size vs Cooktop Size In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance.
-
Page 13: Mounting Instructions
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account. Recommended Installation Height for Induction Cooktop To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends a height between 700-750mm. Refer to page 19 for further information. - Page 14 6. Installation Attaching the Computer Board and wiring Bracket (Certain models only) Before you install the rangehood, you may need to connect the computer board and wiring bracket to the main body of the rangehood. 1. Attach the computer board to the outlet box using the screws provided.
- Page 15 6. Installation Installation Guide DANGER Always switch off and disconnect the power supply before installing the rangehood. Failure to do so may cause serious injury. NOTE Please make sure that filters are removed and put in a safe place while installing rangehood to prevent damage.
- Page 16 6. Installation Step 3 Using a leveller, level the rangehood using screws (A). Once levelled, secure it firmly to the wall (C) using the appropriate screws. Step 4 Feed through and secure the flexi ducting from the rangehood outlet to the Isodrive motor. •...
- Page 17 _n_. _RH Section_ 6. Installation Step 6 Install the wall flue bracket. 1. Fold both ends to 90° as shown figure 1. 2. Install the bracket to the wall at the correct height, see figure 2. 3. Attach flue cover to the bracket, see figure 3. Figure 1 Figure 2 Figure 3...
- Page 18 6. Installation Ducting Please DO NOT crush or kink the ducting. 1. Crushed or kinked ducting creates sharp corners that creates turbulence. This reduces the size and efficiency of the ducting, lowers extraction and may cause excessive noise. 2. Sweeping curves and taut ducting reduces resistance and turbulence.
-
Page 19: System Overview
6. Installation System Overview 1. Isodrive Motor ® 2. Roof Seal Kit (Dektite) (Not supplied)* 3. Support Straps (Not supplied)* 4. Attach Flexi Duct to Bell-Mouth Adaptor using ring clamp. Please DO NOT rip the ducting. 5. Isodrive Motor Power Lead (Male Plug) ®... -
Page 20: Cooking With Induction Cooktops
7. Condensation Information Cooking with Induction Cooktops Cooking with an induction or similar cooktop, may produce condensation on the rangehood. Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces vapours rapidly. Because of this rapid process, the rangehood filters do not have enough time to warm, which increases the chance of condensation forming. -
Page 21: Troubleshooting
8. Troubleshooting Troubleshooting Before you contact the technical service department, make sure that the product is plugged in and power is supplied. • Do not take any action that will damage the product. IMPORTANT Never attempt to repair this appliance by yourself. Always refer to a qualified Service Technician. -
Page 22: Faulty Installation
0800 200 510 Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the property where the appliance resides —... -
Page 23: Technical Specifications
9. Specifications Dimensions Technical Specifications Model WM-EX90S Feeding Voltage 220-240V 50Hz Lamp Power – LED (W) 3 x GLED Square 55 x 55mm 2.1 Watts 12V 4000k Page 23... - Page 24 All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information.
- Page 25 Notes Page 25...
- Page 26 Notes Page 26...
- Page 27 Notes Page 27...
- Page 28 Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz...
