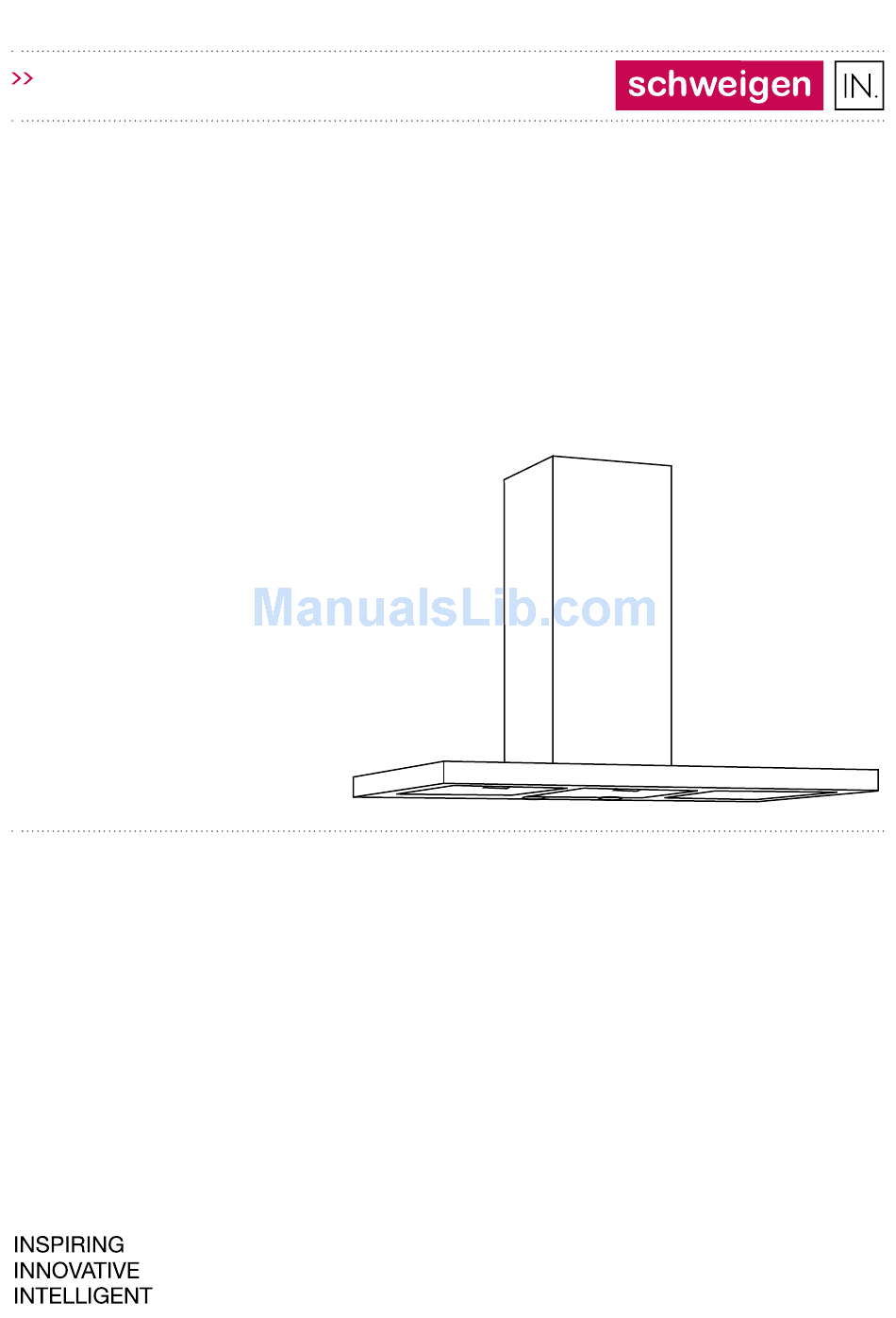

- Page 1 WALLMOUNTED RANGEHOODS INSTRUCTION MANUAL Installation / Operation / Maintenance WM-LIN9S KLS-ALBW9S KLS-ALBB9S (12.2016 / V1.0)
- Page 2 WELCOME Thank you for purchasing this Schweigen IN appliance. IMPORTANT! To achieve the optimal performance from your The appliance should only be appliance, and to avoid the risk of accident or operated when you have read and damage, it is essential to read this manual before understood this manual thoroughly.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important safety information ........................ 4 Description ..............................7 Installation ..............................8 Operation ..............................15 Cleaning and maintenance ........................17 Troubleshooting .............................20 Technical specifications ........................23 Disclaimer ..............................24 Page 3... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read the instructions carefully. This appliance is not intended for use by Only then will you be able to operate your person/s (including children) with reduced appliance safely and correctly. Retain the physical, sensory or mental capabilities, instruction manual for future use or for or lack of experience and/or knowledge. - Page 5 IMPORTANT SAFETY INFORMATION BEFORE INSTALLATION Schweigen will not be responsible for any installations executed by non-qualified We recommend this appliance be installed technicians that fail to heed the applicable or repaired by a qualified Schweigen Home legislation on electrical safety.
- Page 6 IMPORTANT SAFETY INFORMATION PRODUCT USE Always switch off the power source and unplug the connection before conducting The Rangehood has one mode of maintenance or cleaning. operation: Respect the cleaning frequencies Air extraction: The air is drawn in by the and intervals for changing the filters, rangehood, filtered through the grease otherwise, the accumulated grease could...
-
Page 7: Description
DESCRIPTION Rangehood 1. Flue Wall Mounting Bracket 2. Extension Flue 3. Main Flue 4. Single Outlet 200mm 5. PCB (computer) Board 6. Connect to the Isodrive motor system 7. Male Plug (Connect to Mains Power 240V 10 Amp) 8. Reducer (For Isodrive 650 motor only) 9. -
Page 8: Installation
INSTALLATION SYSTEM OVERVIEW 1. Isodrive Motor 2. Roof Seal Kit (Dektite)* 3. Support Straps* 4. Attach Flexi Duct to Bell-Mouth Adaptor using cable tie or ring clamp. Please DO NOT rip the ducting. 5. Isodrive Motor Power Lead (Male Plug) 6. - Page 9 Notes Induction 700mm 800mm * Schweigen’s recommended height will help avoid condensation, particular to cooking with an Induction Cooktop. Refer to additional notes on pg 20. * IMPORTANT Please check all State and Federal Laws in relation to both the minimum and maximum...
- Page 10 INSTALLATION ATTACHING THE COMPUTER BOARD AND WIRING BRACKET (CERTAIN MODELS ONLY) Before you install the rangehood, you may need to connect the computer board and wiring bracket to the main body of the rangehood. 1. Attach the computer board to the outlet box using the screws provided.
- Page 11 INSTALLATION INSTALLING THE RANGEHOOD A — Rangehood levelling screw points B — Main support bracket, wall screw points C — Second rangehood screw points D — Main support bracket NOTE: Some models might need the computer board and wiring bracket to be attached, see page 10 .
- Page 12 INSTALLATION Step 3 Using a leveller, level the rangehood using screws (A). Once levelled, secure it firmly to the wall (C) using the appropriate screws. Step 4 Feed through and secure the flexi ducting from the rangehood outlet to the Isodrive motor. Step 5 Inner flue cover Place flue covers onto the rangehood and adjust...
- Page 13 INSTALLATION Step 6 Figure 2 Install the wall flue bracket. 1. Fold both ends to 90° as shown figure 1. 2. Install the bracket to the wall at the correct height, see figure 2. 3. Attach flue cover to the bracket, see figure 3. Figure 1 Fold along these lines Figure 3...
- Page 14 INSTALLATION FLEXIBLE DUCTING INSTALLATION Please do not crush or kink flexi ducting, as it will reduce air flow and may cause noise to occur through the system. Ducting must be kept taut at all times. ISODRIVE MOTOR SETUP NOTE Please refer to the Isodrive motor installation guide for more details on flexi ducting and Isodrive motor installation.
-
Page 15: Operation
OPERATION Electronic Controls Model WM-LIN9S. The rangehood has a 4-speed electronic keypad. Speed control usage suggestions: • Low speed for simmering. • Medium speed for light cooking. • High speeds for heavy frying or heavy cooking. To obtain the best performance, switch the D.- Reduce speed: This button reduces the... - Page 16 OPERATION Electronic Touch Controls Models KLS-ALBW9S and KLS-ALBB9S. The rangehood has a 4-speed electronic keypad. Speed control usage suggestions: • Low speed for simmering. • Medium speed for light cooking. • High speeds for heavy frying or heavy cooking. To obtain the best performance, switch the F.- Timer: When the timer mode is in operation, rangehood on a few minutes prior to cooking and the timer button light will remain on.
-
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING Always switch off and disconnect power to the rangehood before cleaning. The manufacturer is exonerated from all responsibility in the event of fire due to poor maintenance of the filters and rangehood. Cleaning and user maintenance shall not be made by children without supervision. FILTERS •... - Page 18 CLEANING AND MAINTENANCE SURFACES Do not pour any liquid directly onto the rangehood, apply to a soft cloth first. The surface of the rangehood can be cleaned with The cloth must have no buttons, zips or fasteners warm soapy water and a soft sponge / cloth. that can scratch the surface.
- Page 19 CLEANING AND MAINTENANCE TYPE 3 (Halogen G4HD, LED G4): Type 3 — Halogen G4 HD, LED G4 REPLACING THE HALOGEN OR LED BULB (MAX 20W, 12V) 1. Press on the indicated zone “push” (1) 2. Open the light cover to an angle of 90º, DO NOT force past 90º.
-
Page 20: Troubleshooting
TROUBLESHOOTING COOKING WITH INDUCTION How to reduce the possibility of condensation forming: COOKTOPS • Ensure the rangehood is installed by a qualified Cooking with an induction or similar cooktop, professional, carefully following the installation may produce condensation on the rangehood. guide. - Page 21 TROUBLESHOOTING Before you contact the technical service department, make sure that the product IMPORTANT is plugged in and power is supplied. Never attempt to repair this • Do not take any action that will damage appliance by yourself. Always the product. refer to a qualified Service Technician.
-
Page 22: Faulty Installation
TROUBLESHOOTING FAULTY INSTALLATION Calling the Technical Assistance Service Hotline It is not the responsibility of Schweigen Home In the event that the failure is not due to the Appliances to rectify any incorrect installations. faults mentioned in Trouble Shooting, contact A service call out fee will be charged for any the Customer Service. -
Page 23: Technical Specifications
Max Lamp Power: 2 x GLED Square 55 x 55mm 2.1 Watts 12V 4000k 1 x Fluorescent Tube Double 860mm Capped 21W 12V Model: WM-LIN9S Feeding Voltage: 220-240V 50Hz Max Lamp Power: 2 x GLED Square 55 x 55mm 2.1W 12V 4000k... -
Page 24: Disclaimer
Information is supplied upon the condition that the person/s receiving the information will make their own determination as to its suitability for their purpose/s prior to use. In no event will Schweigen Home Appliances be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information from their website or the products to which the information refers. - Page 25 NOTES Page 25...
- Page 26 NOTES Page 26...
- Page 27 NOTES Page 27...
- Page 28 © Schweigen Home Appliances Pty Ltd. 2016. Australia 8/3-4 Anzed Court, Mulgrave, Victoria 3170. Phone: 1300 881 693. Email: sales@schweigen.com.au. New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone: 0800 200 510. www.schweigen.com.au © Schweigen Pty Ltd. 2017.
