Silicon Solar AquaJet-Pro-PUMP1224 Installation Manual

Read And Follow All Instructions Before Operating Your Solar Light. Save This Manual For Future Reference.

Technical Specifications

Operating Voltage
Pump Lift Height (max)
Flow Rate (max)
Dimensions
Weight
Cable Length

1. Overview

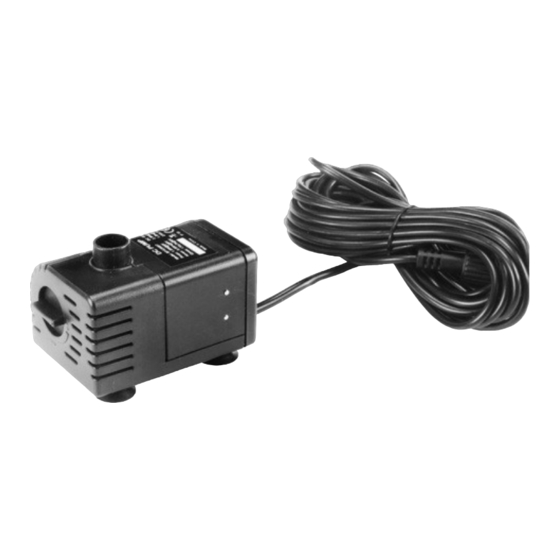

1. The brushless water pump is designed for outdoor or indoor fountain
use, and is powered by DC power supply such as solar module,
rechargeable battery or AC/DC adapter etc.
2. While using solar power, the solar module needs to be placed in the
sunlight facing the sun, and the performance of the pump depends on
the sunlight intensity and the angle of incident light.
3. The pump introduces the latest DC brushless motor technology with
maximum longevity
4. The pump has built-in function of dry-run protection. Two sensor
points are provided on the side of the housing for this. The pump
works if these points are under water. If a point projects out of the
water, the pump does not work.

2. Components

Copyright 1997 - 2015 Silicon Solar | All Rights Reserved | Version 1.0.0
* Prices and specifications subject to change without notice
Installation Manual
AquaJet 12-24V Solar Pump
AquaJet-Pro-PUMP1224
12-24V
10.5 ft
412.1 GPH
5.1" x 3.3" 2.8"
2.1 lbs
16.5 ft
1. Pump
2. Nozzle (optional)
3. Floating Disc (optional)
