Silicon Solar AquaJet-Pro-Kit-6V-V1 User Manual

READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING YOUR SOLAR PUMP. KEEP THIS
MANUAL FOR FUTURE REFERENCE
1.

OVERVIEW

a. The solar pump is designed for outdoor or indoor fountain use, and is powered by a
solar panel. In order to make the pump work through solar energy, the solar panel
needs to be placed in the sunlight with its solar cells facing the sun as much as
possible.
b. The performance of the pump depends on sunlight intensity and the incident angle
at which sunlight strikes the panel surface.
c. The latest DC brushless motor technology is introduced in the pump design and
manufacturing, so that the pump has high efficiency and long service life.
d. The pump flow rate can be adjusted by the flow valve (referring to the right figure).
2.

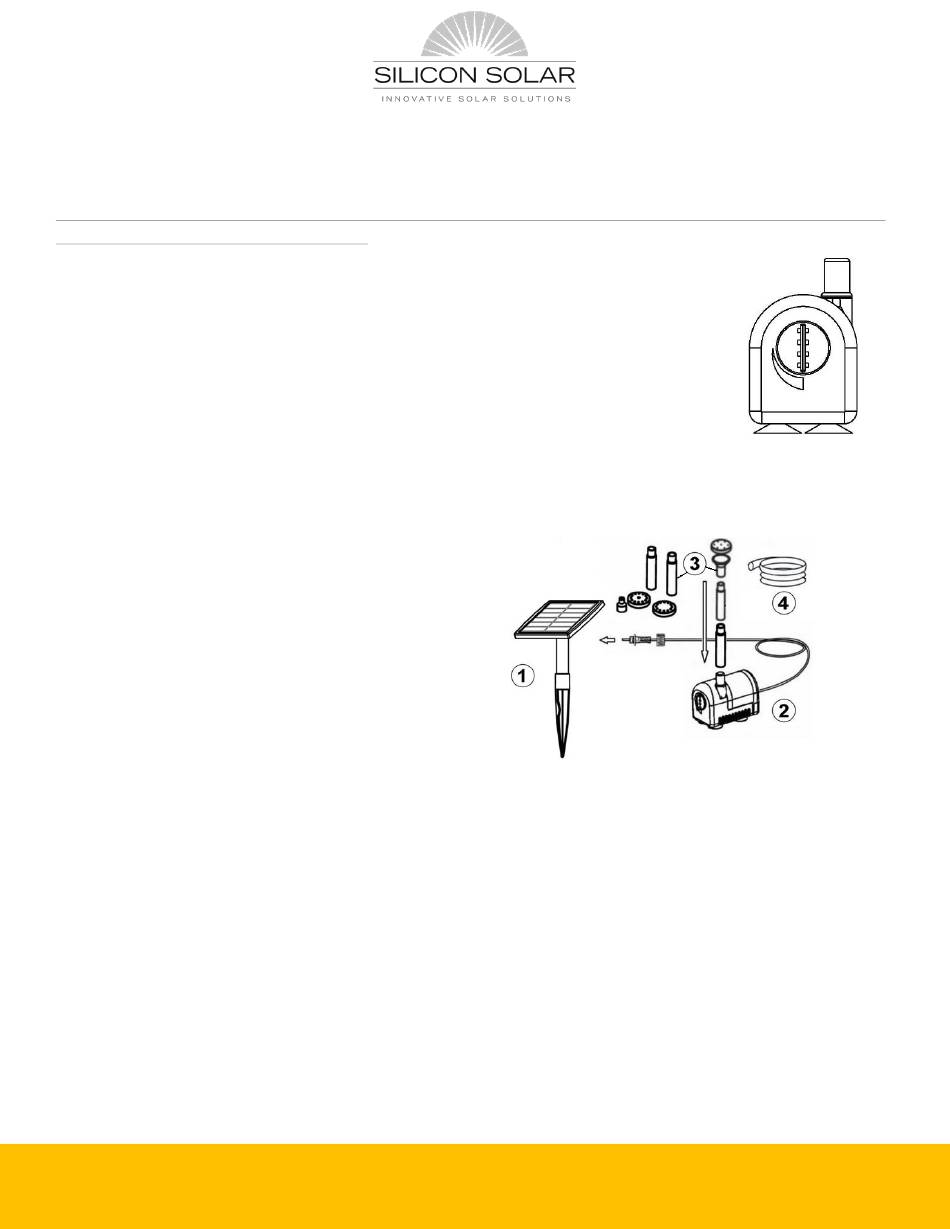

COMPONENTS

a. Solar panel with ground take / mounting
b. Water pump
c. Nozzles and extension tubes
d. Water hose
3.

ASSEMBLING

Unpack all components carefully.
a.
For the application of pumping water for a water feature or small waterfall, connect the pump
b.
outlet to the water inlet of a garden water decoration or the headstream of the waterfall with
the attached soft water hose.
For the application of creating a small jet fountain, please follow the steps below:
c.
Fit a nozzle and extension tubes on the top of the pump outlet, as shown in the above
d.
schematic, the nozzles can produce 4 different jet shapes.
Fix the pump at the base of a basin or bottom of a small shallow pond etc.
e.
It is best to keep the pump off the pond base to avoid drawing the pond waste into the pump,
f.
otherwise it may lead to blockage inside the pump.
To produce an excellent fountain effect, please leave the fountain head above the water surface
g.
by using the extension tubes. If these four extension tubes are all used and the pump head is still
immerged in the water, please uplift the pump body somehow.
Connect the pump to the solar panel, and tighten the protection screw.
h.
Install the solar panel in garden lawn or soft ground by jabbing the spike into the ground. Adjust
i.
the knob at the back of the panel and make the panel face the sun.
Innovative Solar Solutions | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.siliconsolar.com
USER'S MANUAL
AquaJet Pro Kit – Solar Pump Kit
SKU: AquaJet-Pro-Kit-6V-V1
