Silicon Solar AQUAJET-CUSTOM-KIT-24V-V1 User Manual

Solar pump
Hide thumbs
1
2
3

Advertisement

Table of Contents

1. OVERVIEW

1)
The solar water pump is designed for water features and pond
water filtration, and is powered by a solar module.
2)
The solar module needs to be placed in the sunlight with its solar
cells facing the sun as much as possible, and the performance of
the pump depends on the sunlight intensity and the orientation of
the solar module.
3)
The latest DC brushless motor technology is introduced in the
pump design and manufacturing, so that the pump has high
efficiency and long service life.
4)
The pump has a built-in function of dry-run protection. The dry-run protection function is provided by two sensor
points on one side of the pump body (not visible from outside). The pump works if both of the points are
submerged in water. If either or both points emerge out of water, the pump stops working.

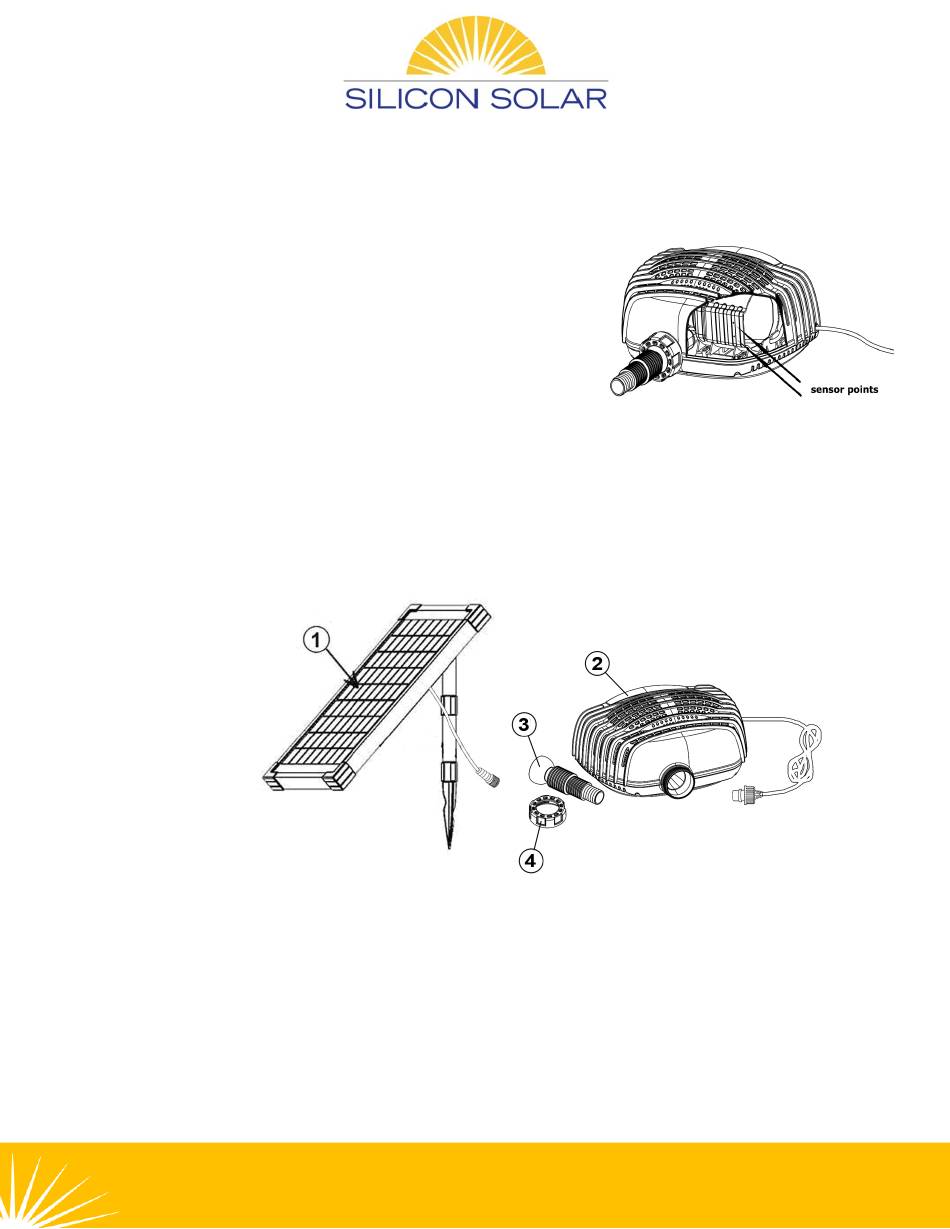

COMPONENTS

2.
1) Solar panel with ground spike
2) Pump
3) Hose connection
4) Gland nut
SOLAR PUMP USER'S MANUAL
Item No.: AQUAJET-CUSTOM-KIT-24V-V1
Innovative Solar Solutions | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUAJET-CUSTOM-KIT-24V-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Silicon Solar AQUAJET-CUSTOM-KIT-24V-V1

Summary of Contents for Silicon Solar AQUAJET-CUSTOM-KIT-24V-V1

  • Page 1 SOLAR PUMP USER’S MANUAL Item No.: AQUAJET-CUSTOM-KIT-24V-V1 1. OVERVIEW The solar water pump is designed for water features and pond water filtration, and is powered by a solar module. The solar module needs to be placed in the sunlight with its solar...
  • Page 2 3. ASSEMBLING Completely unroll the connecting cable on the stream pump. Attach the hose onto the outlet of the hose connection. The hose connection is suitable for various hose diameters (inside diameter 25,32 or 38 mm). Mount the hose connection to the pump outlet by means of the enclosed gland nut. Via the ball joint, the angle of the hose connection may be adjusted under water when necessary.
  • Page 3 6. TROUBLE SHOOTING Pump does not operate, please check the following possible reasons: 1) No connection to the power supply. CLEANING AND MAINTENANCE 2) Impeller is blocked—to clean the pump as described in “ ”. 3) To be sure the pump is fully submerged in water. *Pump does operate but there is no water running through the tubes: Clear the tube and the filter to make sure the tube is through completely.
