Silicon Solar AquaJet-Pro-PUMP1224 User Manual

1. OVERVIEW

1） The brushless water pump is designed for outdoor or indoor fountain use, and is powered by DC power supply
such as solar module, rechargeable battery or AC/DC adapter etc.
2） While using solar power, the solar module needs to be placed in the sunlight facing the
sun, and the performance of the pump depends on the sunlight intensity and the angle
of incident light.
3） The pump introduces the latest DC brushless motor technology with maximum longevity
4） The pump has built-in function of dry-run protection. Two sensor points are provided on
the side of the housing for this. The pump works if these points are under water. If a
point projects out of the water, the pump does not work.

2. COMPONENTS

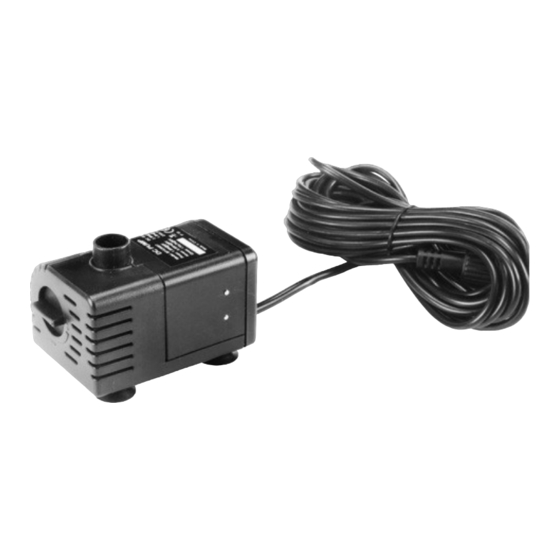

1) Pump
2) Nozzle (Optional)
3) Floating disk (Optional)

3. ASSEMBLING

1）Connect the pump to the
related DC power supply.
2）For the application of
producing waterfall
feature in small garden
water decorations, fit the
pump outlet to the water
inlet of the decoration.
3）For the application of
creating a small spraying
fountain, just fix the pump
the base of a basin or
small shallow pond etc.
4）Connect the
nozzles to the
outlet tube according to the above photo; the attached nozzles can
produce 2 different jet shapes.
5）To produce excellent fountain effect, please leave the fountain head
above the water surface using the extension tubes. If these 4pcs of
Silicon Solar Inc | 2917 State Hwy 7, Bainbridge, N.Y . 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
SOLAR PUMP USER'S MANUAL
AquaJet Solar Pump
SKU: AquaJet-Pro-PUMP1224
