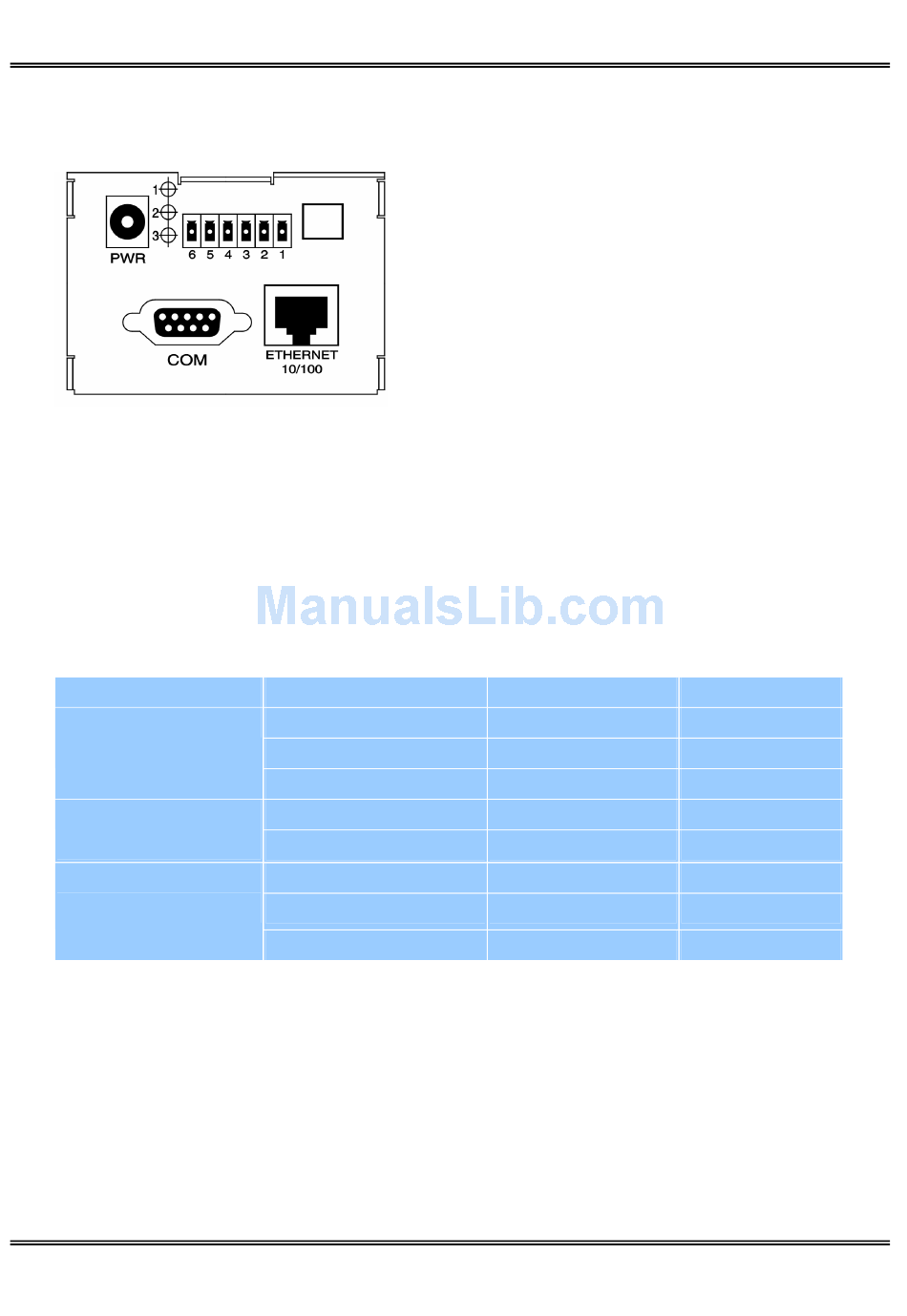

Rear Panel

Status LED's
Each time Video Server starts up, it will perform power-on-self-test, abbreviated as POST,
to examine every hardware module. As soon as the administrator plugs in the power
connector both LED's under the power LED will flash one by one until the diagnosis is
done. If the result is good, both status LED's will turn off for a while and then follows the
pattern below. If any module fails, refer to the Appendix A for the error pattern and
follow the trouble-shooting procedures. If the system still cannot operate normally,
please contact your reseller for technical service.
Network Interface
Ethernet
PPP with modem
PPP with null modem
Ethernet 10/100 socket
Connect to an Ethernet network with a UTP category 5 cable of length shorter than 100
meters according to the standard. Once the Ethernet cable is connected without error,
Video Server will utilize the Ethernet interface prior to the modem attached to COM2.
Condition
before installed
after installed
during camera control
after POST
before connected
after connected
before installed
after installed
- 8 -
LED2 (Heartbeat) LED3 (Status)
OFF
flash
flash
flash
ON
flash
OFF
flash
OFF
OFF
Flash
ON
ON
ON
OFF
OFF
