RCA audio input

The audio input is connected by RCA connector of mono-audio Line-In signal.

Status LED

The Video Server provides a LED to show its status. Please refer to the appendix
"Troubleshooting" for detail.

Rear Panel

Ethernet 10/100 socket

Connect to Ethernet network with a UTP category 5 cable that cannot exceed 100
meters.

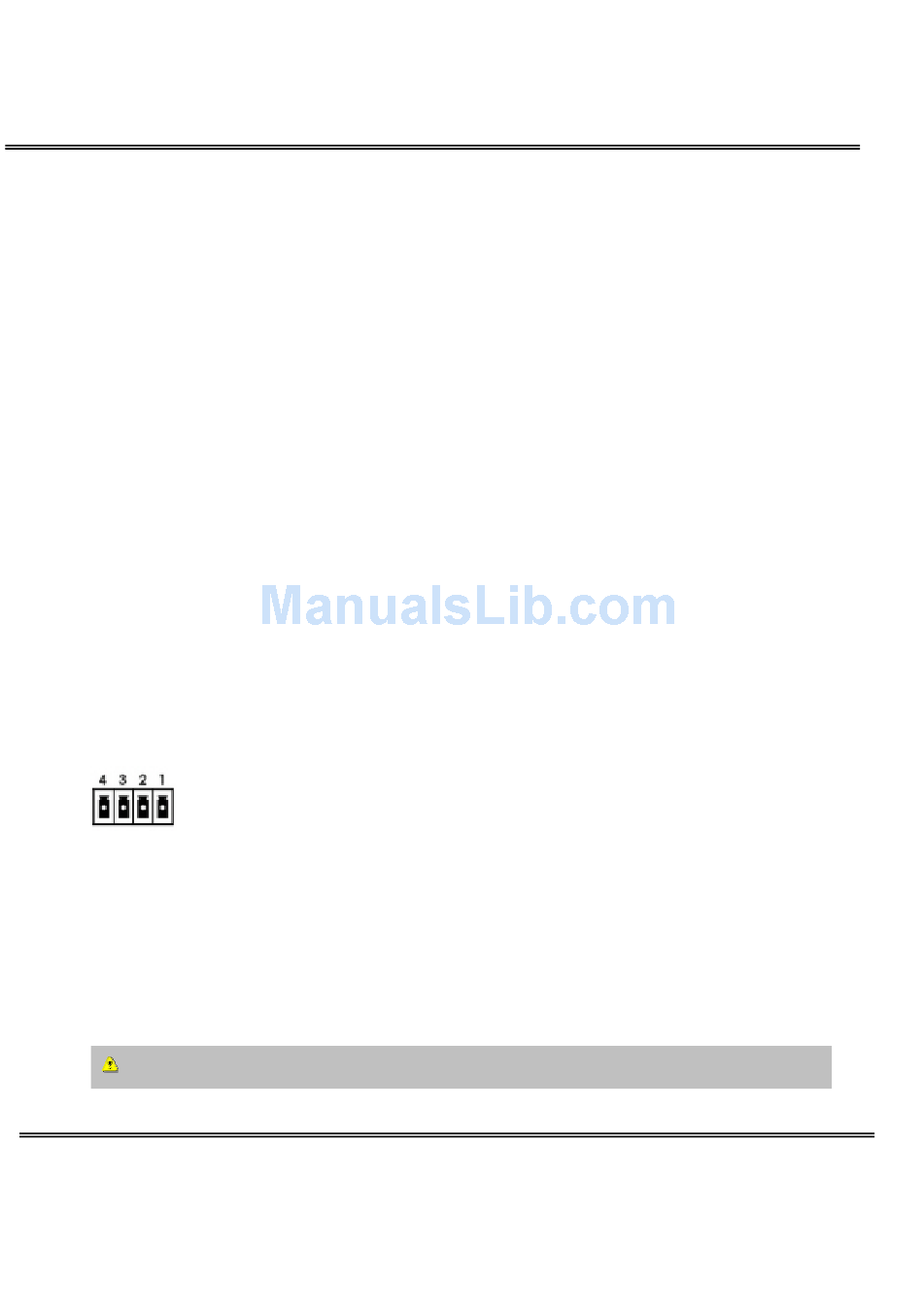

General I/O terminal block

The Video Server provides a general I/O terminal block with one digital input and one
relay switch for device control. Pin 1 and pin 2 can be connected to an external sensor
and the state of voltage will be monitored from the initial state 'LOW'. The relay switch
of pin 3 and pin 4 can be used to turn on or off the external device.
Consult with the dealer of the peripherals for correct installation.
1 DI- INPUT (Initial state of DI is low)
2 DI+ INPUT (Max. 50mA, 12VDC)
3 SW_COMMON OUTPUT (open from SW_OPEN at initial state)
(close with SW_OPEN when set DO to ON)
4 SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC)
