Table of Contents
Related Manuals for 4xem WLPT
Summary of Contents for 4xem WLPT
-

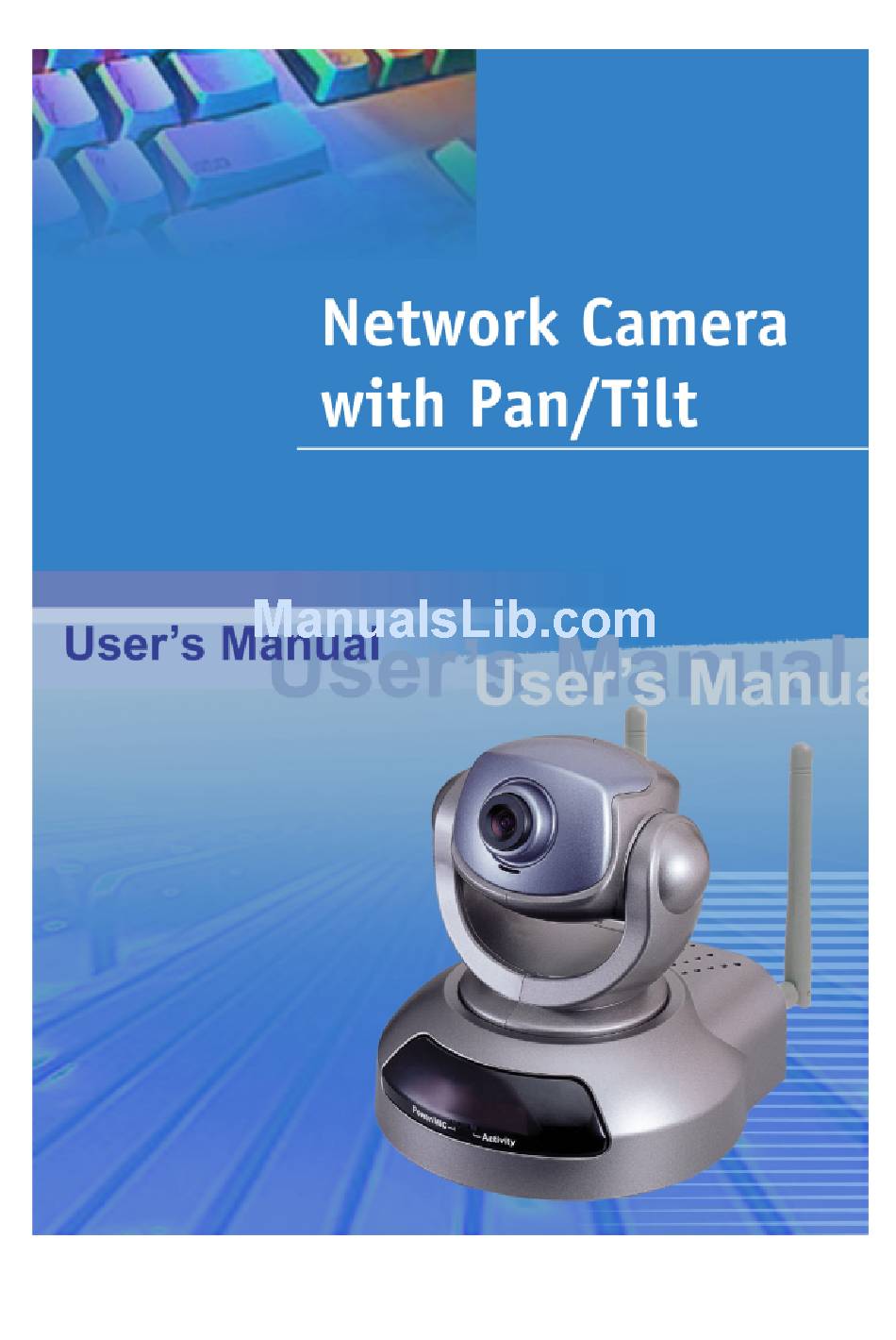

Page 2: Before You Use This Product
Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’ s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use. -
Page 3: Table Of Contents
Table of Contents Before You Use This Product Package Contents Installation Hardware Installation Software Installation Initial Access to the Network Camera Check Network Settings Add Password to Prevent Unauthorized Access How to Use Authentication Installing Plug-in Primary User’ s Capabilities Main Screen with Camera View Client Settings Administrator’... - Page 4 Weekly Schedule Event Operation Sequential Operation Camera Control UPnP and DDNS Settings Remote Controller Viewing System Parameters Factory Default Appendix A. Troubleshooting B. Frequently Asked Questions C. URL Commands of the Network Camera Capture Update Snapshot of JPEG Image Query Status of the Digital Input Drive the Digital Output Restore Factory Default Settings Restart System...
-
Page 5: Package Contents

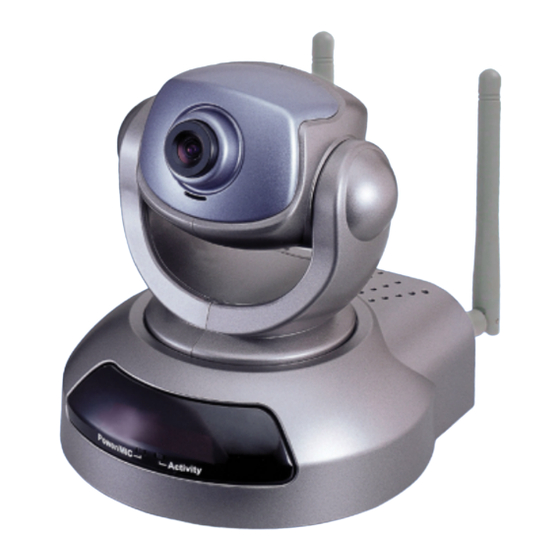

Package Contents Network Camera IPCAMWLPT Power adapter A/V Cable Remote Controller Camera stand Software CD Antennas - 4 -... -
Page 6: Installation
Installation Hardware Installation Upon powering up, the device runs through a self-test procedure and the front LEDs will blink between green and red a few times. If self-test passes, the LEDs will shut off and the Network Camera will be on stand-by and ready for software installation. If self-test fails the red LED will blink several times. -
Page 7: To Install In Wireless Lan
self-test, go to next paragraph “Software installation”. If the Ethernet is not available, Network Camera will switch to wireless LAN mode. To install in wireless LAN If the Ethernet is not available while power on, the Network Camera will search for any access point with the SSID “default”. -
Page 8: Software Installation
Software Installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera. At the end of the hardware installation, the Administrator must place the product software CD into the CD-ROM drive of the PC running in MS Windows. - Page 9 Upon IP installer’ s start up, a searching box will pop This program searches for the Network Cameras on the same LAN: After searching the LAN, the main window of IP installer will pop up. The IP addresses shown in the "Current IP Address"...
- Page 10 The UPnP function will always assign address for the Network Camera. Administrator click on button “Link to selected device” connect the I.E. to the camera. If the camera is not on the IP installer list, click on the “Search” button to search for the camera on the LAN.
-
Page 11: Initial Access To The Network Camera
Initial Access to the Network Camera Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS. -
Page 12: How To Use
How to Use Authentication After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. Upon successful authentication, the following figure is displayed. The foreground is the login window and the background shows the message if authentication fails. -
Page 13: Installing Plug-In
Installing Plug-in For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in that is the Network Camera. Permission request depends on the Internet security settings of the user’ s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt. -
Page 14: Primary User's Capabilities
Primary User’s Capabilities Main Screen with Camera View The main page layout has three parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees. Pan/Tilt control buttons: These buttons provide a command interface to control the aim of the camera. - Page 15 “Client Settings” Clicking on this button links you to the client setting pages, please check the following session for more details. “Configuration” Only the Administrator can access camera configurations. The Camera View: The information bar at the top of the camera view shows the connection type to the Network Camera and the current date/time.
-
Page 16: Client Settings
Client Settings At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation, the plug-in being the Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’... - Page 17 The TCP protocol allows for less packet loss and produce a more accurate video display. The downside with this protocol is that the real-time effect is worse than that with the UDP protocol. The HTTP protocol must be selected if the network is protected by a firewall and it only allows HTTP Port (80) to be opened.
-
Page 18: Administrator's Capabilities
Administrator’s Capabilities Fine-Tuning for Best Performance There are a few choices the Administrator is allowed to maximize the capabilities of the Network Camera. Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The three factors, “Maximum frame rate”, “Fix bit rate”, and “Fix quality”... -
Page 19: Only Quality Images Will Do
to 25 fps or 30 fps. If you are shooting fast-moving images, you may want to slow the maximum frame rate down to 20 fps in order to lower the rate of data transmission. This allows for better video quality and the human eyes cannot readily detect the differences between those of 20, 25, or 30 frames per second. -
Page 20: Opening Accounts For New Users
Opening Accounts for New Users Protect Network Camera by passwords Network Camera is shipped without any password by default. That means everyone can access Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if Network Camera is intended to be accessed by others. -
Page 21: Building A Multimedia Web Attraction Site
from controlling your attached devices. Another option allows different control to pan/tilt functions of the Network Camera. You may delete some users from ○ More flexible options for viewers ○ The first option allows anyone uses “demo” as the user name to view without password. The Administrator can also decide if more viewers are allowed to watch the video if the viewers exceed the limit. - Page 22 If you want to expand to allow in more viewers, the host server should be able to handle large network traffic, which must handle the picture refreshing from the Network Camera. If the web server space has FTP service Set the Network Camera up as an FTP client to upload the pictures. The access to the Network Camera will be independent of the number of viewers and the picture quality will remain constant.
- Page 23 8. Unselect "FTP put snapshots with date and time suffix" as the upload method and click on "Save", 9. The image file uploaded to the web space is named “video.jpg”. Check if the file is successfully uploaded to the correct folder, 10.
-
Page 24: Building A Security Application
Building a Security Application Administrator combine options application page to perform many useful security applications. There are two trigger sources coming from attached devices, such as for motion detection. There are also two kinds of actions responding to such events, including uploading snapshots over the Internet... -
Page 25: Send Snapshots When Motion Is Detected
5. Set the delay before detecting next event to avoid continuous false alarms following the original event, 6. Set the delay to take snapshots after event to capture the direction of the moving objects, Send snapshots when motion is detected If no external sensor is available, the Administrator can use the built-in motion detection to monitor any movement and sends snapshots via email for security check. - Page 26 13. Clicking on “Save” enables the activity display. Green means the motion in the window is under the watermark set by the Administrator and red means it is over the watermark, 14. Click on “Application” in the left column, 15. Check on the window name set in Step 10, 16.
-
Page 27: Software Revision Upgrade
Software Revision Upgrade Customers can obtain the up-to-date software from the distributor. An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below. -
Page 28: Definitions In Configuration
Definitions in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration. -
Page 29: System Parameters
System Parameters "Host name" The text displays the title at the top of the main page. “Turn off the LED indicator” Check this option to shut off the LED beside the lens. It can prevent the camera’ s operation being noticed. "Keep current date and time"... -
Page 30: User Group Administration
User Group Administration “Root password” Change the Administrator’ s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After pressing , the web browser will ask the Administrator for the new password for access. -
Page 31: Network Settings
Network Settings Any changes made on this page will restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on "Reset IP address at next boot", the default status is checked to avoid erroneous entries during installation. -
Page 32: Streaming
Streaming “Control channel port” This can be something other than the default port 5001 in order to work with the port opened by the firewall. “Audio channel port” This can be something other than the default port 5002 in order to work with the port opened by the firewall. - Page 33 “Preamble”, either “Long preamble” or “Short preamble” defines the length of the CRC block (Cyclic Redundancy Check is a common technique for detecting data transmission errors) for communication between the Access Point and the roaming wireless device. Long Preamble is the default setting. Note: High network traffic areas should use the shorter preamble type.
-
Page 34: Mail & Ftp
Mail & FTP SMTP “SMTP (mail) server 1” The domain name or IP address of the external email server. “Recipient email address 1” The email address of the recipients for snapshots or log file. Multiple recipients must be separated by semicolons, ‘ ;’ . “SMTP (mail) server 2”... - Page 35 “2nd FTP server” The domain name or IP address of the backup external FTP server. “2nd FTP user name” Granted user name on the backup FTP server. “2nd FTP password” Granted password on the backup FTP server. “2nd FTP remote folder” Granted folder on the backup FTP server. “Secondary FTP passive mode”...
-
Page 36: Video Codec Parameters
Video Codec Parameters “Text on video” The text will be displayed in the black bar above the video window with a timestamp. The timestamp is captured from the date and time of the Network Camera that is maintained by a built-in real-time clock. “Color”... - Page 37 - 37 -...
-
Page 38: Motion Detection
Motion Detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold, and drag the window frame to resize or the title bar to move. -
Page 39: Application Setup
Application Setup Weekly Schedule “Sun” ~ “Sat” Select the days of the week to perform the following operations. “Snapshots begin at” Set the time to start operations. “Snapshots stop at” Set the time to stop operations. Setting identical begin time and stop time means 24-hour operation. Event Operation “Delay second(s) before detecting next event”... -
Page 40: Sequential Operation
time suffix may also be added as an option. Confirm the external mail or FTP server settings in the network configuration. “Reset output” Select and save this option to reset the external device at the digital output to return to the original state. Sequential Operation “Snapshot every second(s)”... -
Page 41: Camera Control
Camera Control On the Camera Control page, there are two main function control areas: Camera Control Area The pan and tilt functions can be controlled with these buttons. The “Left” button aims the camera to the left; the “Right”, “Up”, and “Down” buttons aim the camera accordingly. -
Page 42: Preset Function Area
Preset Function Area ”Enable IR control” Checking this box allows the Administrator to enable the IR controller to move the aim of the camera. To allow controls only through URL commands or web pages, leave this box unchecked. ”Current position”, If the User wants to save the current view as a preset location, enter a name for each of the current video view at “current position”... -
Page 43: Upnp And Ddns Settings
UPnP and DDNS Settings “Enable DDNS” This option turns on the DDNS function. “Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’ s website to make sure the service charges. “Host name” If the User wants to use DDNS service, this field must be filled. Please input the hostname that is registered in the DDNS server. -
Page 44: Remote Controller
Remote Controller The Network Camera with Pan/Tilt provides a remote controller to command the camera’ s pan/tilt and other functions. The direction control part provides the function as on the main web page. The Pan/Patrol/Stop functions are also the same as on the main web page. “Auto Patrol”... -
Page 45: Viewing System Parameters
Viewing System Log Click on the link on the configuration page to view the system log file. The content of this file provides useful information about configuration and connections after system boot-up. Viewing System Parameters Click on this link on the configuration page to view the entire system’ s parameter set. The content is the same as those in CONFIG.INI. -
Page 46: Appendix
Appendix A. Troubleshooting Status LED After powering up, the Network Camera performs a self-diagnostic to detect any hardware defects. The following table lists the LED patterns in general. In case of any fatal error, the LED will blink in a pattern other than those below. Condition During self-diagnostic after power on Ethernet signal is lost... -
Page 47: Frequently Asked Questions
B. Frequently Asked Questions Q What if I forget my password? A After the Administrator's password has been assigned, every access to the Network Camera needs authentication. If you are one of the managed users, you have to ask the Administrator for the password. If you are the Administrator, there is no way to recover the root password except by restoring the factory default settings. - Page 48 Q Can I install it on ceiling? A Yes. There are flip and mirror options in the video configuration page to correct the images for upside down installation. Q The image is not clear enough. A Rotate the lens to adjust the focus after the Network Camera has been installed in the proper position.
- Page 49 Q How fast is the video rate of the Network Camera? A The MPEG4 codec engine can process up to 30 frames per second internally. However, the total performance is subject to many coefficients such as: 1. Network throughput, 2. Bandwidth share, 3.
-
Page 50: Url Commands Of The Network Camera
C. URL Commands of the Network Camera For some customers who already have their own web site or web control application, the Network Camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of the Network Camera. -
Page 51: Restart System
Restart System /setup/reset.cgi Restart the Network Camera without warning. - 50 -... -
Page 52: Page Url
Page URL The configuration page has a frame layout including an option list frame and an option page frame. Referenced URLs, except for the configuration page, direct users to the option page frame only. Some pages, such as image quality setting and preset setting, are opened in new windows for preview. -
Page 53: General Format Of Command Url
General Format of Command URL Every configuration can be set through URL with the POST method by the Administrator only. <general format> URL[?[name=value][&name=value]… … ] <method> POST <authorized user> root System Configuration URL URL: /setup/system.cgi NAME VALUE host <text string shorter than 15 characters>... -
Page 54: Security Configuration Url
Security Configuration URL URL: /setup/security.cgi NAME VALUE rootpass <text string shorter than 15 characters> username <text string shorter than 15 characters> userpass <text string shorter than 15 characters> deluser <text string shorter than 15 characters> action <blank> open dido Network Configuration URL URL: /setup/network.cgi NAME... -
Page 55: Ddns & Upnp Configuration Url
dns2 <IP address> smtp1 <domain name or IP address> primary SMTP server mailto1 <string shorter characters> smtp2 <domain name or IP address> secondary SMTP server mailto2 <text string shorter than 80 characters> returnemail <text string shorter than 80 characters> ftpp <number less than 65535>... -
Page 56: Mail&Ftp Configuration Url
NAME VALUE enddns anything provider host <the hostname> usermail username or mail passkey password or key enupnp anything Mail&FTP Configuration URL URL: /setup/mailftp.cgi NAME VALUE smtp1 <domain name or IP address> primary SMTP server mailto1 <string shorter characters> smtp2 <domain name or IP address> secondary SMTP server mailto2 <text string shorter than 80 characters>... -
Page 57: Audio/Video Configuration Url
characters> ftpfolder1 <text string shorter than 40 characters> ftp2 <domain name or IP address> secondary FTP server ftpuser2 <text string shorter than 15 characters> ftppass2 <text string shorter than 15 characters> ftpfolder2 <text string shorter than 40 characters> Audio/Video Configuration URL URL: /setup/video.cgi NAME... -
Page 58: Camera Control Url
256000 384000 512000 768000 1000000 1200000 frame flip mirror improve anthing mphone internal external Camera Control URL URL: /setup/ptcamera.cgi set bit rate to 256K bps set bit rate to 384K bps set bit rate to 512K bps set bit rate to 768K bps set bit rate to 1000K bps set bit rate to 1200K bps set maximum frame rate to 1 fps... -
Page 59: Image Quality Configuration Url
NAME VALUE addpos <the position name> delpos <the position name> selloc <index value, 0~19> irenable speedpan -5~5 speedtilt -5~5 speedapp 1~5 Image Quality Configuration URL URL: /setup/image.cgi NAME VALUE brightness <-5 ~ 5> contrast <-5 ~ 5> <-5 ~ 5> saturation <-5 ~ 5>... - Page 60 smethod mail suffix <not required> delay <integer> inter <integer> dihigh < not required > dilow < not required > dirise < not required > difall < not required > motion1 < not required > motion2 < not required > motion3 <...
-
Page 61: Technical Specifications
D. Technical Specifications - System CPU: Trimedia PNX1300 RAM: 16MB SDRAM ROM: 2MB FLASH ROM Networking Protocol TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS and DHCP Physical 10BaseT Ethernet or 100BaseT Fast Ethernet WLAN 2.4GHz 802.11b+ DSSS CSMA/CA 22/11/5.5/2/1Mbps Coverage: 100M/22Mbps, 150M/11Mbps, 250M/5.5Mbps, 300M/2Mbps, 350M/1Mbps... - Page 62 Electromagnetic Compatibility (EMC) This device compiles with FCC Rules Part 15. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
