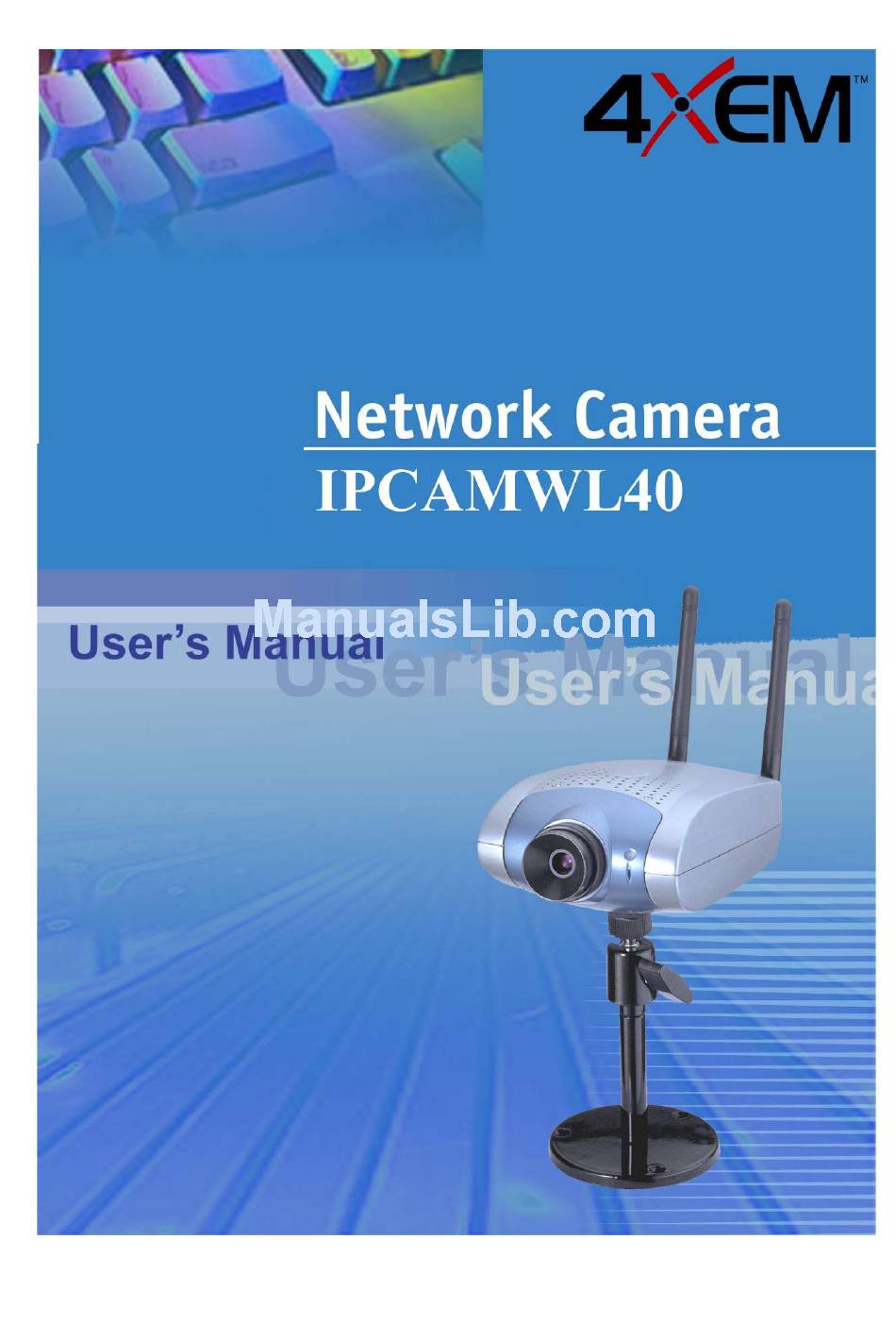

Summary of Contents for 4xem WL40
-
Page 2: Before You Use This Product
Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use. -
Page 3: Table Of Contents
Table of Contents Before You Use This Product...1 Package Contents ...5 Installation ...6 Hardware installation...6 Software installation...8 Initial Access to the Network Camera ... 10 Check Network Settings ... 10 Add Password to prevent Unauthorized Access... 10 How to Use ... 11 Authentication... - Page 4 Mail & FTP... 40 SMTP ... 40 FTP ... 40 DDNS and UPnP settings ... 42 Video codec parameters ... 43 Motion detection ... 45 Application settings ... 46 Weekly schedule... 46 Event operation... 46 Sequential operation ... 47 Homepage layout settings ... 48 Viewing system log ...
- Page 5 Image quality configuration URL ... 63 Application configuration URL ... 64 Homepage layout configuration URL ... 65 D. Technical specifications ... 66 - 4 -...
-
Page 6: Package Contents
Package Contents Network Camera IPCAMWL40 Power adapter I/O terminal block connector Camera stand Software CD - 5 -... -
Page 7: Installation
Installation Hardware installation Upon powering up, the device runs through a self-test procedure and the front LEDs will blink between green and red a few times. If self-test passes, the LED will be green and the Network Camera will standby for getting IP address. If self-test fails the red LED will blink several times. -
Page 8: To Install In Wireless Lan
self-test, go to next paragraph “Software installation”. If the Ethernet is not available, Network Camera will switch to wireless LAN mode. To install in wireless LAN If the Ethernet is not available while power on, the Network Camera will search for any access point with the SSID “default”. -
Page 9: Software Installation
Software installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera. At the end of the hardware installation, users can use Installer program included in the product CDROM to find the location of the Network Camera. - Page 10 If users run Installer program before the hardware installation, Camera may not be showed on the Installer list. After installation, users may click on to update the list. Once installation is complete, the Administrator should proceed to the next section "Initial access to the Network Camera" for necessary checks and Network hardware Users...
-
Page 11: Initial Access To The Network Camera
configurations. Initial Access to the Network Camera Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS. -
Page 12: How To Use
How to Use Authentication After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. Upon successful authentication, the following figure is displayed. The foreground is the login window and the background shows the message if authentication fails. -
Page 13: Installing Plug-In
Installing plug-in For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera. Permission request depends on the Internet security settings of the user’s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt. -
Page 14: Primary User's Capability
Primary user’s capability Main screen with camera view The main page layout has two parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees. Click on the configuration link to the left of the image window to enter the configuration page. -
Page 15: Digital Zoom
Digital Zoom Click on the magnifier icon under the camera view then the digital zoom control panel will be shown. Uncheck “Disable digital zoom” and use the slider control to change the zoom factors. Digital Output Clicking on the “On” or “Off” button turns the digital output to either on or off status. Snapshot Click on , web browser will pop up a new window to show the snapshot. -
Page 16: Client Settings
Client settings At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation, the plug-in being the Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’s site. - Page 17 UDP protocol. The HTTP protocol must be selected if the network is protected by a firewall and it only allows HTTP Port (80) to be opened. In this mode, audio will not be sent and only video is operational. If no special need is required, UDP protocol is recommended. Generally speaking, the client’s choice will be in the order of UDP →...
-
Page 18: Administrator's Capability
Administrator’s capability Fine-tuning for Best Performance Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The three factors, “Maximum frame rate”, “Fix bit rate”, and “Fix quality” on the Video Configuration page, are correlative to allow for achieving the best performance possible. - Page 19 and set the maximum frame rate to 30 fps. If the images vary dramatically in your environment, you may want to slow the maximum frame rate down to 20 fps in order to lower the rate of data transmission. This allows for better video quality and the human eyes cannot readily detect the differences between those of 20, 25, or 30 frames per second.
-
Page 20: Opening Accounts For New Users
Opening accounts for new users Protect Network Camera by passwords The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the Network Camera is intended to be accessed by others. -
Page 21: Change Homepage Layout
users from ○ More flexible options for viewers ○ The first option allows anyone uses “demo” as the user name to view without password. The Administrator can also decide if more viewers are allowed to watch the video if the viewers exceed the limit. - Page 22 How to change the font color 1. Click on “Configuration” on homepage, 2. Click on “Homepage layout” at the left column, 3. Find “Font color” and pull down the list to choose any color you like, 4. Click on “Save” button. * The font color is better to contrast with the background.
- Page 23 If you want to use the image from another web site as background, 3. Find “Background graph” and choose “Url”, 4. Type the URL of the image on the Internet in the edit box, for example, “http://dgl.microsoft.com/thumbnails/j023/j0235217(t).gif”, 5. Click on “Save” button. If you want to change the default background image stored in the Network Camera, 3.
- Page 24 5. Prepare an image file with size less than 65000 bytes and rename it to logo.gif, 6. Open an FTP client program and connect to the Network Camera. The user name and password is as same as the Administrator’s. 7. Transfer logo.gif in local folder to the Network Camera, 8.
- Page 25 How to design my own homepage to replace the current one 1. Prepare your own homepage with size less than 65000 bytes and rename it to user.htm, 2. Insert the html codes of video object, the bold Italian text in the following example, into the appropriate position in user.htm.
- Page 26 3. Open an FTP client program and connect to the Network Camera. The user name and password is as same as the Administrator’s. 4. Transfer user.htm in local folder to the Network Camera, 5. Close the FTP program and reload the homepage of the Network Camera, 6.
-
Page 27: Build A Multimedia Web Attraction Site
Build a multimedia web attraction site Demo on multiple sites – mid-scale service The Network Camera can allow ten visitors on-line simultaneously. After installation, focus the Network Camera on any view you would like friends to share and tell the visitors to type in the web browser address. - Page 28 If you want to expand to allow in more viewers, the host server should be able to handle large network traffic, which must handle the picture refreshing from the Network Camera. If the web space has FTP service, Set the Network Camera as an FTP client to upload the pictures. The access to the Network Camera will be independent of the number of viewers and the picture quality will remain constant.
- Page 29 5. Click on “Application” at the left column, 6. Select the weekday and daily schedule you want to upload the pictures, 7. Select “Sequential operation” and set the interval, 8. Select FTP without date time suffix as the upload method and click on save, 9.
- Page 30 ****** Example homepage begin ****** <html> <head> <title>Example - auto refresh</title> </head> <body background="/pic/wallppr.jpg"> <p align=left> <font size="7" face="Comic Sans MS" color="#FF0000"> Network Camera Demo </font> </p> <p align=left> <!-- Begin of scripts to auto refresh the image. Change the IP address in the image URL and refreshrate if necessary.
-
Page 31: Build A Security Application
Build a security application The Administrator can combine options on the application page to perform many useful security applications. There are two trigger sources coming from attached devices such as for motion detection. There are also two kinds of actions responding to such events, including uploading snapshots over Internet driving... - Page 32 5. Set the delay before detecting next event to avoid continuous false alarms following the original event, 6. Set the delay to take snapshots after event to capture the direction of the moving objects, Send snapshots when motion is detected If no external sensor is available, Administrator can use the built-in motion detection to monitor any movement and send snapshots via email for security check.
- Page 33 16. Check “Upload snapshots while motion detected”, if e-mailing the snapshots is preferred, 17. Check “Send snapshots by email”, 18. Click on save to validate. - 32 -...
-
Page 34: Software Revision Upgrade
Software revision upgrade Customers can obtain the up-to-date software from the web site. An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below. -
Page 35: Definition In Configuration
Definition in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrase on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration. -
Page 36: System Parameters
System parameters "Host name" The text displays the title at the top of the main page. “Turn off the LED indicator” Check this option to shut off the LED beside the lens. It can prevent others from observing the operation. "Keep current date and time"... -
Page 37: Security Settings
Security settings “Root password” Change the Administrator’s password by type in the new password identically in both text boxes. The typed entries will be displayed as asterisks for the security purpose. After pressing , the web browser will ask the Administrator for the new password for access. -
Page 38: Network Settings
Network settings Any changes made to this page will restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on "Reset IP address at next boot", the default status is checked to get IP address automatically at the server start. -
Page 39: Wlan Configuration
order to work with the port opened by the firewall. “Audio channel port” This can be something other than the default port 5002 in order to work with the port opened by the firewall. “Video channel port” This can be something other than the default port 5003 in order to work with the port opened by the firewall. - Page 40 transmission errors) for communication between the Access Point and the roaming wireless device. Long Preamble is the default setting. Note: High network traffic areas should use the shorter preamble type. “Data encryption” Checking the box to enable the data encryption. By default it is disabled.
-
Page 41: Mail & Ftp
Mail & FTP SMTP When the SMTP server support SMTP authentication, users need to give the valid user name and password to send email via the server. “SMTP (mail) server 1” The domain name or IP address of the external email server. “User name of SMTP 1”... - Page 42 the external FTP server for details. The folder privilege must be open for upload. “Primary FTP passive mode” The Network Camera is located inside the network protected by a firewall, data connection for FTP may be prohibited. By selecting passive mode, the FTP can bypass the rule and allow snapshot upload to proceed.
-
Page 43: Ddns And Upnp Settings
DDNS and UPnP settings “Enable DDNS” This option turns on the DDNS function. “Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to make sure the service charges. “Host name” If users wants to use DDNS service, this field must be filled. Please input the hostname that is registered in the DDNS server. -
Page 44: Video Codec Parameters
Video codec parameters “Text on video” The text will be displayed in the black bar above the video window with a timestamp. The timestamp is captured from the date and time of the Network Camera that is maintained by a built-in real-time clock. “Color”... - Page 45 recall the original settings without incorporating the changes. - 44 -...
-
Page 46: Motion Detection
Motion detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold, and drag the window frame to resize or the title bar to move. -
Page 47: Application Settings
Application settings Weekly schedule “Sun” ~ “Sat” Select the days of the week to perform the following operations. “Snapshots begin at” Set the time to start operations. “Snapshots stop at” Set the time to stop operations. Setting identical begin time and stop time means 24-hour operation. “All the time except for the above schedule”... -
Page 48: Sequential Operation
for the snapshots, before event, right upon event, and after event. The date and time suffix may also be added as an option. Confirm the external mail or FTP server settings in the network configuration. “Reset output” Select and save this option to reset the external device at the digital output to return to the original state. -
Page 49: Homepage Layout Settings
Homepage layout settings “Use the customized homepage”, check this option to use “user.htm” uploaded by the Administrator instead of the default one. Refer to the section “Administrator’s capability” for detail usage. The following options related to the default homepage will not affect the “user.htm”. -
Page 50: Viewing System Log
Viewing system log Click the link on the configuration page to view the system log file. The content of the file provides useful information about configuration and connection after system boot-up. Viewing system parameters Click on this link on the configuration page to view the entire system’s parameter set. The content is the same as those in CONFIG.INI. -
Page 51: Appendix
Appendix A. Troubleshooting Status LED After powering up, the Network Camera performs a self-diagnostic to detect any hardware defects. The following table lists the LED patterns in general . In case of any fatal error, the LED will blink in a pattern other than those below. Condition During self-diagnostic after power on Ethernet signal is lost... -
Page 52: Frequently Asked Questions
B. Frequently asked questions Q What if I forget my password? A After the Administrator's password is assigned, every access to the Network Camera needs authentication. If you are one of the managed users, you have to ask the Administrator for the password. If you are the Administrator, there is no way to recover the root password except for restoring factory default. - Page 53 Differences of several hours may result from the time zone setting. Q Can I install it on ceiling? A Yes. There are flip and mirror options in video configuration page to correct the images for upside down installation. Q The image is not clear enough. A Rotate the lens to adjust the focus after the Network Camera is installed in the proper position.
- Page 54 of users, it is recommended to build another web server to host the retrieving contents from the Network Camera. Q How fast is the video rate of the Network Camera? A The MPEG4 codec engine can process 30 frames per second internally. However the total performance is subject to many coefficients as follows: 1.
-
Page 55: Url Commands Of The Network Camera
C. URL commands of the Network Camera For some customers who already have their own web site or web control application, the Network Camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of the erase Network Camera. -
Page 56: Restart System
The Network Camera will automatically restart after restoring factory default configurations. Restart system /setup/reset.cgi Restart the Network Camera without warning. - 55 -... -
Page 57: Page Url
Page URL The configuration page has a frame layout including an option list frame and an option page frame. Referenced URLs, except for the configuration page, direct users to the option page frame only. Some pages, such as image quality setting and preset setting, are opened in new windows for preview. -
Page 58: General Format Of Command Url
General format of command URL Every configuration can be set through URL with POST method by the Administrator only. <general format> URL[?[name=value][&name=value]……] <method> POST <authorized user> root System configuration URL URL: /setup/system.cgi NAME VALUE host <text string shorter than 15 characters>... -
Page 59: Security Configuration Url
Security configuration URL URL: /setup/security.cgi NAME VALUE rootpass <text string shorter than 15 characters> username <text string shorter than 15 characters> userpass <text string shorter than 15 characters> deluser <text string shorter than 15 characters> action <blank> open dido Network configuration URL URL: /setup/network.cgi NAME... - Page 60 vport <number less than 65535> aport <number less than 65535> band mute ssid <text string shorter than 33 characters> chan 1 ~ 11 1 ~ 11 1 ~ 13 10, 11 10 ~ 13 1 ~ 14 preamb encr auth auto shared open...
-
Page 61: Mail & Ftp Configuration Url
dkey 1 ~ 4 netkey1 hexadecimal string (00 ~ FF) netkey2 hexadecimal string (00 ~ FF) netkey3 hexadecimal string (00 ~ FF) netkey4 hexadecimal string (00 ~ FF) *Hexadecimal string means the string is composed of two-digit ASCII code indicating the hexadecimal value. -
Page 62: Ddns & Upnp Configuration Url
ftpuser1 <text string shorter than 15 characters> ftppass1 <text string shorter than 15 characters> ftpfolder1 <text string shorter than 40 characters> pasv1 ftp2 <domain name or IP address> secondary FTP server ftpuser2 <text string shorter than 15 characters> ftppass2 <text string shorter than 15 characters>... -
Page 63: Video Configuration Url
usermail <text string shorter than 40 characters> passkey <text string shorter than 40 characters> enupnp anything Video configuration URL URL: /setup/video.cgi NAME VALUE text <text string shorter than 15 characters> color <other than B/W> size mode 50Hz 60Hz quality fixb <other than fixb>... -
Page 64: Image Quality Configuration Url
bitrate 64000 128000 256000 384000 512000 768000 1000000 1200000 frame flip mirror Image quality configuration URL URL: /setup/image.cgi highest quality of video set bit rate to 64K bps set bit rate to 128K bps set bit rate to 256K bps set bit rate to 384K bps set bit rate to 512K bps set bit rate to 768K bps... -
Page 65: Application Configuration Url
NAME VALUE brightness <-5 ~ 5> contrast <-5 ~ 5> <-5 ~ 5> saturation <-5 ~ 5> preview <not required> restore <not required> save <not required> Application configuration URL URL: /setup/app.cgi NAME VALUE emode <not required> smode <not required> smethod mail suffix <not required>... -
Page 66: Homepage Layout Configuration Url
ioalarm < not required > mdalarm < not required > ioupload < not required > mdupload < not required > sinter <integer> sbegin <hh:mm:ss> send <hh:mm:ss> Homepage layout configuration URL URL: /setup/layout.cgi NAME VALUE cuslogo blank logourl <text string shorter than 80 characters>... -
Page 67: Technical Specifications
D. Technical specifications - System CPU: Trimedia PNX1300 RAM: 8MB SDRAM ROM: 2MB FLASH ROM Networking Protocol TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, DRM, DDNS and UPnP Ethernet 10BaseT or 100BaseT Fast Ethernet WLAN 2.4GHz 802.11b+ DSSS CSMA/CA 22/11/5.5/2/1Mbps Coverage: 100M/22Mbps, 150M/11Mbps, 250M/5.5Mbps, 300M/2Mbps, 350M/1Mbps...
