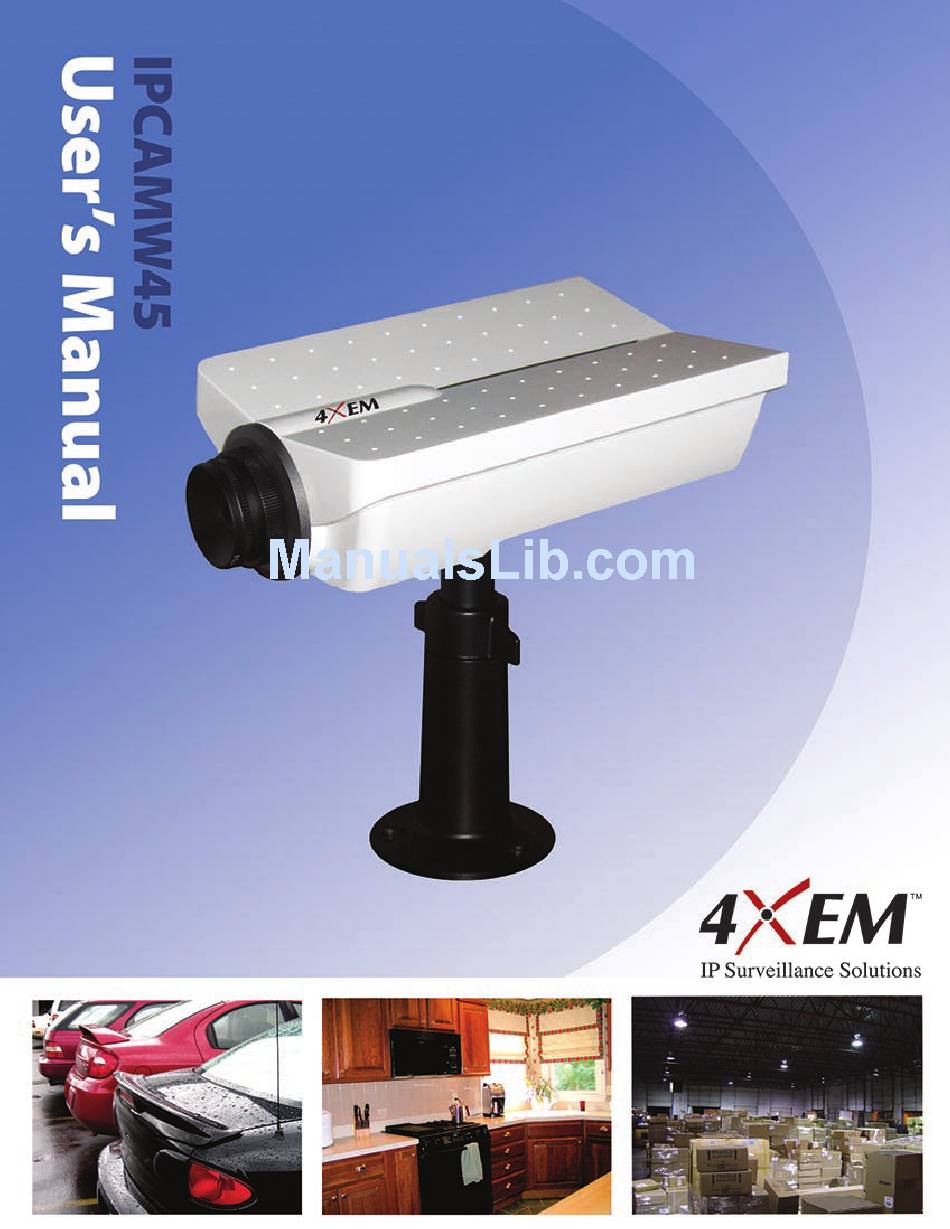

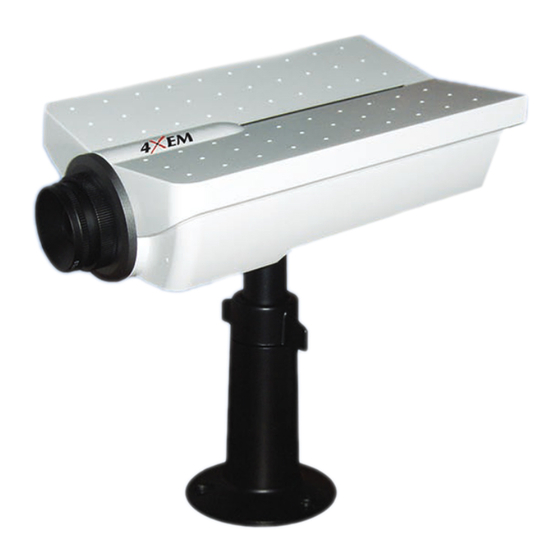

- Page 2 Product name: Network Camera (IPCAMW45) Release Date: 2007/06/05 Manual Revision: Web site: http://www.4xem.com/ Email: mailto:technical@4xem.com mailto:sales@4xem.com Made in Taiwan. ©Copyright 2007-2012. All rights reserved...
-
Page 3: Table Of Contents
Configuration ... 15 System Parameters ...16 Security Settings ...17 Network Settings...18 Network Type ... 18 HTTP ... 19 RTSP Streaming... 19 DDNS ...19 Access List...20 Audio and Video General ... 21 Video Settings ... 21 www.4XEM.com T: 1-866-999-4XEM F: 1-519-754-0686... - Page 4 Capture single snapshot... 47 Account management ... 48 System Logs ... 49 Configuration file ... 49 Upgrade Firmware... 50 C. Technical Specifications ...51 Technology License Notice ... 52 Electromagnetic Compatibility (EMC)... 53 Liability ... 53 www.4XEM.com T: 1-866-999-4XEM F: 1-519-754-0686...
-
Page 5: Before You Use This Product
Ignoring the warnings may result in serious hazards or injuries. The “Troubleshooting” chapter in the Appendix provides The “How to Use” chapter suggests ways to best utilize the the reader should use caution to understand www.4XEM.com T: 1-866-999-4XEM F: 1-519-754-0686... -
Page 6: Package Contents
Package Contents IPCAMW45 Power adapter Camera stand Software CD Quick installation guide Warranty card www.4XEM.com T: 1-866-999-4XEM F: 1-519-754-0686... -
Page 7: Installation
Power is being supplied to the camera. The camera is booting up. The camera is trying to obtain an IP address. An IP address is successfully assigned to the camera. The camera is working. During firmware upgrading. - 3 - www.4XEM.com... -
Page 8: Software Installation
Network Camera body. Please refer to the user’s manual for the Installation Wizard for more details. Once the installation is complete, the Administrator should proceed to the next section "Initial access to the Network Camera" for necessary checks and configurations. - 4 - www.4XEM.com... -
Page 9: Initial Access To The Network Camera
Once the password is set, there is no provision to recover the Administrator’s password. The only option is to restore to the original factory default settings. - 5 - www.4XEM.com... -
Page 10: How To Use
Users click proceed. web browser does not allow the user continue install, check the Internet security option and lower the security levels or contact your IT or networking supervisor for help. - 6 - www.4XEM.com... -
Page 11: Primary User's Capability
Digital Zoom Click on the magnifier icon under the camera view then the digital zoom control panel will be shown. Uncheck “Disable digital zoom” and use the slider control to change the zoom factors. - 7 - www.4XEM.com... -
Page 12: Snapshot
Media Options to determine the type of media to be streamed and Protocol Options which allows choice of connection protocol between client and server. There are two protocol choices to optimize your usage – UDP and TCP. - 8 - www.4XEM.com... -
Page 13: Digital Output
UDP protocol, save, and return HOME to re-connect. Digital Output Click on ON, the digital output of the Network Camera will be triggered. Or, clicking on OFF can let the digital output turn into normal state. - 9 - www.4XEM.com... -
Page 14: Administrator's Capability
Most 3GPP cell phone supports media streaming with MPEG4 video and GSM-AMR audio. Due to the limitation of the bandwidth for 3GPP, only 176x144 video solution will be supported for cell phone viewing. Select the Configure for mobile viewing option will change the range of other related video settings. - 10 - www.4XEM.com... -
Page 15: Only Quality Images Will Do
You can also fix the bandwidth according to your actual network speed and adjust the frame rate. Start from 30 fps down for best results but not below 15 fps. If the image qualities are not improved, select a lower bandwidth setting. - 11 - www.4XEM.com... -
Page 16: Opening Accounts For New Users
Then add an account with user name and password for your friends in The Network Camera can provide twenty accounts for your valuable customers or friends. You may delete some users from to enable protection. This password is used to identify the - 12 - www.4XEM.com... -
Page 17: Build A Security Application
12.Set the delay before detecting next motion to avoid continuous false alarms following the original event, 13.Set the number of pre-event and post-event images to be uploaded, 14.Check the window name set in step 5, 15.Check the way to upload snapshot. 16.Click on save to validate. - 13 - www.4XEM.com... -
Page 18: Software Revision Upgrade
Software Revision Upgrade Customers can obtain the up-to-date software from the web site of 4XEM. An easy-to-use Upgrade Wizard is provided to upgrade the Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below. -
Page 19: Configuration
The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration. If the Administrator also wants to set certain options through the URL, read the reference appendix for details. - 15 - www.4XEM.com... -
Page 20: System Parameters
Reset digital output: The check box enable the function of resetting digital output. When the digital output is triggered, after the number time the digital output will reset into normal state. Remember to click on to immediately validate the changes. Otherwise, the correct time will not be synchronized. - 16 - www.4XEM.com... -
Page 21: Security Settings
There is a maximum of twenty user accounts. Checking I/O access can enable user to use D/I and D/O applications Manager user: Pull down the user list to find the user’s name and press to complete. - 17 - www.4XEM.com... -
Page 22: Network Settings
Subnet mask: This is used to determine if the destination is in the same subnet. The default value is “255.255.255.0”. Default router: This is the gateway used to forward frames to destinations in a different subnet. - 18 - www.4XEM.com... -
Page 23: Http
DDNS Enable DDNS: This option turns DDNS function. Provider: The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website make sure the service charges. Host Name: If the User - 19 - www.4XEM.com... -
Page 24: Access List
Add button. If you want to remove an existing IP address range, just select from the pull-down menu and click on the Delete button. Both the Allow List and Deny List can have 20 entries. - 20 - www.4XEM.com... -
Page 25: Audio And Video
MPEG4 video stream. Lower key frame intervals improve the overall quality of the image at a cost of bandwidth usage and storage requirements. Video Quality: This section allows you to force the camera to either operate within a certain bandwidth or maintain a certain quality level. - 21 - www.4XEM.com... -
Page 26: Video Orientation
-5 to +5. In Brightness and Contrast fields the value 0 indicates auto tuning. The user may press fine-tune the image. When the image is O.K., press image settings. Click on this to recall the original settings without incorporating the changes. - 22 - www.4XEM.com... -
Page 27: Email & Ftp
User name: This granted user name on the external email server. Password: This granted password on the external email server. Recipient email address: The email address of the recipients for snapshots or log file. Multiple recipients must be separated by a semicolon (;). - 23 - www.4XEM.com... -
Page 28: Ftp
FTP server. Some FTP servers cannot accept preceding slash symbol before the path without virtual path mapping. Refer to the instructions for the external FTP server for details. The folder privilege must be open for upload. - 24 - www.4XEM.com... -
Page 29: Motion Detection
The following figure shows the screen when is clicked. The monitoring window has been outlined in red and the graphic bar goes red since the goldfish is moving. - 25 - www.4XEM.com... -
Page 30: Application Settings
Send: After Event has been triggered, IP cam will send something by email, ftp or trigger digital output. Snapshot Snapshot Enable snapshot: Enable/Disable snapshot application. Weekly Schedule Sun - Sat: Select the days of the week to perform the application. - 26 - www.4XEM.com... - Page 31 This can also be used to refresh the captured images stored in the external web server to build creative homepages. FTP put snapshots with date and time suffix: Motion detection This option sets up the snapshot capture - 27 - and a note will show www.4XEM.com...
-
Page 32: Video Clip
Video clip file name prefix The prefix name will be added on the file name of the video clip files. Video clip max file size Define the maximum size of one video clip file. - 28 - www.4XEM.com... - Page 33 2003, January the 2 , at 3 o’clock, 4 minute, and 5 second. If this suffix is omitted, the file named “video.jpg” on the external FTP server will be refreshed at the specified interval. - 29 - www.4XEM.com...
-
Page 34: Digital Output
Delay second(s) before detecting next event: Set the time delay before restarting to check on the triggering condition when the current condition is triggered. - 30 - www.4XEM.com... -
Page 35: System Log
Check Enable remote log and input the IP address and port number of the log server to enable the remote log facility. Current log displays the current system log file. The content of the log provides useful information about configuration and connection after system boot-up. - 31 - www.4XEM.com... -
Page 36: Viewing System Parameters
The system will restart and require the installer program to set up the network again. Upgrade firmware: Select the firmware file and click upgrade button. - 32 - www.4XEM.com... -
Page 37: Appendix A. Troubleshooting
Power is being supplied to the camera. The camera is booting up. The camera is trying to obtain an IP address. An IP address is successfully assigned to the camera. The camera is working. During firmware upgrading. - 33 - www.4XEM.com... -
Page 38: Url Commands Of The Network Camera
When query parameter values, the current parameter values are returned. Successful control requests returns parameter pairs as follows. Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n [<parameter pair>] <length> is the actual length of content. - 34 - www.4XEM.com... -
Page 39: Set Server Parameter Values
If you omit this parameter, it will redirect to an empty page. (note: The return page can be a general HTML file(.htm, .html) or a 4XEM server script executable (.vspx) file. It can not be a CGI command. It can not have any extra parameters. This parameter must be... -
Page 40: Available Parameters On The Server
NOTE: The bold characters in table are the default value of each parameter. Group: System NAME VALUE hostname <text (r/w) than 40 characters> ledoff (r/w) DESCRIPTION string shorter host name of server <<Wireless>Network Camera > Do not turn off the led indicator Turn off the led indicator - 36 - www.4XEM.com... - Page 41 <value> seconds. Restart the server after <value> seconds. Not restart the server. Using the profile of viewing by computer Using the profile of viewing by mobile phone DESCRIPTION change user name. <blank> - 37 - www.4XEM.com...
- Page 42 DHCP server at next reboot Using preset ipaddress, subnet, router, dns1, dns2 IP address of server <192.168.0.99> subnet mask <255.255.255.0> default gateway <blank> primary DNS server <blank> secondary DNS server <blank> primary SMTP server <blank> - 38 - www.4XEM.com...
- Page 43 FTP server <blank> password for primary FTP server <blank> upload folder in primary FTP server <blank> Enable passive mode of primary FTP server Disable passive mode of primary FTP server secondary FTP server - 39 - www.4XEM.com...
- Page 44 RTSP access name <live.sdp> DESCRIPTION Allowed starting RTSP connection IP address <1.0.0.0> Allowed ending RTSP connection IP address <255.255.255.255> Denied starting RTSP connection IP address <blank> Denied ending RTSP connection IP address <blank> DESCRIPTION shorter enclosed caption - 40 - www.4XEM.com...
- Page 45 50K bps set bit rate to 64K bps set bit rate to 128K bps set bit rate to 256K bps set bit rate to 512K bps set bit rate to 768K bps - 41 - www.4XEM.com...
- Page 46 (5500K) fixed outdoor( > 5500K) flip image normal image mirror image normal image Overlay time stamp on video Do not overlay time stamp on video DESCRIPTION set codec to GSM-AMR set AAC bitrate to 16K bps - 42 - www.4XEM.com...
- Page 47 Adjust hue of image according to mode settings. <0> DESCRIPTION disable motion detection enable motion detection disable motion window #1 enable motion window #1 string shorter name of motion window #1 <blank> Left coordinate of window position. <0> - 43 - www.4XEM.com...
- Page 48 <1> Your dynamic hostname. <blank> Your user or email to login ddns service provider <blank> Your password or key to login ddns service provider <blank> Update the above ddns settings to take effect - 44 - www.4XEM.com...
-
Page 49: Application Page Cgi Command
DESCRIPTION Enable or disable the UPNP port forwarding service. <0> DESCRIPTION File name of script <script.vssx> Disable script Enable script DESCRIPTION disable remote log enable remote log Log server IP address Server port used for log - 45 - www.4XEM.com... - Page 50 Value snapshot_enable 0,1,2,3,4,5,6 weekday always time_method interval hh:mm begin_time description Enable snapshot application Disable snapshot application The array indicate weekly schedule 24 hours full day Select begin time and end time Begin time of weekly schedule - 46 - www.4XEM.com...
-
Page 51: Capture Single Snapshot
The numbers of snapshot before event The numbers of snapshot after event The delay seconds for detecting next motion event The interval seconds of sequential snapshot Send snapshot by mail Send snapshot by ftp Enable/Disable file name prefix - 47 - www.4XEM.com... -
Page 52: Account Management
Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according the the current path. If you omit this parameter, it will redirect to an empty page. - 48 - www.4XEM.com... -
Page 53: System Logs
\r\n <system log information>\r\n Configuration file Note: This request requires administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/configfile.cgi Server will return the up-to-date configuration file. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <configuration file length>\r\n \r\n <configuration data>\r\n - 49 - www.4XEM.com... -
Page 54: Upgrade Firmware
Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the upload file named <file name> to be upgraded the firmware and return with <return page> if indicated. - 50 - www.4XEM.com... -
Page 55: Technical Specifications
16-ch recording software SDK available for application development and system integration Viewing system requirement OS: Microsoft Windows 2000/XP Browser: Internet Explorer 5.x or above Cellphone: 3GPP player Real Player 10.5 Quick Time 6.5 Packet Video Player 3.0 - 51 - www.4XEM.com... -
Page 56: Technology License Notice
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM. - 52 - www.4XEM.com... -
Page 57: Electromagnetic Compatibility (Emc)
4XEM Corporation cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. 4XEM Corporation makes no warranty of any kind with regard to the material contained within this document, including, but not...
