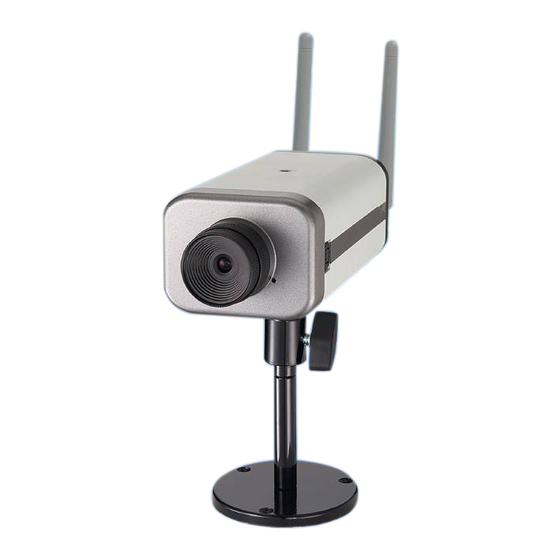

4xem WL80 User Manual

Wireless network camera

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the WL80 and is the answer not in the manual?

Questions and answers

Summary of Contents for 4xem WL80

Page 3: Package Contents
Before You Use This Product The use of surveillance devices may be prohibited in your country by law. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
Page 4: Package Contents
Package Contents Network Camera Power adapter Antennas Camera stand Wrench Software CD - 3 -...
Page 5: Table Of Contents
Table of Contents Before You Use This Product...2 Package Contents ...3 Table of Contents... 1 Installation ...4 Hardware Installation ... 4 To install in Ethernet... 4 To install in wireless LAN ... 5 Software Installation ... 6 Initial Access to the Network Camera ... 10 Installing Plug-in ...
Page 6 If the web space has FTP service ... 21 If the web space has no FTP service ... 23 Build a Security Application... 25 Send Snapshots When Motion is Detected ... 25 Definitions in Configuration ... 27 System Parameters ... 28 User Group Administration ...
Page 7 General CGI URL syntax and parameters ... 58 Get server parameter values ... 58 Set server parameter values ... 59 Available parameters on the server ... 61 Application page CGI command ... 73 Drive the digital output ... 76 Query status of the digital input ... 76 Query status of the digital output...
Page 8: Installation
Installation Hardware Installation Upon powering up, the device runs through a self-test procedure and the front LEDs will blink between green and red for a few times. If self-test passes, the LEDs will shut off and the Network Camera will be on stand-by and ready for software installation. If self-test fails the red LED will blink several times.
Page 9: To Install In Wireless Lan
To install in wireless LAN If the Ethernet is not available while power on, the Network Camera will search for any access point with the SSID “default”. Once any access point is found, the LED will turn green to wait for installation. If the network environment cannot meet the default settings, install Network Camera in Ethernet to proceed with wireless LAN configuration.
Page 10: Software Installation
Software Installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera. At the end of the hardware installation, the Administrator must place the product software CD into the CD-ROM drive of the PC running in MS Windows.
Page 11 Upon Installation Wizard’s start up, a searching box will pop up. searches for product on the same LAN: After searching, Video Servers or Network Cameras will be located by the Installation Wizard. There may be several entries shown in the window. The Administrator may differentiate the Network Cameras with the serial number.
Page 12 For the series number in the “Serial Number” field, please check the label on the bottom of the camera. The IP addresses shown in the "Current IP Address" field reflect those on the local network. They may be from the DHCP server. If there is no DHCP server, the camera will try to find a free IP address (this takes from 15 second to 3 minutes, depending on the LAN status).
Page 13 For more detailed usage of the Installation Wizard, please refer to the user’s manual of the Installation Wizard. - 9 -...
Page 14: Initial Access To The Network Camera
Initial Access to the Network Camera Installing Plug-in For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera after a period of time of downloading. Permission request depends on the Internet security settings of the user’s PC or notebook.
Page 15: Check Network Settings
Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS. Ask your network administrator or Internet service provider for the detail information.
Page 16: How To Use
How to Use Authentication After opening the web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. The foreground is the login window and the background shows the message if authentication fails.
Page 17: Primary User's Capabilities
Primary User’s Capabilities Main Screen with Camera View The main page layout has two parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees. - 13 -...
Page 18: The Configuration
The Configuration: “Digital Output” Clicking on the “On” or “Off” button turns the digital output to either on or off status. “Snapshot” Clicking on the “Snapshot” can get a JPEG format image of the current camera view in another window. “Client Settings”...
Page 19: Client Settings
Client Settings There are four settings for the client side. Media Options - For the User to determine whether to receive video, audio or both. Protocol Options – Which allows choosing on connection protocol between client and server. There are two protocol choices to optimize your usage – UDP and HTTP. The UDP protocol allows for more real-time audio and video streams.
Page 20 Streaming Options – For users to select the video streaming types. Select “Streaming Video” options, the video connection will keep alive to enable you to see smooth video, while “Single JPEG” options will let you see the video in JPEG format by client periodic update the JPEG image from server according to the “Frame rate”...
Page 21: Administrator's Capabilities
Administrator’s Capabilities Fine-tuning for Best Performance There are a few choices the Administrator is allowed to maximize the capabilities of the Network Camera. Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible.
Page 22: For Best Real-Time Video Images
For Best Real-time Video Images To achieve good real-time visual effect, the network bandwidth should be large enough to allow a transmission rate of greater than 20 image frames per second. If the broadband network is over 1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps, or set “Fix quality”...
Page 23: Select For Motion Jpeg
setting “Fix bit rate”. You can also fix the bandwidth according to your actual network speed and adjust the frame rate. Start from 30 fps down for best results but not below 15 fps. If the image qualities are not improved, select a lower bandwidth setting.
Page 24: Opening Accounts For New Users
Opening Accounts for New Users Protect Network Camera by Passwords The Network Camera is shipped without any password by default. That means everyone can access the Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the Network Camera is intended to be accessed by others.
Page 25: More Flexible Options For Viewers
the server. You may edit or delete some users from the third field. More Flexible Options for Viewers If you want to have a guest account for viewers only, you just need to add a user without password and disable all the privileges. Share the account to your friends to access your camera.
Page 26 will remain constant. 1. Click on “Configuration” on the homepage, 2. Click on “Mail & FTP” in the left column, 3. Fill in the FTP related settings including server, server port, user name and password, as well as the upload path if it is specified by the web space, 4.
Page 27: If The Web Space Has No Ftp Service
6. Select the day or days of the week in “Weekly schedule” you want to upload the pictures, 7. Select “Sequential operation” and set the interval, 8. Unselect “FTP put snapshots with date and time suffix” as the upload method and click on “Save”, 9.
Page 28 Example of an auto-refresh web page: <html> <head> <title>Example - auto refresh</title> </head> <body> MiniAVServer Demo <!-- Begin of scripts to auto refresh the image. Change the IP address in the image URL and refreshrate if necessary.
Page 29: Build A Security Application
Build a Security Application The Administrator can combine options on the application page to perform many useful security applications. There are trigger sources coming from attached devices, such as for motion detection. There are also two kinds of actions responding to such events, including uploading snapshots over the Internet and driving other attached devices.
Page 30 detection to monitor any movement and send snapshots via emails for security check. 6. Click on “Motion detection” in the left column, 7. Check “Enable motion detection”, 8. Click on “New” to have a new window to monitor video, 9. Type in a name to identify the new window, 10.
Page 31: Definitions In Configuration
Definitions in Configuration Only the Administrator can access system configuration. Each category in the left column will be explained in the following pages. The bold texts are the specific phrases on the Option pages. The Administrator may type the URL below the figure to directly enter the frame page of configuration.
Page 32: System Parameters
System Parameters "Host name" The text displays the title at the top of the main page. “Turn off the LED indicator” Check this option to shut off the LED on the rear. It can prevent the camera’s operation being noticed. "Keep current date and time"...
Page 33: User Group Administration
User Group Administration “Root password” Change the Administrator’s password by typing in the new password identically in both text boxes. The typed entries will be displayed as asterisks for security purposes. After pressing , the web browser will ask the Administrator for the new password for access.
Page 34 <url> http://<Network Camera>/setup/security.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 30 -...
Page 35: Edit User
Edit User Type the new password, change the privilege and press to modify the account. <url> http://<Network Camera>/setup/edituser.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 31 -...
Page 36: Network Settings
Network Settings Any changes made on this page will need to restart the system in order to validate the changes. Make sure every field is entered correctly before clicking on "Get IP address automatically" & “Use fixed IP address” The default status is “Get IP address automatically”. This can be tedious having to perform software installation whenever the Network Camera starts.
Page 37: Streaming
when the Administrator changes the HTTP port of the Network Camera whose IP address is 192.168.0.100 from 80 to 8080, the User must type in the web browser “http://192.168.0.100:8080” instead of “http://192.168.0.100”. Streaming “UDP audio channel port” This can be something other than the default port 5002 in order to work with the port opened by the firewall.
Page 38: Wireless
Wireless “SSID” (Service Set Identifier), it is a name that identifies a wireless network. Access Points and wireless clients attempting to connect to a specific WLAN (Wireless Local Area Network) must use the same SSID. The default setting is default. Note: The maximum length of SSID is 32 single-byte characters and SSID can’t be any of “, <, >...
Page 39 64bits is the default setting. “Key format” Hexadecimal or ASCII. “HEX” is the default setting. “HEX” digits consist of the numbers 0~9 and the letters A-F. “ASCII” is a code for representing English letters as numbers from 0-127 except “, <, > and space characters that are reserved. “Network Key”...
Page 40: Ddns & Upnp
DDNS & UPnP “Enable DDNS” This option turns on the DDNS function. “Provider” The provider list contains four hosts that provide DDNS services. Please connect to the service provider’s website to make sure the service charges. “Host Name” If the User wants to use DDNS service, this field must be filled. Please input the hostname that is registered in the DDNS server.
Page 41 <url> http://<Network Camera>/setup/ddnsupnp.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 37 -...
Page 42: Mail & Ftp
Mail & FTP SMTP “1st SMTP (mail) server” The domain name or IP address of the external email server. “1st SMTP account name” Granted account name on the email server. “1st SMTP password” Granted password on the email server. “1st recipient email address” The email address of recipients for snapshots or log file.
Page 43 “1st FTP passive mode” The Network Camera is located inside the network protected by a firewall, data connection for FTP may be prohibited. By selecting passive mode, the FTP can bypass the rule and allow snapshot upload to proceed. If the passive mode is selected, the Network Camera can automatically attempt for active mode, if the external FTP server does not support passive mode.
Page 44 <url> http://<Network Camera>/setup/mailftp.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 40 -...
Page 45: Video Codec Parameters
Video Codec Parameters “Text on video” The text will be displayed in the black bar above the video window with a timestamp. The timestamp is captured from date and time of the Network Camera that is maintained by a built-in real-time clock. “Color”...
Page 46 established. “Time stamp on video” When selected the time stamp format is: a) “Size” becomes Normal or Double, “Text on video hh:mm:ss yyyy/mm/dd” b) “Size” becomes half, “hh:mm:ss yyyy/mm/dd” <url> http://<Network Camera>/setup/video.vspx <Network Camera> is the domain name or original IP address of the Network Camera.
Page 47: Image Settings
Image Settings Click on “Image Settings” to pop up another window for tuning "Brightness", “Contrast”, “Hue” "Saturation" video compensation. Each field eleven levels ranged from -5 to +5. The User may press “Preview” to fine-tune the image. When the image is O.K., press “Save”...
Page 48: Ccd Settings
CCD Settings Click on “CCD Settings” button, the CCD settings window will pop up. Both IRIS mode and IRIS level work only when auto iris lens is attached. In the CCD settings window, click on “Preview” to see the effect of changing the options. Click on “Save”...
Page 49: Audio
Audio “Transmission mode” There are five options to select. For all the modes, only one client can talk to the server at the same time. “Full-duplex (Talk and listen simultaneously)” In this mode, the User can talk to the server while listening sound from the server simultaneously. “Half-duplex (Talk or listen, not at the same time)”...
Page 50 <url> http://<Network Camera>/setup/audio.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 46 -...
Page 51: Motion Detection
Motion Detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously. Use the mouse to click, hold and drag the window frame to resize or the title bar to move.
Page 52: Application Setup
Application Setup Weekly Schedule “Sun” ~ “Sat” Select the days of the week to perform the following operations. “Snapshots begin at” Set the time to start operations. “Snapshots stop at” Set the time to stop operations. Setting identical begin time and stop time means 24-hour operation.
Page 53: Sequential Operation
snapshots. The date and time suffix may also be added as an option. Confirm the external mail or FTP server settings in the network configuration. “Reset output” Select and save this option to reset the external device at the digital output to return to the original state.
Page 54: Naming Rule Of Snapshot File
Naming rule of snapshot file Assume the Snapshot file name prefix is <prefix> Method with date and Sequential time suffix <prefix>_20050107175903.jpg <prefix>.jpg Email <prefix>.jpg Example: *** Periodic snapshots *** From: http://192.168.1.53 <prefix>.jpg: 2005/01/07 17:59:45 Note: <prefix>_20050107180653_1_pre.jpg <prefix>_20050107180654_2_pre.jpg <prefix>_20050107180655_3_pre.jpg <prefix>_20050107180659_4_trg.jpg <prefix>_20050107180700_5_pos.jpg (according to the sending <prefix>_1_pre.jpg <prefix>_2_pre.jpg...
Page 55 <url> http://<Network Camera>/setup/app.vspx <Network Camera> is the domain name or original IP address of the Network Camera. - 51 -...
Page 56: Viewing System Log
Viewing System Log Click on the link on the configuration page to view the system log file. The content of the file provides useful information about configuration and connections after system boot-up. Viewing System Parameters Click on this link on the configuration page to view the entire system’s parameter set. The content is the same as those in CONFIG.INI.
Page 57: Appendix
Appendix A. Troubleshooting Status LED After powering up, the Network Camera performs a self-diagnostic to detect any hardware defects. The following table lists the LED patterns in general. In case of any fatal error, the LED will blink in a pattern other than those below. Condition During self-diagnostic after power on No network...
Page 58: Frequently Asked Questions
B. Frequently Asked Questions Q What if I forget my password? A After the Administrator's password has been assigned, every access to the Network Camera needs authentication. If you are one of the managed users, you have to ask the Administrator for the password. If you are the Administrator, there is no way to recover the root password except by restoring the factory default settings.
Page 59 Q Can I install it on ceiling? A Yes. There are flip and mirror options in video configuration page to correct the images for upside down installation. Q The image is not clear enough. A Rotate the lens to adjust the focus after the Network Camera has been installed in the proper position.
Page 60 retrieved contents from the Network Camera. Q How fast is the video rate of the Network Camera? A The MPEG4 codec engine can process up to 30 frames per second internally. However the total performance is subject to many coefficients such as: 1.
Page 61: Url Commands Of Network Camera
C. URL commands of Network Camera For some customers who already have their own web site or web control application, Network Camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of Network Camera.
Page 62: General Cgi Url Syntax And Parameters
string HTTP is line separated with a Carriage Return and Line Feed (CRLF) printed as \r\n. Return: HTTP/1.0 <HTTP code> <HTTP text>\r\n URL syntax examples are written with "Example:" in bold face followed by a short description and a light grey box with the example. Example: request a single snapshot image http://mywebserver/cgi-bin/video.jpg General CGI URL syntax and parameters...
Page 63: Set Server Parameter Values
you do not specify the any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of related group will be returned. When query parameter values, the current parameter value are returned. Successful control requests returns paramter pairs as follows. Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n...
Page 64 http://<servername>/cgi-bin/admin/setparam.cgi? [nosync=<value>&]<parameter>=<value> [&<parameter>=<value>…][&return=<return page>] parameter value 0, 1 nosync value <group>_<name>. assigned <return page> return Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n [<parameter pair>] description Specifies that there should be no sync (write) of the corresponding configuration file on flash.
Page 65: Available Parameters On The Server
Only the parameters that you set and readable will be returned. Example: Set the IP address of server to 192.168.0.123 Request: http://myserver/cgi-bin/admin/setparam.cgi?Network_IPAddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Available parameters on the server NOTE: The bold characters in table are the default value of each parameter. Group: System NAME VALUE...
Page 66 timezone -12 ~ 12 (r/w) updateinterval 0 ~ 2592000 (r/w) serialnumber <mac address> firmwareversion <text string shorter than 39 characters> restore Positive integer reset 0 ~ 65535 do<1~4> <state> di<1~4> <state> supportscriptversion <text string shorter than 10 characters> scriptversion <text string shorter than 10 characters >...
Page 67 ptzenabled 32-bit integer (r ) Group: Security NAME VALUE username_<1 <text string shorter ~20> than 16 characters> (r/w) userpass_<0 <text string shorter ~20> than 14 characters> (r/w) userattr_<1~ [dido][|talk][|listen] 20> [|conf] (r/w) usercount 1 ~ 21 Group: Network NAME VALUE resetip (r/w)(restart) ipaddress...
Page 68 (r/w) (restart) dns1 <IP address> (r/w) (restart) dns2 <IP address> (r/w) (restart) smtp1 <domain name or IP (r/w) address, string shorter than 40 characters> mailto1 <string shorter than 80 (r/w) characters> mailuser1 <text string (r/w) than 63 characters> mailpass1 <text string (r/w) than 15 characters>...
Page 69 ftppass1 <text string (r/w) than 15 characters> ftpfolder1 <text string (r/w) than 40 characters> ftppasvmode1 (r/w) ftp2 <domain name or IP (r/w) address, string shorter than 40 characters > ftpport2 <positive number less (r/w) than 65535> ftpuser2 <text string (r/w) than 63 characters>...
Page 70 channel 1 ~ 11 (r/w) 1 ~ 13 10 ~ 11 10 ~ 13 1 ~ 14 txrate "NONE", "1M", (r/w) "5.5M", "11M", "6M", "9M", "12M", "24M", "36M", "48M", "54M", "Auto" 802.11g preamble Long (r/w) Short encrypt (r/w) authmode Auto (r/w) Open Shared...
Page 71 key1 <text string (r/w) than (depends on keyformat & keylength) key2 <text string (r/w) than (depends on keyformat & keylength) key3 <text string (r/w) than (depends on keyformat & keylength) key4 <text string (r/w) than (depends on keyformat & keylength) domain ‘U’...
Page 72 color (r/w) quality (r/w) quant (r/w) bitrate 64000 (r/w) 128000 256000 384000 512000 768000 1000000 1200000 maxframe (r/w) 30 (for NTSC only) modulation (r/w)(in server version only) (restart) normal normal x 2 double monochrome color fix bit rate fix quantization lowest quality of video lower quality of video normal quality of video...
Page 73 actualmodulation (in built-in CCD version only) flip (r/w) mirror (r/w) imprinttimestamp (r/w) udpslowstart Group: Audio NAME VALUE bitrate 8000 (r/w) 24000 32000 transfermode (r/w) sendclientaudio (r/w) source (r/w) lowbandwidth (r/w) enableaec NTSC flip image normal image mirror image normal image Overlay time stamp on video Do not overlay time stamp on video Enable udp slow start...
Page 74 (r/w) Group: Image NAME VALUE brightness <-5 ~ 5> (r/w) saturation <-5 ~ 5> (r/w) contrast <-5 ~ 5> (r/w) <-5 ~ 5> (r/w) mode Preview Restore Save Group: CCD NAME VALUE irismode Video (r/w) irislevel <1 ~ 8> (r/w) autoelectronicshutter (r/w) enableblc...
Page 75 update mode Preview Restore Save Group: Motion NAME VALUE enabled (r/w) winenabled_<1~3 > (r/w) winname_<1~3> <text string shorter (r/w) than 14 characters > winleft_<1~3> 0 ~ 352 for CCD (r/w) 0 ~ 320 for CMOS wintop_<1~3> 0 ~ 288 for PAL (r/w) 0 ~ 240 for NTSC &...
Page 76 update Group: DDNS NAME VALUE enable 0, 1 (r/w) provider 1 ~ 4 (r/w) hostname Text string shorter than (r/w) 127 characters. usernameemail Text string shorter than (r/w) 63 characters. passwordkey Text string shorter than (r/w) 20 characters. update 0, 1 Group: UPNP NAME VALUE...
Page 77: Application Page Cgi Command
(r/w) Group: Feature NAME VALUE event (r/w) Application page CGI command Note: This request requires administrator privilege. Method: GET/POST Syntax: http://<servername>/setup/app.vspx?[method=<value>][&sun=<value>] [&mon=<value>] [&tue=<value>][&wed=<value>][&thu=<value>][&fri=<value>][&sat=<value>] [&begin_time=<value>][&end_time=<value>][&exclude=<value>] [&eventop=<value>] [&delay=<value>][&prevnum=<value>][&ssfprefix=<value>][&dihigh=<value>] [&dilow=<value][&dirise=<value>][&difall=<value>][&motion1=<value] [&motion2=<value>][&motion3=<value>][&ioalarm=<value>] [&mdalarm=<value] [&ioupload=<value>][&mdupload=<value>][&seqop=<value>][&sinter=<value>] [&smethod=<value>][&suffix=<value>][&resetdo=<value>] Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n <depends on method value>...
Page 78 tue=<value>\r\n wed=<value>\r\n … Else if(method == normal) Application page contents parameter Value method normal hh:mm:ss begin_time hh:mm:ss end_time exclude description Get parameters, if no parameter followed, all the parameters value will be listed. Otherwise, it will list followed parameter value. Set parameters Display normal application page contents Disable/Enable Sunday weekly schedule check...
Page 79 eventop 1~999 delay prevnum <text ssfprefix shorter than 60 characters> dihigh dilow dirise difall motion1 motion2 motion3 ioalarm mdalarm ioupload mdupload seqop 1 ~ 99999 sinter mail smethod suffix resetdo Example: Enable sequential send snapshot by every 1 second with email. schedule check box Disable/Enable Event operation Delay seconds before detect next event...
Page 80: Drive The Digital Output
http://myserver/setup/app.vspx?method=set&exclude=1&eventop=0&seqop=1& smethod=mail&sinter=1 Drive the digital output Note: This request requires the privilege of I/O access control. Method: GET/POST Syntax: http://<servername>/cgi-bin/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>][&return=<return page>] Where state is H, L. H means NC (normal close) connected with COMMON and L means NO (normal open) connected with COMMON. The number of DO dependents on the server type.
Page 81: Query Status Of The Digital Output
Syntax: http://<servername>/cgi-bin/getdi.cgi?[di1][&di2][&di3][&di4] If no parameter is specified, all the status of digital input will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di1=<state>]\r\n [di2=<state>]\r\n [di3=<state>]\r\n [di4=<state>]\r\n where <state> can be H or L. Example: Query the status of digital input 1 Request: http://myserver/cgi-bin/getdi.cgi?di1 Response:...
Page 82: Capture Single Snapshot
If no parameter is specified, all the status of digital output will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do1=<state>]\r\n [do2=<state>]\r\n [do3=<state>]\r\n [do4=<state>]\r\n where <state> can be H or L. Example: Query the status of digital output 1 Request: http://myserver/cgi-bin/getdo.cgi?di1 Response:...
Page 83: Account Management
Return: HTTP/1.0 200 OK\r\n Content-Type: image/jpeg\r\n [Content-Length: <image size>\r\n] <binary JPEG image data> Account management Note: This request requires administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] parameter value method delete edit username <name> userpass <value> description Add an account to server. When using this method, “username”...
Page 84: System Logs
privilege <value> dido listen talk camctrl conf return <return page> System logs Note: This request require administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n The privilege of user to add or to modify. The privilege can be the addition of the following values.
Page 85: Configuration File
<system log information>\r\n Configuration file Note: This request requires administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/configfile.cgi Server will return the up-to-date configuration file. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <configuration file length>\r\n \r\n <configuration data>\r\n System Information Note: This request requires normal user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/sysinfo.cgi...
Page 86 Content-Length: <system information length>\r\n \r\n Model=<model name of server>\r\n HostName=<host name of server>\r\n Location=<video on text of server>\r\n [Preset<0>=<first preset location>\r\n] [Preset<1>=<second preset location>\r\n] [...] PTZEnabled=<PTZ status>\r\n Where the <PTZ status> is a 32-bits integer, each bit can be set separately as follows: Bit 0 =>...
Page 87: Technical Specifications
D. Technical Specifications - System CPU: Trimedia PNX1300 RAM: 16MB SDRAM ROM: 4MB FLASH ROM - Networking Protocol TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS UPnP, DDNS and DHCP Physical 10BaseT Ethernet or 100BaseT Fast Ethernet Auto negotiation Wireless Ethernet 802.11g Wireless LAN - Video Algorithm supported...
