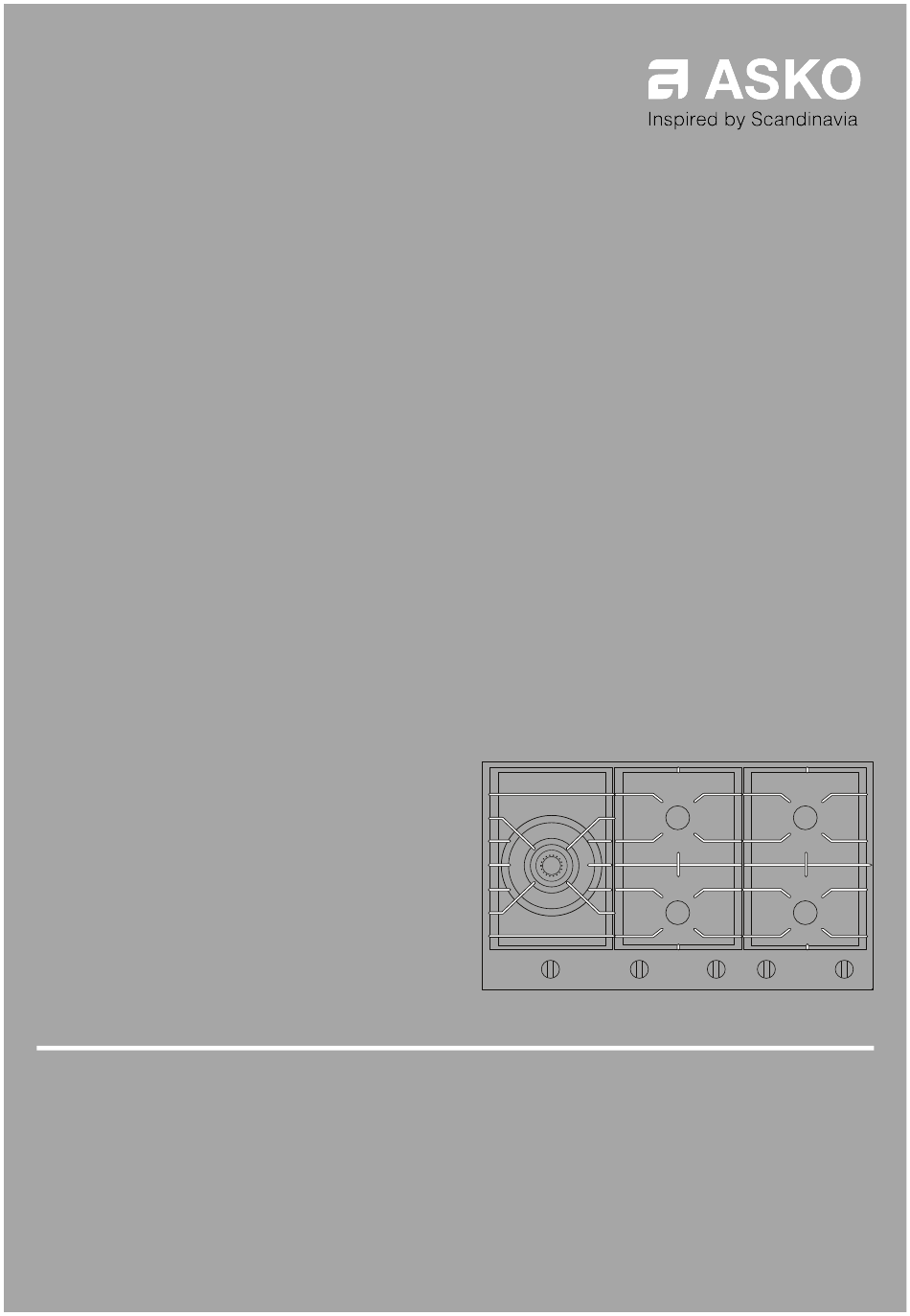

- Page 1 INSTRUCTIONS FOR USE HG1666AB - HG6CBE1C HG1666SB - HG6CBE1C Gas Hob HG1776AB - HG7BBE1C HG1776SB - HG7BBE1C HG1986AB - HG9CBE1C HG1986SB - HG9CBE1C...
-
Page 2: Table Of Contents
Contents Pictograms used ........Faults ............Safety ............Troubleshooting table ....................... Technical data ..........Description ..........Information according to regulation (EU) Use .............. 66/2014 ............Pans ............. Installation ..........Wok ring and small pan grid ......Safety ............Pan support ..........Preparations for installation ...... -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! -
Page 4: Safety
Safety WARNING! READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use. - Page 5 Safety WARNING! Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the appliance manufacturer in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. If a drawer underneath the appliance is permitted (see the installation instructions), without an intermediate bottom, this should not be used to store highly flammable objects/materials.
- Page 6 Safety WARNING! Ceramic glass plate broke Shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply. Do not touch the appliance surface. Do not use the appliance. WARNING! Households with children and people with special needs This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they...
- Page 7 Safety in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). The burner components are hot during and immediately after use. Do not touch them, and avoid contact with non-heat resistant materials.
-
Page 8: Description

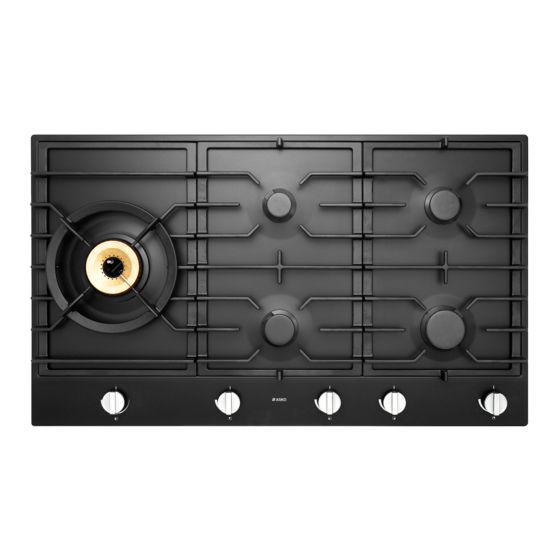

Description 1. Semi-rapid burner 2. Simmer burner 3. Rapid burner 4. Wok burner 5. Pan support 6. Drip tray 7. Control knob... -
Page 9: Use
Pans Always ensure that the flames remain under the pan. A lot of energy is lost when flames burn around the outside of the pan. The handles could also become too hot. wrong Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not as stable. -
Page 10: Burner
Burner Use the leads (1) to put together the burner parts. Wok burner Place the wok burner in the correct way. Placing the wok burner parts incorrectly can result in a poorly functioning burner. -
Page 11: Operation
Operation Ignition and adjustment Standard burner 1. Zone indication 2. 0 position 3. High setting 4. Low setting The burner is fully adjustable between high and low settings. 1. Press the control knob and turn it anticlockwise. The burner will ignite. -
Page 12: Maintenance
Maintenance Daily cleaning Regular maintenance after use prevents spilt food from setting too long and creating stubborn stains. Use a mild detergent for this. First clean the control knobs, burners and pan support and only then the drip tray or glass cover. This prevents the drip tray or glass cover to becoming dirty again after cleaning. -
Page 13: Faults
Faults Troubleshooting table If your hob does not work properly, it does not always mean that it is defective. Make sure to check the points mentioned below in the table, or visit our website for more information. Symptom Possible cause Solution There is a smell of gas near The appliance connection is... -
Page 14: Technical Data
Technical data Information according to regulation (EU) 66/2014 Measurements according EN60350-2 / EN 30-2-1 HG1666A Model identification HG1666S Gas Hob Type of hob Number of gas burners Energy efficiency per gas burner (EE Rapid burner ) in % burner 60.2 Semi-rapid burner 55.1 Wok burner... - Page 15 Technical data HG1986A Model identification HG1986S Gas Hob Type of hob Number of gas burners 57.5 Energy efficiency per gas burner (EE Rapid burner ) in % burner 60.2 Semi-rapid burner 55.1 Wok burner 58.3 Energy efficiency for the gas hob (EE ) in % gas hob...
-
Page 16: Installation
Installation Safety This appliance should only be connected by a registered installer. Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the gas and gas pressure) and the adjustment of the appliance are compatible. The voltage, frequency, power, type of gas and the country for which the appliance has been designed are shown on the appliance rating plate. - Page 17 Installation accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation. We recommend that the gas hob be connected by means of a fixed pipe. Connection using a specially designed safety hose is also permitted. The pipe behind the oven must be made entirely out of metal.
-
Page 18: Preparations For Installation
Installation Preparations for installation Free space around the appliance A (mm) B (mm) C (mm) D (mm) HG16 min. 650 min. 600 min. 450 min. 120 HG17 min. 650 min. 750 min. 450 min. 120 HG19 min. 650 min. 900 min. - Page 19 Installation Option 1 Option 2 Accessibility Accessibility Oven...
-
Page 20: Built-In
Installation Built-in Appliance dimensions A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) HG16 HG17 HG19 Cut-out in the worktop A (mm) B (mm) C (mm) D (mm) F (>mm) G (mm) (>mm) HG16/HG17 HG19... - Page 21 Installation Sealing tape worktop Install the appliance in the worktop...
-
Page 22: Gas Connection
Installation Gas connection metal Oven safety hose PTFE tape G20/20 mbar Simmer burner 1.0 kW Semi-rapid burner 2.0 kW Rapid burner 2.6 kW Wok burner 4.6 kW / 4.2 kW (HG1666A - HG1666S) NOTE! When converting the appliance for use with another type of gas, see conversion set manual and use the specified conversion set. -
Page 23: Connecting & Testing
Installation Connecting & testing WARNING! Check if connections are gastight. -
Page 24: Environment
Environment Environment Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this. -
Page 25: Your Notes
The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. www.asko.com 856550 We reserve the right to make changes.
