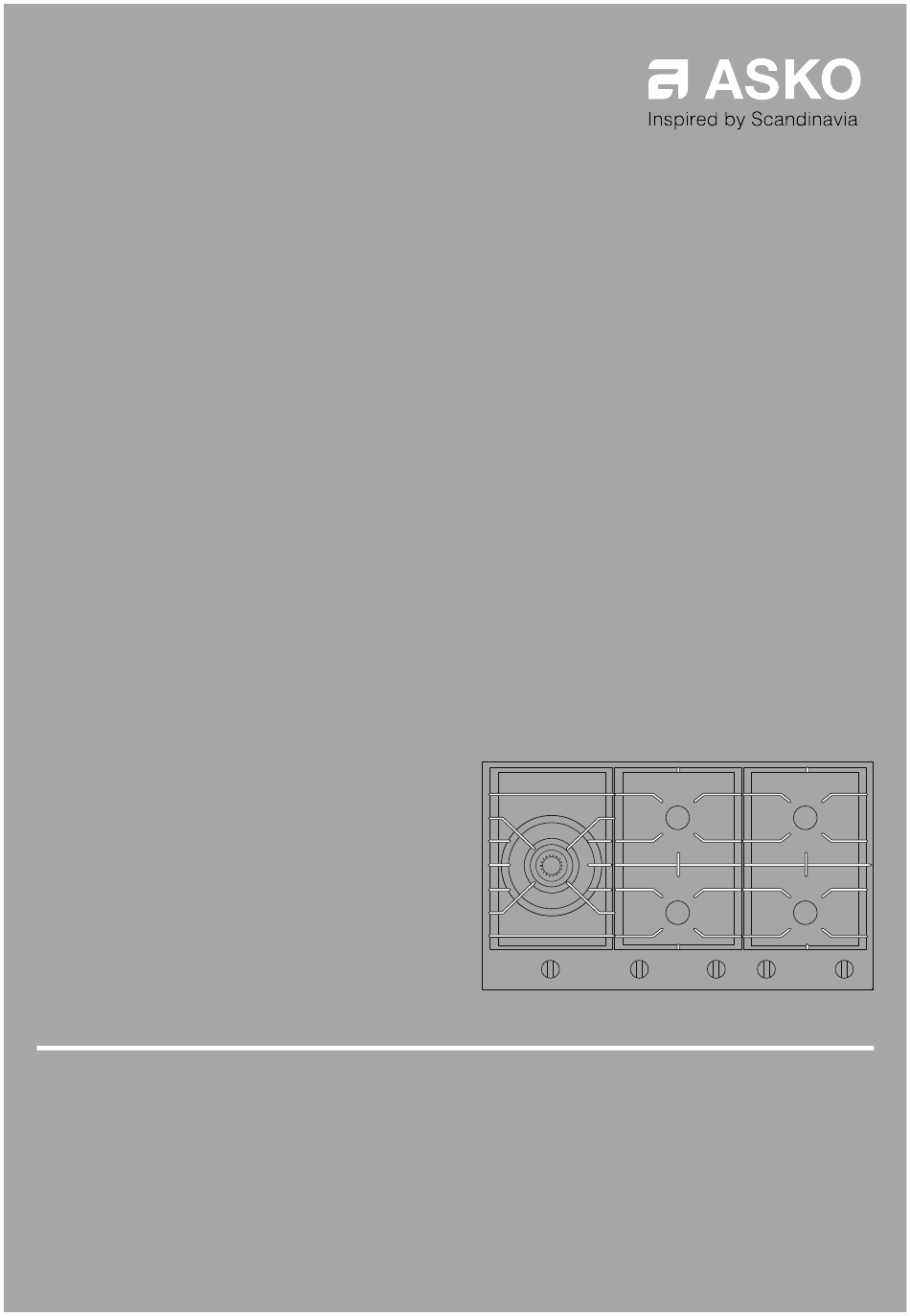

- Page 1 INSTRUCTIONS FOR USE HG1666AB - HG6CBE1C HG1666AF - HG6CFE1C Gas hob HG1666SB - HG6CBE1C HG1776AB - HG7BBE1C HG1776AF - HG7BFE1C HG1776SB - HG7BBE1C HG1986AB - HG9CBE1C HG1986SB - HG9CBE1C...
-
Page 2: Table Of Contents
Contents Pictograms used ........Faults ............Safety ............Troubleshooting table ........Safe use ............Technical data ..........Description ..........Information according to regulation ..... Use .............. Installation ..........Pans ............. Safety regulations ........Wok ring ............Preparations for installation ......Burner ............ -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! -
Page 4: Safety
Safety WARNING! IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved. - Page 5 Safety CAUTION! The cooking process has to be supervised. A short-term cooking process has to be supervised continuously. Do not allow children to play with the appliance. Do not allow children to clean or maintain the appliance unless supervised. NEVER try to extinguish a fire with water. Instead, switch the appliance off and then cover the flames with, for example, a lid or a fire blanket.
-
Page 6: Safe Use
Safety distances, the high temperature may cause the knobs or wall to discolour and/or deform. Safe use Do not keep objects that children might find interesting in cupboards above or behind the appliance. The cooking zones/burners heat up during use and stay hot for a while afterwards. Keep young children away from the hob during and immediately after cooking. -
Page 7: Description
Description 1. Semi-rapid burner 2. Simmer burner 3. Rapid burner 4. Wok burner 5. Pan support 6. Drip tray 7. Control knob... -
Page 8: Use
Pans Always ensure that the flames remain under the pan. A lot of energy is lost when flames burn around the outside of the pan. The handles could also become too hot. wrong right WARNING! The distance between the pan and a knob or non-heat resistant wall should always be greater than one centimetre. -
Page 9: Operation
Operation Ignition and adjustment 1. Zone indication 2. 0 position 3. High setting 4. Inner ring low setting 5. Outer ring low setting / inner ring high setting 6. Outer ring off / inner ring high setting Wok burner with double Standard burner regulator The burner is fully adjustable between high and low settings. -
Page 10: Maintenance
Maintenance Daily cleaning Regular maintenance after use prevents spilt food from setting too long and creating stubborn stains. Use a mild detergent for this. First, clean the control knobs, burners and pan support and only then the drip tray. This prevents the drip tray from becoming dirty again after cleaning. -
Page 11: Faults
Faults Troubleshooting table If your hob does not work properly, it does not always mean that it is defective. Make sure to check the points mentioned below in the table, or visit our website for more information. Symptom Possible cause Solution There is a smell of gas near The appliance connection is... -
Page 12: Technical Data
Technical data Information according to regulation (EU) 66/2014 - (EU) 2023/826 HG1666A / HG1666S Model identification Gas hob Type of hob Number of gas burners Energy efficiency per gas burner (EE Rapid burner ) in % burner 60.2 Semi-rapid burner 55.1 Wok burner 58.5... - Page 13 Technical data Table continued from last page HG1986A / HG1986S Model identification Number of gas burners 57.5 Energy efficiency per gas burner (EE Rapid burner ) in % burner 60.2 Semi-rapid burner 55.1 Wok burner 58.3 Energy efficiency for the gas hob (EE ) in % gas hob Measured power consumption off mode (P...
-
Page 14: Installation
Installation Safety regulations If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance should only be connected by a registered installer. Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the gas and gas pressure) and the adjustment of the appliance are compatible. -
Page 15: Preparations For Installation
Installation Preparations for installation Free space around the appliance A (mm) B (mm) C (mm) D (mm) HG16 ≥650 ≥600 ≥450 ≥120 HG17 ≥650 ≥750 ≥450 ≥120 HG19 ≥650 ≥900 ≥450 ≥120 Accessibility Accessibility Oven Ventilation CAUTION! Prevent ventilation interference if an oven is installed underneath the gas hob. Make sure there is sufficient air supply (option 1) or separate air ventilation between the oven and hob by applying an air shield ‘P’... -
Page 16: Built-In
Installation Option 1 Option 2 Built-in Appliance dimensions A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) HG16 HG17 HG19... -
Page 17: Gas Connection
Installation Cut-out in the worktop A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) HG16/HG17 >30 > 50 HG19 >30 >50 Sealing tape worktop Install the appliance in the worktop Gas connection metal safety hose... -
Page 18: Connecting & Testing
Installation PTFE tape Connecting & testing WARNING! Check if connections are gas-tight. -
Page 19: Environmental Aspects
Environmental aspects Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this. - Page 20 The appliance identification card is located on the bottom of the appliance. Stick the appliance identification card here. www.asko.com 856550 -a16 We reserve the right to make changes.
