Description
4
2
3
5
6
Ignition and adjustment
2
3
4
1
2
4
3
5
6
1
1
1
2
7
8
1. zone indication
2. 0 position
3. High setting
4. Low setting
5. Wok setting (wok burner)
6. Roasting setting (wok burner)
Each burner is fully adjustable between high and low settings.
• Press the control knob and turn it anticlockwise. The burner will ignite.
• Keep the control knob fully depressed for at least 3 seconds
between high and low settings. The thermocouple safety pilot has
been activated.
• If desired, turn the wok selector ring to the roasting setting (6).
The inner ring (wok setting) will switch off and the outer ring
(roasting setting) will switch on.
• The wok burner will switch automatically to the wok setting if the
control knob of the wok burner is set to 0.
It is possible to switch between wok setting and roasting setting and
back during cooking.
Please note! If the control knob is in the off setting (0-setting) the
selector ring cannot be changed to the roasting setting. Always turn this
knob back completely to 0!

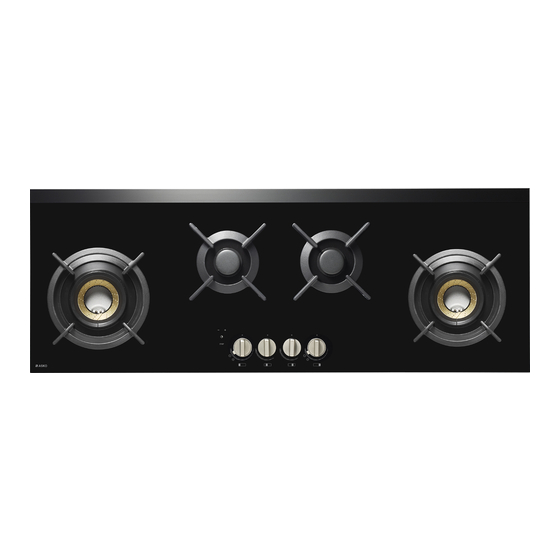

1. rapid burner
2. wok burner
3. pan support
4. glass top
6. emergency stop (option)
7. wok selector ring
8. control knob
EN 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Asko HG1145AD
Summary of Contents for Asko HG1145AD
- Page 1 OPERATION Description 1. rapid burner 2. wok burner 3. pan support 4. glass top 5. timer (option) 6. emergency stop (option) 7. wok selector ring 8. control knob Ignition and adjustment 1. zone indication 2. 0 position 3. High setting 4.
- Page 2 OPERATION Timer (option) The Timer function can switch off 1 or more burners automatically. • Using the timer button (2) select the burner that you wish to turn off automatically. Press the timer button repeatedly until the timer display above the control knob of the selected burner flashes "00" (4). •...
- Page 3 Switching off one or more timers • Using the timer button select the burner for which you wish to turn off the timer function. • Press the timer button again and keep it depressed for at least 3 seconds. The burner's timer function will be switched off. If you want all timer functions to be switched off in one go, depress the timer button for at least 3 seconds.
- Page 4 MAINTENANCE Burner Use the leads (1) to put together the burner parts. Wok burner Place the wok burner correctly. Placing the wok burner parts incorrectly can result in a poorly functioning burner. 1. Place the burner distributor (2) in the burner housing (1). 2.
- Page 5 Some wok burner parts are made from brass. It is normal for the brass colour to change as a result of the high temperatures involved in wok use. Consult the ‘www.asko.com’ website for additional maintenance and cleaning instructions! EN 7...
- Page 6 Fault list If your gas hob does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first by checking the points below or check the ‘www.asko.com’ website for more information. SYMPTOM...
- Page 7 ERRORS SYMPTOM POSSIBLE CAUSE SOLUTION Timer indicates There is an object, water or Ensure that there is nothing on the buttons. error code F0 – F6 dirt on the buttons. Button Ensure that the buttons are clean and there is (if present).
- Page 8 ENVIRONMENTAL CONSIDERATIONS Disposal of the appliance and packaging Sustainable materials have been used during manufacture of this appliance. The appliance packaging is recyclable. The following may have been used: • cardboard; • paper; • polyethylene film (PE); • CFC-free polystyrene (PS-rigid foam); •...
