OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-039-35 (1/19)
(CDR: 20131)
Keep This Manual
With Air Conditioner

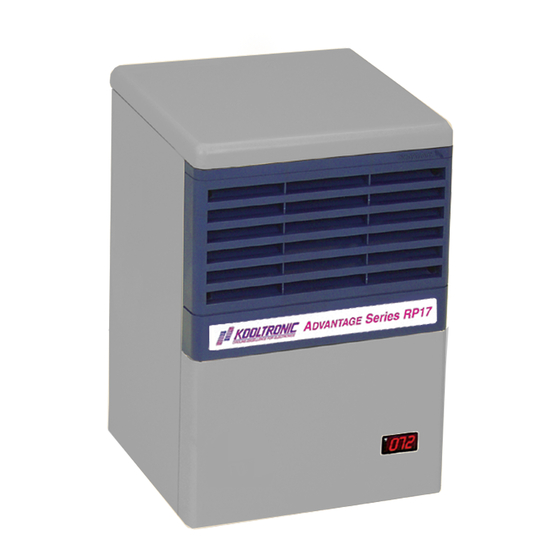

AIR CONDITIONER
ADVANTAGE
RP17 SERIES
Find additional information on
this model at kooltronic.com or
use the Technical Documents
QR code below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
609 • 466-3400
FAX: 609 • 466-1114
www.kooltronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Advantage RP17 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kooltronic Advantage RP17 Series

Summary of Contents for Kooltronic Advantage RP17 Series

  • Page 1 ADVANTAGE RP17 SERIES Find additional information on this model at kooltronic.com or Keep This Manual use the Technical Documents QR code below. With Air Conditioner Technical Documents AIR CONDITIONER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. BEFORE INSTALLING AND 30 Pennington-Hopewell Road...

  • Page 2: Table Of Contents

    10 - 11 Trouble Shooting Warranty NOTE: Wiring Schematics are available on the specific model page of the Kooltronic website. I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronics enclosures, in capacities ranging from 1,000 to 30,000 BTU/H.

  • Page 3: Incoming Inspection

    Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. This Air Conditioner is designed to operate in a vertical position only. This placement must be done a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor sump area.

  • Page 4: Product Identification And Nameplate

    IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure...

  • Page 5: Principles Of Operation

    (Ambient Air In) COMPRESSOR Kooltronic Air Conditioners are required when the equipment operating temperature must be kept near or lower than the ambient room temperature, and/or the cabinet must be sealed from dust, fumes, oil, corrosives and other contaminants. This Air Conditioner utilizes a "Closed-Loop Cooling System"...

  • Page 6: Pre-Installation Testing

    11. If any cover plug is removed to adjust the unit, make certain to put back in place to maintain the integrity of the closed-loop airflow system. NOTE: Before shipment all Kooltronic, Inc. Air Conditioners are subjected to a performance test.

  • Page 7: Specific Model Data

    RP17 SERIES Dimensions (inches) are for reference only and are subject to change. Kooltronic Air Conditioners have been engineered to be installed easily. To avoid damaging your Air Conditioner, please read the following information before installation: 1. Loosen two screws on the bottom of the unit.

  • Page 8: Drawings And Dimensions

    Drawings and Dimensions...

  • Page 9: Technical Data

    Condenser Blower Motor Capacitor 0452-72 0452-73 Evaporator Blower Motor 0265-03 0265-06 Filter 6501F 6501F NOTE: Part Numbers shown are for 60Hz/1Ø. For 50Hz consult Kooltronic. Standard Features Built-in Condensate Evaporator CFC-Free Refrigerant Crankcase Compressor Heater Digital Temperature Display Filter Head Pressure Control Switch Low Temperature Control Thermostat NEMA 12 &...

  • Page 10: Maintenance

    5) The filters may be sprayed with Kooltronic A-16 Filter Recoating Adhesive to trap fine airborne contaminants, or they may simply be dried and reinstalled as strainer type filters.
  • Page 11 Refer to the data on the unit nameplate which specifies the type of refrigerant and the amount of charge in ounces. E. Relocation If your Kooltronic Air Conditioner has to be moved to another location by truck, the following precautions should be taken: De-mount Air Conditioner from equipment, controller or enclosure.

  • Page 12: Trouble Shooting

    IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require no routine maintenance other than the cleaning of ambient air filters. If your air conditioner should require service, we have compiled a trouble-shooting chart to assist your service personnel.
  • Page 13 THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.

This manual is also suitable for:

Advantage ka4c1rp17rAdvantage k2a4c1rp17rAdvantage ka4c2rp17rAdvantage k2a4c2rp17r

Table of Contents
