OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-034-06 (12/21)
(CDR: 20369)
Keep This Manual
With Air Conditioner

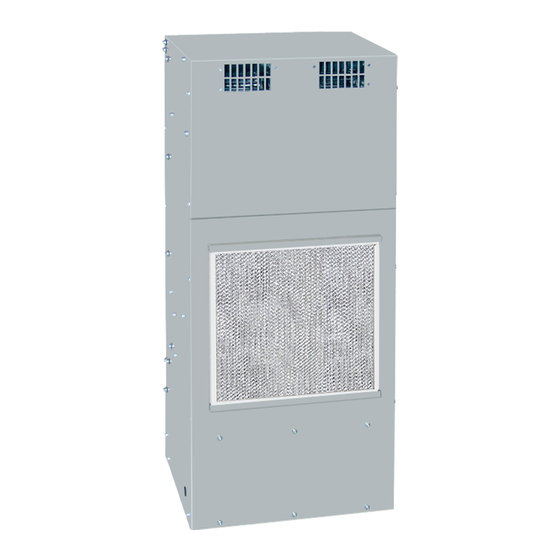

AIR CONDITIONER
TRIMLINE
NP36 SERIES
5,000 - 6,000 BTU/H
Find additional information on this
model at kooltronic.com, or use the
Technical
below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
609 • 466-3400
FAX: 609 • 466-1114
www.kooltronic.com
Documents
QR
code
Advertisement
Table of Contents
Related Manuals for Kooltronic TRIMLINE NP36 Series
Summary of Contents for Kooltronic TRIMLINE NP36 Series
- Page 1 TRIMLINE NP36 SERIES 5,000 - 6,000 BTU/H Find additional information on this Keep This Manual model at kooltronic.com, or use the Technical Documents code below. With Air Conditioner Technical Documents AIR CONDITIONER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. 30 Pennington-Hopewell Road...
-
Page 2: Table Of Contents
10 - 11 Trouble Shooting Warranty NOTE: Wiring Schematics are available on the specific model page of the Kooltronic website. I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronic enclosures, in capacities ranging from 1,000 to 30,000 BTU/H. -
Page 3: Incoming Inspection
Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. This Air Conditioner is designed to operate in a vertical position only. This placement must be done a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor sump area. -
Page 4: Product Identification And Nameplate
IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure... -
Page 5: Principles Of Operation
EVAPORATOR HEAT EXCHANGER Kooltronic Air Conditioners are required when the equipment operating temperature must be kept near or lower than the ambient room temperature, and/or the cabinet must be sealed from dust, fumes, oil, corrosives and other contaminants. This Air Conditioner utilizes a "Closed-Loop Cooling System" to ensure optimum performance of the installed components. -
Page 6: Pre-Installation Testing
14. If any cover plug is removed to adjust the unit, make certain to put back in place to maintain the integrity of the closed-loop airflow system. NOTE: Before shipment all Kooltronic, Inc. Air Conditioners are subjected to a performance test. -
Page 7: Specific Model Data
Make sure the cutouts don't interfere with components inside your cabinet. 4. Mount the M/TAB to the outside of the cabinet using all the mounting hardware supplied by Kooltronic ( screws/nuts/washers). Preferred positions: one in each corner and two near center on each side. NOTE: Make sure the screws are inserted with heads on M/TAB side. -
Page 8: Drawings And Dimensions
(Enclosure opening should be located as high as possible within this area, and equal or exceed size of cool air outlets.) * Other drain outlets are available - contact KOOLTRONIC. Dimensions (inches) are for reference only and are subject to change. -
Page 9: Technical Data
6090-00-17 Filter 1000F 1000F 1000F Switch 0631-34 Transformer 0932-32 NOTE: Part Numbers shown are for 60Hz/1Ø. For 50Hz consult Kooltronic. Accessories and Options Standard Features Compressor Short Cycle Protector Built-in Condensate Evaporator Enclosure Heater CFC-Free Refrigerant Filter Recoating Adhesive Filter... -
Page 10: Maintenance
3) The filters may be sprayed with Kooltronic A-16 Filter Recoating Adhesive to trap fine airborne contaminants, or they may simply be dried and reinstalled as strainer type filters. - Page 11 Refer to the data on the unit nameplate which specifies the type of refrigerant and the amount of charge in ounces. E. Relocation If your Kooltronic Air Conditioner has to be moved to another location by truck, the following precautions should be taken: De-mount Air Conditioner from equipment, controller or enclosure.
-
Page 12: Trouble Shooting
IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require no routine maintenance other than the cleaning of ambient air filters. If your air conditioner should require service, we have compiled a trouble-shooting chart to assist your service personnel. -
Page 13: Warranty
THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.
