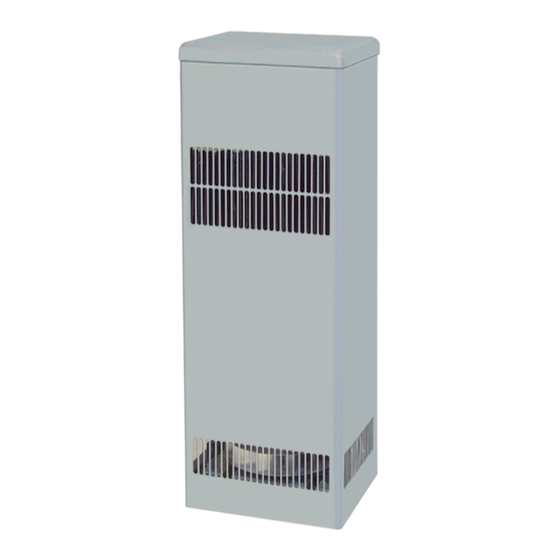

ADVANTAGE SERIES KXRP28
AIR-TO-AIR
HEAT EXCHANGER
OPERATOR'S MANUAL
CAUTION
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
BEFORE INSTALLING AND
Pennington, NJ 08534
USING THIS HEAT EXCHANGER,
609 • 466-3400
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
FAX: 609 • 466-1114
UNDERSTOOD THOROUGHLY
www.kooltronic.com
900-046-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KXRP28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kooltronic KXRP28

Summary of Contents for Kooltronic KXRP28

  • Page 1 Find additional information on this model at kooltronic.com or Keep This Manual use the Technical Documents QR code below. With Heat Exchanger Technical Documents ADVANTAGE SERIES KXRP28 AIR-TO-AIR HEAT EXCHANGER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. 30 Pennington-Hopewell Road BEFORE INSTALLING AND...

  • Page 2: Table Of Contents

    This Manual provides you with the necessary general information for properly installing and operating Kooltronic Heat Exchangers. Unit specific technical data and mounting instructions are presented later in the Manual.

  • Page 3: Incoming Inspection

    II. Incoming Inspection Kooltronic Heat Exchangers are designed, built, and packaged to withstand the shock and vibration normally associated with shipment by common carriers. Occasionally improper handling during shipping causes damage. Such handling could include unbanding of palletized shipments, failing to respect any carton handling instructions, falling off conveyors, excessive vibration, crushing, etc.

  • Page 4: Principles Of Operation

    VI. Specific Model Data Mounting Kooltronic Heat Exchangers have been engineered to be installed easily. To avoid damaging your Heat Exchanger, please read the following information before installation: Attach the mounting bracket to the enclosure using the mounting hardware supplied by Kooltronic.

  • Page 5: Drawings And Dimensions

    -20/131 31.5 K2XRP28 -20/131 31.5 60 Hz operation. For 50 Hz operation consult Kooltronic. Major Component Replacements Model Impeller Capacitor Filter KXRP28 0194-37 0452-72 5381F K2XRP28 0194-38 0452-73 5381F NOTE: Part Numbers shown are for 60Hz/1Ø. For 50Hz consult Kooltronic.

  • Page 6: Wiring Diagram

    Wiring Diagram CAP. ENCLOSURE BLOWER (OPTIONAL) T - STAT CAP. AMBIENT BLOWER (OPTIONAL) HEATER CONTROL THERMAL T - STAT CUT - OUT HEATER WD-830...

  • Page 7: Maintenance

    VII. Maintenance With Kooltronic Air-Cooled Heat Exchangers the use of a filter is optional. If you do choose to use a filter, and wish to remove it for cleaning or repair, follow the instructions below. CAUTION Disconnect electric power from the Heat Exchanger before proceeding.

  • Page 8: Warranty

    THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.

This manual is also suitable for:

Advantage seriesAdvantage kxrp28
