Kooltronic Advantage RT Top Mount Series Operator's Manual
  1. Manuals
  2. Brands
  3. Kooltronic Manuals
  4. Air Conditioner
  5. Advantage RT Top Mount Series
  6. Operator's manual

Kooltronic Advantage RT Top Mount Series Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-037-03 (1/19)
(CDR: 20131)
Keep This Manual
With Air Conditioner

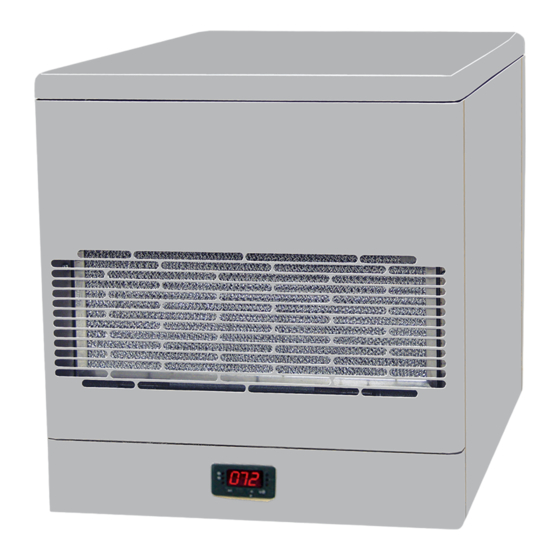

AIR CONDITIONER
ADVANTAGE
RT TOP MOUNT
SERIES
Find additional information on this
model at kooltronic.com, or use the
Technical
Documents
below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
609 • 466-3400
FAX: 609 • 466-1114
www.kooltronic.com
QR
code

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Advantage RT Top Mount Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kooltronic Advantage RT Top Mount Series

Summary of Contents for Kooltronic Advantage RT Top Mount Series

  • Page 1 ADVANTAGE RT TOP MOUNT SERIES Keep This Manual Find additional information on this model at kooltronic.com, or use the With Air Conditioner Technical Documents code below. Technical Documents AIR CONDITIONER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. BEFORE INSTALLING AND 30 Pennington-Hopewell Road...

  • Page 2: Table Of Contents

    10 - 11 Trouble Shooting Warranty NOTE: Wiring Schematics are available on the specific model page of the Kooltronic website. I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronics enclosures, in capacities ranging from 1,000 to 30,000 BTU/H.

  • Page 3: Incoming Inspection

    Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. This Air Conditioner is designed to operate in a horizontal position only. This placement must be done a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor sump area.

  • Page 4: Product Identification And Nameplate

    IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure...

  • Page 5: Principles Of Operation

    V. Principles of Operation Kooltronic Air Conditioners are required when the equipment operating temperature must be kept near or lower than the ambient room temperature, and/or the cabinet must be sealed from dust, fumes, oil, corrosives and other contaminants. CONDENSER These Air Conditioners utilize a "Closed-Loop...

  • Page 6: Pre-Installation Testing

    This is considered the maximum temperature within the enclosure and not the temperature of the air supplied to the enclosure. When the Kooltronic Air Conditioner is properly sized it should operate constantly and maintain 75 F to 115 enclosure temperatures, depending on the ambient temperatures.

  • Page 7: Specific Model Data

    Dimensions, inches [metric], are for reference only and are subject to change. Dimensions, inches [metric], are for reference only and are subject to change. Kooltronic Air Conditioners have been engineered to be installed easily. To avoid damaging your Air Conditioner, please read the following information before installation .

  • Page 8: Drawings And Dimensions

    Drawings and Dimensions...

  • Page 9: Technical Data

    Technical Data Ambient Ambient Approximate BTU/H Temp. °F Temp. °F Cooling Heating Weight Model Rating Max. Min. Volts Amps Amps (lbs.) KA4C3RTL 3000 60/50 12.5/12.0 6.0/5.7 K2A4C3RTL 3000 60/50 6.0/5.7 4.0/7.5 KA3C6RTL 6000 60/50 13.5/13.3 8.0/14.6 K2A3C6RTL 6000 60/50 6.0/5.7 4.0/7.5 KA3C12RTL 12000...

  • Page 10: Maintenance

    A clean filter is the best protection. B. Blowers The design life of the blowers employed in all Kooltronic Air Conditioners is substantially in excess of 20,000 hours. All Kooltronic condenser and evaporator blowers are equipped with UL/CSA permanently-lubricated precision ball-bearing motors, with automatic-reset thermal overload protectors.
  • Page 11 Kooltronic for service. D. Refrigerant Loss Kooltronic Air Conditioners are subjected to a series of tests to detect refrigerant leaks, during and after manufacture. It is possible that shipping or other damage, or microscopic leaks over a long period, may result in the need for replenishment of refrigerant charge.

  • Page 12: Trouble Shooting

    IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require only routine maintenance. If your air conditioner should require service, we have compiled a trouble-shooting chart to assist your service personnel. If additional assistance is required contact Kooltronic at (609) 466-3400 .

  • Page 13: Warranty

    THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.

This manual is also suitable for:

K2a4c3rtlKa3c6rtlK2a3c6rtlKa4c3rtlK2a3c12rtlKa3c12rtl ... Show all

Table of Contents
