2. Hardware Orientation

TSH4 Back Panel

TSH4 Back Panel

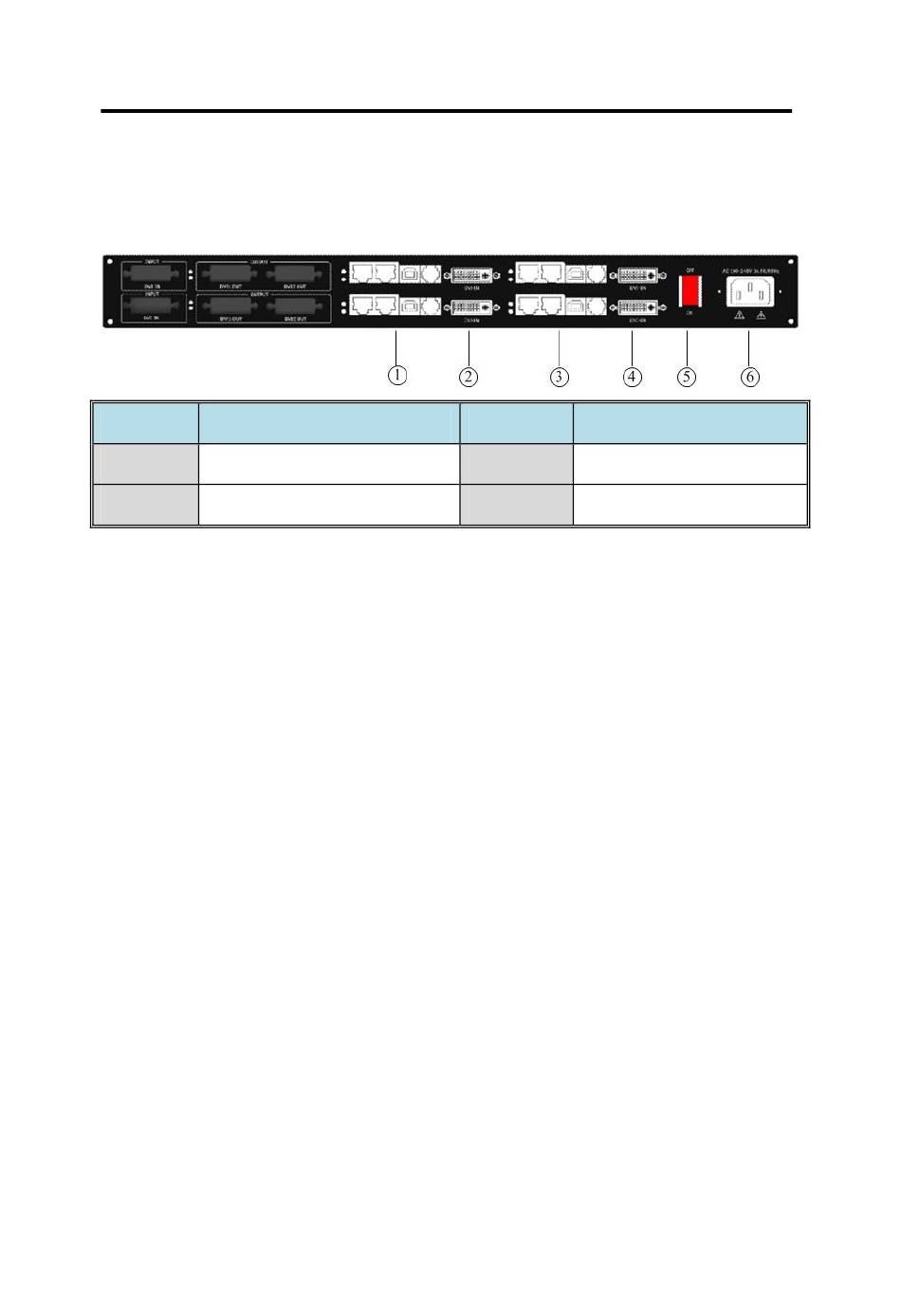

The figure below illustrates the professional interface and control signals
of TSH4 back panel:
NO
1、3 Outputs of Sending Card
DVI Input Port of Sending Card
2、4
1、3: Outputs of Sending Card
Connect to LED screen.
2、4: DVI Input Port of Sending Card
Connect to DVI player or computer with DVI connector.
5、6: Power Interface and Switch
AC 100-240V 3A
Currently, TSH4 is only available for Linsn 801/802, Nova MSD300,
Colorlight Q7 and DBstar Q2011 sending card.
TSH4
INTERFACE
50/60Hz
User Manual
NO INTERFACE
5
6
IEC-3 power interface.
Switch
Power
