Z3Stream User Instructions
DOC-USR-0090-04

8.2 Adjust Aspect Ratio

The Z3Stream encoder supports changing the aspect ratio of standard resolution video to that of HD
resolution video.
(1) Connect a video source outputting 720x480 or another resolution with an aspect ratio of 4:3.
(2) Follow the steps in sections 6.0 to 7.0 to verify video playing in VLC is at a 4:3 aspect ratio.
(3) Click on the Stop button in the user interface.
(4) On the Encoder tab, check the 16:9 box.
(5) Click on the Start button.
(6) Return to your VLC window to see the video playing at a 16:9 aspect ratio.

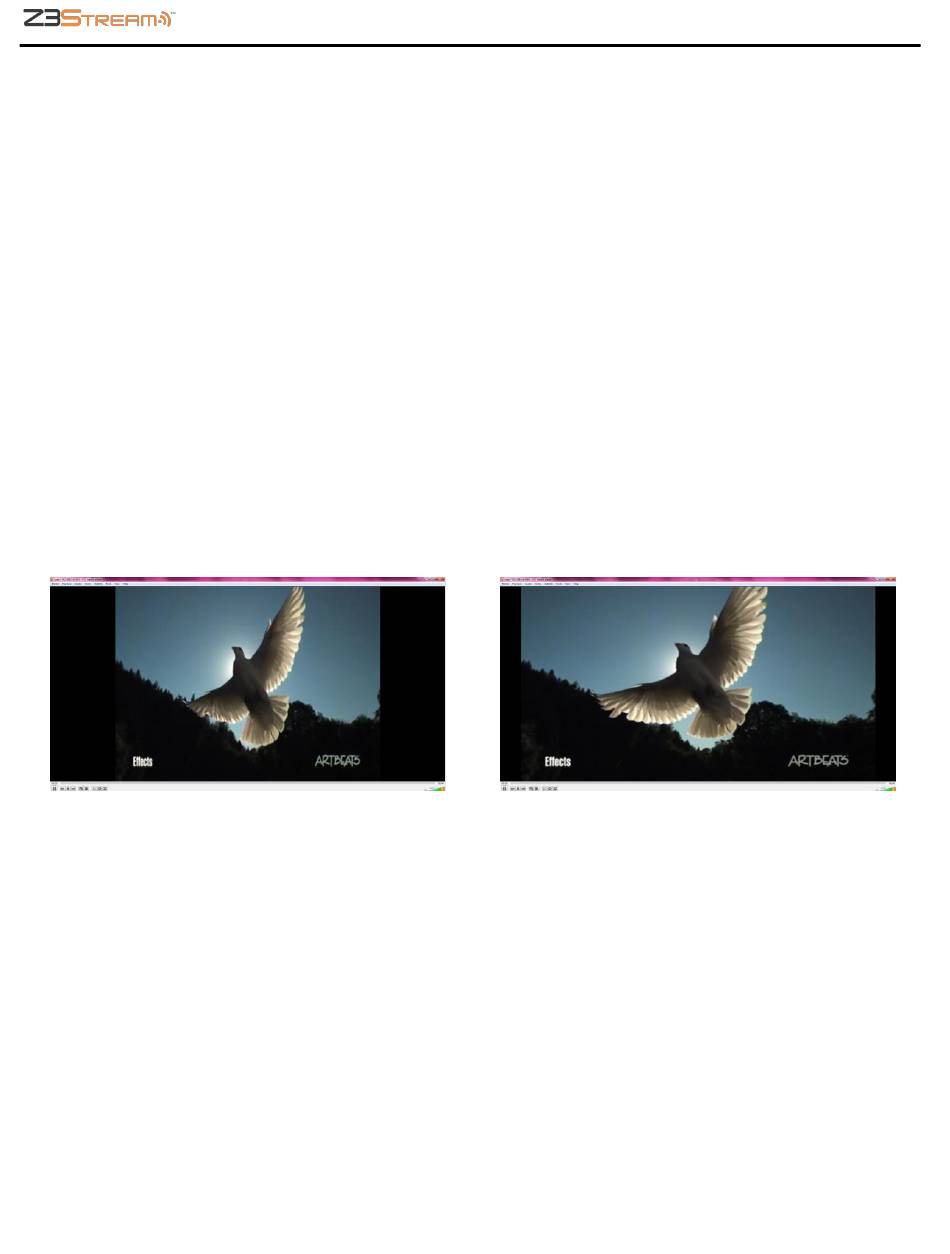

4:3 Aspect Ratio 16:9 Aspect Ratio

Figure 24 Comparing 4:3 to 16:9 Aspect Ratio
