Summary of Contents for Asko DBI664IXXLS.U

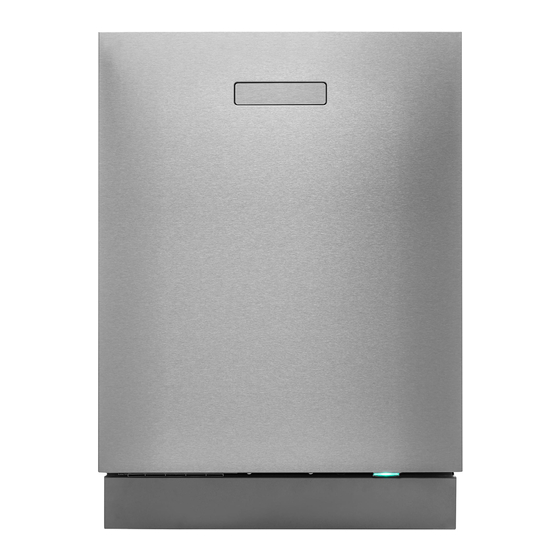

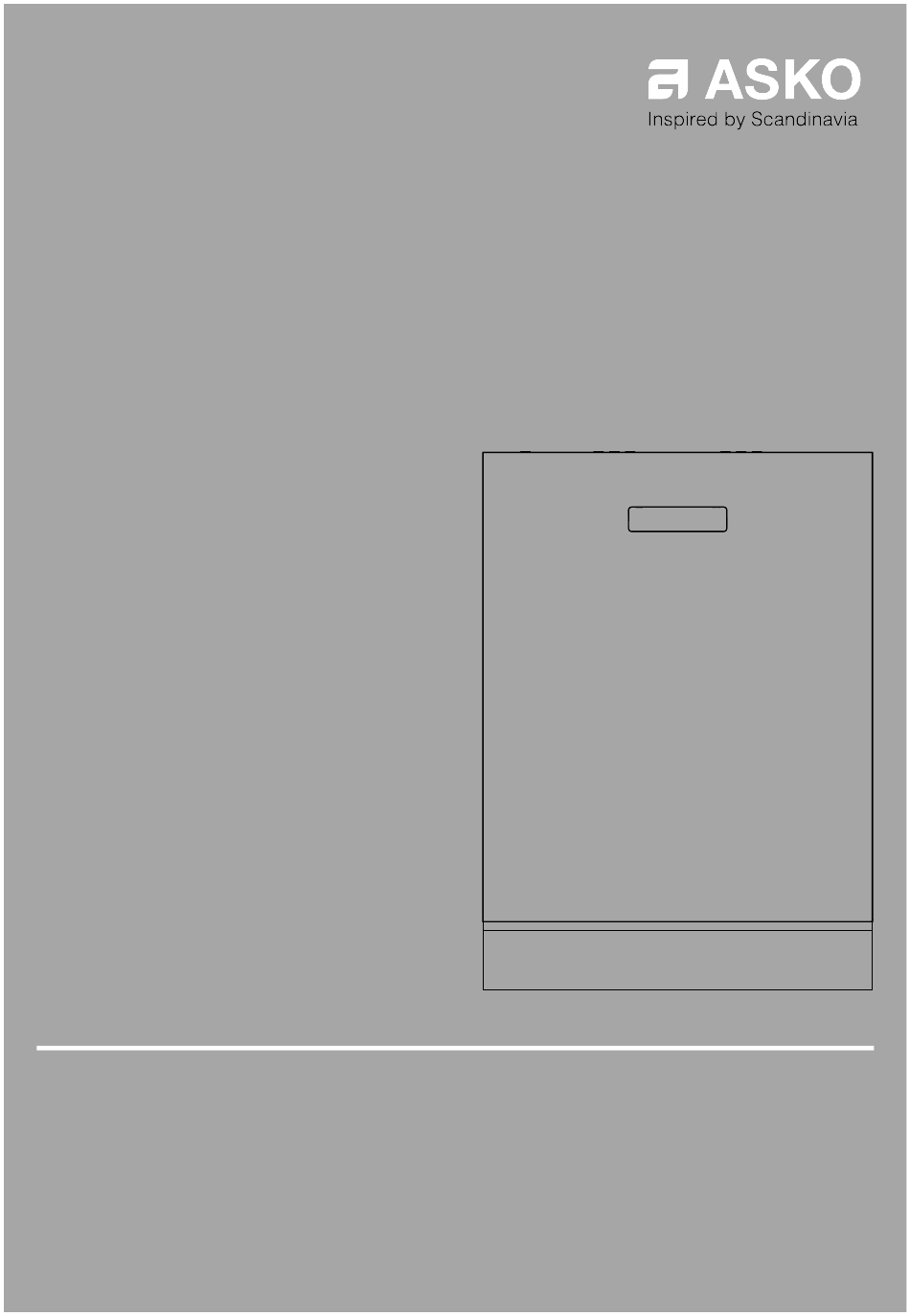

- Page 1 OPERATING INSTRUCTIONS DBI664IXXLS.U Dishwasher DBI664THXXLS.U DBI664PHXXLS.U...
-
Page 2: Table Of Contents
Contents Your dishwasher ........If the dishwasher is turned off due to a power Welcome to our growing ASKO family! ..failure ............Important safety instructions ....Once the program has finished ....General ............How to get the best drying results .... -
Page 3: Your Dishwasher
"Welcome to your new ASKO. This is a first time set up." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good... -
Page 4: Important Safety Instructions
Important safety instructions SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING! When using your dishwasher, follow basic precautions, including the following: • Read all instructions before using the dishwasher. • Use the dishwasher only for its intended function. • Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children. -
Page 5: Child Safety
Important safety instructions Child safety • Always keep small children away from the machine when it is open. There may be some detergent residue left inside the machine. • Always close the door and start the dishwasher as soon as you put in the detergent. •... - Page 6 Important safety instructions Contact your municipality for information about where and how your dishwasher can be recycled correctly.
-
Page 7: Before Washing For The First Time
Open the door and press the main power switch. "Welcome to your new ASKO. This is a first time set up." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results. - Page 8 Before washing for the first time Add rinse aid 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked max. 3. Wipe up any spilled rinse aid around the compartment. 4. Close the lid firmly. To change the chosen setting, see the chapter Settings.
-
Page 9: Greener Dishwashing
Greener dishwashing The dishwasher saves energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consump- tion. -
Page 10: Loading The Dishwasher
Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high temperatures, others can be damaged by dishwasher detergent. Use caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminum, wood, and plastic. -
Page 11: Top Cutlery Tray
Loading the dishwasher Top cutlery tray The top cutlery tray accommodates cutlery, ladles, whisks, and other utensils. Raising the top cutlery tray 1. Pull out the top cutlery tray. 2. Pull the two locking handles forward on each side to raise the top cutlery tray. Lowering the top cutlery tray 1. -
Page 12: Upper Basket
Loading the dishwasher Upper basket Place glasses, cups, bowls, side plates, and saucers in the upper basket. Place all soiled surfaces down! Place wine glasses on the wine glass shelf. Place knives in the knife stand on the right. Raising the upper basket 1. -
Page 13: Lower Basket
Loading the dishwasher Lower basket Place plates, side plates, serving dishes, pots, and cutlery (in the cutlery basket) in the lower basket. Place pots and pans in the right rear of the lower basket for the best cleaning results from the two rear spray nozzles (WideSpray ), which are intended for these types of dishes. -
Page 14: Cutlery Basket
Loading the dishwasher Washing large plates Move adjustable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 9 3/4" (25 cm). Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. -
Page 15: Typical Load
Loading the dishwasher Typical load Recommended for daily, regular, or typical use. Upper basket NOTE! Ensure the upper basket is set to its lowest position. Lower basket... -
Page 16: Using The Dishwasher
Using the dishwasher Add detergent Press to open 1. Prewash detergent compartment 2. Main wash detergent compartment Detergent is added according to water hardness. Follow the instructions on the detergent packaging. Too much detergent can result in less effective dishwashing and also entails greater environmental impact. -
Page 17: The Main Power Switch
Using the dishwasher Open the door and press the main power switch. Starting the dishwasher Select program Select program mode Select any options The main power switch Open the door and press the main power switch. Also turn on the water supply valve if it is turned off. -
Page 18: Select Program Mode
Using the dishwasher Plastic A program intended for washing plastic items that are dishwasher safe. This program has an extra long drying cycle. Porcelain and glasses can also be washed. Sanitize This program is recommended for baby bottles and cutting boards when additional sanitation is re- quired. -
Page 19: Starting The Dishwasher
Using the dishwasher The Extra Dry option is pre-selected for some programs. You can deactivate this option to save time and energy. Delayed Start When you select Delayed Start, the dishwasher will start 1-24 hours after you have pressed the button Start/Stop and closed the door. -
Page 20: Stopping Or Changing A Program
Using the dishwasher Stopping or changing a program If you want to change the program after starting the dishwasher, open the door then press and hold Start/Stop for three seconds. Add more detergent if the lid of the detergent dispenser has opened. Then choose a new program, press Start/Stop, and close the door within four seconds. - Page 21 Using the dishwasher Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket.
-
Page 22: Program Chart
Using the dishwasher... -
Page 23: Settings
Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button until Settings menu is shown on the display and confirm your selection with the mode selector To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector Navigation buttons for choosing setting Mode selector to confirm current setting Setting... - Page 24 Settings Settings Alternatives Display settings Contrast top dis- For adjusting the contrast of the display. play1/2/3/4 Logo in top display On/Off Setting to hide the logo shown on the dis- play. Feedback sound 0/1/2/3 This sound is used to confirm each button press.
-
Page 25: Care And Maintenance Instructions
Care and maintenance instructions Add rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Press to open 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked max. 3. -
Page 26: Cleaning The Spray Arms
Care and maintenance instructions Fine filter 1. Turn the locking ring counterclockwise and lift the fine filter straight up. 2. Clean the fine filter. 3. Refit the fine filter and turn the locking ring clockwise to its stop position. Check that the edges seal properly. - Page 27 Care and maintenance instructions Top spray arm • The upper basket must be removed before the top spray arm can be released. Extend the upper basket then rotate the basket catch on each runner outward (see illustration). Remove the basket. •...
-
Page 28: Clean The Dishwasher Inside And Out
Care and maintenance instructions Clean the dishwasher inside and out Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush. Display and buttons Keep the display and the buttons clean. - Page 29 Care and maintenance instructions Drain pump stop NOTE! Do not forget to reinstall the drain pump stop.
-
Page 30: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling water 1 Clear the drain pump. See the chapter Care and maintenance instructions. If the problem persists, call the Customer Care Center. Water outlet fault See “Water remains in the dishwasher above the filters” in the table “Problem”... - Page 31 Troubleshooting Problem Possible causes Action The dishwasher does not start. The Start/Stop start button has Press and hold Start/Stop until been pressed for too short a the display shows "Program time. started, close door in 4 sec". The door is not closed properly Close the door within four sec- or was not closed immediately onds, otherwise the dishwasher...
- Page 32 Troubleshooting Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings Clean the spray arms. See the blocked. chapter Care and maintenance instructions.
- Page 33 Troubleshooting Problem Possible causes Action Spots or films on the dishes. Incorrect rinse aid dosage set- See the chapter Settings. ting. Too high temperature and/or too Wash crystal at a low tempera- much detergent can cause ture and with a conservative etching on crystal.
- Page 34 Troubleshooting Problem Possible causes Action Water remains in the dishwasher The filters are clogged. Clean the coarse and fine filters. above the filters. The filters are not fitted correctly. Check that the filter handle is locked in the stop position. Debris in the drain pump.
- Page 35 Troubleshooting Problem Possible causes Action The dishes are not dry enough. Depending on the load, the pro- Activate the Extra Dry option. gram's drying cycle may be in- sufficient. The dishwasher is not fully load- Fully load the dishwasher. Rinse aid needs topping up or Top up with rinse aid or increase dosage is set too low.
-
Page 36: Installation Instructions
Installation instructions [''] *Remove lock nuts for an installed height of 34 1/4'' . **If European widths of 23 5/8'' (600 mm) is required, remove the trim kit. Nominal dimensions. Actual measurements may vary. Important safety instructions • Connections to electricity, water, and drainage must be performed by a qualified professional. •... -
Page 37: Transport Protection For The Door
Installation instructions Transport protection for the door Do not forget to remove the transport protection for the door when unpacking the dishwasher. Trim kit The dishwasher is equipped with a trim kit to fit the 24'' cutout standard. If a European width of 23 5/8'' (600 mm) is required, remove the trim kit. -
Page 38: Fit The Protective Film
Installation instructions NOTE! Framed cabinets require additional finished filler material behind the face frame for a proper in- stallation. A minimum 3½” (89 mm) finished return is required on all sides of the opening. Filler Frameless Framed cabinetry cabinetry If the dishwasher is built-in, the surrounding furnishings must be resistant to any condensation from the dishwasher. -
Page 39: Drain Connection
Installation instructions 4. Adjust the front feet by turning them clockwise to raise and counterclockwise to lower the dish- washer. 5/8'' 5. Verify there is an air gap of at least 1/8'' between the underside of the countertop and the top edge of the dishwasher. -
Page 40: Connection To Water Supply
Installation instructions min. 0.6" (14 Max. 37 3/8'' The drain hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 1/2''. The drain hose may be extended by a maximum of 87" (2.2 m) (the total length of the drain hose must not exceed 177"... -
Page 41: Electrical Connection
Installation instructions Water supply The machine can be connected to either a cold or a hot (max. 160 °F (70 °C)) water supply. The water pressure should be 4.2-140 psi (0.03-1.0 MPa). Connection to cold water supply Connect the dishwasher to the cold water supply if the building is heated using oil, electricity, or gas. -
Page 42: Screwing The Dishwasher Into Place
Installation instructions Screwing the dishwasher into place (Applicable only to built-in dishwashers.) After fastening the machine, check that the front feet still touch the floor. -
Page 43: Dishwasher Toe Kick
Installation instructions Dishwasher toe kick The dishwasher is supplied with a toe kick. Fit the sound insulation (only certain models) Fit the sound insulation (1-3 pieces depending on the toe kick depth). Fit the toe kick... -
Page 44: Service
UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This Limited Warranty is valid only when the ASKO Product is used in the country in which it was pur- chased. Proof of original purchase date is required to obtain service under this Limited Warranty. -
Page 45: Asko Customer Care
OTHER THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the exclusion or limitation of incidental, consequential or other damages, so these limitations and exclusions may not apply to you. -
Page 46: Technical Information
Technical information Technical data Height: 34 1/4 - 36 3/8" Width: 24" Depth: 22 5/8" Weight: 110 lb (50 kg) Water pressure: 4.2-140 psi (0.03-1.0 MPa) Electrical connection: See serial number plate Rated power: See serial number plate Weight can vary due to different specifications. - Page 47 US.ASKO.COM • CA.ASKO.COM • ASKO.COM/MX 843003 We reserve the right to make changes.
