USB/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM Thank you for purchasing the USB/BT Mixing Amplifier. Please carefully follow the instructions in this manual to ensure long, trouble-free use of the equipment. Packaging Contents ................1 USB/BT amplifier ..................1 User manual ................... - Page 3 PUBLIC ADDRESS SYSTEM USB/BT MIXING AMPLIFIER When the Unit is in Use ※ Should the following irregularity be found during use,immediately switch off the power,disconnect the power supply plug from the AC outlet and contact your nearest dealer.Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
-
Page 4: Limited Warranty
USB/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM When the Unit is in Use ※ Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury and/or property damage.In addition,the object itself may fall off and cause injury and/or damage. - Page 5 PUBLIC ADDRESS SYSTEM USB/BT MIXING AMPLIFIER DESCRIPTION & FEATURE This Compact USB/BT Mixing Amplifier provides 60 watts of output power with with bluetooth,intergral USB audio player power, and 5 inputs including 3 balanced MIC (MIC1 has another port of 6.35mm jack on front panel),2 unbalanced AUX, each one has individual volume control.
-
Page 6: Front Panel

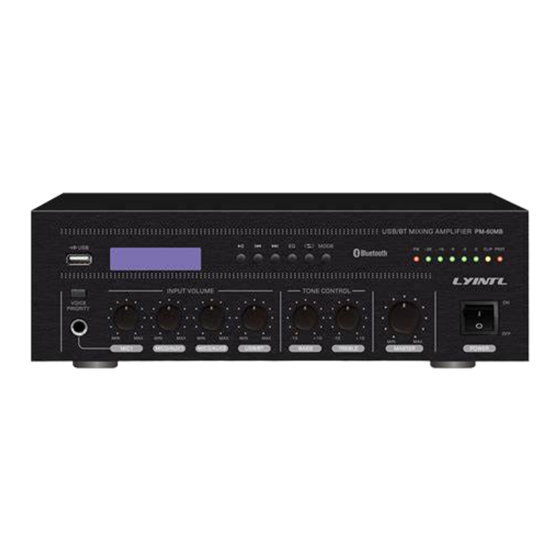

USB/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM FRONT PANEL ⑴ ⑵ ⑶ ⑷ ⑸ ⑹ ⑺ ⑻ ⑼ ⑽ ⑾ ⑿ ⒀ ⒁ (1) USB INPUT INTERFACE: Allows you to play USB disk. (2) SCREEN: Displays the working status of playing programmes. (3) MP3 CONTROLLERS: This button shall return to the previous song. -
Page 7: Rear Panel
PUBLIC ADDRESS SYSTEM USB/BT MIXING AMPLIFIER REAR PANEL PHANTOM POWER ⑴ ⑵ ⑶ ⑷ ⑸ ⑹ ⑺ ⑻ ⑼ ⑽ ⑾ (1) AC POWER INLET: It accepts a standard 3-pin cable. (2) AC FUSE DRAWER: Contains one main 1A fuse and one spare 1A fuse. (3) SPEAKER OUTPUT TERMINALS: COM, 4Ω, 8Ω, 70V, 100V It's only possible to use one output at the same time,connecting more than one may damage internal parts of the amplifier.Each of 100V,70V,4Ω... -
Page 8: Specification
USB/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM SPECIFICATION Model PM-60MB Rated Power Low impedance:4 & 8 ohms (Ω) Speaker Output Mode Voltage line:70V & 100V Frequency Response 60 Hz ~ 15k Hz (± 3 dB) <1% at 1kHz,1/3 rated power T.H.D ≥75dB... -
Page 9: Connection Illustration
PUBLIC ADDRESS SYSTEM USB/BT MIXING AMPLIFIER CONNECTION ILLUSTRATION USB Flash Disk Front Panel CD/DVD Player VIDEO OUTPUT CAUTION Cb/Pb Cr/Pr VIDEO RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING HIGH VOLTAGE INSIDE TO PREVENT ELECTRICAL SHOCK DO NOT REMOVE ANY COVER OR SCREW REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL DO NOT ALLOW THIS PRODUCT R-AUDIO-L MR-MIXED-ML... -
Page 10: Speaker Connection
USB/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM SPEAKER CONNECTION Important Notes: This amplifier has different loudspeakers outputs of 100V,70V and low impedance 4Ω/8Ω. It's only possible to use one output at the same time,connecting more than one may damage internal parts of the amplifier.Each of 100V,70V,4Ω and 8Ω terminals must work with COM. (common) terminal. - Page 11 PUBLIC ADDRESS SYSTEM USB/BT MIXING AMPLIFIER 4Ω & 8Ω low impedance output This output allows connection of low impedance loudspeakers without transformers, When two or more loudspeakers are used ensure that they are wired in such a way in Series, or in Parallel, or in Series & Parallel Combination that total load impedance remains at 4Ω...
-
Page 12: Bluetooth Operations
USB/BT MIXING AMPLIFIER PUBLIC ADDRESS SYSTEM BLUETOOTH OPERATIONS *Note: The Bluetooth name of this amplifier is “BGM SYSTEM” In order to enjoy music from a Bluetooth device on this amplifier, the Bluetooth device must first be paired with this amplifier. Once the Bluetooth device has been paired, it does not need to be paired again. - Page 13 NOTE:...
- Page 14 CAUTION: Do not open the equipment cover arbitrarily, so as not to electric shock. Please contact the professionals to maintian if necessary. The products are constantly improving,subject to change without prior notice.
