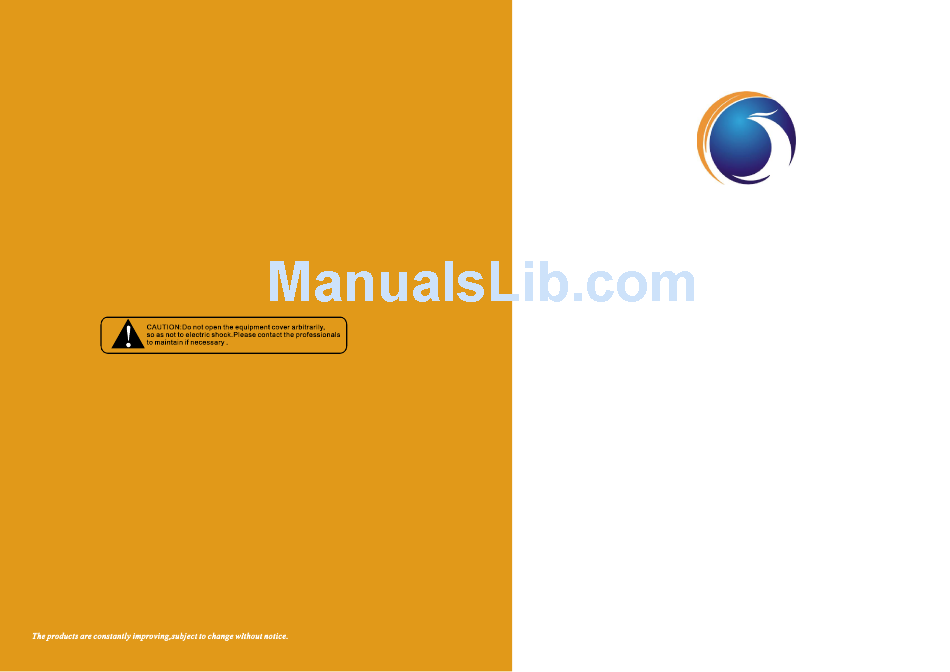

- Page 1 MIER AMPLIFIER WITH MP3/FM TUNER PM-2807/PM-2813/PM-2826/PM-2836/PM-2850 USER MANUAL LY International Electronics Co Http://www.lyintlcorp.com/...
- Page 2 MP3/FM TUNER MIXER AMPLIFIER PM-28 SERIES PM-28 SERIES MP3/FM TUNER MIXER AMPLIFIER Installation Notes Thank you for purchasing the MP3/FM Tuner Amplifier Sereis. Please carefully follow the instructions in this manual to ensure long, trouble-free use of the equipment. be located in the good ventilation place, Accessories AC power cord ............
- Page 3 MP3/FM TUNER MIXER AMPLIFIER PM-28 SERIES PM-28 SERIES MP3/FM TUNER MIXER AMPLIFIER Specifications Model PM-2807 PM-2813 PM-2826 PM-2836 PM-2850 Rated Power 120W 240W 350W 500W Low impedance:4-16 ohms(Ω) Voltage line:70V(70 ohms(Ω)) 100V(143 ohms(Ω)) 120W Voltage line:70V(38 ohms(Ω)) 100V(77 ohms(Ω)) Output Terminals 240W Voltage line:70V(19 ohms(Ω)) 100V(39 ohms(Ω))

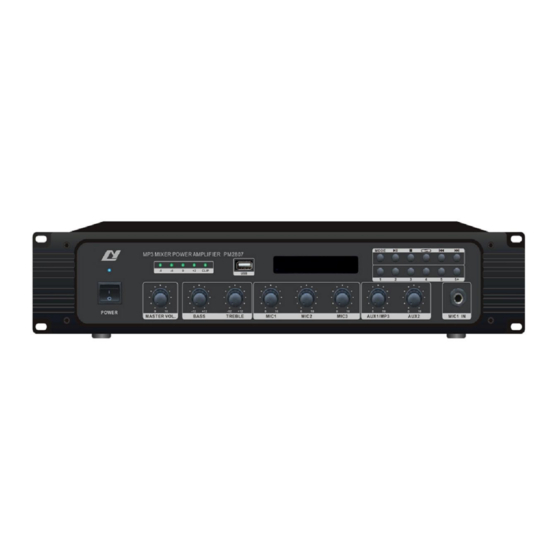

- Page 4 MP3/FM TUNER MIXER AMPLIFIER PM-28 SERIES PM-28 SERIES MP3/FM TUNER MIXER AMPLIFIER Front Panel Remote Control Unit POWER Switch on / standby of the player. MODE To select the mode of the module FM or USB. BUTTON 1 0 To choose songs or FM stations stored. MUTE To mute the volume.
- Page 5 MP3/FM TUNER MIXER AMPLIFIER PM-28 SERIES PM-28 SERIES MP3/FM TUNER MIXER AMPLIFIER Rear Panel Operation Notes 1.FM antenna input 4.M icrophone 3 input 2.Mute sensitivity control 5. AUX1 input • Adjust the threshold level to activate 6. AUX2 input the MIC1 input priority function 7.
