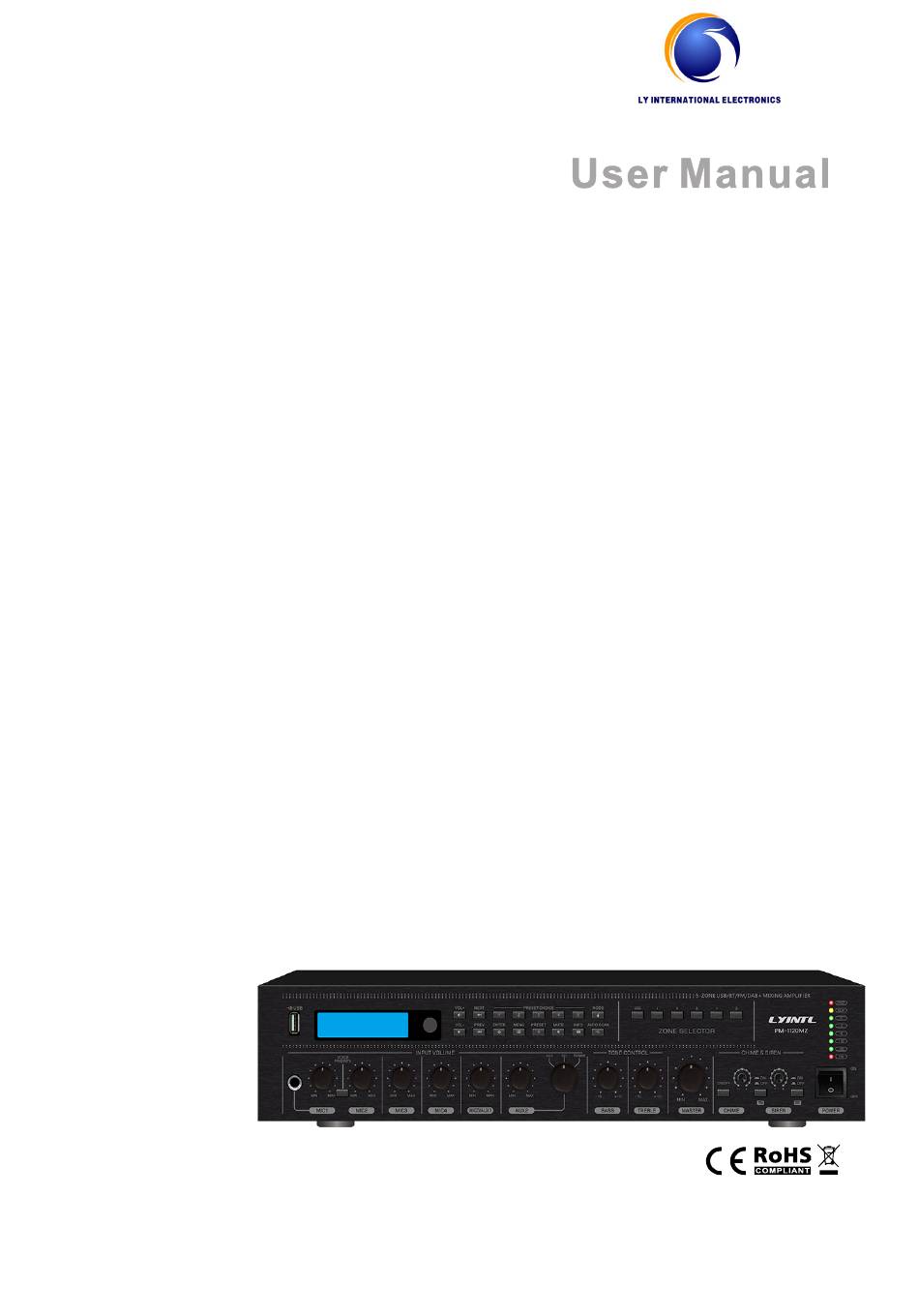

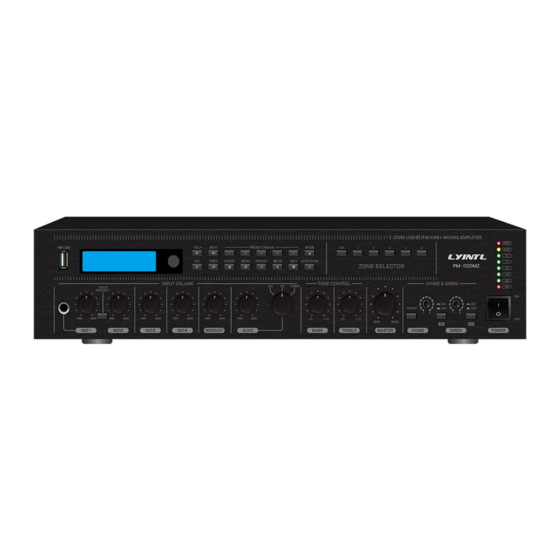

- Page 1 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PM-1120MZ PM-1240MZ PM-1350MZ...
-
Page 2: Safety Precautions
5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PA AMPLIFIER SERIES SAFETY PRECAUTIONS ※ Be sure to read the instructions in this section carefully before use. ※ Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. ※... - Page 3 PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER When the Unit is in Use ※ Should the following irregularity be found during use,immediately switch off the power,disconnect the power supply plug from the AC outlet and contact your nearest dealer.Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
-
Page 4: Limited Warranty
5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PA AMPLIFIER SERIES When the Unit is in Use ※ Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury and/or property damage.In addition,the object itself may fall off and cause injury and/or damage. -
Page 5: Package Contents
PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER Thank you for purchasing the 5-Zone USB/BT/FM/DAB+ Mixing Amplifier Series. To ensure long and trouble-free use of the equipment,please read all instructional materials provided with the unit. Package Contents ..................1 Amplifier ..................1 User Manual .................1 Remote Control... -
Page 6: Front Panel
5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PA AMPLIFIER SERIES Front Panel (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) (17) (19) (20) (21) (22) (23) (24) (25) (26) (27) (28) (29) (30) (18) 1. USB port: Allows to play USB disk. 2. - Page 7 PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER Names & Functions of Front Panel 9. PRESET: Press this button to review the 60 stored stations,press ‘NEXT’ or ‘PREV’ to choose a desired station then press ‘ENTER’ to play this station. 10. MUTE: Press this button to shut off the audio of the media,press it again to activate the audio.
-
Page 8: Rear Panel
5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PA AMPLIFIER SERIES Rear Panel (4) (5) (8) (9) (10) (11) (12) (13) (14) (15) 1. AC IN connector: Connect the included power cord here. 2. Fuse: Fuse for protection against surges and short circuit.If the amplifier suddenly turns off and will not turn on,check the fuse and replace it if necessary. -
Page 9: Remote Control
PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER Remote Control The shipment does not contain the batteries. Please get and insert the suitable batteries - AAA/1.5V before use. (18) (12) (10) (13) (11) (16) (17) (14) (15) (19) (20) (21) (23) (22) (22) (21) - Page 10 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PA AMPLIFIER SERIES Names & Functions of Remote Control 1. STANDBY: Press this button to activate and deactivate this unit. 2. MUTE: Press this button to mute this unit’s audio. Buttons of 3 - 7: These buttons are used for other models. 8.DAB+: Press this to switch the input source to “DAB+ Mode”.
-
Page 11: Connection Illustration
PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER Connection Illustration Carefully read the operation manuals of the devices to be connected and them connect them correctly. Before making connections,turn this unit and all equipment to be connected off power. The name “R-BLUETOOTH” shall be displayed on the mobile device for pairing. - Page 12 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER PA AMPLIFIER SERIES Connections of Speakers Important Notes: This amplifier has different loudspeakers outputs of 100V,70V and low impedance 4Ω/8Ω. It's only possible to use one output at the same time,connecting more than one may damage internal parts of the amplifier.Each of 100V,70V,4Ω...
- Page 13 PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER 4Ω & 8Ω low impedance output This output allows connection of low impedance loudspeakers without transformers, When two or more loudspeakers are used ensure that they are wired in such a way in Series, or in Parallel, or in Series & Parallel Combination that total load impedance remains at 4Ω...
-
Page 14: Specifications
5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER Specifications Model PM-1350M Z PM-1120M PM-1240M 350W Rated power 120W 240W Low impedance:4 & 8 ohms (Ω) Speaker output mode Voltage line:70V & 100V Compatible media USB,Bluetooth,FM(RDS),DAB+(DAB),Aux in Playable format MP3,WAV Bluetooth version 5.0 version FM(RDS): 87.50 - 108.00 MHz Tuner frequency range DAB+(DAB): 168.00 - 240.00 MHz... - Page 15 PA AMPLIFIER SERIES 5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER NOTE: Page 14 Https://www.lyintl.com/...
- Page 16 CAUTION: Do not open the equipment cover arbitrarily, so as not to electric shock. Please contact the professionals to maintian if necessary. The products are constantly improving,subject to change without prior notice. Https://www.lyintl.com/...
