LY International Electronics PB-9306 Operation Instructions Manual

Digital mixer amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PA system
Digital Mixer Amplifier
Public Address System
D
igital Mixer Amplifier
PB-9306
PB-9312
PB9312 Mixer Amplifier
SIG
CLIP
PRO
USB
M
0
10
0
10
0
10
-10
+10
-10
+10
0
10
ON
OFF
PRIORITY
MIC1
MIC2/AUX1
AUX2
BASS
TREBLE
MASTER

Operation Instructions

Welcome to use our public address system. For the better use of this product, please read this instruction carefully
prior to use.
L International lectronics Co., Ltd
http://www.lyintlcorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-9306 and is the answer not in the manual?

Questions and answers

Related Manuals for LY International Electronics PB-9306

Summary of Contents for LY International Electronics PB-9306

  • Page 1: Operation Instructions

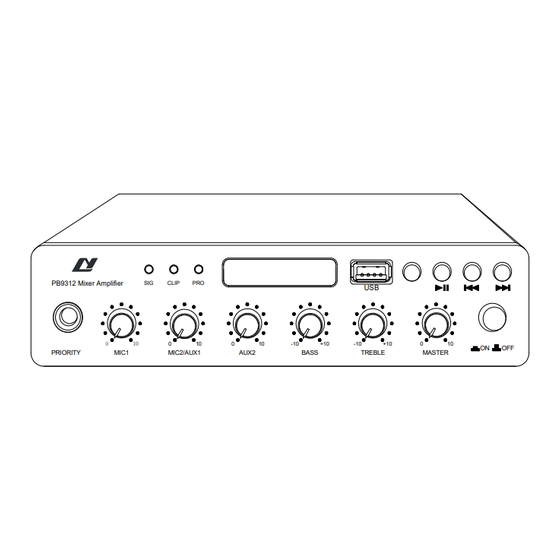

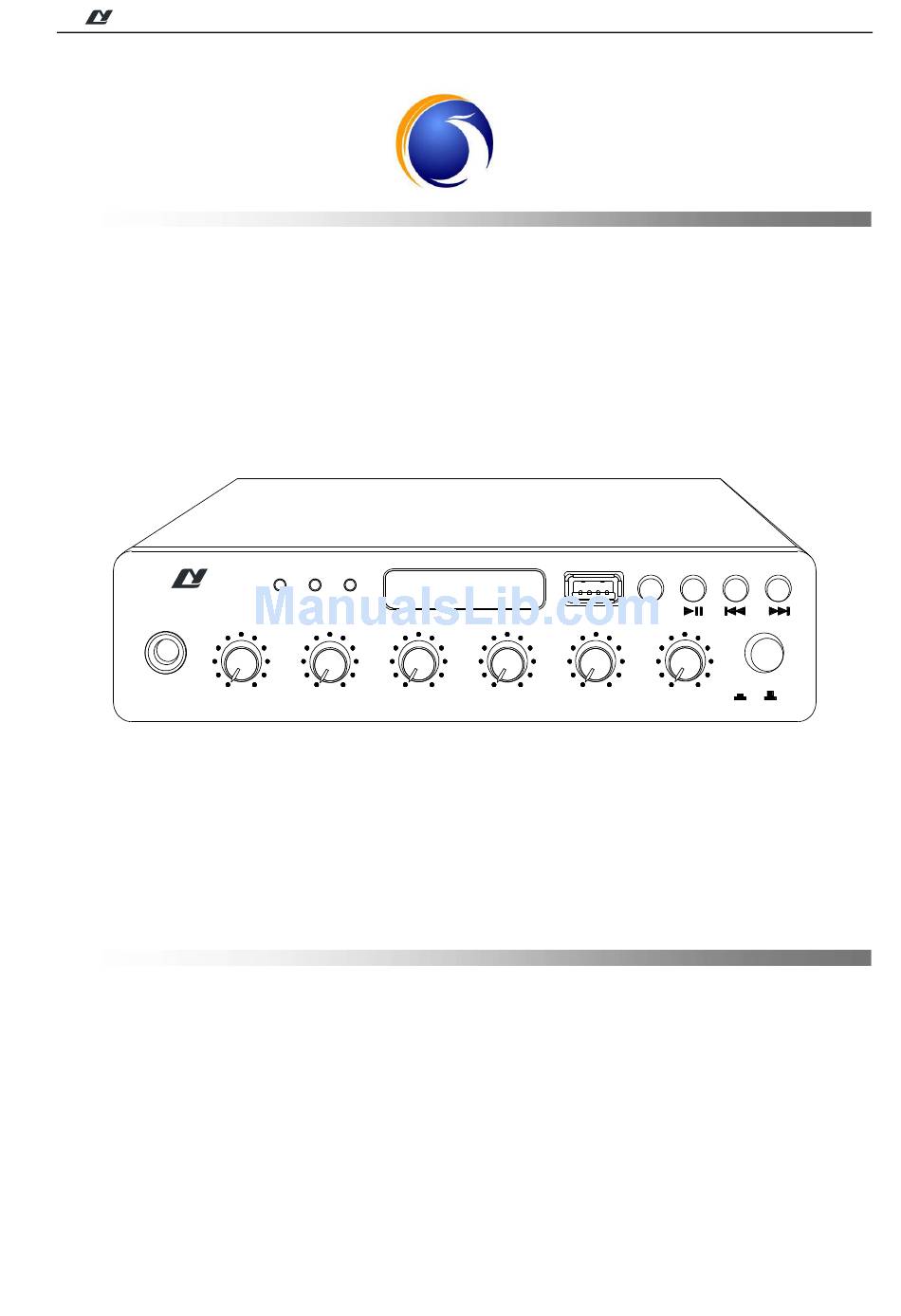

    PA system Digital Mixer Amplifier Public Address System igital Mixer Amplifier PB-9306 PB-9312 PB9312 Mixer Amplifier CLIP PRIORITY MIC1 MIC2/AUX1 AUX2 BASS TREBLE MASTER Operation Instructions Welcome to use our public address system. For the better use of this product, please read this instruction carefully prior to use.
  • Page 2 PA system Digital Mixer Amplifier About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier P B9306/PB 9312. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center.

  • Page 3: Table Of Contents

    PA system Digital Mixer Amplifier Content 1. PRODUCT DESCRIPTION ....................1.1 FEATURES ..............................1 2. APPEARANCE DESCRIPTION ........................1 2.1 Front panel ..............................1 2.2 rear panel ..............................3 2.3 SIDE PANEL............................-4 - 3. WORKING MODE .............................. 4 3.1Bluetooth mode ......................3.2 USBmode ........................

  • Page 4: Product Description

    PA system Digital Mixer Amplifier 1. Product Description 1.1 Features With Bluetooth & MP3 &Line mode Wireless Bluetooth playing function With Signal level indicator (SIG), Clip Indicator (CLIP), and Protection indicator(PRO) Built-in 100V RMS priority input and EMC input Two MIC inputs, one with phantom input and one with priority input. Three-way line input, one way is for connecting lotus socket interface, one way for connecting the XLR interface, one way for connecting 2P terminal interface;...
  • Page 5 PA system Digital Mixer Amplifier 1. Mic 1 second level priority input 2. MIC1 volume adjustment Adjust the volume of MIC1, turn clockwise to turn up, turn counter clockwise to turn down. 3. MIC2/AUX1 volume adjustment Adjust the volume of MIC2/AUX1, turn clockwise to turn up, turn counter clockwise to turn down. 4.

  • Page 6: Rear Panel

    PA system Digital Mixer Amplifier In U- and long press this key to turn down the volume 17. Next song In U- and long press this key to turn down the volume 2.2 Rear panel 1. AC220V Power input socket The interface is to supply the working power.

  • Page 7: Working Mode

    PA system Digital Mixer Amplifier 10. DC24V input interface 3. W orking mode With 3 mode:USB mode, Bluetooth mode, Line mode 3.1Bluetooth mode the user can play music on the mobile phone. It has excellent wireless transmission function,. 3.2 USB mode When the USB is inserted, it will switch to USB mode automatically (plug and play).

  • Page 8: Remote Control Instructions

    PA system Digital Mixer Amplifier 4. Remote control instructions Function key description Mode main function key working mode switch. Power switch Play & Pause/ Search the audio aromatically when in FM) EQ sound effect 0-9 song selection key can be composed of digital channel selection when in FM Mute key Last song/ Last audio when in FM Next song/ Next audio when in FM...

  • Page 9: Safety Precautions

    PA system Digital Mixer Amplifier Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged.

  • Page 10: Packing List

    PA system Digital Mixer Amplifier Packing list List Quantity PB9312D or PB9306D Manual Guarantee card Certificate 1.8 mter power wire Remote control 2P plug 1500MM two cat audio wire...
  • Page 11 PA system Digital Mixer Amplifier Specification Model PB9312D PB9306D 120W it with constant pressure Rated Power constant pressure speakers whose rated speakers whose rated power power is higher than 60W) is higher than 120W) Speaker Output 100V MIC 1 Input 0.005(±0.001) VRMS Sensitivity MIC 2 Input...
  • Page 12 This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Ly International Electronics Co., Ltd.

This manual is also suitable for:

Pb-9312

Table of Contents
