Samsung T19B300EW User Manual

Syncmaster series 3 tb300, tv350 led tv monitor.
Hide thumbs

Advertisement

LED TV MONITOR
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
(MFM TV)

user manual

TB300
TB350

Advertisement

   Related Manuals for Samsung T19B300EW

   Summary of Contents for Samsung T19B300EW

  • Page 1: User Manual

    LED TV MONITOR user manual Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register (MFM TV) TB300 TB350...
  • Page 2 The reception quality of LED display may be affected due to differences in broadcasting method between the countries. Please check the LED display performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring LED display setting or not.
  • Page 3: Table Of Contents

    Contents Getting Started Connections Basic Features Advanced Features Other Information This function can be used by pressing the TOOLST button on the remote control. Safety Precautions 11 Accessories 12 Viewing the Control Panel 13 Viewing the Remote Control 14 Connecting to an Antenna 14 Setup (Initial Setup) 15 Connecting to an AV Device 16 Connecting to a COMMON INTERFACE slot...
  • Page 4: Getting Started

    Icons used for safety precautions WARNING CAUTION Do not perform. Must be followed. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
  • Page 5: Installation Related

    Keep the power cord and the product away from a heater. Otherwise, it may result in electric shock or fire. Caution Avoid unplugging the power plug while the product is operating. Otherwise, it may damage the product due to electric shock. When unplugging the power plug from the wall outlet, make sure to hold it by the plug and not by the...
  • Page 6 If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the SAMSUNG surrounding environment. In this case, install the product only after consulting one of our service engineers about the matter.
  • Page 7: Cleaning Related

    Cleaning Related ¦ Warning Before cleaning the product, unplug the power cord. Otherwise, it may result in electric shock or fire. Caution Avoid spraying cleansing agent directly onto the product. This may result in discoloration or cracking of the exterior of the product or the panel coming off.
  • Page 8 If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service centre. Otherwise, it may result in electric shock or fire. If you drop the product or the case is damaged, turn the power off and unplug the power cord.
  • Page 9 Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product. If water or substances enter the product, turn the power off, unplug the power cord and contact a service centre. Otherwise, it may result in a problem with the product, electric shock or fire.
  • Page 10 Keep the small accessories in a location out of the reach of children. Avoid placing a heavy object over the product. Otherwise, it may result in a problem with the product or injury. Be careful that children do not place the batteries in their mouths when removed from the remote control.
  • Page 11: Accessories

    ✎ Please make sure the following items are included with your LED display. If any items are missing, contact your dealer. ✎ The items’ colours and shapes may vary depending on the models. ✎ Cables not included in the package contents can be purchased separately. ✎...
  • Page 12: Viewing The Control Panel

    ✎ The product colour and shape may vary depending on the model. SOURCE MENU P (Power) Power Indicator Remote control sensor Standby mode Do not leave your LED display in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off.
  • Page 13: Viewing The Remote Control

    ✎ This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons. Turns the TV on and off. Have direct access to channels. Alternately select Teletext ON, Double, Mix or OFF. Adjusts the volume.
  • Page 14: Connections

    When the LED display is initially powered on, basic settings proceed automatically. ✎ Preset: Connecting the mains and antenna. Power Input When the LED display is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button.
  • Page 15: Connecting To An Av Device

    Using an HDMI or an HDMI to DVI cable (up to 1080p) Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR ✎ HDMI IN(DVI) / PC/DVI AUDIO IN If an HDMI to DVI cable is connected to the The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the LED display.
  • Page 16: Connecting To A Common Interface Slot

    Using a Component (up to 1080p) or Audio/Video (480i only) Cable Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR Audio Cable (Not Supplied) White Bule Green ✎ When connecting to IN, the colour of the ✎ For better picture quality, the Component connection is recommended over the A/V connection. (Just for Europe, Turkey,Algeria,South Africa, and CIS area) Using the “CI or CI+ CARD”...
  • Page 17: Connecting To A Audio Device And Pc

    Using an Optical (Digital) or a Headphone Connection TB300 series have not headphone and Optical interface. ✎ DIGITAL AUDIO OUT (OPTICAL) When a Digital Audio System is connected to the LED display and the system. 5.1 CH (channel) audio is available when the LED display is connected to an external device supporting 5.1 CH. When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack.
  • Page 18 Display Modes (D-Sub and HDMI/DVI Input) Optimal resolution : 1366 x 768 pixels (T19B300 model only) Display Mode Mode Resolution 720 x 400 VESA DMT 640 x 480 640 x 480 VESA DMT 640 x 480 VESA DMT 640 x 480 VESA DMT 800 x 600 VESA DMT...
  • Page 19: Changing The Input Source

    Changing the Input Source Source SOURCE s→ Source Use to select LED display or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver. TV / Ext. / PC / HDMI/DVI / AV / ■...
  • Page 20: Using The Info Button (now & Next Guide)

    Using the INFO button (Now & Next guide) The display identifies the current channel and the status of certain audio-video settings. The Now & Next guide shows daily LED display programme information for each channel according to the broadcasting time. Scroll l / r to view information for a desired programme while watching the current channel.
  • Page 21: Channel List

    Aerial: Select the desired antenna source. Channel: Select the desired channel. Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday to set at your convenience. If you select Manual, you can set the day you want. ✎ mark indicates the date is selected. Date: you can set desired date.
  • Page 22: Channel Menu

    Channel Menu Retuning Channels ¦ MENUm → Channel → ENTERE Aerial (Air / Cable) Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the LED display. Country (depending on the country) The PIN input screen appears.
  • Page 23: Picture Menu

    Mode: Adjust screen viewing angle. ■ ✎ When Samsung MagicAngle is set to Lean back mode or Standing Mode, Gamma is not available. Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R) Your television has several setting options for picture quality control.
  • Page 24: Changing The Picture Options

    Advanced Settings MENUm → Picture → Advanced Settings → ENTERE (Advanced Settings are available in Standard / Movie mode) Compared to previous models, new Samsung LED display have a more precise picture. ✎ When connecting a PC, you can only make changes to White Balance.
  • Page 25: Sound Menu

    Picture Options MENUm → Picture → Picture Options → ENTERE ✎ When connecting a PC, you can only make changes to the Colour Tone. Picture Options Colour Tone Standard Digital Noise Filter MPEG Noise Filter HDMI Black Level Film Mode Colour Tone (Cool / Standard / Warm1 / Warm2) ■...
  • Page 26: Broadcast Audio Options

    Sound Systems, Etc. ¦ MENUm → Sound → ENTERE Broadcast Audio Options Audio Language ■ (digital channels only) Change the default value for audio languages. ✎ The available language may differ depending on the broadcast. Audio Format ■ (digital channels only) Select the audio format.
  • Page 27: System Menu

    System Menu Setting the Time ¦ MENUm → System → ENTERE Time Clock: Setting the clock is for using various timer features ■ of the LED display. ✎ The current time will appear every time you press the INFO button. ✎...
  • Page 28: Economical Solutions

    Off Timer ■ Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off timer settings can be made. You must set the clock first. Off Timer 1 Setup Time Close Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at your convenience.
  • Page 29: Auto Protection Time

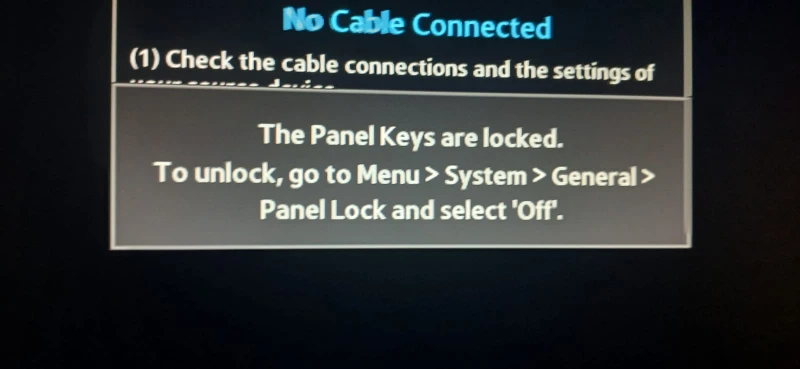

    Panel Lock (Off / On): Lock or unlock all the keys on the ■ front panel at once. When Panel Lock is on, none of the keys on the front panel operate. Boot Logo (Off / On): Display Samsung logo when the LED ■ display is turned on. Common Interface CI Menu: This enables the user to select from the CAM- ■...
  • Page 30: Support Menu

    Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the LED display. Contact Samsung’s Call Centre for assistance. No: If the test pattern is properly displayed, select No.
  • Page 31: Advanced Features

    TV’s USB port. USB (HDD) is not supported. Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.
  • Page 32: Screen Display

    If the TV has been no input during time set in Auto Protection Time, the Screensaver will run. The power-saving mode of some external hard disk drives may be released automatically when connected to the TV. If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read. If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.
  • Page 33 Videos Playing Video 1. Press the l / r / u / d button to select the desired video in the file list. 2. Press the ENTERE button or ∂ (Play) button. The selected file name is displayed on the top with its playing time.
  • Page 34 Supported Video Formats File Container Video Codec Extension DivX 3.11 / 4.x / 5.1 / 6.0 MPEG4 SP / *.avi *.mkv H.264 BP / MP *.asf / HP *.wmv *.mp4 H.263 *.3gp *.vro *.mpg Motion JPEG *.mpeg *.ts *.tp *.trp Window Media *.m2ts Video v9...
  • Page 35 Other Restrictions ✎ NOTE If there are problems with the contents of a codec, the codec will not be supported. If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly. Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/ sec listed in the table above.
  • Page 36 Music Playing Music 1. Press the u / d button to select the desired Music in the file list. 2. Press the ENTERE button. ✎ Only displays the files with the file extension in following supported music formats list. Other file extensions are not displayed, even if they are saved on the same USB device.
  • Page 37 Media Play - Additional Functions ¦ Videos/Photos/Music Play Option menu Press the TOOLST button and you can make the following operations. Category Shuffle Mode You can play the music randomly. You can play media files repeatedly. Repeat Mode Picture Mode You can adjust the picture setting.
  • Page 38: Other Information

    The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed. ✎...
  • Page 39: Attaching A Wall Mount/desktop Stand

    Preparing before installing Wall-Mount/Desktop Stand 1. Turn the product off and unplug the power cord from the wall outlet. 2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down. 3.
  • Page 40: Anti-theft Kensington Lock

    Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using excessive force. This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any damage or injury.
  • Page 41: Troubleshooting

    If you have any questions about the LED display, first refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.
  • Page 42 • Programme the Cable/Set top box remote control to operate the LED display. Refer to the Cable/Set user manual for the SAMSUNG LED display code. • Check the supported resolution of the LED display, and adjust the external device’s output resolution accordingly.
  • Page 43: Storage And Maintenance

    Issues The PIP menu is not available. You turned the LED display off 45 minutes ago, and it turned on again. The message “Scramble signal” or “Weak Signal/No Signal” appears. There are recurrent picture/sound issues. A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture.
  • Page 44 Licence ¦ TheaterSound HD, SRS and the TheaterSound HD technology is incorporated under licence from SRS Labs, Inc. Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.
  • Page 45: Specifications

    Operating Environmental considerations Storage Tilt LED display System Colour/Video System Sound System HDMI IN Model Name Screen Size (Diagonal) 18.5 inches (47 cm) Display Resolution 1366 x 768 @ 60Hz Sound (Output) 444.7 x 52.6 x 278.2 mm (Without Stand) (17.5 x 2.1 x 11.0 inches) Dimensions (WxDxH)
  • Page 46 Póngase en contacto con SAMSUNG WORLDWIDE Si tiene alguna pregunta o comentario en relación con productos de Samsung, póngase en contacto con el Centro de atención al cliente de SAMSUNG. País del Centro de atención al cliente ALBANIA 42 27 5755 AUSTRIA 0810 - SAMSUNG (7267864, €...
  • Page 47 0800 724 000 NIGERIA 0800-726-7864 SENEGAL 800-00-0077 SOUTH AFRICA 0860-SAMSUNG(726-7864) TANZANIA 0685 88 99 00 UGANDA 0800 300 300 © 2012 Samsung Electronics Co., Ltd. All rights reserved. Sitio web http://www.samsung.com http://www.samsung.com/ua http://www.samsung.com/ua_ru http://www.samsung.com http://www.samsung.com ASIA PACIFIC http://www.samsung.com http://www.samsung.com http://www.samsung.com http://www.samsung.com/hk...
