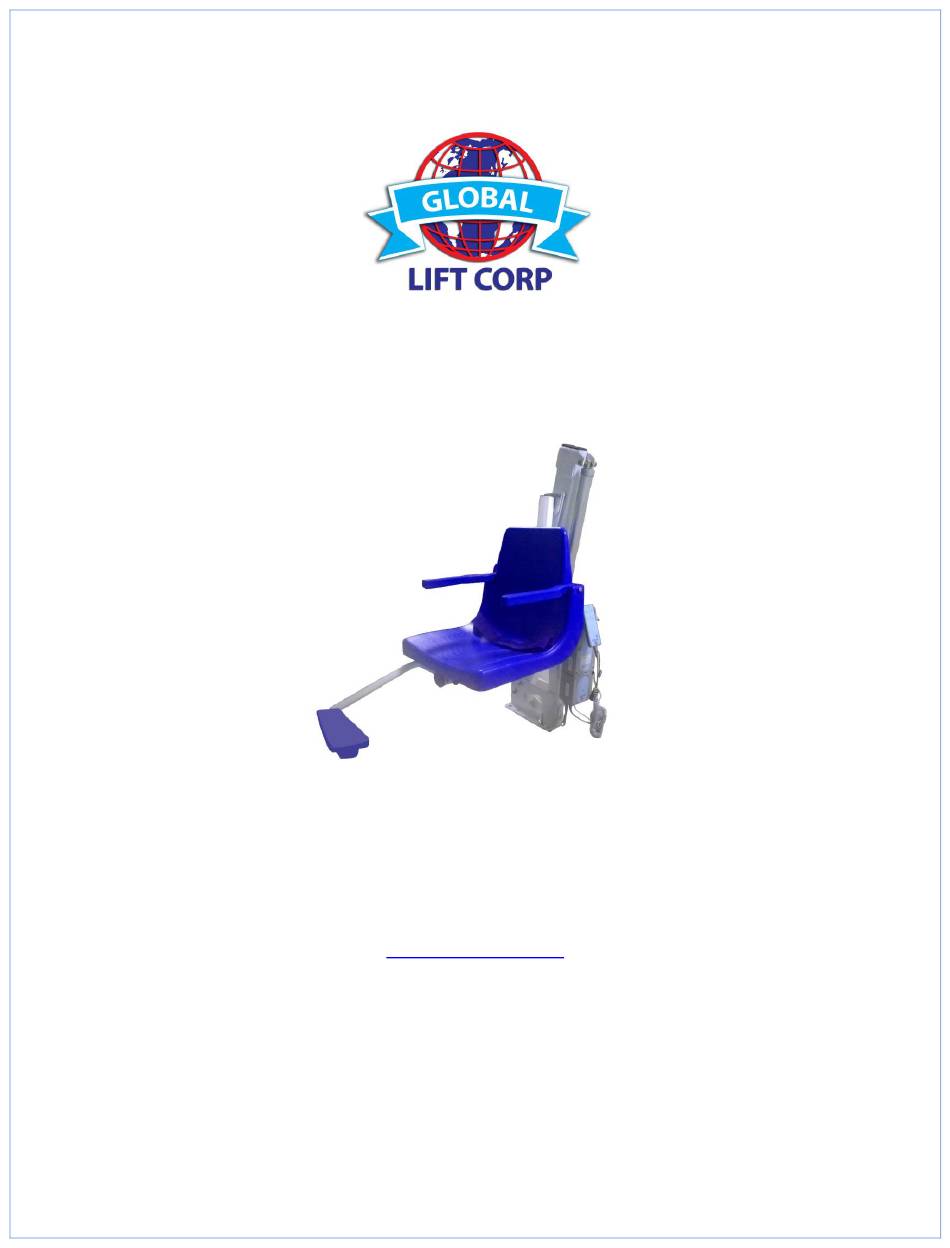

GLOBAL LIFT CORP
Owner's Manual
Legend Series
684 N Port Crescent Rd
Suite C
Bad Axe, MI 48413
Toll Free: 866-712-0606
Fax: 989-269-5902
www.globalliftcorp.com
Page | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Legend L-325 and is the answer not in the manual?

Questions and answers

Summary of Contents for global lift corp Legend L-325

  • Page 1 GLOBAL LIFT CORP Owner’s Manual Legend Series 684 N Port Crescent Rd Suite C Bad Axe, MI 48413 Toll Free: 866-712-0606 Fax: 989-269-5902 www.globalliftcorp.com Page | 1...
  • Page 2 LEGEND SERIES POOL LIFTS TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 LEGEND SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE – 7 TROUBLESHOOTING PAGE –...
  • Page 3 Your Number One Choice for Commercial Pool Access Equipment Global Lift Corp. is located in Mid Michigan, Global Lift Corp. prides itself in manufacturing top of line quality aquatic access equipment. Global Lift Corp.'s key staff has a century of combined industry experience and we take pride in each and every product that we build.
  • Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT 1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). 2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Lift Corp’s Superior/Proformance Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts right above the control compartment and the battery simply snaps in.
  • Page 6 LEGEND SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Legend Series Pool Lift perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in the up position and the seatbelt is unbuckled, once acknowledged you are ready! Once you are in the seat, buckle the seatbelt (make sure it is snug) and lower the arm rails if installed.
  • Page 7 Maintenance Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery if needed Test for normal operations Inspect your lift Clean and dry the lift and seat with clean water Cover lift after use Weekly...
  • Page 8 TROUBLESHOOTING GUIDE Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower (a) Check the battery connection and reconnect (b) Check hand controls, make sure they are connected properly (c) Check for any lose wires on the control compartment (d) Check the connection cable for damage (e) Check to see that the lock on the hand control or front control box is in the unlocked position.
  • Page 9 Global Lift Corp Warranty Information The Legend series lift has a 5 year structural limited warranty. Global Lift Corp warrants to the original retail end user only products manufactured by Global Lift Corp, when properly installed in accordance to the assembly and installation instructions, and when the equipment is properly used and maintained, be free from material defects and workmanship as stated below: ...
  • Page 10 Global Lift Corp’s decision regarding the claim. If the request made by Global Lift Corp for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Lift Corp at...
  • Page 11 Warranty Procedure Warranty Claims shall be submitted to Global Lift Corporation by the distributor which originated the sale with Global Lift Corporation or directly to Global Lift Corporation. All RGA (Return Goods Authorization) documents shall be requested by and issued only to the distributor which originated the sale or directly to Global Lift Corporation.
  • Page 12 I have read and I accept the warranty terms. Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Lift Corp within 30 days of purchase date to assure coverage. Please mail to: Global Lift Corp, 684 N Port Crescent Suite C, Bad Axe, MI 48413...
  • Page 13 LEGEND SERIES LIFTS TABLE OF CONTENTS 1. 4-Point Anchor System 2. 4-Point Paver Instruction Anchor Method November 2013...
  • Page 14 LEGEND SERIES LIFTS L-325 4-POINT ANCHORING SYSTEM New Construction or Saw Cut INSTALLATION MANUAL Patent Pending November 2013...
  • Page 15 LEGEND SERIES L-325 4-POINT ANCHORING SYSTEM INSTALLATION Patent Pending PARTS LIST 1 - Anchor Plate with bonding Lug & bolt  4 - 5/8” x 1” Stainless Steel Bolts  4 - 6” Anchoring Rods  4 – Plastic Caps ...
  • Page 16 ANCHORING PLATE, ANCHORS & BONDING LUG 5/8” x 1” Bolts November 2013...
  • Page 17 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 18 LEGEND SERIES L-325 – 4 POINT ANCHORING SYSTEM Water Pool Wall Front of Anchor Plate can be placed 6” to 10” from water’s edge depending on you application 3’ Overview Anchor Plate Section Detail 3’ 3’ 6” Threaded Anchor’s Cold Pin 6”...
  • Page 19 Step 1: Determine the location for installation (Make sure all ADA requirements are met). ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.*** Step 2: Make sure that all the parts are present (Refer to the parts list) 1 - Anchor Plate with Bonding Lug &...
  • Page 20 Step 6: Place the Anchor Plate in the area, make sure that the front of the Anchor Plate is 6” to 10” from the water’s edge and that the decal’s arrow on the anchor plate is pointing to the water’s edge (refer to overview). A key element is to make sure that the Anchor Plate is level and square with the pool so that your Commercial Series Lift sits properly on the deck.
  • Page 21 Fixed Anchor Legend Series L-325 Pre-drilled holes on the base of the L-325 Position the lift in the location to be installed. Locate the 4 pre-drilled holes on the base of the lift. Now mark the concrete so you will know where to drill. Remove the lift and set aside.
  • Page 22 GLOBAL LIFT CORP INSTALLATION MANUAL Legend Series Lifts...
  • Page 23 L-325 Assembly Steps Main Components – Lift Seat tube 1. Insert the seat tube into the upper hole on the lift, ensuring the tube is inserted into the side with the protruding tube as shown above. 2. The seat tube will have to be cranked in a clockwise direction to thread thru the brass bushings.
  • Page 24 4. Tighten nut until snug against the bushing. Do not over tighten. 5. Locate the seat stabilizer bar, and raise it up and behind the triangle so that the bar is situated in between the triangle, and the main beam. 6. Insert the bolt that is pre-attached, ensuring that the 3 nylon washers are spaced in between the nut, the triangle and bar, and the bolt head.
  • Page 25 GLOBAL LIFT CORP INSTALLATION MANUAL SEAT AND FOOT REST PARTS LIST  1 - Seat  1 - Foot Rest  2 – Arm Rests  1 - Seat Belt & Buckle  3 – 5/16 x 3” Attaching Pin with lock nut ...
  • Page 26 INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: • Foot Rest and Tube • 3 - 5/16” x 3” Bolt with Lock nut...
  • Page 27 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), With 3 pre-drilled holes as shown. Step 3: Once you have the seat in place, take one 5/6” x 3” bolt and slide it through the pre-drilled Holes (Picture B).
  • Page 28 INSTALLATION STEPS Step 4: Locate the other 2- 5/16 x 3” securing bolts (supplied), insert the bolt through the pre-drilled Seat and tube holes (As shown Above). Once you have the bolts inserted, secure the installation With the lock nuts that are provided and tighten down.
  • Page 29 Slot. In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Lift Corp pool lift.
