DROP IN ANCHOR METHOD
C-375/C-450
COMMERCIAL SERIES LIFTS
INSTALLATION MANUAL
The Drop In Anchor System does not allow for a bond. You can
Bond directly to the lift with the bonding lug provided or some
alternate means. Please contact your local electrical inspector
Before installing any anchoring systems
Feb 2012
Drop In Anchor/COMMERCIAL SERIES
Advertisement
Table of Contents
Related Manuals for global lift corp COMMERCIAL SERIES
Summary of Contents for global lift corp COMMERCIAL SERIES
- Page 1 The Drop In Anchor System does not allow for a bond. You can Bond directly to the lift with the bonding lug provided or some alternate means. Please contact your local electrical inspector Before installing any anchoring systems Feb 2012 Drop In Anchor/COMMERCIAL SERIES...

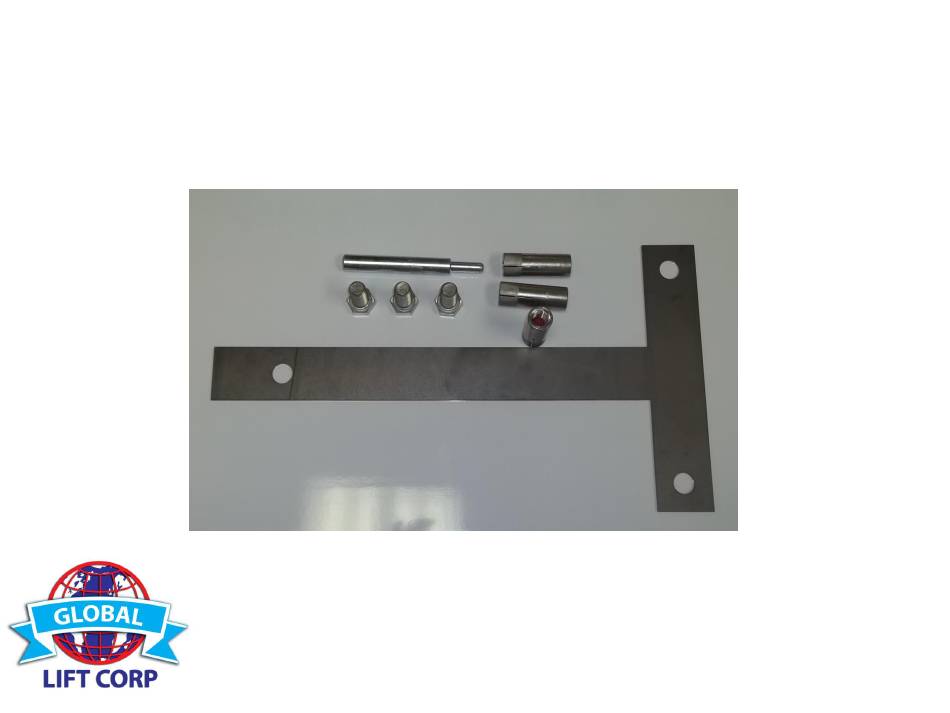

- Page 2 PACKING LIST • 3 – Drop In Anchor’s • 3 – 5/8”x 1” Bolts • 1 – T – Shaped Template • 3 – Black Caps • 1 – Bonding Lug w/ nut & bolt Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
- Page 3 12 inches (305 mm) behind the rear edge of the seat. The clear deck space shall have a slope not steeper than 1:48. •Submerged Depth. The lift shall be designed so that the seat will submerge to a water depth of 18 inches (455 mm) minimum below the stationary water level. Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
- Page 4 From the water’s edge. Also make sure that the front holes are parallel to the pools edge. ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
- Page 5 Front holes 8” from centerline from hole to hole (see above). The measurement from front to back should be 15” from Centerline of each hole (see above). Clean hole with pressurized Air or a vacuum. Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
- Page 6 • Global Lift has provided a bonding lug that you will need to drill & attach to the lift, due to there is no means to bond to the drop in anchor’s. Please check local & state codes. • Now you are ready to install your Commercial Series Lift. Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
