Lefroy Brooks R1-4022 Installation, Operating,  & Maintenance Instructions

Lefroy Brooks R1-4022 Installation, Operating, & Maintenance Instructions

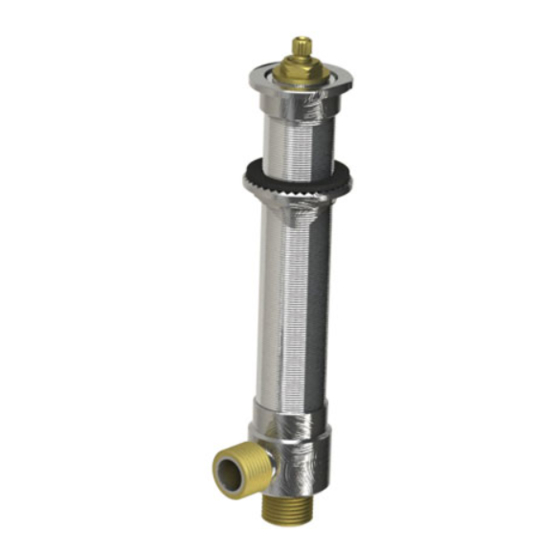

Deck bath spout rough, to suit m1-1029 & m2-1029

Advertisement

Quick Links

INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
R1-4022
DECK BATH SPOUT ROUGH, TO SUIT M1-1029 & M2-1029

Advertisement

loading
Need help?

Need help?

Do you have a question about the R1-4022 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lefroy Brooks R1-4022

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS R1-4022 DECK BATH SPOUT ROUGH, TO SUIT M1-1029 & M2-1029...
  • Page 2 Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...
  • Page 3 in Inches (& Millimetres) Ø 7/8" (Ø22mm) 1 13/16-20UN-2A Ø1 15/16" (Ø49mm) 3/4-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 4 Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Remove the protective bubble bag, cap, top mounting nut from body assembly, and remove plug from spout tube assembly.
  • Page 5 Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Adjust position of the body relying on specific gauge (A, B, C) supplied as the figure indicated to make sure it can fit with the trim in various ranges.
  • Page 6: Exploded View

    Exploded view Adaptor (039008) Rubber protective cap (038103) Gauge B (027104) Plug (028211) Gauge A (027105) O-ring (072060N) Gauge C (027107) O-ring (063060) Nut (009333) Oil-seal (010023) Nut (054027) Shank (014581) O-ring (063091N)
  • Page 7 Fault Cause Rectification Drips from spout. Gasket is misfitted or damaged. Check for gasket placement.
  • Page 8: Routine Maintenance

    Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.
  • Page 9: Guarantee Period

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
