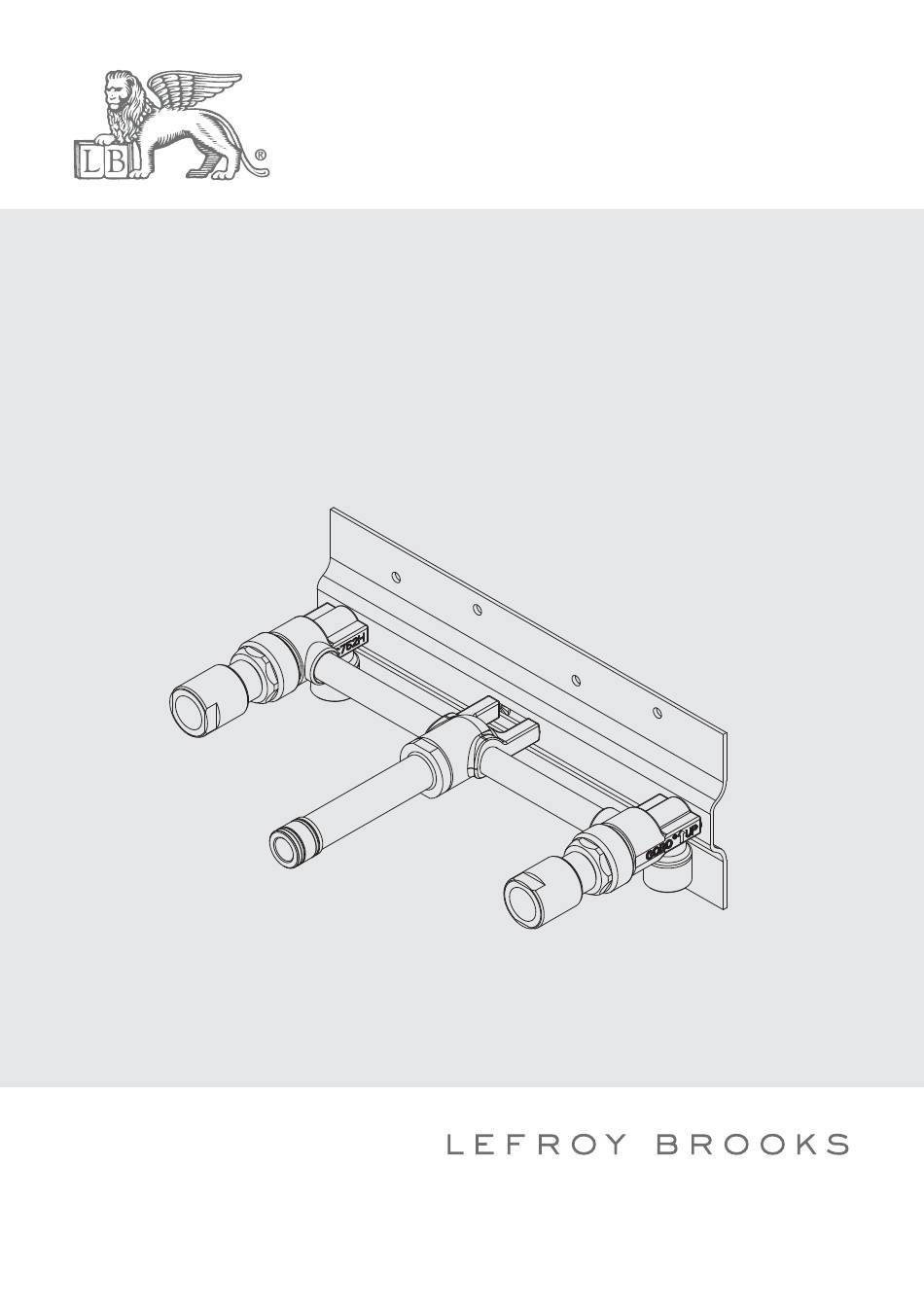

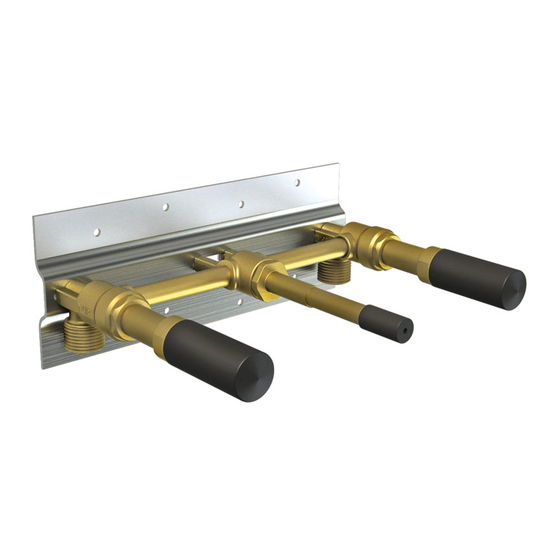

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS R1-4016 LEVER WALL-MOUNTED 3-HOLE BASIN MIXER ROUGH TO SUIT M2-1111 & M2-1113...
- Page 2 Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...
- Page 3 in Inches (& Millimetres) 9 7/16" 3 5/8" (239mm) (92mm) Wall surface Protective Cap Ø9/16" (Ø15mm) Protective Cap M24X1.5-6g 7 15/16" Protective Cap (202mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 4 Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Wall surface Protective cap Protective cap 3-Ø30mm~35mm 101.6 101.6 Before installation, make sure that the 2 distance between rough and wall is as indicated in the above figure.
- Page 5 Step 3 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Connect the inlets with water supply.
-
Page 6: Exploded View
Exploded view Adaptor (067733) Protective cap (038007) Body (002727W) Retaining nut (016231) O-ring (004026N) Protective cap (045160) Cartridge ( H ) (507071W) Adaptor (067732W) Back plate (126671-S) O-ring (004010N) Screw (008013) Cartridge ( C ) (507072W) - Page 7 Fault Cause Rectification Drips from spout. Gasket is misfitted or damaged. Check for gasket placement. Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged.
-
Page 8: Safety Tips
Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 9: Guarantee Of Quality
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
