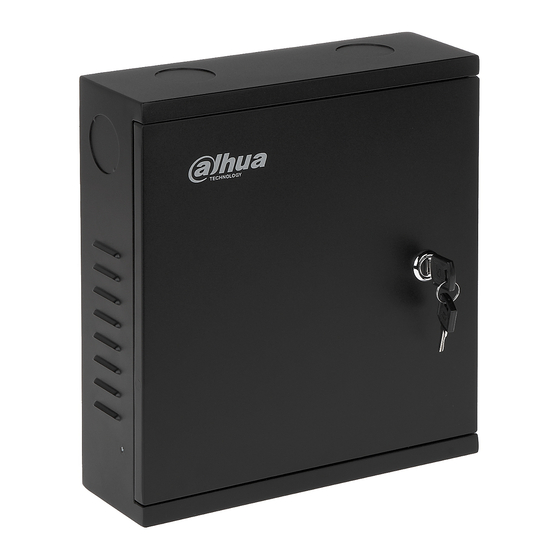

Dahua ASC1204C-S User Manual

Four-door one-way access controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Four-door One-way Access Controller
User's Manual
V1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASC1204C-S and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua ASC1204C-S

Summary of Contents for Dahua ASC1204C-S

  • Page 1 Four-door One-way Access Controller User’s Manual V1.0.0...

  • Page 2: Cybersecurity Recommendations

    Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible.
  • Page 3 ● Only forward the HTTP and TCP ports that you need to use. Do not forward a huge range of numbers to the device. Do not DMZ the device's IP address. ● You do not need to forward any ports for individual cameras if they are all connected to a recorder on site;...
  • Page 4 Ideally, you want to prevent any unauthorized physical access to your system. The best way to achieve this is to install the recorder in a lockbox, locking server rack, or in a room that is behind a lock and key. 15.

  • Page 5: Regulatory Information

    Regulatory Information FCC Information CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC conditions: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.

  • Page 6: Foreword

    Foreword General This document elaborates on structure, installation and wiring of four-door one-way access controller. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in death or serious injury.
  • Page 7  All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the Manual. Please contact the customer service for the latest program and supplementary documentation. ...

  • Page 8: Important Safeguards And Warnings

    Important Safeguards and Warnings The following description is the correct application method of the device. Please read the manual carefully before use, in order to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement ...

  • Page 9: Table Of Contents

    Table of Contents Cybersecurity Recommendations ......................II Regulatory Information ..........................V Foreword ..............................VI Important Safeguards and Warnings ....................VIII 1 Overview .............................. 1 Functional Feature ........................1 External Dimension ........................1 2 Installation Guide ..........................3 System Structure........................... 3 Device Installation .........................
  • Page 10 Question: Max. wiring distance and transmission distance of card reader and controller..25 5 Technical Parameters ........................26 Table of Contents X...

  • Page 11: Overview

    Overview Four-door one-way access controller is a controlling device which compensates video surveillance and visual intercom. It has neat and modern design with strong functionality, suitable for commercial building, corporation property and intelligent community. Functional Feature Its rich functions are as follows: ...
  • Page 12 Overview 2...

  • Page 13: Installation Guide

    Installation Guide System Structure System structure of four-door one-way access controller, door lock and reader is shown in Figure 2-1. Device Installation Device installation diagram is shown in Figure 2-2 and Figure 2-3. The unit is mm. Installation Guide 3...
  • Page 14 Please ensure that device mounting surface is able to bear 3 times as many as the total weight of the device, bracket and accessories. Measure every hole distance and position according to holes at rear shell of the device, as shown in Figure 2-3; drill holes in the wall according to the measured positions. Embed expansion nuts and fix screws into the wall.

  • Page 15: Wiring Diagram

    Wiring Diagram 2.3.1 Wiring Description of Access Controller This device supports four-door in or out. In case of alarm input, trigger external alarm output device to give an alarm. Device wiring diagram is shown in Figure 2-4. 2.3.2 Wiring Description of Exit Button/Door Contact Corresponding wiring terminals of exit button and door contact are shown in Figure 2-5.

  • Page 16: Wiring Description Of Lock

    Table 2-1 Port Wiring Terminal Description PUSH1 Exit button of door 1 Shared by exit button of door 1 and door contact input of door 1 Door contact input of door 1 PUSH2 Exit button of door 2 Shared by exit button of door 2 and door contact input of door 2 Exit button+...
  • Page 17 shown in Figure 2-6, Figure 2-7 and Figure 2-8. Please refer to Table 2-2 for descriptions of wiring terminals. Table 2-2 Port Wiring Terminal Description COM1 Lock control of door 1 Lock control output port COM2 Lock control of door 2 Lock control of door 3 COM3 Installation Guide 7...

  • Page 18: Wiring Description Of Reader

    Port Wiring Terminal Description COM4 Lock control of door 4 2.3.4 Wiring Description of Reader 1 door only supports to connect one type of reader—485 or Wiegand. Please refer to Table 2-3 for descriptions of wiring terminals corresponding to readers. Take door 1 for example;...

  • Page 19: Wiring Description Of Alarm Output

    Port Wiring Terminal Description input detector and IR detector etc.. When external alarm is triggered, all doors are linked to be normally open. 2.3.6 Wiring Description of Alarm Output With 1-ch alarm output, after internal alarm input (such as door timeout) or external alarm input triggers an alarm, the alarm output device gives an alarm for 15s.

  • Page 20: Dip Switch

    Alarm Alarm Event Alarm Signal Input Alarm Signal Alarm Status Type Port Output Port be normally open. Intrusion alarm or unlock timeout alarm of no. 1 door Intrusion alarm or unlock timeout alarm of no. 2 door Intrusion alarm or unlock timeout alarm of no.

  • Page 21: Restart

    Restart Press restart button (as shown in Figure 2-4 to restart the device. Restart button is to restart the device, rather than modifying configuration. Installation Guide 11...

  • Page 22: Smartpss Config

    SmartPSS Config Access controller is managed with Smart PSS client, so as to realize control and right configuration of one door and door groups. This chapter mainly introduces quick configuration. For specific operations, please refer to User’s Manual of Smart PSS Client. Smart PSS client offers different interfaces for different versions.
  • Page 23 Input device segment and click “Search”. The system displays search results. Click “Refresh” to update device information.  Select a device, click “Modify IP” to modify IP address of the device. For specific  operations, please refer to User’s Manual of Smart PSS Client. Select the device that needs to be added, and click “Add”.

  • Page 24: Manual Add

    interface.  After completing adding, Smart PSS logs in the device automatically. In case of successful login, online status displays “Online”. Otherwise, it displays “Offline”. Table 3-1 Icon Description Click this icon to enter “Modify Device” interface and modify device info, including device name, IP/domain name, port, user name and password.
  • Page 25 Set device parameters. For specific parameter descriptions, please refer to Table 3-2. Table 3-2 Parameter Description It is suggested that device should be named by the Device Name monitoring zone, so as to facilitate maintenance. Select “IP/Domain Name”. Add devices according to Method to add device IP address or domain name.

  • Page 26: Add User

    Add User Add users and bind with cards, so as to distribute authority. In “New” interface, click “Access” to enter “Access” interface, and complete access config here. SmartPSS Config 16...

  • Page 27: Card Type

    3.3.1 Card Type Card type shall be the same with card issuer; otherwise, it fails to read card number. In “Access” interface, click and then click to set the card type, as shown in Figure 3-9 and Figure 3-10. SmartPSS Config 17...

  • Page 28: Single Add

    3.3.2 Single Add Add a single user, send a card and input user info. In “Access” interface, click , and then click , as shown in Figure 3-11. The system pops up “Add User” dialog box, as shown in Figure 3-12. SmartPSS Config 18...
  • Page 29 Add user info manually, including basic info, fingerprint info and details. Please refer to Table 3-3 for details. SmartPSS Config 19...

  • Page 30: Add Door Group

    Table 3-3 Parameter Description User ID (mandatory). Name (mandatory). Department (auto association). Card No.: input by card reader or input manually. Card type: general card, VIP card, guest card, patrol card, blacklist card and duress card. Card Password: it is used to open the door with card + password.
  • Page 31 Click “Add”. The system pops up “Add Door Group” dialog box, as shown in Figure 3-14. SmartPSS Config 21...

  • Page 32: Authorize

    Enter “Name”; select “Time Zone” and doors to be managed. Click “OK” to complete adding. Authorize Grant users authorities according to door group and user. 3.5.1 Authorize According to Door Group Select a door group, add corresponding users to the group, so all users in the group obtain authority of all doors in the group.

  • Page 33: Authorize According To User

    In the search list, select the user and add to user list. Click “OK” to finish authorization. The search list filters user info without card number.   In the user list, cancel the added user and delete the user’s authority. 3.5.2 Authorize According to User Select a user, distribute door group and grant door group authority to the user.
  • Page 34 Click The system pops up “Select Door Group” dialog box, as shown in Figure 3-18. Select the door group and click “OK” to finish authorization. SmartPSS Config 24...

  • Page 35: Faq

    For problems not included hereinafter, please contact local customer service personnel or consult headquarter customer service personnel. We will be always at your service. 1. Question: After power on, power indicator doesn’t turn on or the buzzer doesn’t respond. Answer: Please check whether power plug is inserted in place. Please pull it out and insert it again.
  • Page 36 Technical Parameters Parameter Specification Processor 32-bit ARM processor Memory capacity Max. number of user 100,000 Max. storage record 150,000 Communication port of reader Wiegand, RS485 Communication port of platform TCP/IP Number of connected reader 4 groups Working power supply Rated voltage 10V-15V DC, rated current 0.75A Period Holiday Card, card + password, password, card or...
