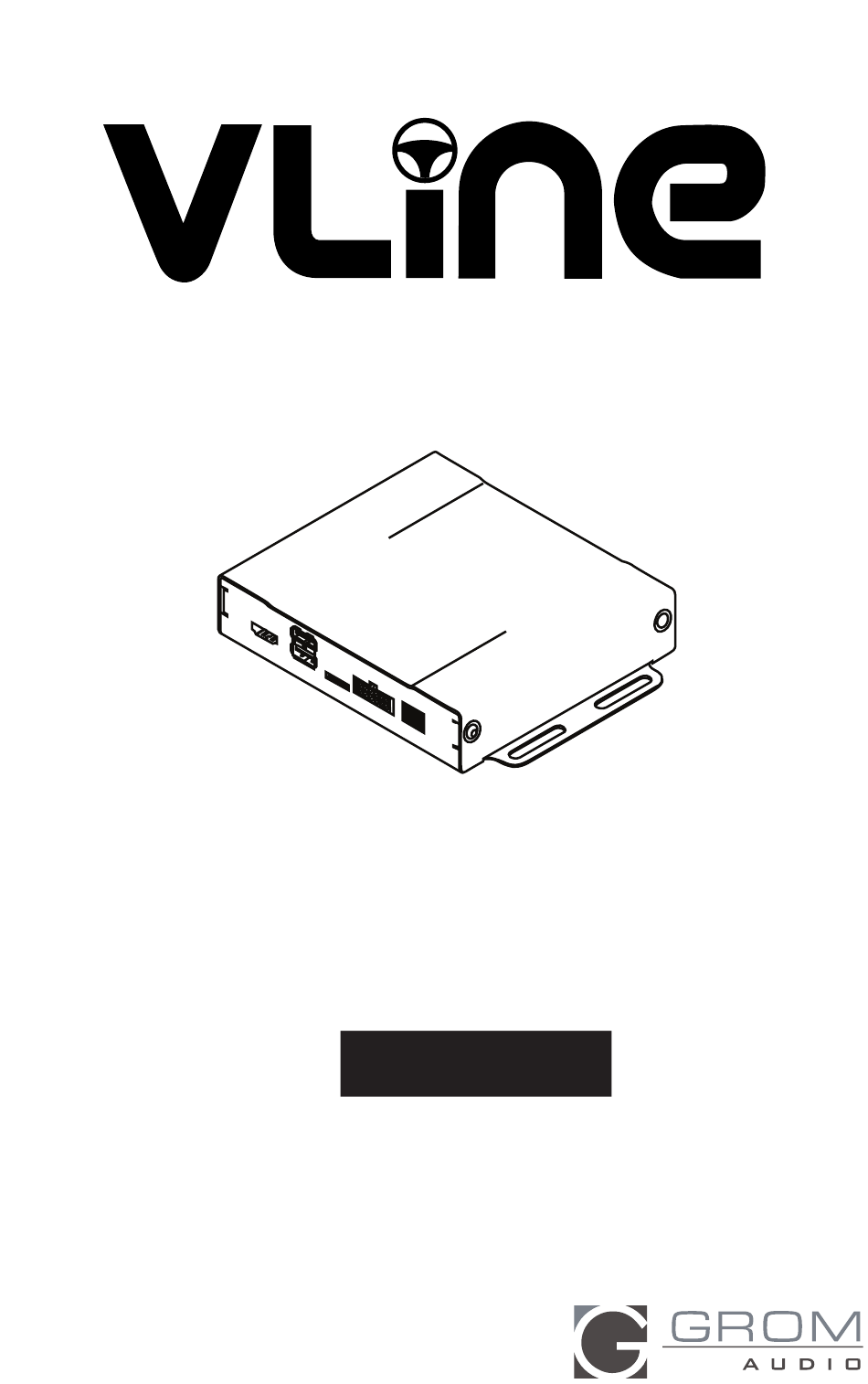

- Page 1 INSTALLATION MANUAL LEX5 www.gromaudio.com www.gromaudio.com/support.html...
-
Page 2: Table Of Contents
CONTENTS Package contents......................3 CHAPTER 1 — INSTALLATION.................3 1.1 Before Installation 1.2 Tools 1.3 Vehicle Installation 1.4 Safety Guidelines & Appropriate Use Connect supplied Display Harness Cable to factory Display....5 Connect VLine Interface cable to Factory Head unit......6 Connecting to VLine..................6 Routing the GPS Antenna..................7 Routing the Microphone..................8... -
Page 3: Package Contents
GROM-VLINE SYSTEM PACKAGE CONTENTS VLine module GVMF MCFTOY Display Harness Power Harness GPS Antenna Microphone USB Extension cable CHAPTER 1 — INSTALLATION 1.1 Before Installation Before starting work with any wiring, please wait 90 seconds after turning the Ignition to the OFF position and disconnecting the negative (-) terminal of the battery. -
Page 4: Safety Guidelines & Appropriate Use
wiring installation requires special technical skills and experience. If you do not feel comfortable doing the installation please consult with your local car audio shop or installation professional for instructions or assistance if necessary. Carefully remove the factory Stereo and Display out of the dash cavity with proper tools. -
Page 5: Connect Supplied Display Harness Cable To Factory Display
Connect supplied Display Harness Cable to factory Display Locate BLUE Display port on rear of Multi Display ECU. If the port is Empty, plug in supplied video cable (GVMF) into port and leave female portion of cable with nothing attached. If there is cable plugged in, disconnect factory Display cable (typically Blue in color). -
Page 6: Connect Vline Interface Cable To Factory Head Unit
Connect VLine Interface cable to Factory Head unit Located 12-pin connector and unplug. Plug in supplied Power Audio Wiring Harness Interface cable (MCFTOY). Reconnect back what was disconnected from the rear of the stereo back into the female plug of the supplied interface cable. -
Page 7: Routing The Gps Antenna
Routing the GPS Antenna The GPS Antenna module is magnetic as well as supplied with double sided tape. It can be mounted to the top of dashboard or to outside of vehicle whichever you prefer. Route to desired location. We recommend mounting on inside of vehicle on passenger side of the Dashboard as shown below. -
Page 8: Routing The Microphone
Routing the Microphone Route microphone to a location where it will be able to pick up voice clearly. We recommend to mount MIC nearby the rear view mirror but not directly on windshield glass. Avoid sticking to the hard surface as it will pick up more noise. -
Page 9: Mounting The Vline Module
Mounting the VLine Module Mount module in location free of any moving parts. We strongly recommend mounting the module in an easily accessible location such as the glove compartment for easy access to the USB ports and in case of needing to upgrade firmware on the VLine module. -
Page 10: Understanding Vline Ports
Understanding VLine Ports WiFi / Bluetooth Not Used Antenna USB1 iPhone GPS / AV / Camera Input USB 1 HDMI IN HDMI OUT USB 2 CAMERA AV1 HDMI Input MicroSD Card Microphone (Pin side up*) USB2 OTG/USB storage USB1 iPhone connection Any other USB device (Keyboard / Mouse) USB2 USB flash drive... -
Page 11: Chapter 2 - Getting Started
CHAPTER 2 — GETTING STARTED 2.1 Initializing After connecting the VLine module to the stereo, an Ignition Cycle will have to be performed for the stereo to discover Vline and allow Vline to self configure. To INITIALIZE: 1. Put Ignition Switch to “ACC” or “ON” position 2. -
Page 12: Support
Adjusting Audio Bass, Treble, Balance/Fade for VLINE Mode. To adjust, press SCAN button 3 (three) times. Factory display will switch from VLine Interface into factory CD changer interface to adjust Audio settings. Press SCAN button 3 (three) times again to switch back into VLine Interface mode again Track selection can be done with the stereo’s SEEK TRACK ^ and v buttons or steering wheel buttons. -
Page 13: Warranty
Unless otherwise prescribed by law, GROM Audio shall not be liable for any personal injury, property damage and or any incidental or consequential damages of any kind (including water damage) resulting from malfunctions, defects, misuse, improper installation or alteration of this product. -
Page 14: Grant Of License
NOT INHERENTLY DANGEROUS AND DO NOT PROVIDE ANY INHERENT RISKS AND THEREFORE POTENTIAL DAMAGES TO THE END-USER, OTHER THAN ‘Fitness for its Purpose’. As manufacturers continuously develop and modify stereo receiver models, they may cause you to experience some technical difficulties. - Page 15 IN CONNECTION WITH ANY BUSINESS, LOSS OF ANY GOODWILL, OR DAMAGES. THE TERM ‘INCIDENTAL DAMAGES’ REFERS TO THE EXPENSES OF TRANSPORTING THE PRODUCTS TO THE GROM AUDIO SERVICE CENTER, LOSS OF THE END-USERS [ORIGINAL PURCHASER’S] TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHER COSTS RELATED TO THE CARE AND CUSTODY OF THE PRODUCT.
- Page 16 - a reasonable, safe and appropriate manner considering all the circumstances associated with that use. You agree not to use the GROM Product: - for any illegal, non-personal or unauthorized purpose, - in a manner that could damage or cause risk to GROM Audio business,...
- Page 17 - in a manner that would distract the driver or that may otherwise cause injury or death to vehicle occupants or bystanders. GROM Audio is not in any way responsible for any such use by you. In all cases, GROM Audio may limit or revoke your use for any reason and at any time.
- Page 18 GROM AUDIO does not warrant or endorse and does not assume and will not have any liability or responsibility to you or any other person for any Third Party Materials or for any other materials, products, or services of third parties.
- Page 19 GROM AUDIO. Quantities are subject to availability. E. ENTIRE AGREEMENT. These terms and conditions constitute the entire...
- Page 20 IF YOU DO NOT AGREE WITH THESE TERMS AND PURCHASED DIRECTLY FROM GROM AUDIO PLEASE RETURN THE GROM PRODUCTS IN ORIGINAL CONDITION AND IN ORIGINAL PACKAGE WITHIN FIVE (5) BUSINESS DAYS OF RECEIPT OF THE PRODUCTS FOR A FULL REFUND OF THE PURCHASE PRICE OF GROM PRODUCTS (SHIPPING COSTS NON REFUNDABLE).
