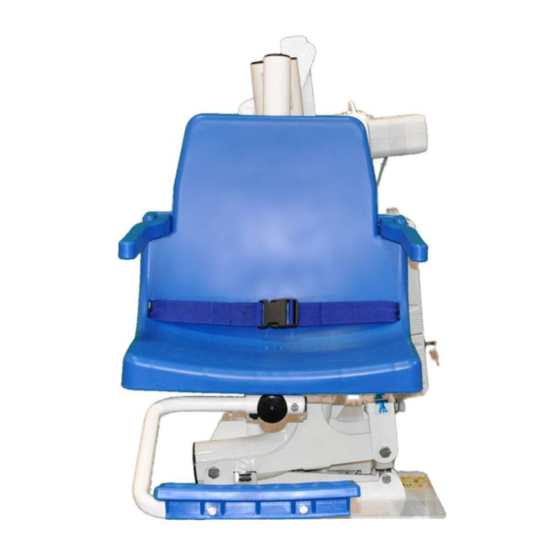

Global Lift Commercial Series Owner's Manual
  1. Manuals
  2. Brands
  3. Global Lift Manuals
  4. Lifting Systems
  5. Commercial Series
  6. Owner's manual

Global Lift Commercial Series Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
GLOBAL LIFT CORP
Owner's Manual
Commercial Series C-375
Commercial Series C-450
684 N Port Crescent Rd
Suite C
Bad Axe, MI 48413
Toll Free: 866-712-0606
Fax: 989-269-5902
www.globalliftcorp.com
Page | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Commercial Series and is the answer not in the manual?

Questions and answers

Related Manuals for Global Lift Commercial Series

Summary of Contents for Global Lift Commercial Series

  • Page 1 GLOBAL LIFT CORP Owner’s Manual Commercial Series C-375 Commercial Series C-450 684 N Port Crescent Rd Suite C Bad Axe, MI 48413 Toll Free: 866-712-0606 Fax: 989-269-5902 www.globalliftcorp.com Page | 1...

  • Page 2: Table Of Contents

    COMMERCIAL SERIES POOL LIFTS C-375 C-450 TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 COMMERCIAL SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE – 7 TROUBLESHOOTING PAGE –...

  • Page 3: Introduction

    Your Number One Choice for Commercial Pool Access Equipment Global Lift Corp. is located in Mid-Michigan, Global Lift Corp. prides itself in manufacturing top of line quality aquatic access equipment. Global Lift Corp's key staff has a century of combined industry experience and we take pride in each and every product that we build.
  • Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT 1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). 2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.

  • Page 5: Volt Battery System/With Controls

    24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Lift Corp’s Commercial Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts right above the control compartment and the battery simply snaps in.
  • Page 6 COMMERCIAL SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Commercial Series Pool Lift perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts...
  • Page 7 Maintenance Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery if needed Test for normal operations Inspect your lift Clean and dry the lift and seat with clean water Cover lift after use Weekly...
  • Page 8 TROUBLESHOOTING GUIDE Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower (a) Check the battery connection and reconnect (b) Check hand controls, make sure they are connected properly (c) Check for any lose wires on the control compartment (d) Check the connection cable for damage (e) Check the battery with a multi-meter to determine if the battery has at least 24 volts of power.
  • Page 9 The Superior series lift has a 5 year structural limited warranty. Global Lift Corp warrants to the original retail end user only products manufactured by Global Lift Corp, when properly installed in accordance to the...
  • Page 10 Global Lift Corp’s decision regarding the claim. If the request made by Global Lift Corp for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Lift Corp at...
  • Page 11 Global Lift Corporation or directly to Global Lift Corporation. All RGA (Return Goods Authorization) documents shall be requested by and issued only to the distributor which originated the sale or directly to Global Lift Corporation. Global Lift Corporation shall determine warranty coverage validation and replacement parts or repair, which were directed to the distributor which originated the sale or that are initiated directly with Global Lift Corporation.

  • Page 12: Warranty Registration

    I have read and I accept the warranty terms. Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Lift Corp within 30 days of purchase date to assure coverage. Please mail to: Global Lift Corp, 684 N Port Crescent Suite C, Bad Axe, MI 48413...

  • Page 13: Tri Point Anchor System

    COMMERCIAL SERIES LIFTS TABLE OF CONTENTS 1. TRI-Point Anchor System 2. TRI-Point Paver Instruction Anchor Method 3. TRI-Point Retro-Fit Anchor System 4. TRI-Point Drop In Anchor System 5. Commercial Series Portable Kit 6. Seat Installation February 2012...
  • Page 14 COMMERCIAL SERIES LIFTS C-375/C-450 TRI-POINT ANCHORING SYSTEM New Construction or Saw Cut INSTALLATION MANUAL Patent Pending February 2012...
  • Page 15 COMMERCIAL SERIES C-375/C-450 TRI-POINT ANCHORING SYSTEM INSTALLATION Patent Pending PARTS LIST 1 - Anchor Plate with bonding Lug & bolt  3 - 5/8” x 1” Stainless Steel Bolts  3 - 6” Anchoring Rods  3 – Plastic Caps ...
  • Page 16 ANCHORING PLATE, ANCHORS & BONDING LUG 5/8” x 1” Bolts February 2012...
  • Page 17 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 18 COMMERCIAL SERIES C-375/C-450 – TRI POINT ANCHORING SYSTEM Water Pool Wall Front of Anchor Plate can be placed 11” to 16” from water’s edge depending on you application 3’ Overview Anchor Plate Section Detail 3’ 3’ 6” Threaded Anchor’s Cold Pin 6”...
  • Page 19 Step 1: Determine the location for installation (Make sure all ADA requirements are met). ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.*** Step 2: Make sure that all the parts are present (Refer to the parts list) 1 - Anchor Plate with Bonding Lug &...
  • Page 20 Step 9: After the concrete has set for 48 hours, now it’s time to install your lift. Place your Commercial Series Lift over the anchor holes, screw in the Anchor bolts that are included and tighten down securely. Once you have completed the installation, please refer to User’s Manual for a safe operation.
  • Page 21 SCALE: 1:12 DATE: 8/13/2012 DWR: B.E. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN PART OR AS A MATERIAL: WHOLE WITHOUT THE PERMISSION OF Global Lift Corp. IS PROHIBITED. APVD. BY: S.S.
  • Page 22 COMMERCIAL SERIES LIFTS C-375/C-450 RETRO-FIT ANCHORING METHOD INSTALLATION MANUAL Feb 2012 RETRO-FIT/COMMERCIAL SERIES...
  • Page 23 RETRO-FIT ANCHORING METHOD C-375/C-450 COMMERCIAL SERIES LIFTS PACKING LIST • 3 – Threaded Anchor’s with base • 3 – 5/8” Nuts • 3 – 5/8”x 1” Bolts • 3 – Bonding lugs w/nut & bolts • 3 – Plastic Caps •...
  • Page 24 12 inches (305 mm) behind the rear edge of the seat. The clear deck space shall have a slope not steeper than 1:48. •Submerged Depth. The lift shall be designed so that the seat will submerge to a water depth of 18 inches (455 mm) minimum below the stationary water level. RETRO-FIT/COMMERCIAL SERIES Feb 2012...
  • Page 25 • The dimensions are as follows: Front of the Template must be 12” to 17” from the water’s edge, also make sure that the front holes are parallel to the pools edge. ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
  • Page 26 Out the debris and make the holes are free from concrete. Double check your measurements they should be: Front holes 8” from centerline from hole to hole (see above). The measurement from front to back should be 15” from Centerline of each hole (see above) Feb 2012 RETRO-FIT/COMMERCIAL SERIES...
  • Page 27 • Place the assembly in your drilled holes as shown in picture B. make sure that the top Of the anchor rods are flush and level with the existing concrete, also with connecting the Bonding lugs to the bonding grid according to the local codes and ordinances Feb 2012 RETRO-FIT/COMMERCIAL SERIES...
  • Page 28 • Let the concrete set for 24hrs, Remove the template then sand the area with a sand stone to smooth the finish. Make sure the anchor’s are flush with the concrete (picture B) • You are now ready to install your Commercial Series lift. Feb 2012 RETRO-FIT/COMMERCIAL SERIES...
  • Page 29 The Drop In Anchor System does not allow for a bond. You can Bond directly to the lift with the bonding lug provided or some alternate means. Please contact your local electrical inspector Before installing any anchoring systems Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
  • Page 30 PACKING LIST • 3 – Drop In Anchor’s • 3 – 5/8”x 1” Bolts • 1 – T – Shaped Template • 3 – Black Caps • 1 – Bonding Lug w/ nut & bolt Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
  • Page 31 12 inches (305 mm) behind the rear edge of the seat. The clear deck space shall have a slope not steeper than 1:48. •Submerged Depth. The lift shall be designed so that the seat will submerge to a water depth of 18 inches (455 mm) minimum below the stationary water level. Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
  • Page 32 From the water’s edge. Also make sure that the front holes are parallel to the pools edge. ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
  • Page 33 Front holes 8” from centerline from hole to hole (see above). The measurement from front to back should be 15” from Centerline of each hole (see above). Clean hole with pressurized Air or a vacuum. Feb 2012 Drop In Anchor/COMMERCIAL SERIES...
  • Page 34 (shown in picture B). • Global Lift has provided a bonding lug that you will need to drill & attach to the lift, due to there is no means to bond to the drop in anchor’s. Please check local &...
  • Page 35 GLOBAL LIFT CORP C-375/C-450 COMMERCIAL SERIES PORTABLE KIT Feb 2012 Portable Kit - www.globalliftcorp.com...
  • Page 36 COMMERCIAL SERIES C-375/C-450 PORTABLE KIT PARTS LIST • 4 – 1/4 x 3/4” Carriage Bolts w/ lock nuts • 2 – 5/16 x ¾” Bolts w/ lock nuts • 6 – Lock Nuts • 2 – Stabilizer Bars • 1 – Lifting Unit •...
  • Page 37 COMMERCIAL SERIES – C375/C-450 PORTABLE KIT EASY INSTALLATION • INSTALLING THE STABILIZER BARS 1. Insert the four 1/4 x 3/4 carriage bolts (provided) from underneath the lift in the pre-punched square holes on both ends of the lift. 2. Place the two stabilizer bars onto the bolts (as shown in picture B).
  • Page 38 COMMERCIAL SERIES – C375/C450 PORTABLE KIT EASY INSTALLATION • INSTALLING THE LIFTING UNIT On the “opposite” side of the stabilizer bars locate the four pre-punched square holes. Place the 2 – 5/16 x 3/4” carriage bolts (provided) in the pre-punched square holes from underneath the lift.
  • Page 39 COMMERCIAL SERIES – C375/C450 PORTABLE KIT EASY OPERATION • OPERATING THE COMMERCIAL SERIES PORTABLE KIT Once you make sure all the components are securely fastened, Locate the operating handle on The portable kit. When your lift is in use, the portable kit should be in the up Position and the lift is secured to the deck with the 3 anchor Bolts.
  • Page 40 GLOBAL LIFT CORP CUSTOM SEAT INSTALLATION MANUAL C, P & S Series Lifts...
  • Page 41 GLOBAL LIFT CORP CUSTOM SEAT INSTALLATION MANUAL PARTS LIST  1 - Custom Seat  1 - Foot Rest  2 – Arm Rests  1 - Seat Belt & Buckle  1 – ½” x 2 3/4” Securing Bolt ...
  • Page 42 INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: • Foot Rest and Tube • ½” x 3” Bolt w/ lock nut • 5/16” x 2 ¾” Bolt with Lock nut...
  • Page 43 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), slide the lower seat tube into the upper Seat tube. Step 3: Once you have the seat in place, take your ½” x 3” bolt and slide it through the pre-drilled Holes (Picture B).
  • Page 44 INSTALLATION STEPS Step 4: Locate the 5/16 x 3” securing bolt (supplied), insert the bolt through the pre-drilled Seat and tube holes (As shown Above). Once you have the bolt inserted, secure the installation With the lock nut that is provided and tighten down.
  • Page 45 In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Lift Corp pool lift.
  • Page 46 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DWG. NO. TOLERANCES ARE: PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY MANUAL .125 X.
  • Page 47 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DWG. NO. TOLERANCES ARE: PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 BASE PLATES .125 X.
  • Page 48 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG. NO. PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C X. = $.125 FRACTIONAL DIMESIONSt-125 ASSEMBLY PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF XX.
  • Page 49 PROPRIETARY AND CONFIDENTIAL UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DWG. NO. TOLERANCES ARE: PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY .125 X.
  • Page 50 SCALE: 1:5 DATE:12/14/2016 DWR: B.E. THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN PART OR AS A MATERIAL: NOTED WHOLE WITHOUT THE PERMISSION OF Global Lift Corp. IS PROHIBITED. WEIGHT: LBS MACH WEIGHT: LBS APVD.
  • Page 51 PROPRIETARY AND CONFIDENTIAL UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DWG. NO. TOLERANCES ARE: PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY .125 X.
