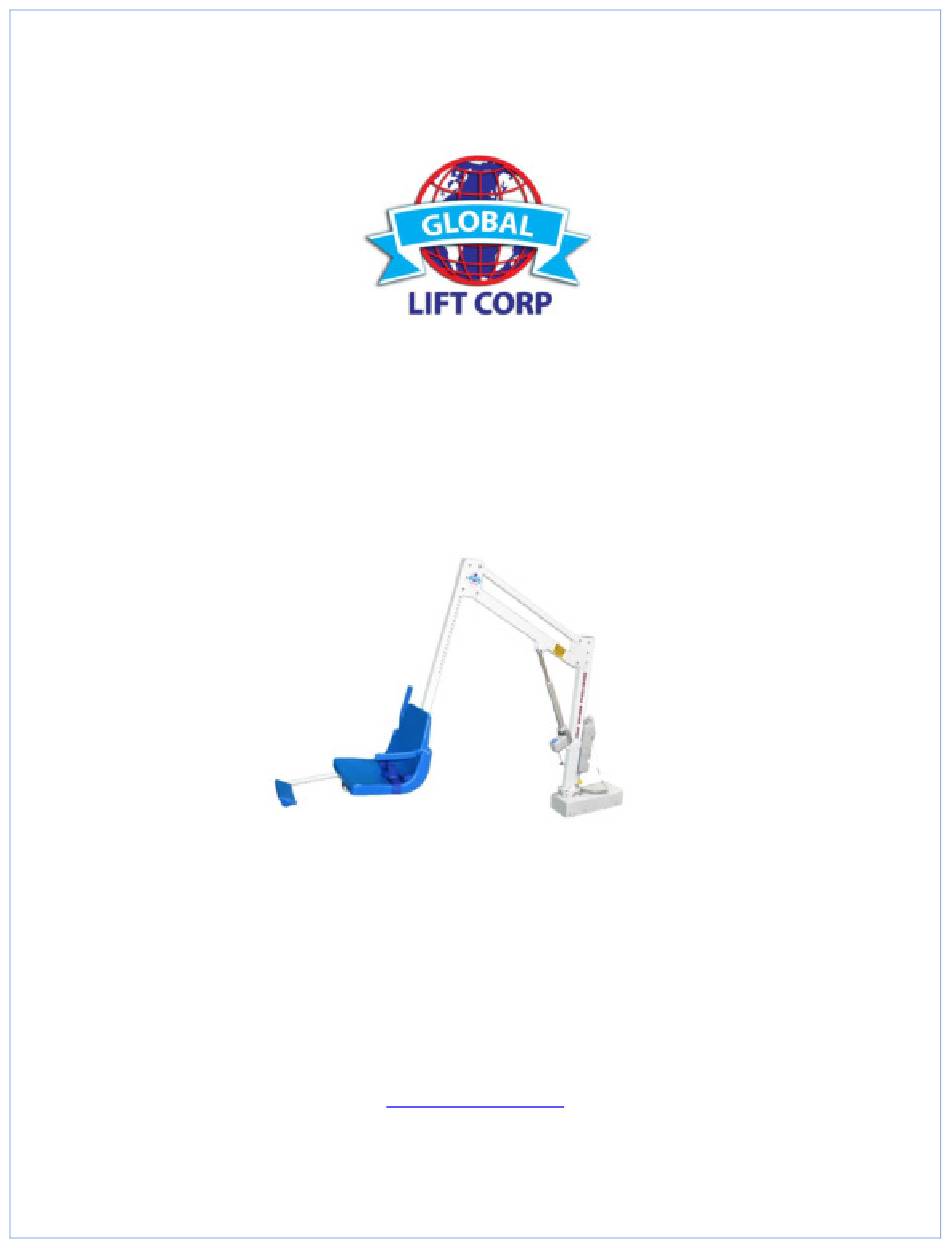

GLOBAL LIFT CORP
Owner's Manual
Rotational Series
R-450A
684 N Port Crescent Rd
Suite C
Bad Axe, MI 48413
Toll Free: 866-712-0606
Fax: 989-269-5902
www.globalliftcorp.com
Page | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rotational R-450A and is the answer not in the manual?

Questions and answers

Related Manuals for Global Lift Rotational R-450A

Summary of Contents for Global Lift Rotational R-450A

  • Page 1 GLOBAL LIFT CORP Owner’s Manual Rotational Series R-450A 684 N Port Crescent Rd Suite C Bad Axe, MI 48413 Toll Free: 866-712-0606 Fax: 989-269-5902 www.globalliftcorp.com Page | 1...
  • Page 2 ROTATIONAL SERIES POOL LIFTS R 450A TABLE OF CONTENTS PAGE – 3 INTRODUCTION PAGE – 4 ADA GUIDELINES FOR PLACEMENT PAGE – 5 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 6 ROTATIONAL SERIES OPERATING INSTRUCTIONS PAGE – 7 UNIT MAINTENANCE AND CARE PAGE –...
  • Page 3 Your Number One Choice for Commercial Pool Access Equipment Global Lift Corp. is located in Mid-Michigan, Global Lift Corp. prides itself in manufacturing top of line quality aquatic access equipment. Global Lift Corp's key staff has a century of combined industry experience and we take pride in each and every product that we build.
  • Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT 1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). 2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Lift Corp’s Rotational Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts right above the control compartment and the battery simply snaps in.
  • Page 6 ROTATIONAL SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Rotational Series Pool Lift, perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in the up position and the seatbelt is unbuckled, once acknowledged you are ready! Once you are in the seat, buckle the seatbelt (make sure it is snug) and lower the arm rails.
  • Page 7 Maintenance Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery Test for normal operations Inspect your lift Clean and dry the lift and seat with clean water Cover lift after use Weekly o Overview Daily Checklist...
  • Page 8 TROUBLESHOOTING GUIDE Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower (a) Check the battery connection and reconnect (b) Check hand controls, make sure they are connected properly (c) Check for any lose wires on the control compartment (d) Check the connection cable for damage (e) Check to see that the lock on the hand control is in the unlocked position.
  • Page 9 The Superior series lift has a 5 year structural limited warranty. Global Lift Corp warrants to the original retail end user only products manufactured by Global Lift Corp, when properly installed in accordance to the...
  • Page 10 Global Lift Corp’s decision regarding the claim. If the request made by Global Lift Corp for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Lift Corp at...
  • Page 11 Warranty Procedure Warranty Claims shall be submitted to Global Lift Corporation by the distributor which originated the sale with Global Lift Corporation. All RGA (Return Goods Authorization) documents shall be requested by and issued only to the distributor which originated the sale.
  • Page 12 I have read and I accept the warranty terms. Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Lift Corp within 30 days of purchase date to assure coverage. Please mail to: Global Lift Corp, 684 N Port Crescent Suite C, Bad Axe, MI 48413...
  • Page 13 Rotational Series Lifts Table of Contents 1. R450A New Construction Sleeve Anchor System 2. R450A Retro Fit Anchor Method 3. R450R New Construction Sleeve Anchor System 4. R450R Retro Fit Anchor Method 5. R375 New Construction Sleeve Anchor System 6. R375 Retro Fit Anchor Method New Construction/ Saw Cut Sleeve FEB 2012 Anchor R-450A...
  • Page 14 ROTATIONAL SERIES R-450A LIFT NEW CONSTRUCTION & SAW CUT SLEEVE ANCHORING SYSTEM INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits Your application. New Construction/ Saw Cut Sleeve FEB 2012 Anchor R-450A...
  • Page 15 ROTATIONAL SERIES R-450A SLEEVE ANCHORING SYSTEM INSTALLATION PARTS LIST  1 - Anchor Sleeve w/ Base  1 - Binding Screw  1 - Plastic Cap New Construction/ Saw Cut Sleeve FEB 2012 Anchor R-450A...
  • Page 16 ANCHORING SLEEVE, BASE PLATE & BINDING SCREW R-450A New Construction/ Saw Cut Sleeve FEB 2012 Anchor R-450A...
  • Page 17 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 18 ROTATIONAL SERIES R450A – SLEEVE ANCHORING SYSTEM Pool Wall Water CAUTION: Minimum anchor distance from a vertical obstacle is 13”, if 12”to 24” closer, The lift will hit while in operation Actual application 3’ Overview Anchor Sleeve Section Detail 3’ 3’...
  • Page 19 INSTALLATION STEPS R-450A Step 1: Determine the location for installation (Make sure all ADA requirements are met) Step 2: Make sure that all the parts are present (Refer to the parts list) 1 - Anchor Sleeve w/ Base   1 - Binding Screw ...
  • Page 20 Step 5: Place the Anchor Sleeve in the cut out area, make sure that the front of the Anchor Sleeve is 12” (min) to 24” (max) from the water’s edge or if an obstacle is present before the water. (refer to overview) A key element is to make sure that the Anchor Sleeve is level and square with the pool so that your Rotational Series Lift sits properly on the deck.
  • Page 21 ROTATIONAL SERIES R-450A LIFT RETRO-FIT SLEEVE ANCHORING METHOD INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits Your application. FEB 2012 RETRO-FIT Anchor R-450A...
  • Page 22 RETRO-FIT SLEEVE ANCHORING SYSTEM ROTATIONAL R-450A SERIES LIFT PACKING LIST • 1 – Anchor Sleeve w/ Base • 1 – Binding Screw • 1 – Plastic Cap FEB 2012 RETRO-FIT Anchor R-450A...
  • Page 23 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
  • Page 24 Before the water, the minimum distance is 12” and the maximum is 24” from the front of the anchor sleeve. See picture B ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
  • Page 25 R-450A Front edge of anchor sleeve Measure Distance to make sure It’s 12” minimum and 24” maximum from water’s edge or 13” min if an obstacle is present before the water Picture B Picture A Step 2: You will need a 5” diameter core drilling bit. •...
  • Page 26 R-450A STEP 3 : Cementing the anchor sleeve in the concrete. • You will need 10 lbs of Quick dry Anchoring Cement (Commercial Grade Quikrete Exterior Use Anchoring Cement) to complete the installation. You can purchase at any hardware store in your area. Read the label and follow manufacturer’s instructions. •...
  • Page 27 Fixed Anchor R-450A & R-450R Locate the tab and drop in anchor Place the tab on the metal plate Mark the spot where you will drill Now mark the concrete so you will know where to drill...
  • Page 28 Fixed Anchor Installation Instructions R-450A & R-450R 1. Always wear safety goggles. 2. Follow the drill manufacturer’s safety instructions. 3. Use only solid carbide-tipped bits meeting the ANSI B94-12 tip diameter (Use 5/8 dia drill bit). 4. Drill the hole perpendicular to the work surface. To assure full holding power do not ream the hole or allow the drill to wobble.
  • Page 29 GLOBAL LIFT CORP INSTALLATION MANUAL (Out of Box) R-Series Lifts Series Lifts...
  • Page 30 GLOBAL LIFT CORP INSTALLATION MANUAL (Out of Box) PARTS LIST  1 Part A – Main Unit with Motor  1 Part B – Horizontal Dual Bar Beam  1 Part C – Seat Bar  1 Part D - Seat ...
  • Page 31 INSTALLATION STEPS Picture 1 Step 1: Unpack your items (picture 1). Loose Items will consist of: • Part A Main Beam with Motor • Part B Horizontal Dual Bar Assembly • Part C Seat Bar • Part D Seat • Part E Foot Rest and Tube •...
  • Page 32 INSTALLATION STEPS Picture 3 Picture 2 Step 2: Insert Main Beam with Motor Into the Anchor Sleeve Picture 2 (Sleeve Anchor Pre-Installed Prior to Installation) Step 3: Attach Part B to Part A by removing bolts from Part B (which are already inserted). Attach Part B to Part A and tighten bolts (DO NOT OVERTIGHTEN) All bolts need to be tightened to approximately 20 lbs.
  • Page 33 INSTALLATION STEPS Picture 4 Picture 5 Picture 6 Step 4: Attach actuator to Part B beam into the actuator holder location. Picture 4. Step 5: Attach Part B beam to the Part C seat bar tube using the bolts that are in the tube Picture 5 &...
  • Page 34 GLOBAL LIFT CORP INSTALLATION MANUAL (Out of Crate) R-Series R-450A Lifts Series Lifts...
  • Page 35 GLOBAL LIFT CORP INSTALLATION MANUAL (Out of Crate) PARTS LIST  1 Part A – Main Unit with Motor (assembled)  1 Part B – Horizontal Dual Bar Beam (assembled)  1 Part C – Seat Bar  1 Part D - Seat ...
  • Page 36 INSTALLATION STEPS Picture 1 Step 1: Unpack your items (picture 1). Loose Items will consist of: • Part A Main Beam with Motor (assembled) • Part B Horizontal Dual Bar Assembly (assembled) • Part C Seat Bar • Part D Seat •...
  • Page 37 INSTALLATION STEPS Picture 2 Picture 3 Step 1: Attach Part B beam to the Part C seat bar tube using the bolts that are in the tube Picture 2 & Picture 3. Step 2: Continue to seat assembly instructions. (If not pre-assembled)
  • Page 38 GLOBAL LIFT CORP CUSTOM SEAT INSTALLATION MANUAL R-Series Lifts Series Lifts...
  • Page 39 GLOBAL LIFT CORP CUSTOM SEAT INSTALLATION MANUAL PARTS LIST  1 - Seat  1 - Foot Rest  2 – Arm Rests  1 - Seat Belt & Buckle  3 – 5/16 x 3” Attaching Pin with lock nut ...
  • Page 40 INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: • Foot Rest and Tube • 3 - 5/16” x 3” Bolt with Lock nut...
  • Page 41 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), With 3 pre-drilled holes as shown. Step 3: Once you have the seat in place, take one 5/6” x 3” bolt and slide it through the pre-drilled Holes (Picture B).
  • Page 42 INSTALLATION STEPS Step 4: Locate the other 2- 5/16 x 3” securing bolts (supplied), insert the bolt through the pre-drilled Seat and tube holes (As shown Above). Once you have the bolts inserted, secure the installation With the lock nuts that are provided and tighten down.
  • Page 43 Slot. In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Lift Corp pool lift.
  • Page 44 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG. NO. PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY MANUAL .125 X.
  • Page 45 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG. NO. PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY MANUAL .125 X.
  • Page 46 DIMENSIONS ARE IN INCHES SCALE 1 : 7 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG. NO. PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY MANUAL .125...
  • Page 47 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG. NO. PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY MANUAL .125 X.
  • Page 48 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE DWG. NO. TOLERANCES ARE: PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C ASSEMBLY MANUAL .125 FRACTIONAL DIMESIONS .125 X.
  • Page 49 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE TOLERANCES ARE: DWG. NO. PROPERTY OF Global Lift Corporation. ANY REPRODUCTION IN 684 N. Port Crescent, Suite C FRACTIONAL DIMESIONS .125 ASSEMBLY MANUAL .125 X.
